tes4me
tes4me
Manufacturer code:
035-2-001
Compare
Personal mobile 8-channel system for transcranial electrical stimulation.
Size
In stock
Overview
Specifications
Standard set
Sizes of cap
Transcranial Electrical Stimulator tes4me is a programmable portable 8-channel generator of electric current of modulated frequency and amplitude (hereinafter referred to as an electronic unit or stimulator) with control elements, a set of non-invasive stimulation electrodes and accessories. The product operates from an internal power source (battery).

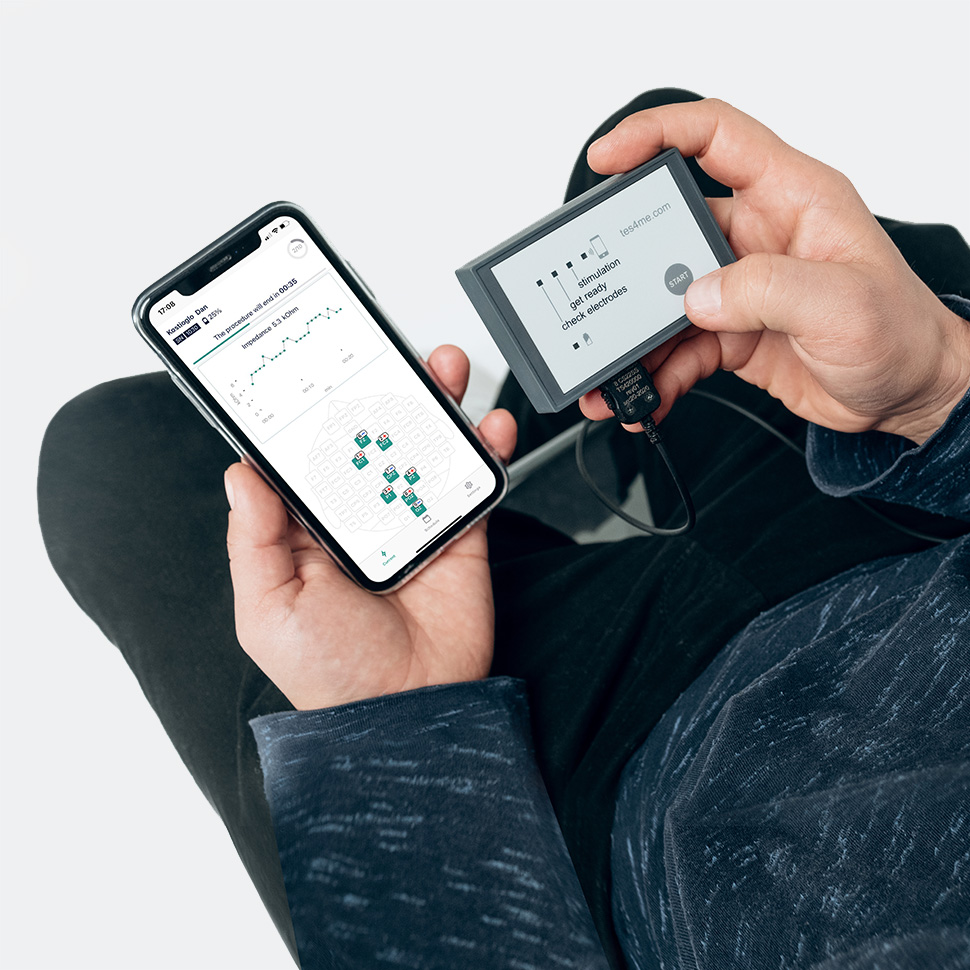

The operating mode and characteristics of electrical stimulation are set using special software and transmitted to the electronic unit via local wireless communication. The software is installed on a mobile device (phone, tablet) or PC.
| Channels | 8 |
| Max current | 4 mA |
| Stimulation current modes | Direct current (DC) (default), Alternating current (AC), Alternating current monopolar (ACM) |
| Shape (for AC and AC monopolar current) | Sine Random Square |
| Repetition of periods of current waveforms for modes AC, ACM | Continuously, BlockPause |
| DDS generator frequency / bit width | 8 kHz / 13 bit |
| Operating resistance range | Impedance – less than 8 kΩ |
| Checking the electrode connection before stimulation | Yes |
| Lower cutoff frequency at -3 dB (for Random mode) | from 10 to 500 Hz (set programmatically) |
| Upper cutoff frequency at -3 dB (for Random mode) | from 50 to 1000 Hz (set programmatically) |
| Wireless | BLE 4.2 |
| Power | Internal Li-ion battery (rechargeable) |
| Nominal battery voltage | 3.7 V |
| Nominal battery capacity | 0.9 Ah |
| Number of batteries in one unit of product packaging | 1 pc. |
| Charging of internal battery | from +5V USB adapter, 500 mA |
| Full battery charge time | ≤ 2.5 hours |
| Check of battery status | Yes. Hardware Intelligent based on counting charge current / discharge current / time and storage temperature |
| Material of electrode conductive surface | Low Corrosion Stainless Steel AISI 316 |
| Surface area of contact of the electrode substance with the skin | 380 mm2 |
| Time of continuous work | not less than 8 hours |
-

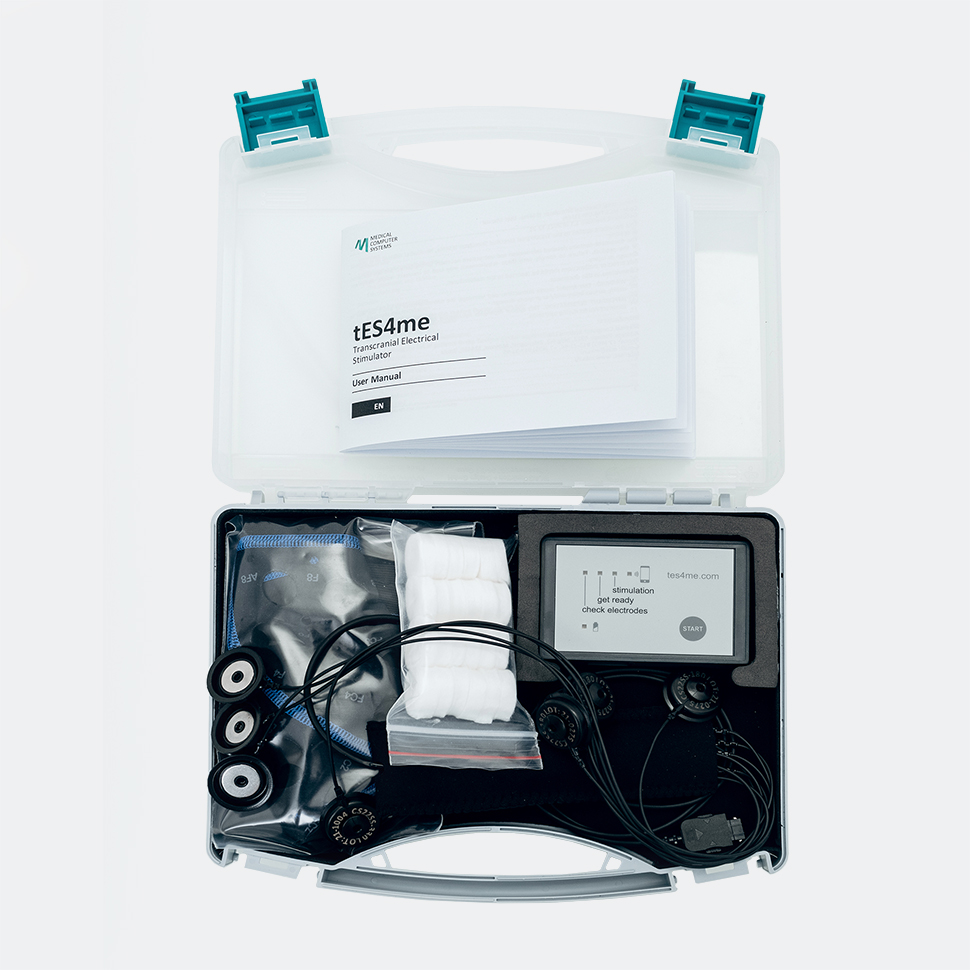

Electrical stimulator unit tes4me - 1 pc.
-
Lead cable – 1 pc.
-
Lead cable retainer – 1 pc.
-
Electrodes for stimulation – 8 pcs.
-

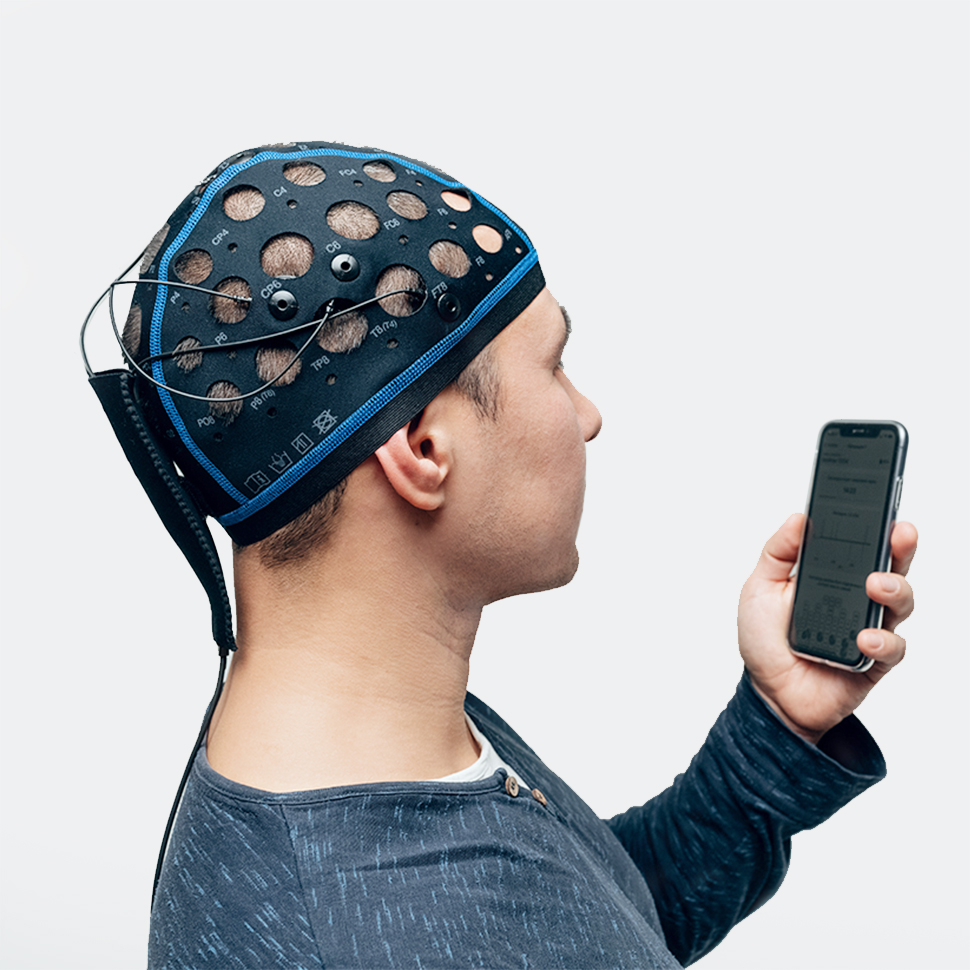

Textile cap MCScap LIGHT – 1 pc.
-
Reusable sponge D22 – 10 pcs.
-
USB cable for charging tes4me - 1 pc.
-
User Manual
-
Plastic box tes4me - 1 pc.
| Size | Application | Head circumference | Textile or seam color |
|---|---|---|---|
| XL | Adult | 60-66 cm | Green |
| XL/L | Adult | 57-63 cm | Green + blue |
| L | Adults (most) | 54-60 cm | Blue |
| L/M | Teens, adults | 51-57 cm | Blue + red |
| M | Children, teens | 48-54 cm | Red |
| M/S | Children under 5 years old | 45-51 cm | Red + yellow |
| S | Children under 2 years old | 42-48 cm | Yellow |
| S/XS | Children under 1 year old | 39-45 cm | Yellow + green |
| XS | Children up to 4 months | 36-42 cm | Green |
EEG amplifier
Electrode cap compatibility
Compact-neuro
Neurotech
Custom
EEGA-21/26 "Encephalan-131-03"
Medicom-mtd
Custom
MBN24
MBN
Custom
Medelec
Oxford Inc.
Custom
Mitsar-EEG-03/35-201
MITSAR
Custom
Mitsar-EEG-05/70-201
MITSAR
Custom
Mitsar-EEG-10/70-201
MITSAR
Custom
Mitsar-EEG-202 (24+8)
MITSAR
Custom
Mitsar-EEG-202 (31+1)
MITSAR
Custom
Mitsar-EEG-202 (31+8)
MITSAR
Custom
Neuro KM
Statokyn
Custom
Neurocartograph-01-MBN
MBN
Custom
Neurocartograph-02-MBN
MBN
Custom
Neurocartograph-03-MBN
MBN
Custom
Neurofax EEG 1200
Nikon Kohden
Custom
Neurofax EEG 1212
Nikon Kohden
Custom
Neurofax EEG 1221
Nikon Kohden
Custom
Neurofax EEG 9110
Nikon Kohden
Custom
Neurofax EEG 9210
Nikon Kohden
Custom
Neuron-Spectrum-1
Neurosoft
Custom
Neuron-Spectrum-2
Neurosoft
Custom
Neuron-Spectrum-3
Neurosoft
Custom
Neuron-Spectrum-4/EPM
Neurosoft
Custom
Neuron-Spectrum-4/P
Neurosoft
Custom
Neuron-Spectrum-5
Neurosoft
Custom
Neuron-Spectrum-61
Neurosoft
Custom
Neuron-Spectrum-62
Neurosoft
Custom
Neuron-Spectrum-63
Neurosoft
Custom
Neuron-Spectrum-64
Neurosoft
Custom
Neuron-Spectrum-65
Neurosoft
Custom
Neuron-Spectrum-AM
Neurosoft
Custom
Neuropolygraph
Neurocor
Custom
NeuroScope NS400
Biola
Custom
NeuroScope NS400A
Biola
Custom
Nicolet EEG v32 (CareFusion)
Natus
Custom
Nicolet One
Viasys
Custom
NVX136
Medical Computer Systems
Custom
NVX24
Medical Computer Systems
Custom
NVX36
Medical Computer Systems
Custom
NVX52
Medical Computer Systems
Custom
Associated products
003-0-107

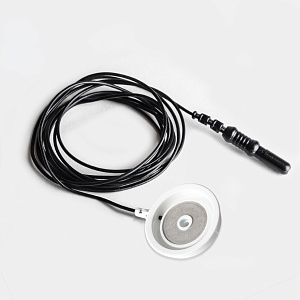

MCScap‑CS22 electrode
Ag/AgCl electrode for transcranial electrostimulation (tDCs / tACs) and EEG recording, 22 mm in diameter, with TouchProof 1.5 mm connector, wire length 1.2 m.
Quantity per package
003-0-119

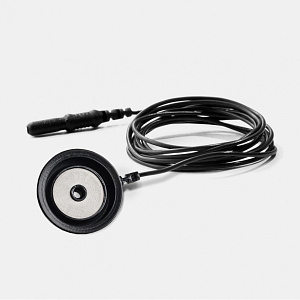

MCScap-CS22SS electrode black
Stainless steel electrode for transcranial electrostimulation (tDCs / tACs), 22 mm diameter, with TouchProof 1.5 mm connector, wire length 1.2 m.
Quantity per package
003-0-120

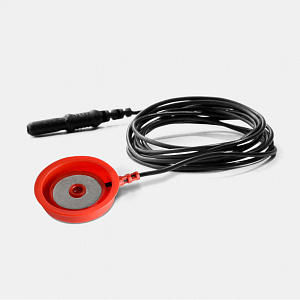

MCScap-CS22SS electrode red
Stainless steel electrode for transcranial electrostimulation (tDCs / tACs), 22 mm diameter, with TouchProof 1.5 mm connector, wire length 1.2 m.
Quantity per package
003-0-367

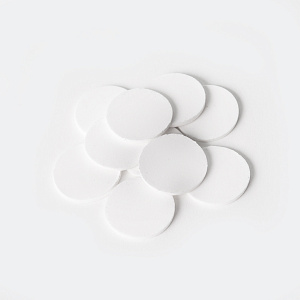

Reusable sponge D22
Reusable sponge for MCScap‑CS22 / MCScap‑CS22SS electrodes.
Quantity per package
003-0-316

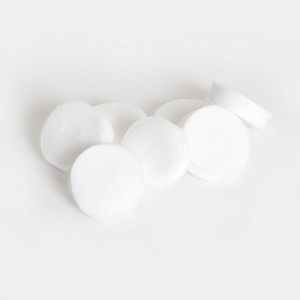

Sponge D22
Disposable sponge for MCScap‑CS22 / MCScap‑CS22SS electrodes.
Quantity per package
Catalogue MCScap EEG accessories
Download
