MCScap-CS22SS electrode black

MCScap-CS22SS electrode black

Manufacturer code: 003-0-119
Compare (0)
Compare

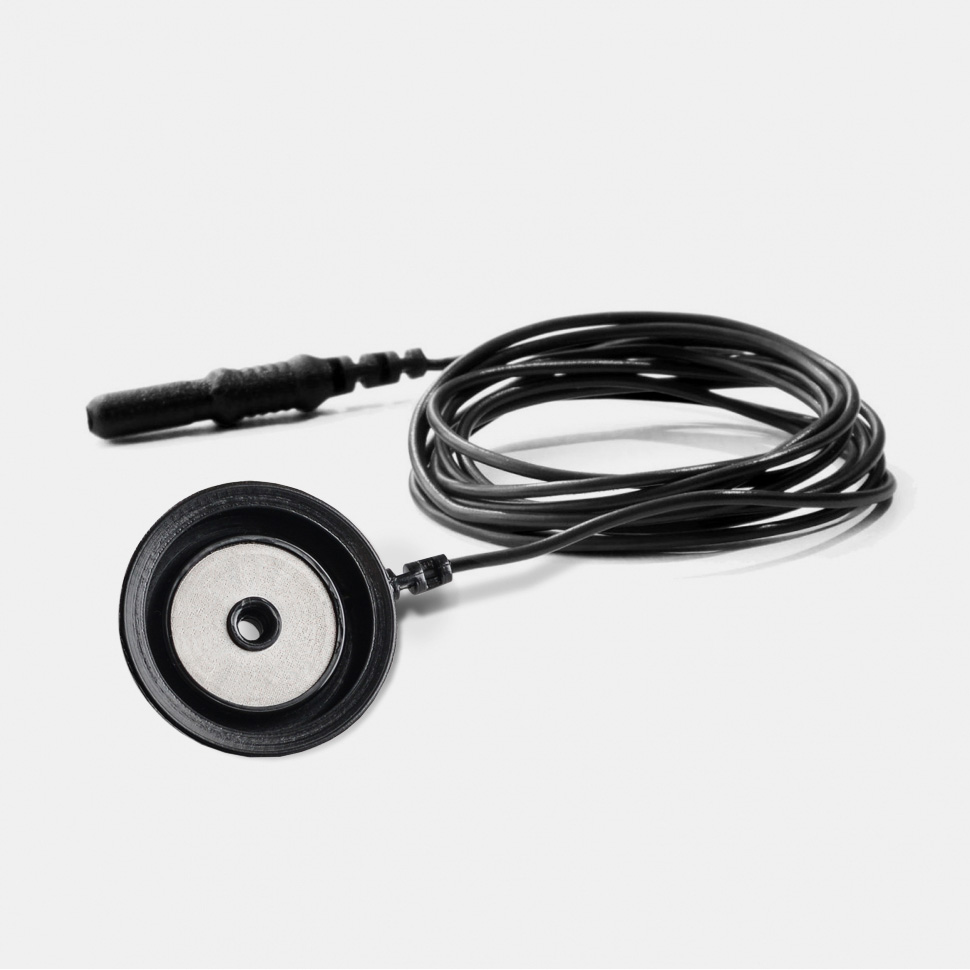

Stainless steel electrode for transcranial electrostimulation (tDCs / tACs), 22 mm diameter, with TouchProof 1.5 mm connector, wire length 1.2 m.
Quantity per package
In stock
Price:
22
quantity
Add to cart
Overview
Specifications
Standard set

MCScap‑CS22SS is a reusable electrode with a diameter of 22 mm of low-corrosion stainless steel, designed to conduct transcranial electrical stimulation. The MCScap‑CS22SS electrode, compared to MCScap‑CS22, is much less prone to degradation (corrosion) when used in direct current (tDCS - transcranial dirrect current stimulation), alternating current with a constant component (monopolar tACS) and micropolarization modes, but does not provide high-quality EEG recording.

When using electrodes in the stimulation mode, the maximum allowable current density values recommended by the scientific or clinical community, which depend on the size and shape of the current, should be taken into account. Examples of calculating the current density for MCScap‑CS22 and MCScap‑CS22SS electrodes for a number of stimulation current values are given in the table.

Stimulation current Current density
4 mA 1.05 mA/cm2 (10.5 A/m2)
3 mA 0.79 mA/cm2 (7.9 A/m2)
2 mA 0.53 mA/cm2 (5.3 A/m2)
1 mA 0.26 mA/cm2 (2.6 A/m2)
500 μA 0.13 mA/cm2 (1.3 A/m2)

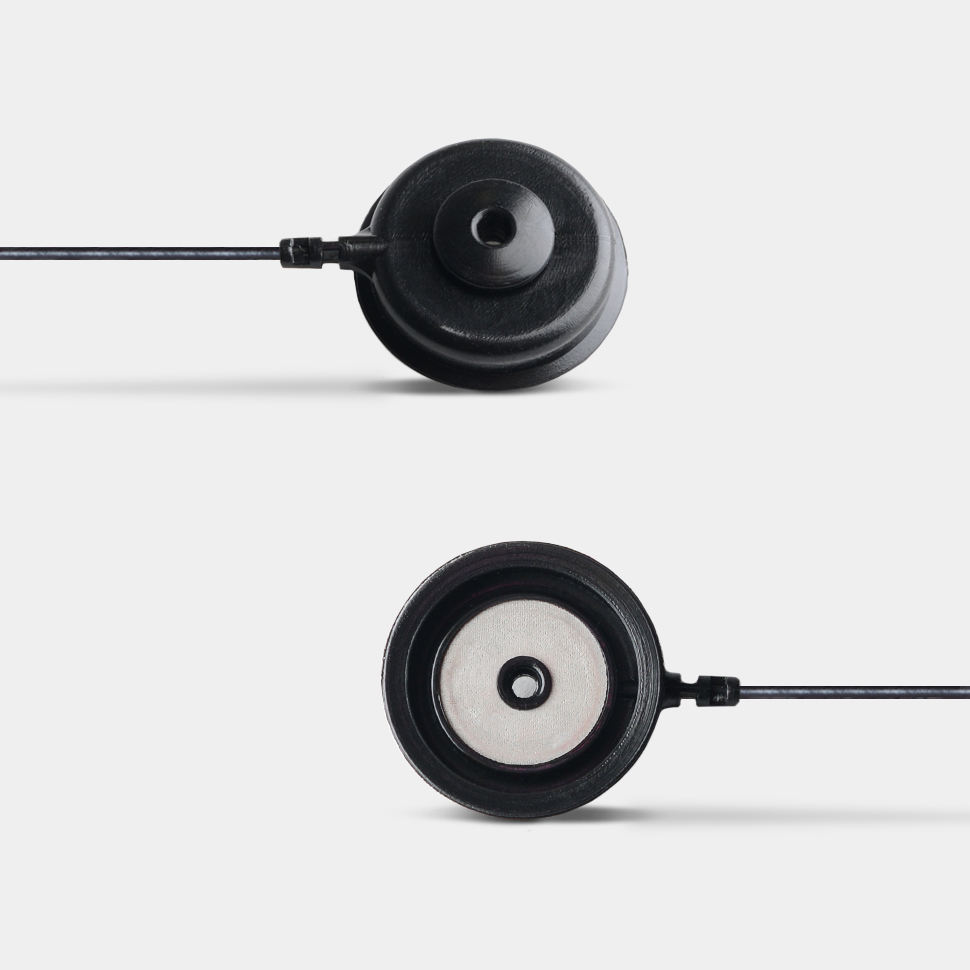

The electrode is an electrically conductive disk with a hole in the center, surrounded by a molded case with an elastic skirt ring, providing a comfortable fit to the skin and an increased contact area. MCScap‑CS22SS electrodes are designed for installation in MCScap® textile caps. The electrodes are fixed on the inside of the cap, and the wires are released through the ventilation holes.

The electrode has a universal connector TouchProof 1.5 mm, which fits most EEG amplifiers.

Material of electrode conductive surface Low Corrosion Stainless Steel AISI 316
Electrode body material polyurethane
Square of electrode conductive surface 176 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 22 mm
Surface area of contact of the electrode substance with the skin 380 mm2
Outer diameter of the electrode at the point of contact with the skin 26 mm
Distance from the skin to the electrode conductive surface 2.5 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Maximum allowed current through the electrode in the stimulation mode 10 mA
Maximum operating voltage 100 V
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Electrode cable length 1.2 m
Connector type TouchProof 1.5 mm (DIN 42 802‑ST)
Net weight < 8 g
  • MCScap-CS22SS electrode
EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom
