MCScap‑CS22 electrode

MCScap‑CS22 electrode

Manufacturer code: 003-0-107
Compare (0)
Compare

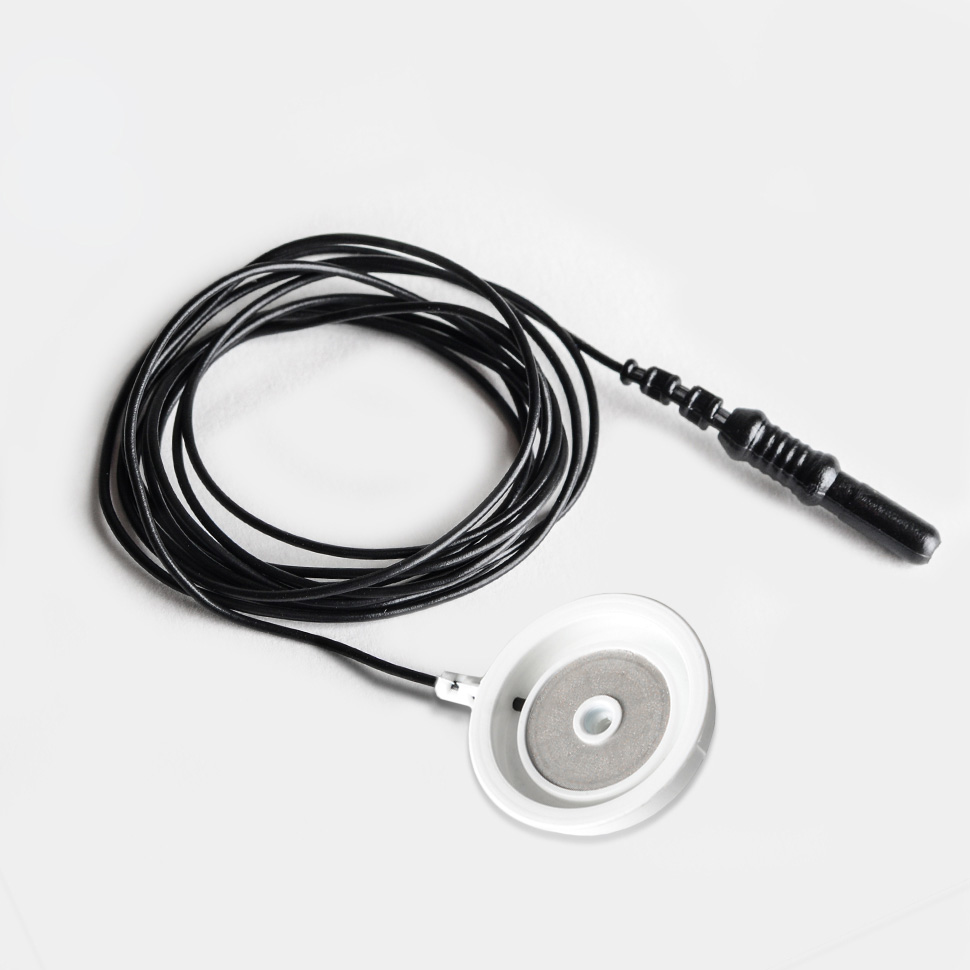

Ag/AgCl electrode for transcranial electrostimulation (tDCs / tACs) and EEG recording, 22 mm in diameter, with TouchProof 1.5 mm connector, wire length 1.2 m.
Quantity per package
In stock
Price:
29
quantity
Add to cart
Overview
Specifications
Standard set

MCScap‑CS22 is a reusable electrode with a diameter of 22 mm of sintered Ag/AgCl, designed for carrying out transcranial electrical stimulation (TES), mainly by alternating current (tACS - transcranial alternating current stimulation), and recording the electroencephalogram (EEG).

When using electrodes in the stimulation mode, the maximum allowable current density values recommended by the scientific or clinical community, which depend on the size and shape of the current, should be taken into account. Examples of calculating the current density for MCScap‑CS22 and MCScap‑CS22SS electrodes for a number of stimulation current values are given in the table.

Stimulation current Current density
4 mA 1.05 mA/cm2 (10.5 A/m2)
3 mA 0.79 mA/cm2 (7.9 A/m2)
2 mA 0.53 mA/cm2 (5.3 A/m2)
1 mA 0.26 mA/cm2 (2.6 A/m2)
500 μA 0.13 mA/cm2 (1.3 A/m2)

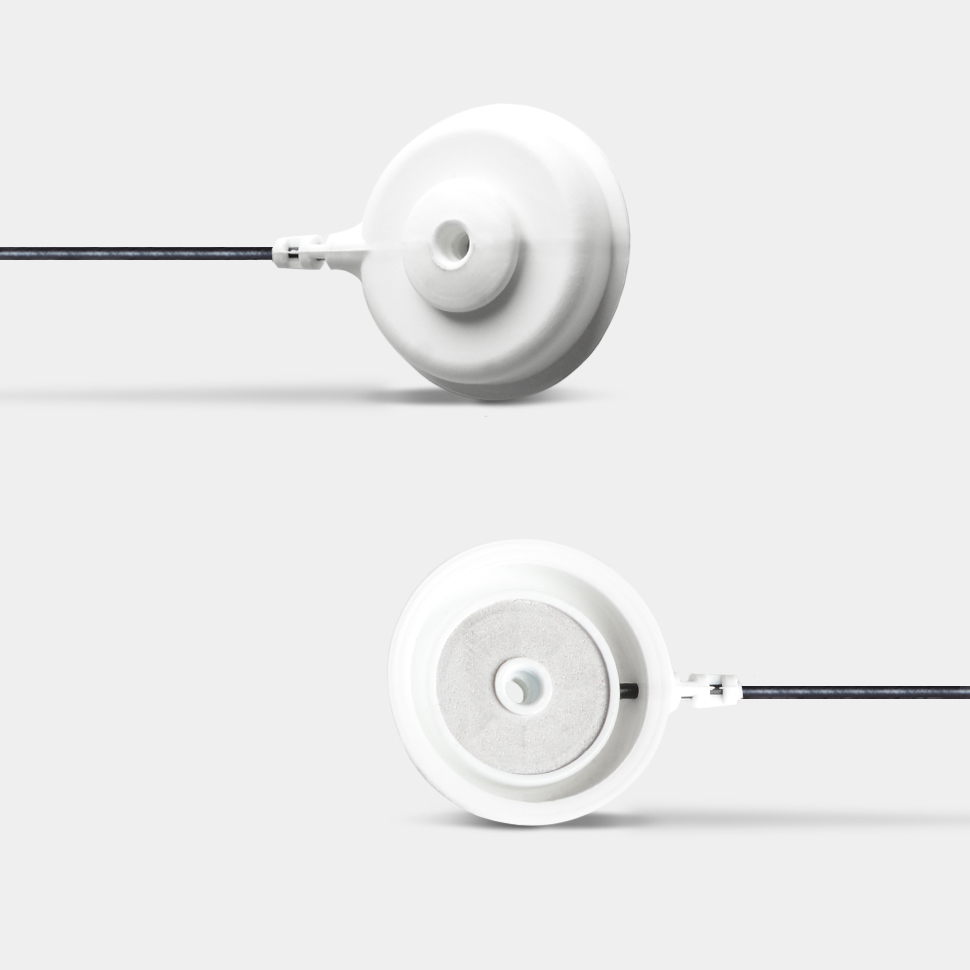

The electrode is an electrically conductive disk with a hole in the center, surrounded by a molded case with an elastic skirt ring, providing a comfortable fit to the skin and an increased contact area.

MCScap‑CS22 electrodes are designed for installation in MCScap® textile caps. The electrodes are fixed on the inside of the cap, and the wires are released through the ventilation holes.

The electrode has a universal connector TouchProof 1.5 mm, which fits most EEG amplifiers.

Material of electrode conductive surface Ag/AgCl sintered
Electrode body material polyurethane
Square of electrode conductive surface 176 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 22 mm
Surface area of contact of the electrode substance with the skin 380 mm2
Outer diameter of the electrode at the point of contact with the skin 26 mm
Distance from the skin to the electrode conductive surface 2.5 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Own noise of an electrode in the mode of registration of EEG in a range 0,5...30 Hz less then 2 µV
Electrode polarization in EEG recording mode ≤ 10 mV
Maximum allowed current through the electrode in the stimulation mode 10 mA
Maximum operating voltage 100 V
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Electrode cable length 1.2 m
Connector type TouchProof 1.5 mm (DIN 42 802‑ST)
Net weight < 8 g
  • MCScap‑CS22 electrode,
  • Sponges D22 - 2 pcs.
EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
Associated products
003-0-213
MCScap 10‑10 black
Printed textile cap, marked according to international system 10‑10 with size identification by the color of the seam.
Size
In stock
€65
Add to cart
003-0-234
MCScap 10‑10
Printed textile cap, marked according to international system 10‑10 with size identification by the color of the cap.
Size
In stock
€65
Add to cart
003-7-001
EEG starter kit
Kit to start working with the EEG cap.
In stock
€15
Add to cart
003-6-003
Adapter TP2DB25

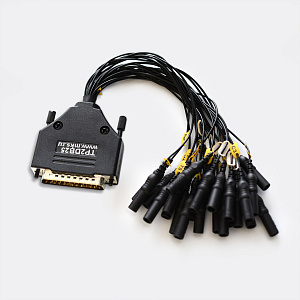

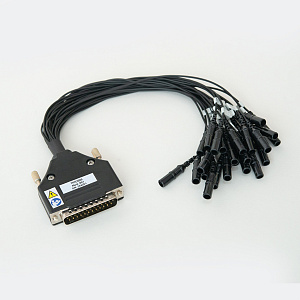

Adapter for connecting up to 25 electrodes, including GND with a TouchProof 1.5 mm connector to an amplifier with a DB‑25F connector.
