Silicone cap standard

Silicone cap standard

Manufacturer code: 003-0-351
Compare (0)
Compare
Cap for fixing of bridge EEG electrodes
Size
In stock
Price:
60
quantity
Add to cart
Overview
Specifications
Standard set

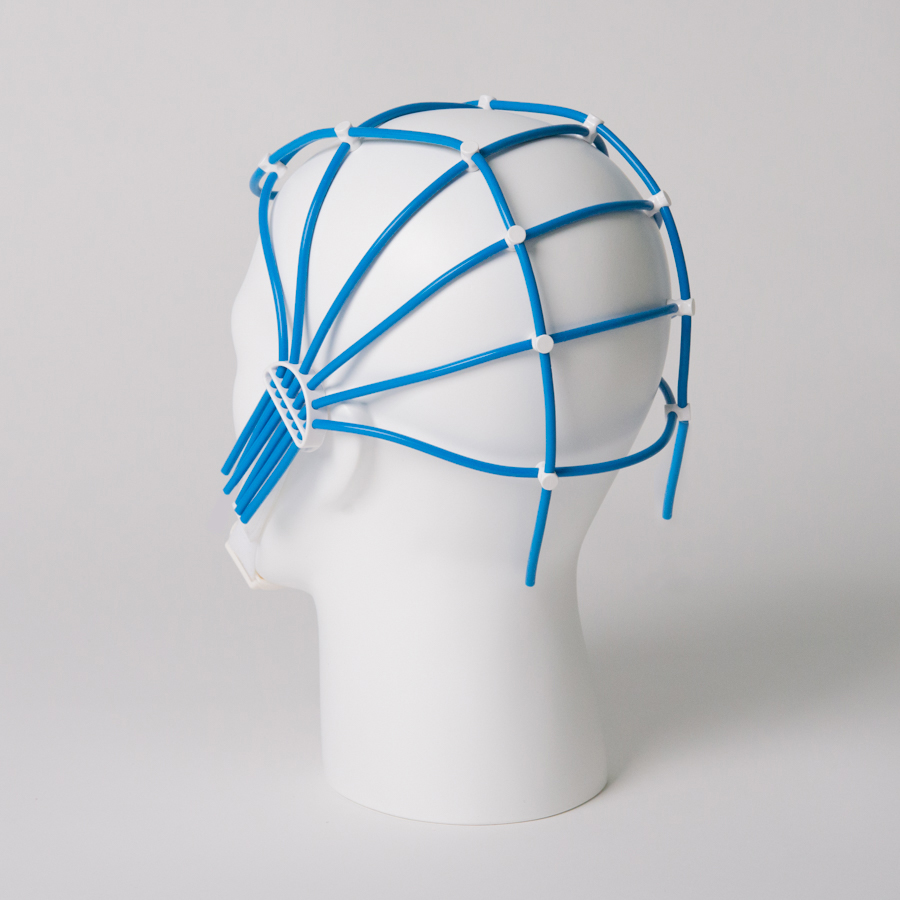

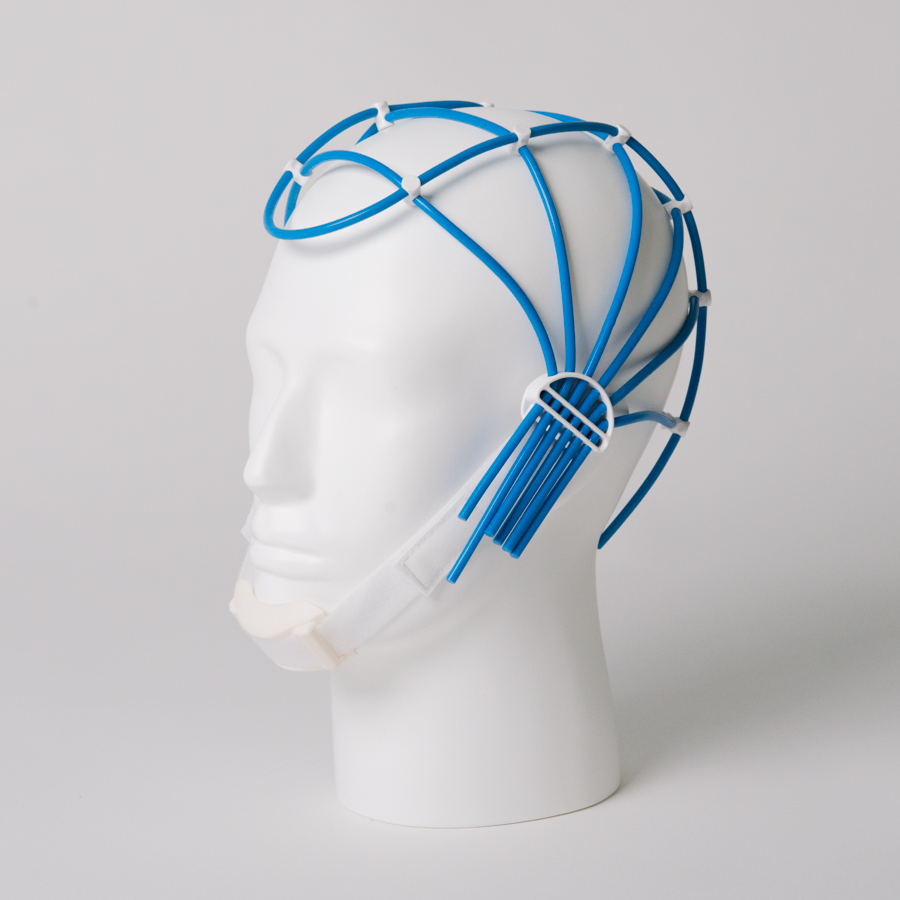

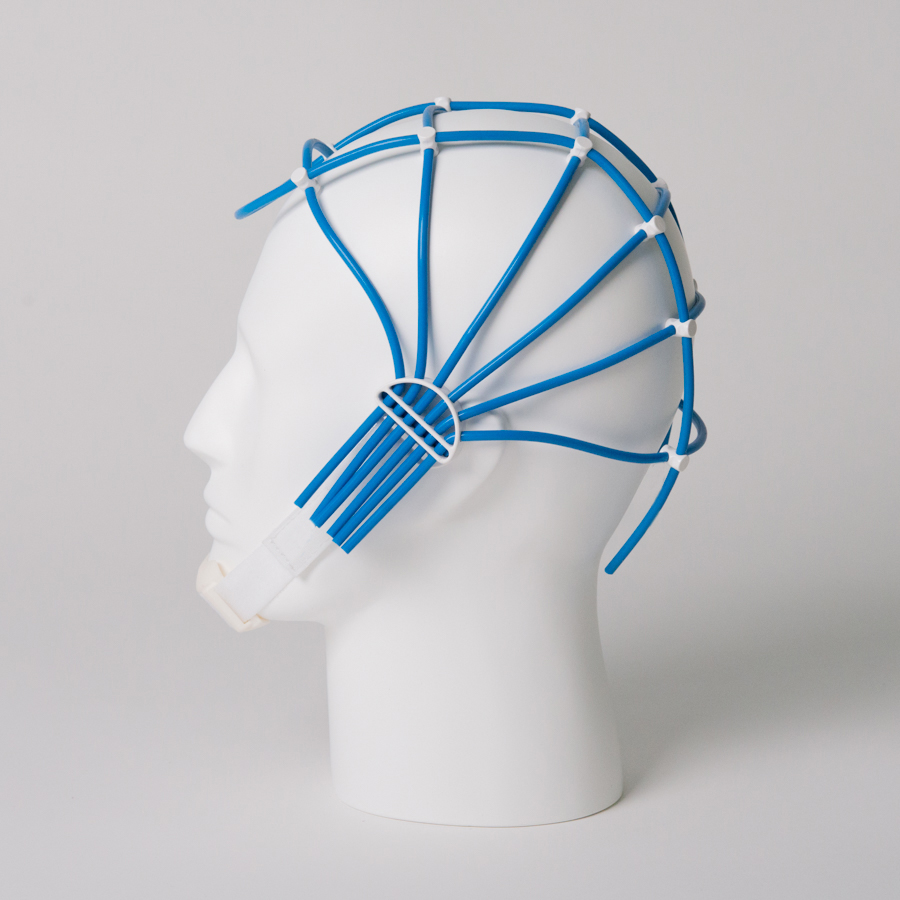

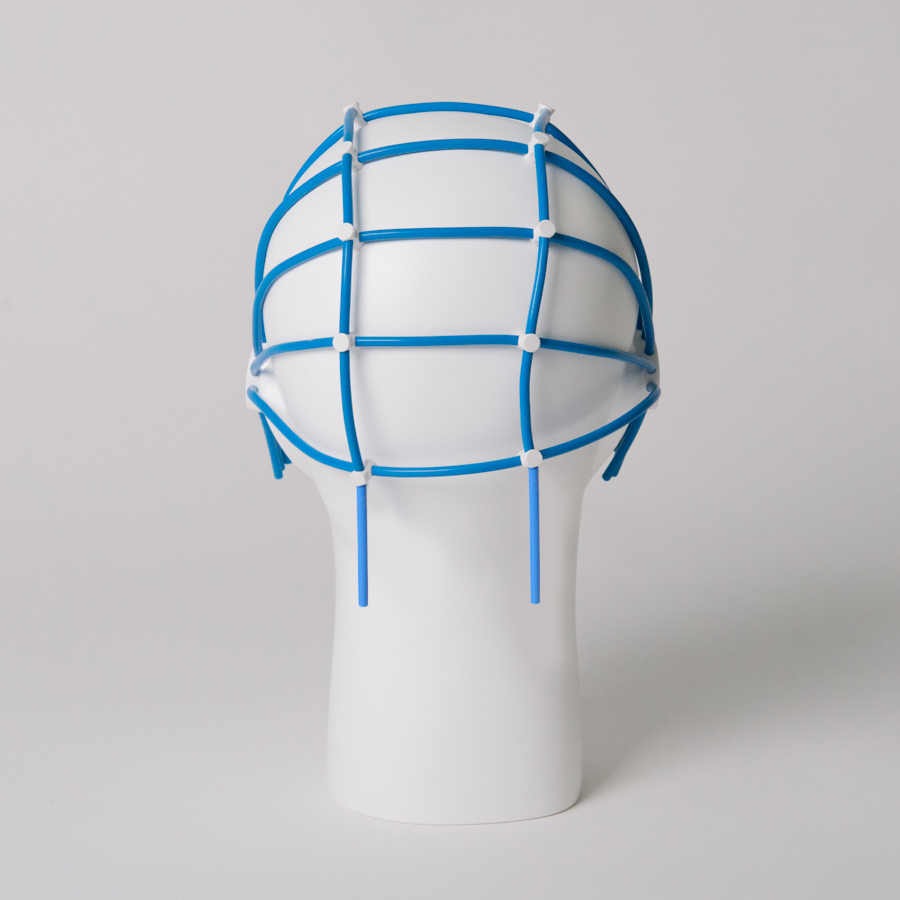

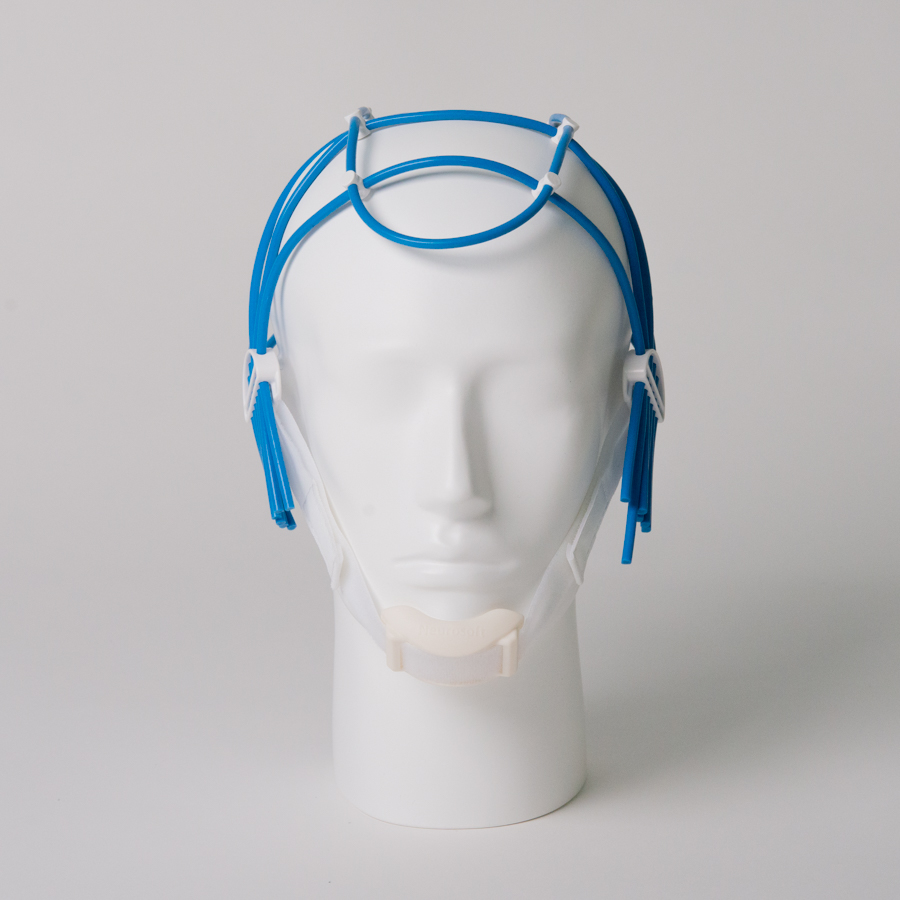

The cap for attaching EEG electrodes is made of silicone tubes connected by movable clamps into a frame in the shape of the head. The cap is designed for use with cup electrodes MCScap-StTC/StNT, which have a special notch for attaching directly to the cap tube. The design of the cap provides the ability to continuously change the distance between each pair of electrodes, as well as free access to the electrode, including from the side of the contact surface. The tubes of the cap shell can be replaced if necessary.

Size Color Head circumference
L blue 54-62 cm
M green 48-54 cm
S yellow 42-48 cm
Manufacturer Neurosoft, Russia
Material of the cap solid silicone tubes
Tube diameter 4 mm
Chin belt material polyamide tape with Velcro
Electrode positioning system arbitrary installation
Compatible Electrode Models MCScap-StTC/StNT
Color colored, according to the size of the cap
Net weight < 75 g
  • Cap for fixing of bridge EEG electrodes - 1 pc.

EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
