Silicone cap standard

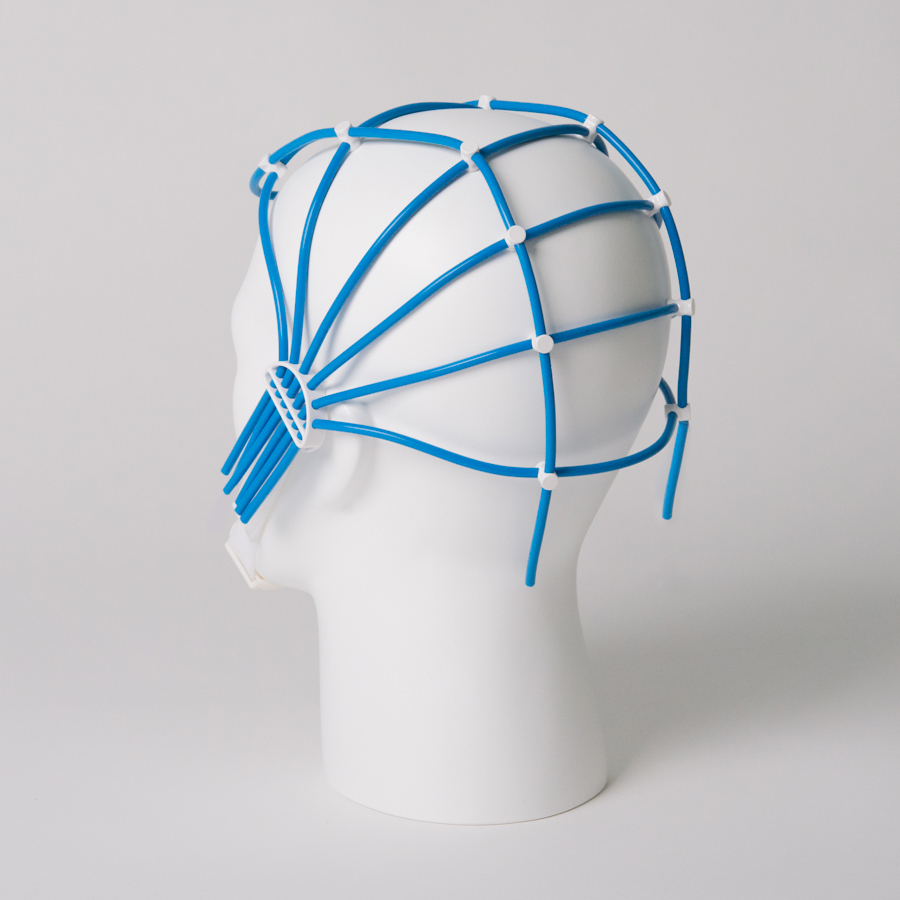

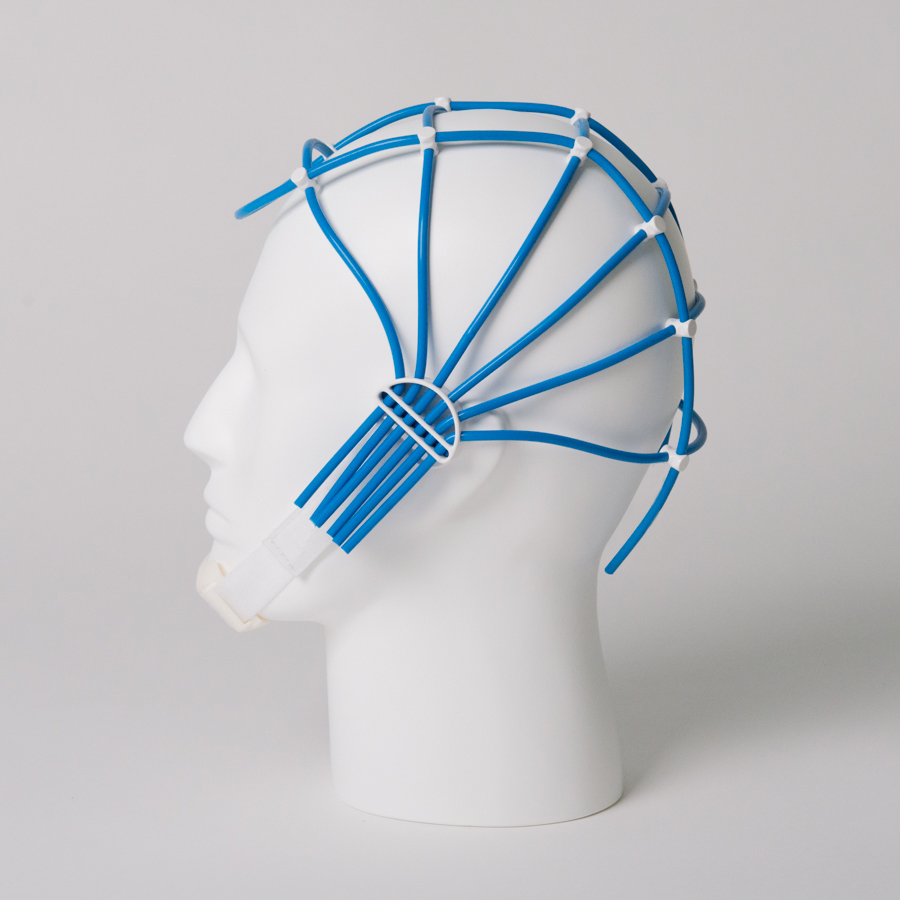

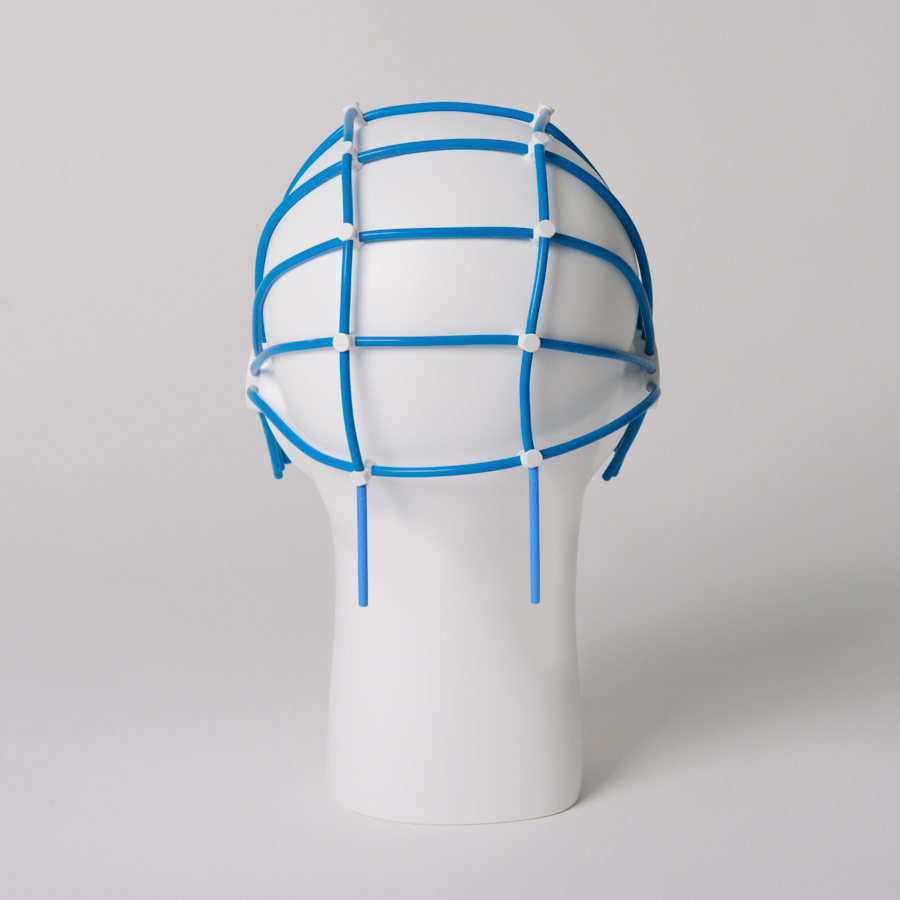

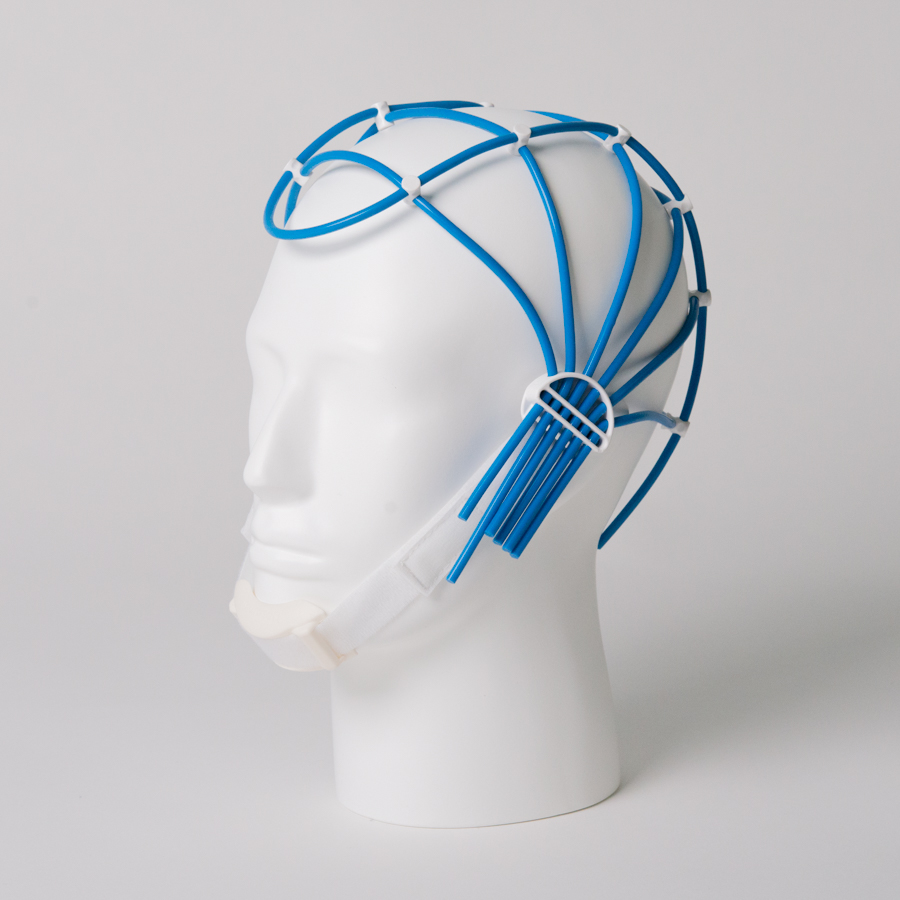

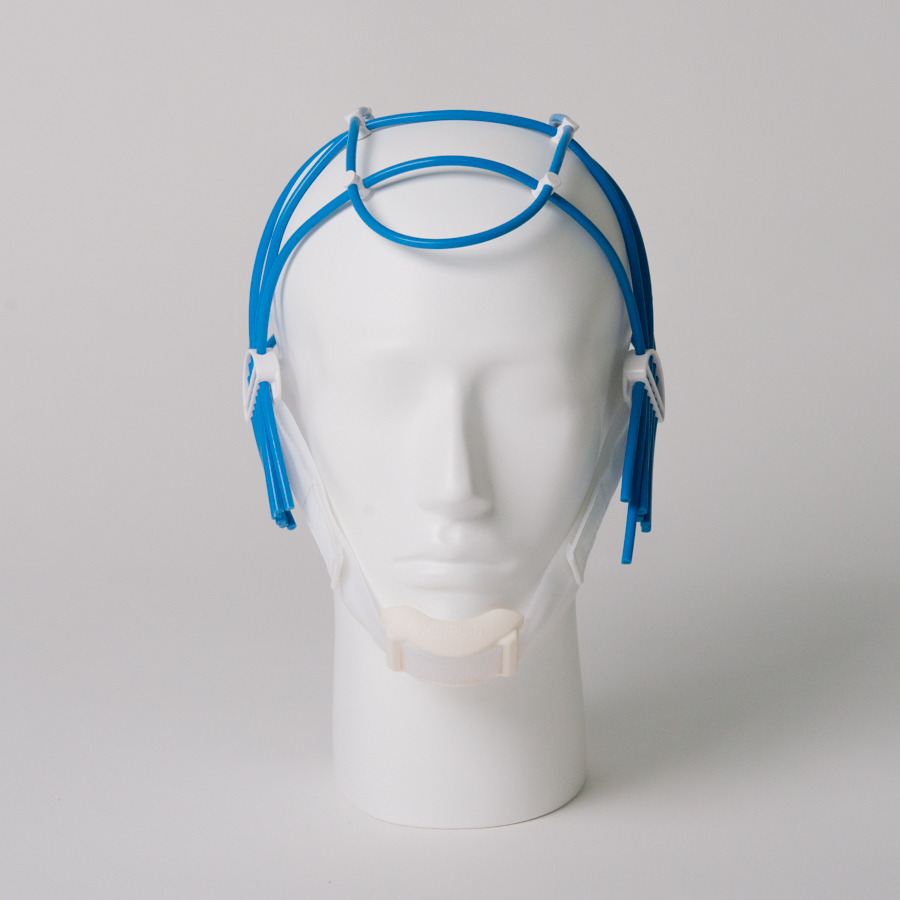

The cap for attaching EEG electrodes is made of silicone tubes connected by movable clamps into a frame in the shape of the head. The cap is designed for use with cup electrodes MCScap-StTC/StNT, which have a special notch for attaching directly to the cap tube. The design of the cap provides the ability to continuously change the distance between each pair of electrodes, as well as free access to the electrode, including from the side of the contact surface. The tubes of the cap shell can be replaced if necessary.
Size | Color | Head circumference |
---|---|---|
L | blue | 54-62 cm |
M | green | 48-54 cm |
S | yellow | 42-48 cm |
Manufacturer | Neurosoft, Russia |
Material of the cap | solid silicone tubes |
Tube diameter | 4 mm |
Chin belt material | polyamide tape with Velcro |
Electrode positioning system | arbitrary installation |
Compatible Electrode Models | MCScap-StTC/StNT |
Color | colored, according to the size of the cap |
Net weight | < 75 g |
-
Cap for fixing of bridge EEG electrodes - 1 pc.
EEG amplifier
Electrode cap compatibility
Compact-neuro
Neurotech
Custom
EEGA-21/26 "Encephalan-131-03"
Medicom-mtd
Custom
MBN24
MBN
Custom
Medelec
Oxford Inc.
Custom
Mitsar-EEG-03/35-201
MITSAR
Custom
Mitsar-EEG-05/70-201
MITSAR
Custom
Mitsar-EEG-10/70-201
MITSAR
Custom
Mitsar-EEG-202 (24+8)
MITSAR
Custom
Mitsar-EEG-202 (31+1)
MITSAR
Custom
Mitsar-EEG-202 (31+8)
MITSAR
Custom
Neuro KM
Statokyn
Custom
Neurocartograph-01-MBN
MBN
Custom
Neurocartograph-02-MBN
MBN
Custom
Neurocartograph-03-MBN
MBN
Custom
Neurofax EEG 1200
Nikon Kohden
Custom
Neurofax EEG 1212
Nikon Kohden
Custom
Neurofax EEG 1221
Nikon Kohden
Custom
Neurofax EEG 9110
Nikon Kohden
Custom
Neurofax EEG 9210
Nikon Kohden
Custom
Neuron-Spectrum-1
Neurosoft
Custom
Neuron-Spectrum-2
Neurosoft
Custom
Neuron-Spectrum-3
Neurosoft
Custom
Neuron-Spectrum-4/EPM
Neurosoft
Custom
Neuron-Spectrum-4/P
Neurosoft
Custom
Neuron-Spectrum-5
Neurosoft
Custom
Neuron-Spectrum-61
Neurosoft
Custom
Neuron-Spectrum-62
Neurosoft
Custom
Neuron-Spectrum-63
Neurosoft
Custom
Neuron-Spectrum-64
Neurosoft
Custom
Neuron-Spectrum-65
Neurosoft
Custom
Neuron-Spectrum-AM
Neurosoft
Custom
Neuropolygraph
Neurocor
Custom
NeuroScope NS400
Biola
Custom
NeuroScope NS400A
Biola
Custom
Nicolet EEG v32 (CareFusion)
Natus
Custom
Nicolet One
Viasys
Custom
NVX136
Medical Computer Systems
Custom
NVX24
Medical Computer Systems
Custom
NVX36
Medical Computer Systems
Custom
NVX52
Medical Computer Systems
Custom
