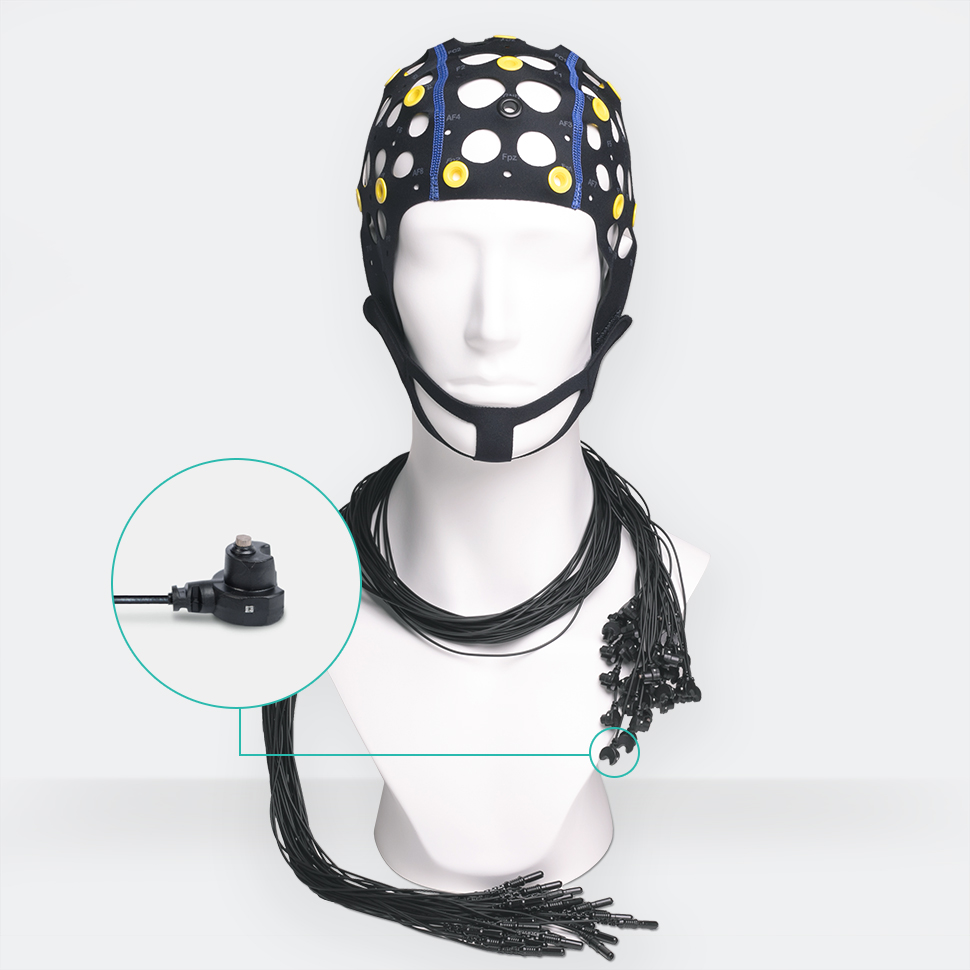

ELECTRODE SET is a universal kit of removable Ag/AgCl sintered MCScap‑E electrodes with TouchProof 1.5 mm (DIN 42 802‑ST) common connector and MCScap® textile cap with fixing rings. The electrode cap is designed for non-invasive registration EEG and use of electroencephalographs and other amplifiers biological signals. The electrode cap is a reusable medical device.

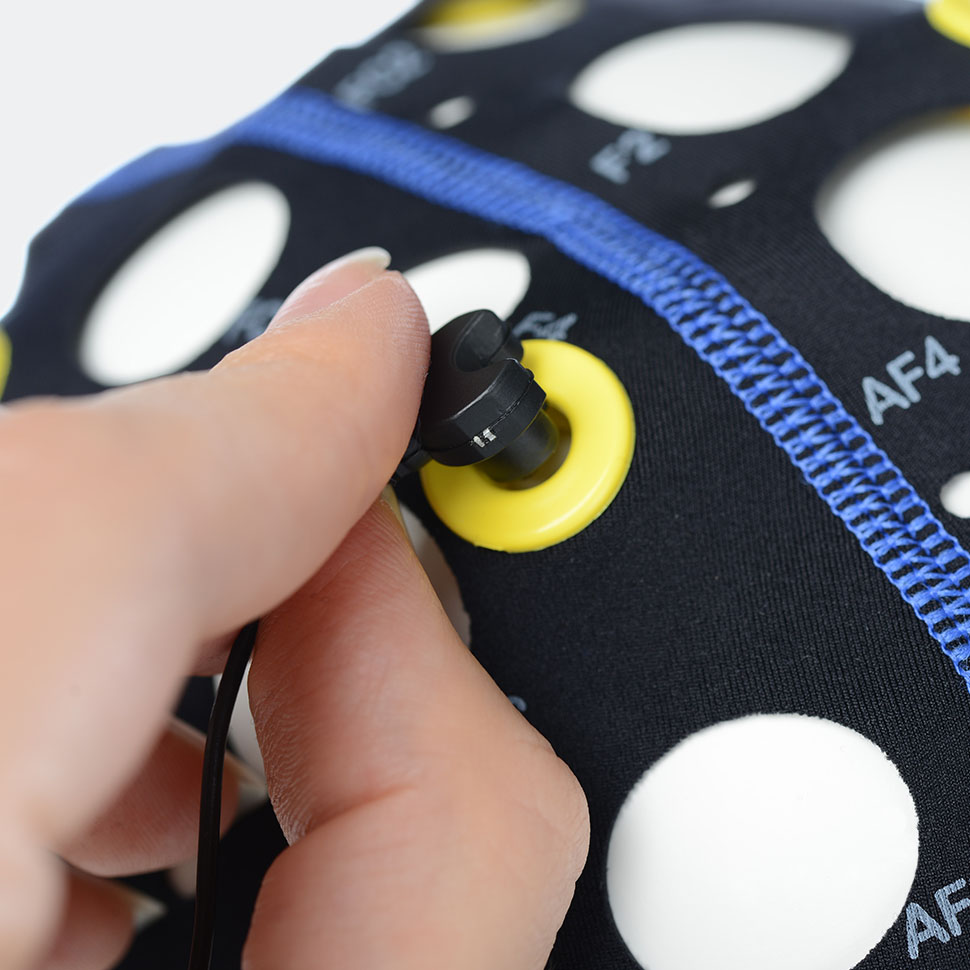

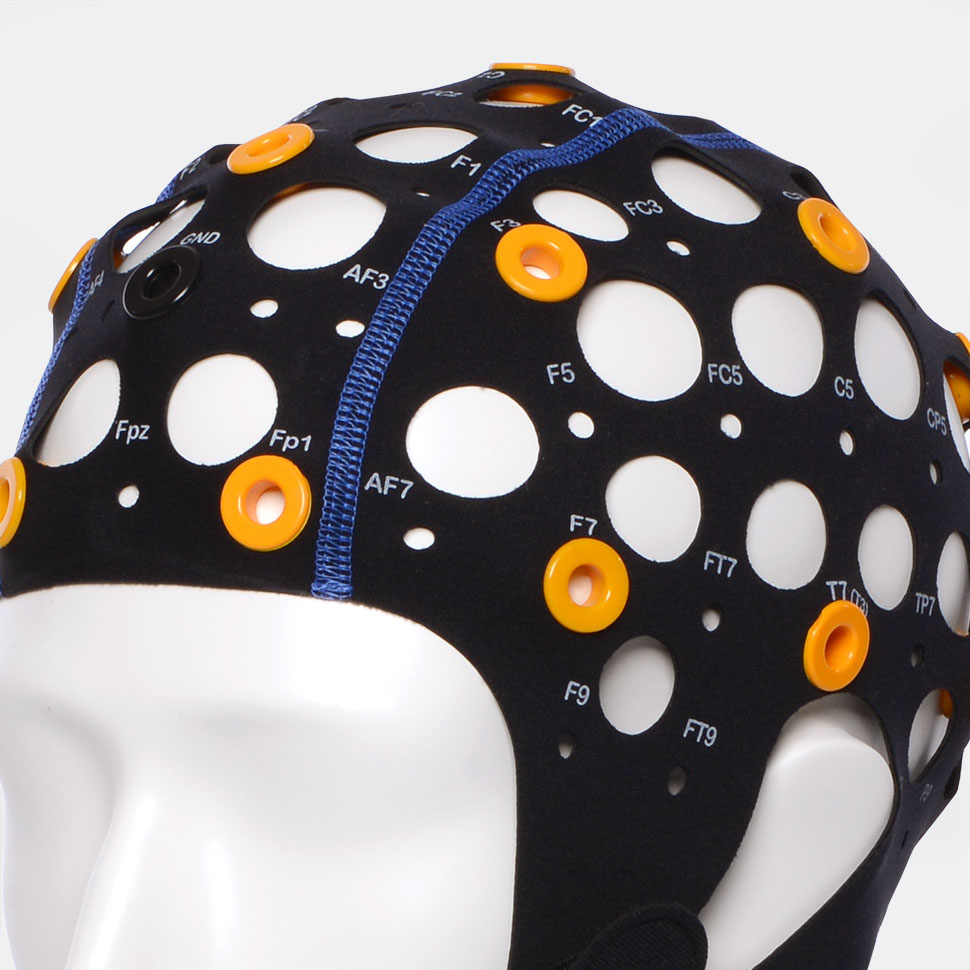

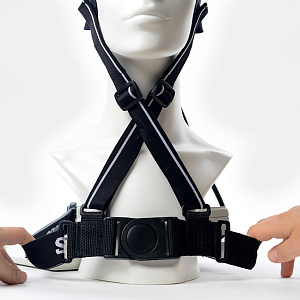

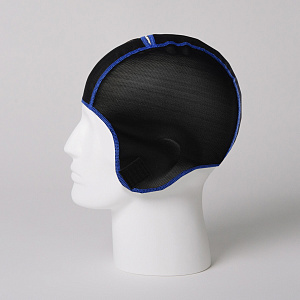

Textile cap is made of elastic material, preserving the shape and size. The cap provides the exact position of the electrodes on the head without additional measurements and adjustments. Large holes are provided for ventilation and access to the electrodes and patient’s skin. The cap is fixed on the head with the chin or chest belt. The caps are marked according to the 10-10 system. Size identification is carried out by the color of the seam. Rings in the cap are designed to install point MCScap‑E electrodes.

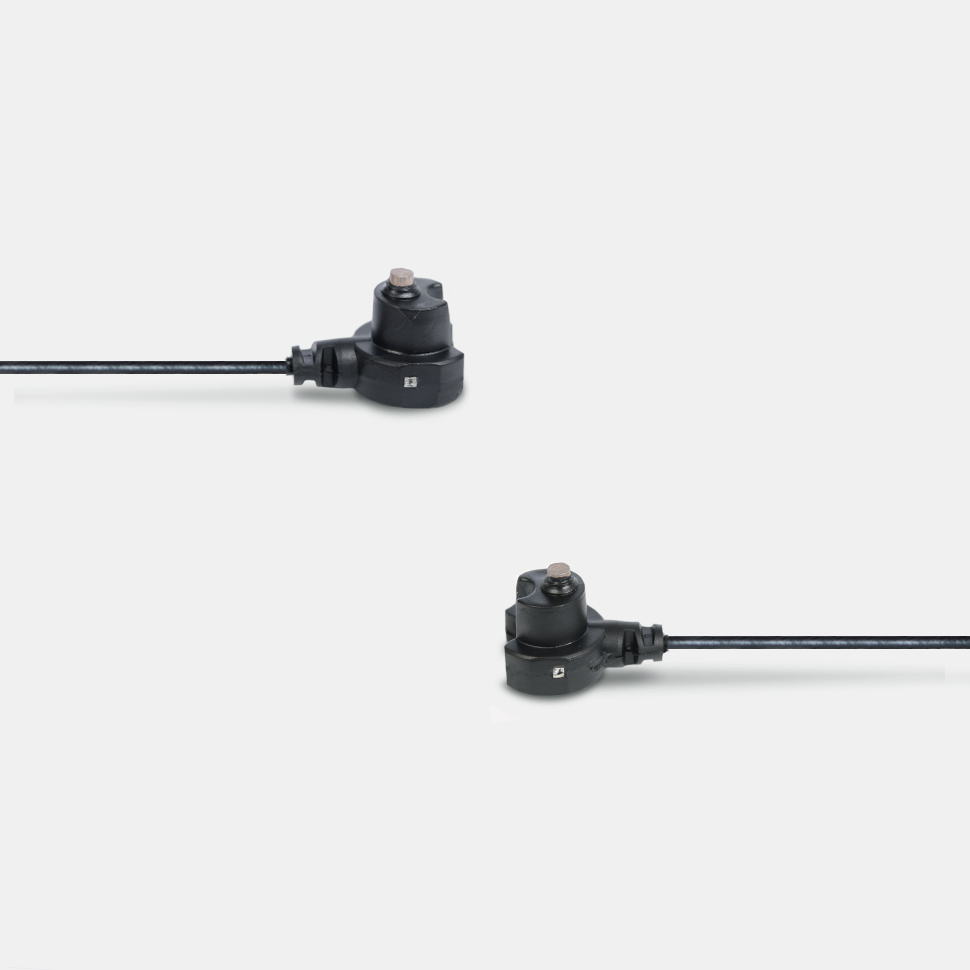

MCScap‑E is a point Ag/AgCl sintered electrode for EEG recording. MCScap‑E is designed for research that requires frequent installation and quick removal of electrodes for cleaning and disinfection. Used with MCScap textile caps with retaining rings. The Ag / AgCl sintered electrode material guarantees minimum polarization and long-term signal stability, as well as an increased electrode life.
The set of electrodes with TouchProof 1.5 mm connectors is universal and fits most EEG amplifiers.
|Material of electrode conductive surface||Ag/AgCl sintered|
|Electrode body material||polyurethane|
|Square of electrode conductive surface||4 mm2|
|Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin||8 mm|
|Surface area of contact of the electrode substance with the skin||50.2 mm2|
|Outer diameter of the electrode at the point of contact with the skin||15.8 mm|
|Distance from the skin to the electrode conductive surface||0.7 mm|
|The diameter of the hole in the electrode to add gel||2.8 mm|
|Electrode polarization||≤ 50 mV|
|Resistance of electrodes insulation||≥ 1000 MΩ|
|Dielectric strength of electrodes insulation||1500 V|
|The impedance of the electrode||≤ 5 kΩ|
|Connector type||TouchProof 1.5 mm (DIN 42 802‑ST)|
|Electrode cable length||1.2 m|
|Number of EEG electrodes||24|
|Electrode positions||arbitrary installation|
|Marking of the textile cap||yes|
|Marking of the electrodes||labels are included|
|Number of textile caps included||2|
|Available cap sizes||XL (60-66 cm) XL/L (57-63 cm) L (54-60 cm) L/M (51-57 cm) M (48-54 cm) M/S (45-51 cm) S (42-48 cm) S/XS (39-45 cm) XS (36-42 cm)|
|Weight of EEG cap||< 350 g|
|Net weight||< 950 g|

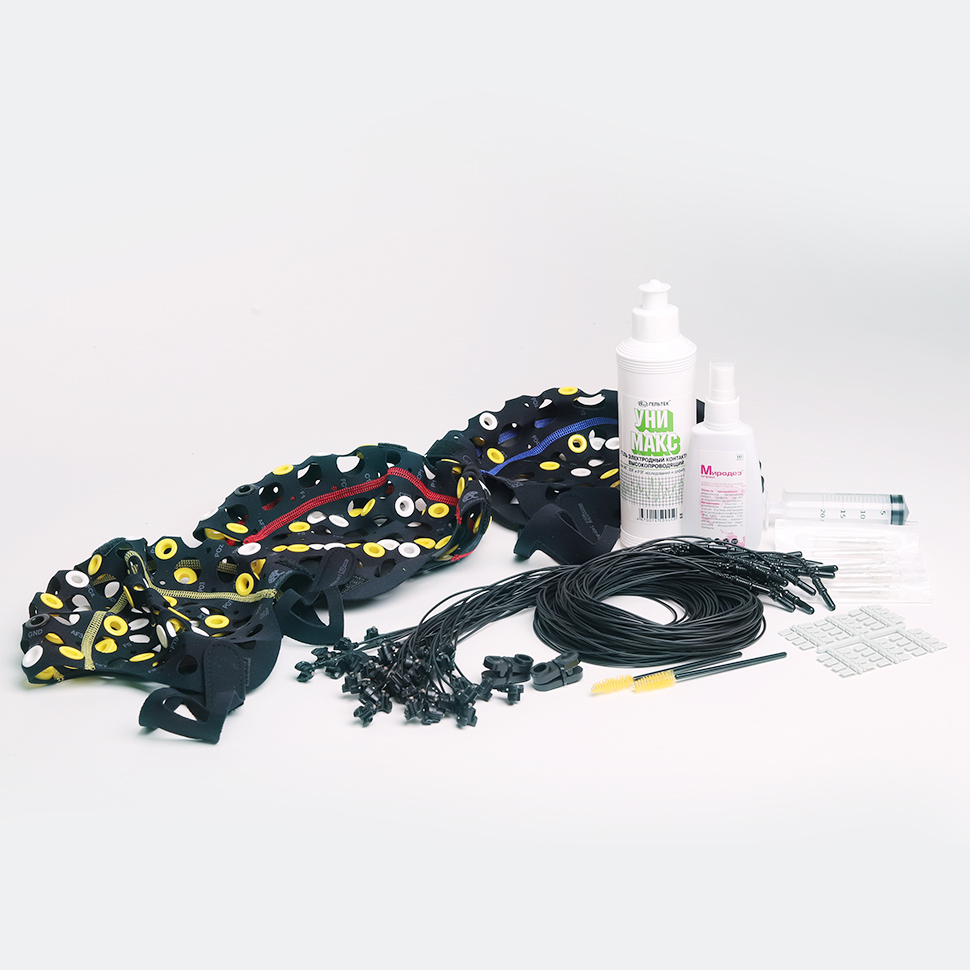

MCScap 10‑20 textile caps with fixing rings -
MCScap‑E electrodes with TouchProof 1.5 mm connectors - 24 pcs.,
Labels for electrodes 10-20,
Ear fixators MCScap‑A - 2 pcs.,
EEG starter kit (gel, syringe,
needle,brushes - 2 шт.),
