Ear electrodes BASE
Ear electrodes BASE
Manufacturer code:
003-0-108
Compare
Set of MCScap‑E electrodes and ear fixators for placing electrodes on the earlobes.
In stock
Overview
Specifications
Standard set

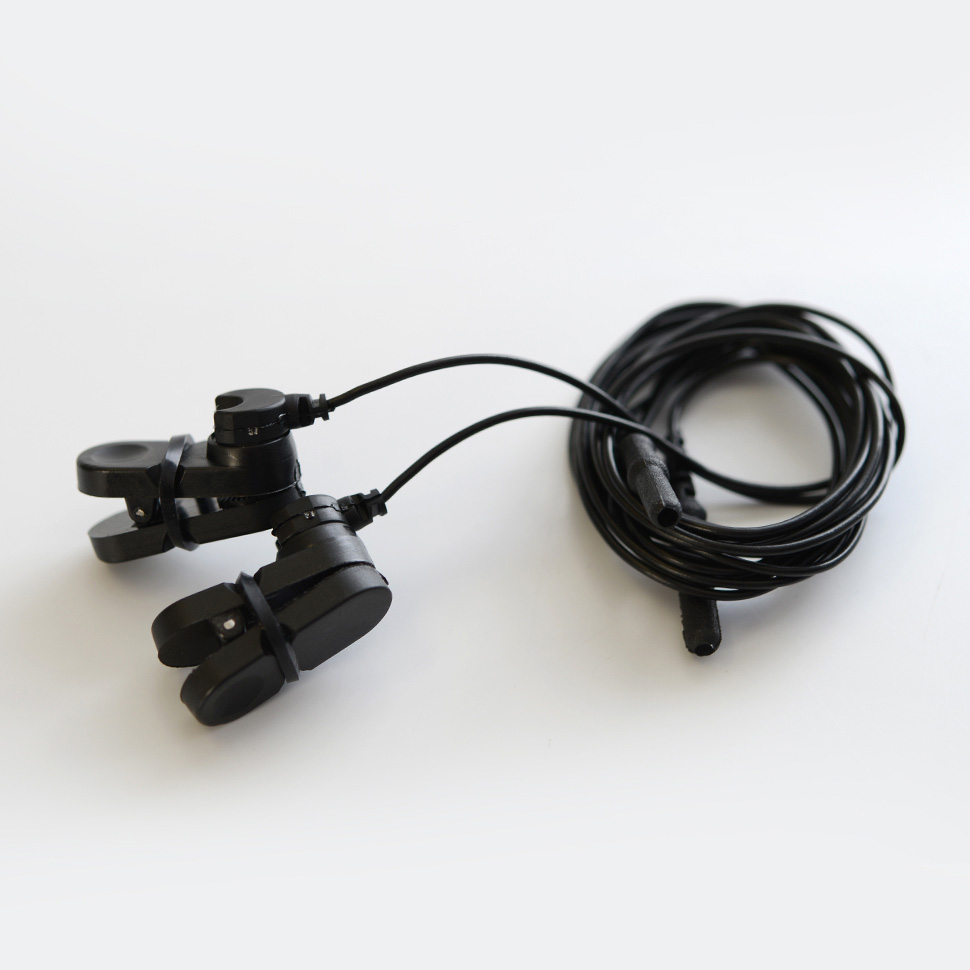

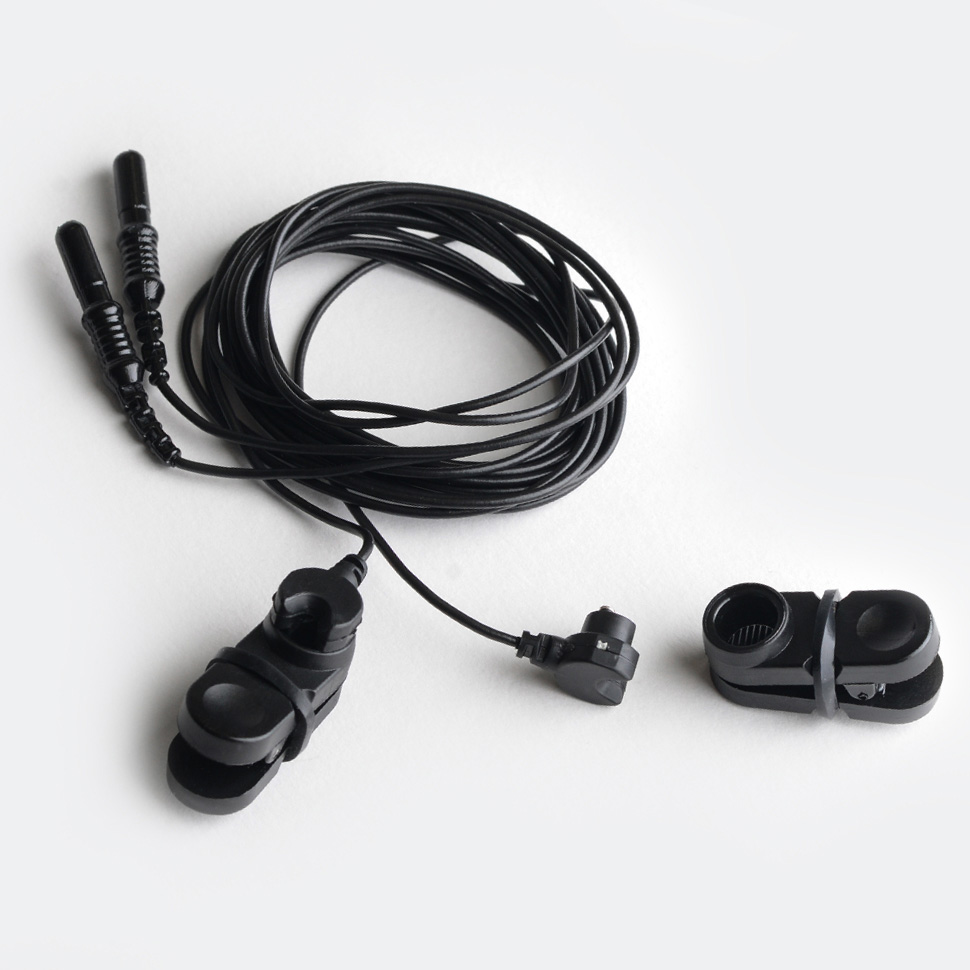

Ear electrodes BASE is a set of MCScap‑E electrodes and MCScap‑A ear fixators.
MCScap‑E is a point Ag/AgCl sintered electrode for EEG recording. MCScap‑E is designed for research that requires frequent installation and quick removal of electrodes for cleaning and disinfection. Used with MCScap textile caps with retaining rings. The Ag / AgCl sintered electrode material guarantees minimum polarization and long-term signal stability, as well as an increased electrode life. The electrode has a universal connector TouchProof 1.5 mm, which fits most EEG amplifiers.

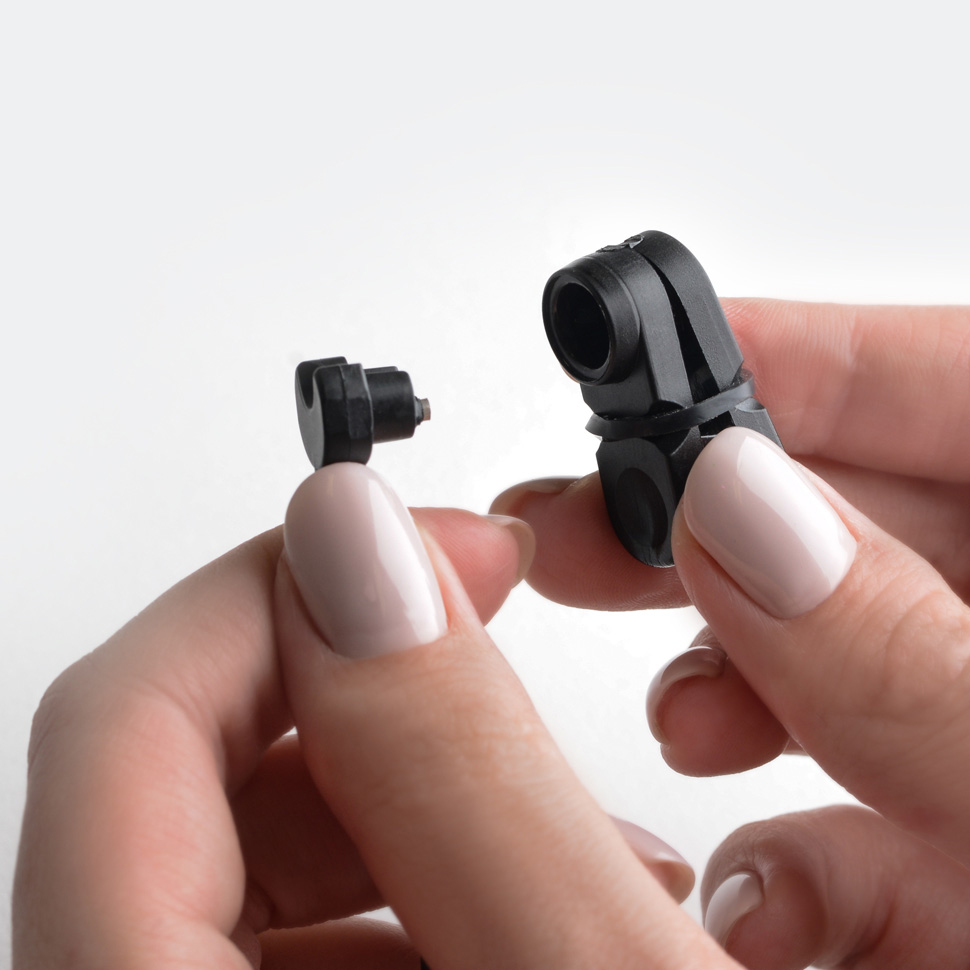

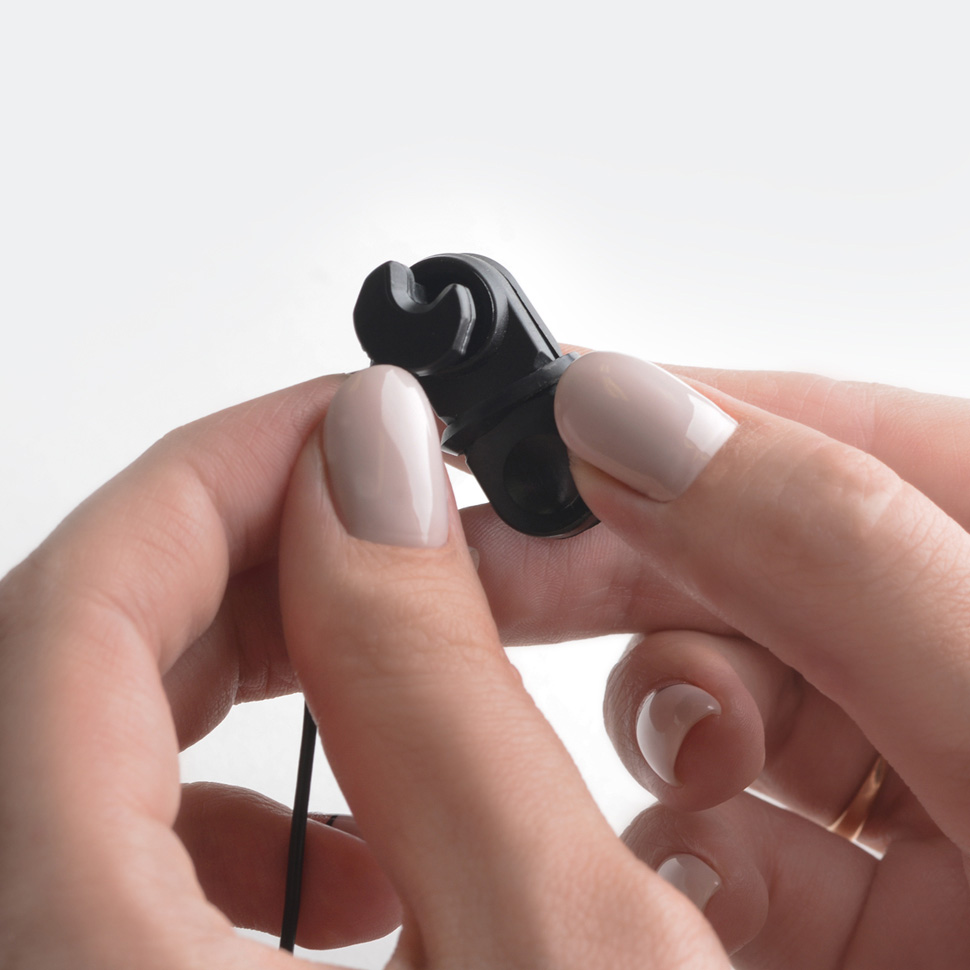

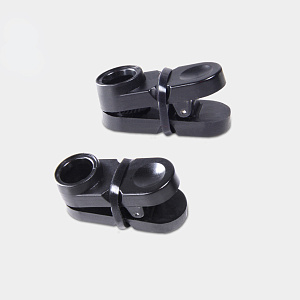

The MCScap‑A is an ear fixator specially designed for attaching MCScap‑E point electrodes to earlobes. The fixator tightly presses the electrode to the earlobe and does not cause discomfort to the patient.
| Electrode | MCScap‑E |
| Material of electrode conductive surface | Ag/AgCl sintered |
| Electrode body material | polyurethane |
| Square of electrode conductive surface | 4 mm2 |
| Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin | 8 mm |
| Surface area of contact of the electrode substance with the skin | 50.2 mm2 |
| Outer diameter of the electrode at the point of contact with the skin | 15.8 mm |
| Distance from the skin to the electrode conductive surface | 0.7 mm |
| The diameter of the hole in the electrode to add gel | 2.8 mm |
| Electrode polarization | ≤ 50 mV |
| Resistance of electrodes insulation | ≥ 1000 MΩ |
| Dielectric strength of electrodes insulation | 1500 V |
| The impedance of the electrode | ≤ 5 kΩ |
| Connector type | TouchProof 1.5 mm (DIN 42 802‑ST) |
| Electrode cable length | 1.5 ±0.05 m |
| Net weight | < 20 g |
- MCScap‑E electrode - 2 pcs.,
- MCScap‑A ear fixators - 2 pcs.
EEG amplifier
Electrode cap compatibility
Compact-neuro
Neurotech
Custom
EEGA-21/26 "Encephalan-131-03"
Medicom-mtd
Custom
MBN24
MBN
Custom
Medelec
Oxford Inc.
Custom
Mitsar-EEG-03/35-201
MITSAR
Custom
Mitsar-EEG-05/70-201
MITSAR
Custom
Mitsar-EEG-10/70-201
MITSAR
Custom
Mitsar-EEG-202 (24+8)
MITSAR
Custom
Mitsar-EEG-202 (31+1)
MITSAR
Custom
Mitsar-EEG-202 (31+8)
MITSAR
Custom
Neuro KM
Statokyn
Custom
Neurocartograph-01-MBN
MBN
Custom
Neurocartograph-02-MBN
MBN
Custom
Neurocartograph-03-MBN
MBN
Custom
Neurofax EEG 1200
Nikon Kohden
Custom
Neurofax EEG 1212
Nikon Kohden
Custom
Neurofax EEG 1221
Nikon Kohden
Custom
Neurofax EEG 9110
Nikon Kohden
Custom
Neurofax EEG 9210
Nikon Kohden
Custom
Neuron-Spectrum-1
Neurosoft
Custom
Neuron-Spectrum-2
Neurosoft
Custom
Neuron-Spectrum-3
Neurosoft
Custom
Neuron-Spectrum-4/EPM
Neurosoft
Custom
Neuron-Spectrum-4/P
Neurosoft
Custom
Neuron-Spectrum-5
Neurosoft
Custom
Neuron-Spectrum-61
Neurosoft
Custom
Neuron-Spectrum-62
Neurosoft
Custom
Neuron-Spectrum-63
Neurosoft
Custom
Neuron-Spectrum-64
Neurosoft
Custom
Neuron-Spectrum-65
Neurosoft
Custom
Neuron-Spectrum-AM
Neurosoft
Custom
Neuropolygraph
Neurocor
Custom
NeuroScope NS400
Biola
Custom
NeuroScope NS400A
Biola
Custom
Nicolet EEG v32 (CareFusion)
Natus
Custom
Nicolet One
Viasys
Custom
NVX136
Medical Computer Systems
Custom
NVX24
Medical Computer Systems
Custom
NVX36
Medical Computer Systems
Custom
NVX52
Medical Computer Systems
Custom
Associated products
003-0-225

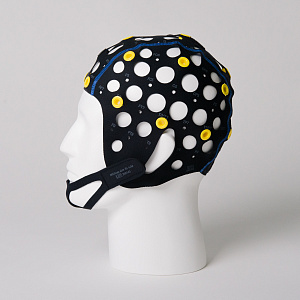

MCScap 10‑20 with fixing rings
Printed textile cap with pre-installed fixing rings according international system 10-20.
Size
003-0-255

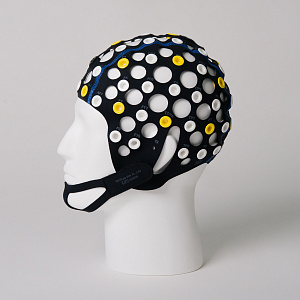

MCScap 10‑10 with fixing rings
Printed textile cap with pre-installed fixing rings according international system 10‑10.
Size
003-0-101
MCScap‑E electrode
Point Ag/AgCl sintered electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.
Quantity per package
003-4-001
ELECTRODE SET classic
Universal kit of removable Ag/AgCl sintered MCScap‑E electrodes with TouchProof 1.5 mm connectors and textile caps with rings labeled by system 10-20.
Size
003-6-003
Adapter TP2DB25
Adapter for connecting up to 25 electrodes, including GND with a TouchProof 1.5 mm connector to an amplifier with a DB‑25F connector.
