ELECTRODE SET classic

ELECTRODE SET classic

Manufacturer code: 003-4-001
Compare (0)
Compare
Universal kit of removable Ag/AgCl sintered MCScap‑E electrodes with TouchProof 1.5 mm connectors and textile caps with rings labeled by system 10-20.
Size of the cap № 1
Size of the cap № 2
In stock
Price:
490
quantity
Add to cart
Overview
Specifications
Standard set
Compatibility with EEG amplifiers

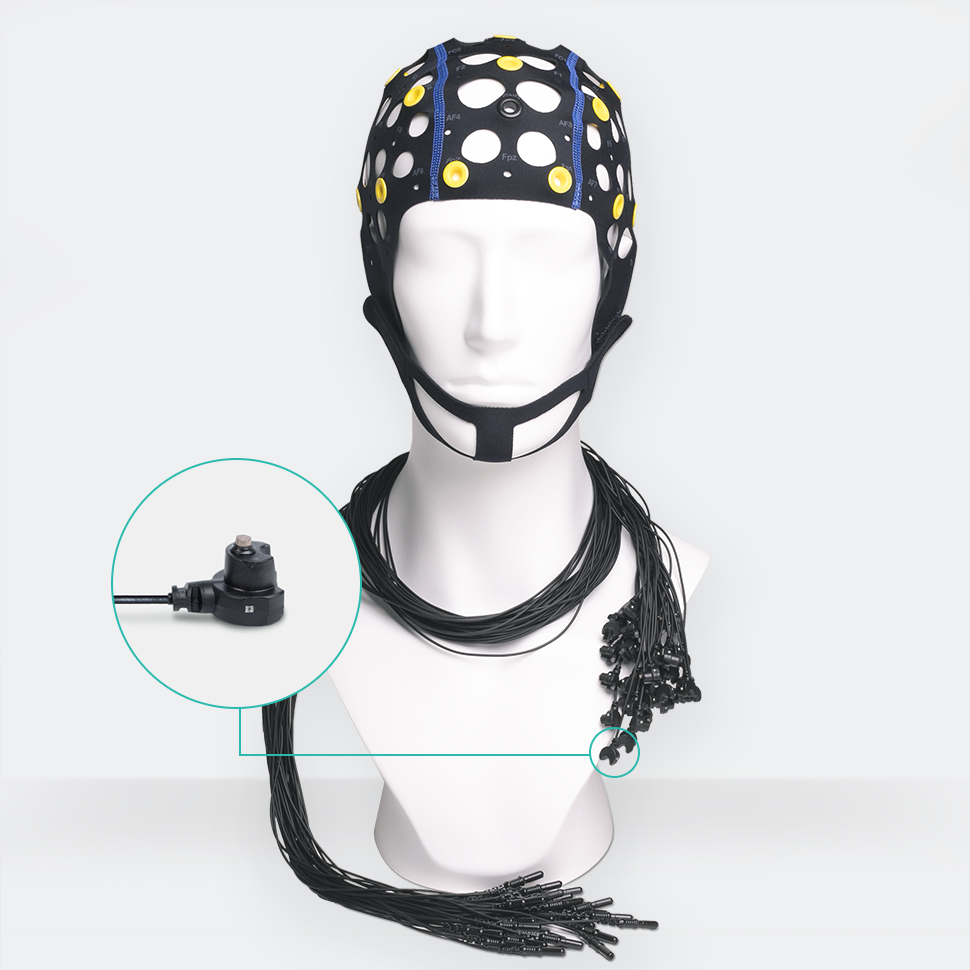

ELECTRODE SET is a universal kit of removable Ag/AgCl sintered MCScap‑E  electrodes with TouchProof 1.5 mm (DIN 42 802‑ST) common connector and MCScap® textile cap with fixing rings. The electrode cap is designed for non-invasive registration EEG and use of electroencephalographs and other amplifiers biological signals. The electrode cap is a reusable medical device.

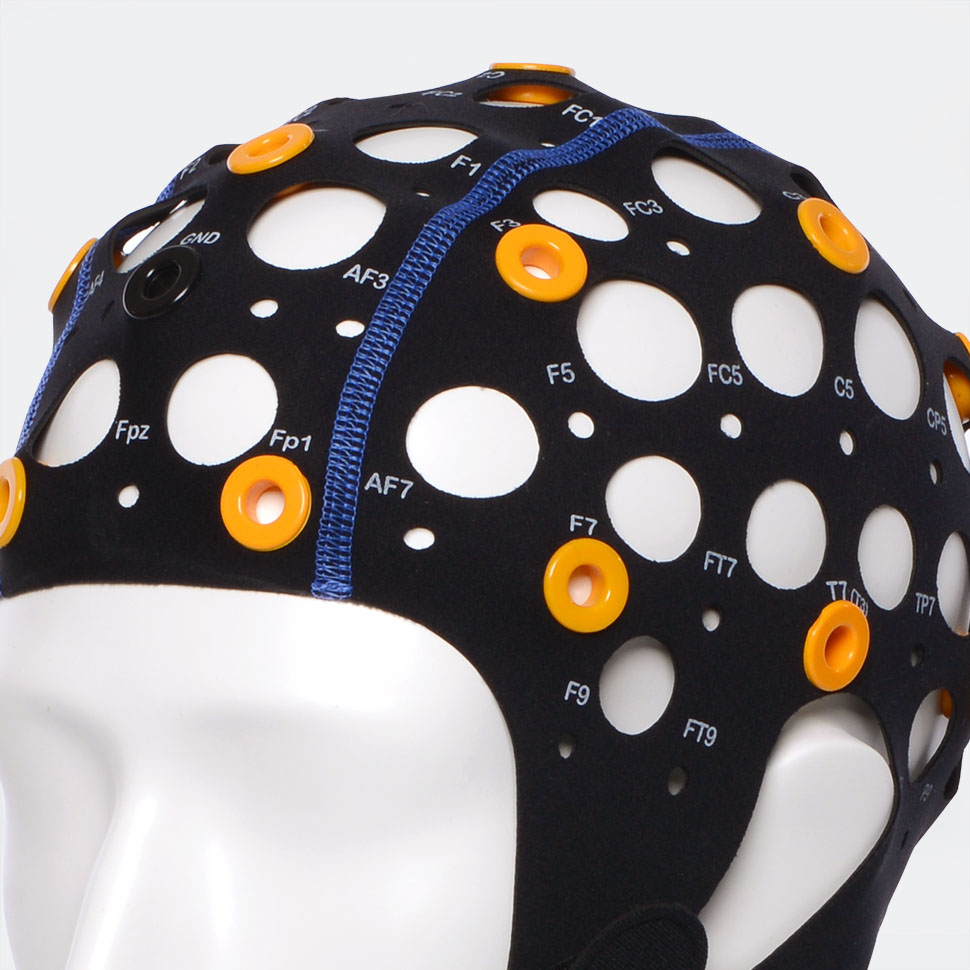

Textile cap is made of elastic material, preserving the shape and size. The cap provides the exact position of the electrodes on the head without additional measurements and adjustments. Large holes are provided for ventilation and access to the electrodes and patient’s skin. The cap is fixed on the head with the chin or chest belt. The caps are marked according to the 10-10 system. Size identification is carried out by the color of the seam. Rings in the cap are designed to install point MCScap‑E electrodes.

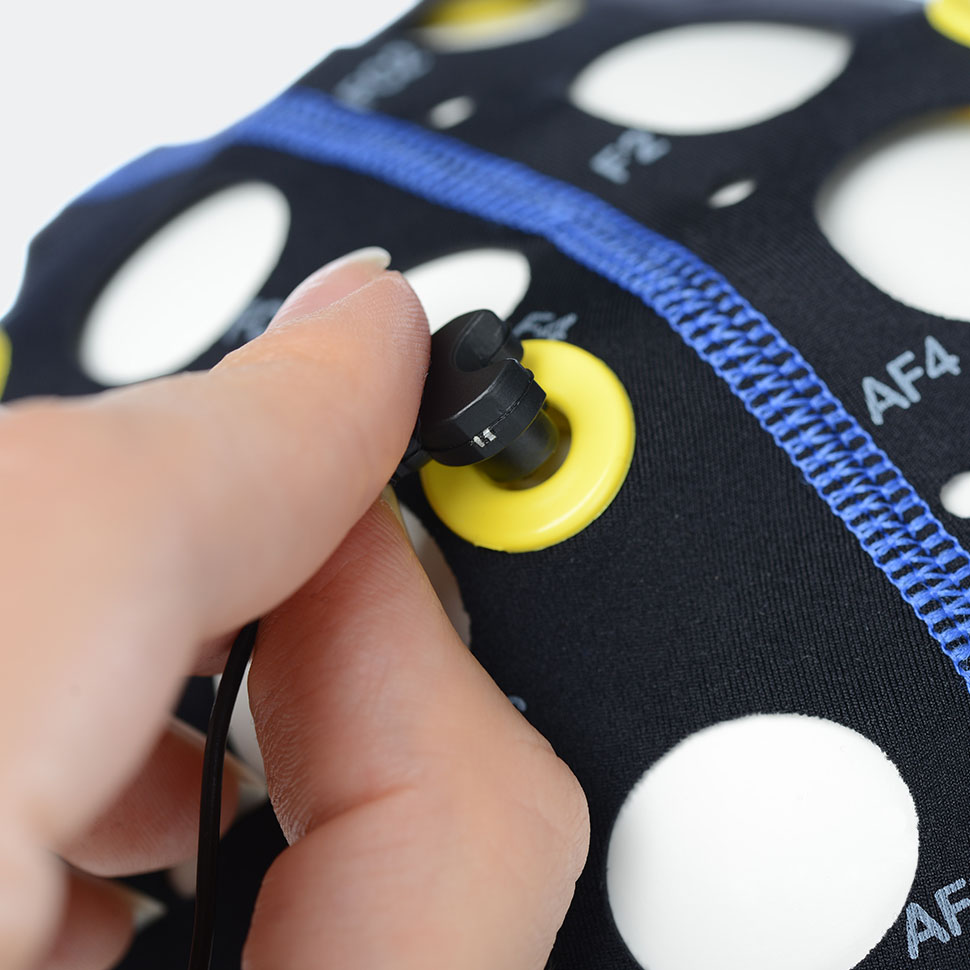

MCScap‑E is a point Ag/AgCl sintered electrode for EEG recording. MCScap‑E is designed for research that requires frequent installation and quick removal of electrodes for cleaning and disinfection. Used with MCScap textile caps with retaining rings. The Ag / AgCl sintered electrode material guarantees minimum polarization and long-term signal stability, as well as an increased electrode life.

The set of electrodes with TouchProof 1.5 mm connectors is universal and fits most EEG amplifiers.

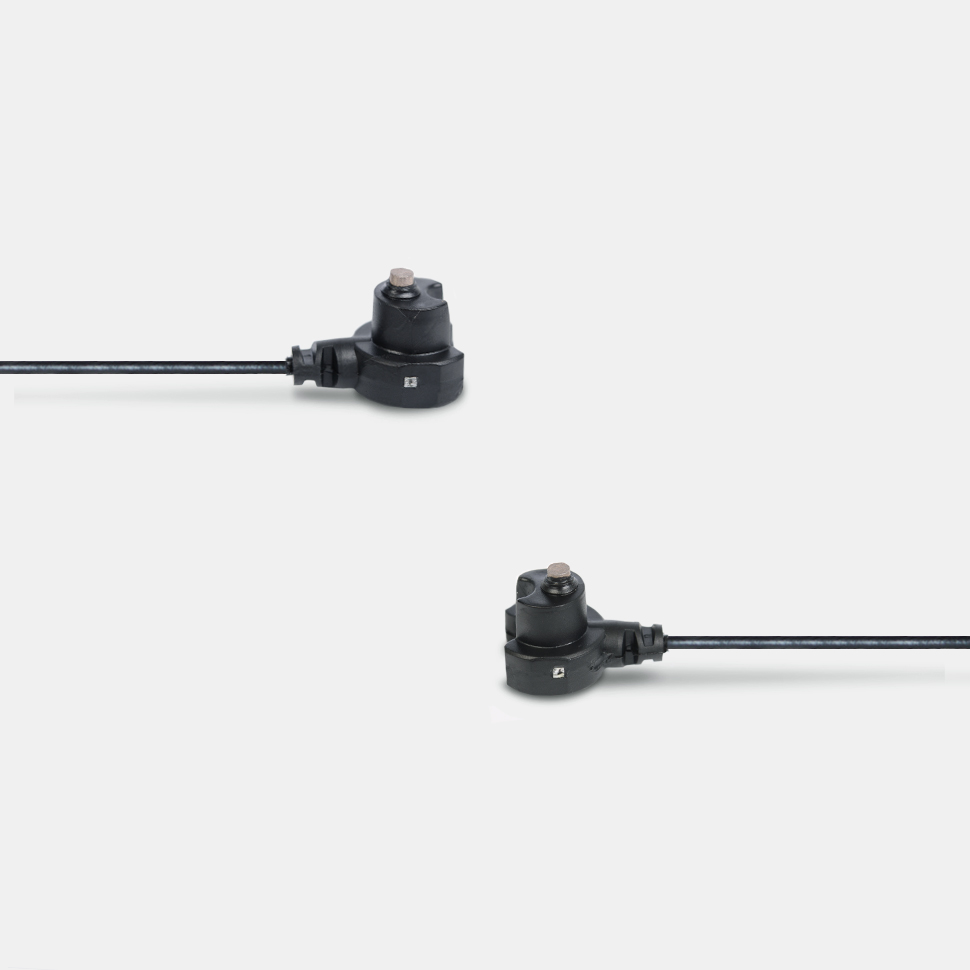

Electrode MCScap‑E
Material of electrode conductive surface Ag/AgCl sintered
Electrode body material polyurethane
Square of electrode conductive surface 4 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 8 mm
Surface area of contact of the electrode substance with the skin 50.2 mm2
Outer diameter of the electrode at the point of contact with the skin 15.8 mm
Distance from the skin to the electrode conductive surface 0.7 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Connector type TouchProof 1.5 mm (DIN 42 802‑ST)
Electrode cable length 1.2 m
Number of EEG electrodes 24
Electrode positions arbitrary installation
Ear fixators yes
Marking of the textile cap yes
Marking of the electrodes labels are included
Number of textile caps included 3
Available cap sizes XL (60-66 cm) XL/L (57-63 cm) L (54-60 cm) L/M (51-57 cm) M (48-54 cm) M/S (45-51 cm) S (42-48 cm) S/XS (39-45 cm) XS (36-42 cm)
Weight of EEG cap < 350 g
Net weight < 950 g

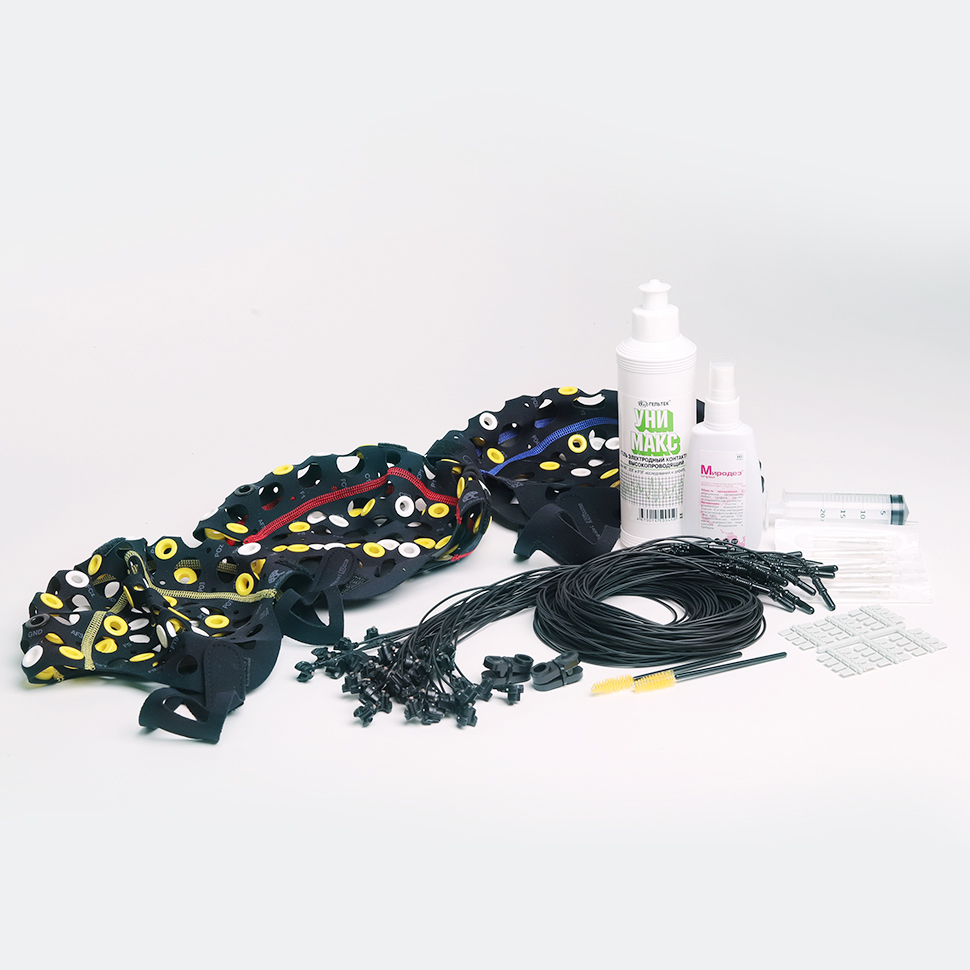

SET

  • MCScap‑20 textile caps with fixing rings,

  • MCScap‑E electrodes with TouchProof 1.5 mm connectors,

  • Labels for electrodes 10-20,

  • MCScap‑A Ear fixators,

  • EEG starter kit

  • User Manual

  • Bag.

EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Yes
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Yes
MBN24 MBN
Yes
Medelec Oxford Inc.
Yes
Mitsar-EEG-03/35-201 MITSAR
Yes
Mitsar-EEG-05/70-201 MITSAR
Yes
Mitsar-EEG-10/70-201 MITSAR
Yes
Mitsar-EEG-202 (24+8) MITSAR
Yes
Mitsar-EEG-202 (31+1) MITSAR
Yes
Mitsar-EEG-202 (31+8) MITSAR
Yes
Neuro KM Statokyn
Yes
Neurocartograph-01-MBN MBN
Yes
Neurocartograph-02-MBN MBN
Yes
Neurocartograph-03-MBN MBN
Yes
Neurofax EEG 1200 Nikon Kohden
Yes
Neurofax EEG 1212 Nikon Kohden
Yes
Neurofax EEG 1221 Nikon Kohden
Yes
Neurofax EEG 9110 Nikon Kohden
Yes
Neurofax EEG 9210 Nikon Kohden
Yes
Neuron-Spectrum-1 Neurosoft
Yes
Neuron-Spectrum-2 Neurosoft
Yes
Neuron-Spectrum-3 Neurosoft
Yes
Neuron-Spectrum-4/EPM Neurosoft
Yes
Neuron-Spectrum-4/P Neurosoft
Yes
Neuron-Spectrum-5 Neurosoft
Yes
Neuron-Spectrum-61 Neurosoft
Yes
Neuron-Spectrum-62 Neurosoft
Yes
Neuron-Spectrum-63 Neurosoft
Yes
Neuron-Spectrum-64 Neurosoft
Yes
Neuron-Spectrum-65 Neurosoft
Yes
Neuron-Spectrum-AM Neurosoft
Yes
Neuropolygraph Neurocor
Yes
NeuroScope NS400 Biola
Yes
NeuroScope NS400A Biola
Yes
Nicolet EEG v32 (CareFusion) Natus
Yes
Nicolet One Viasys
Yes
NVX136 Medical Computer Systems
No
NVX24 Medical Computer Systems
Yes
NVX36 Medical Computer Systems
Yes
NVX52 Medical Computer Systems
Yes

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
Associated products
003-6-003

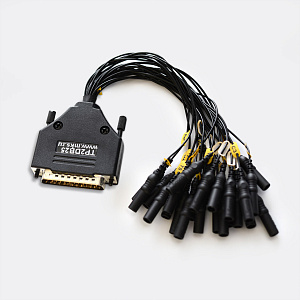

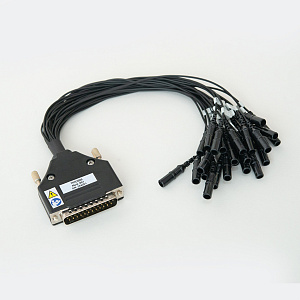

Adapter TP2DB25
Adapter for connecting up to 25 electrodes with TouchProof 1.5 mm connectors to an amplifier with a DB‑25F connector.
In stock
€80
Add to cart
003-0-272

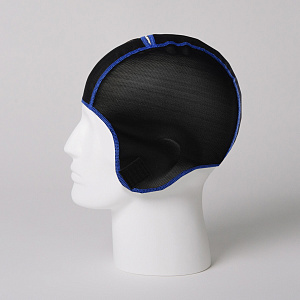

MCScap Cover
Protective head cover for MCScap electrode caps
Size
In stock
€70
Add to cart
003-0-266

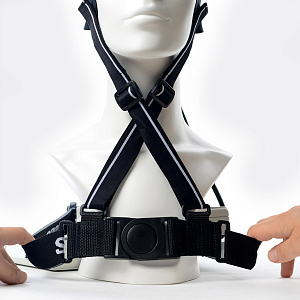

Chest belt
Chest belt for fixing textile cap
Size
In stock
€15
Add to cart
003-0-108

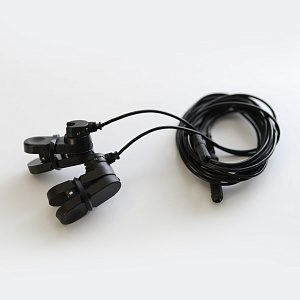

Ear electrodes BASE
