MCScap‑NTC repair electrode

MCScap‑NTC repair electrode

Manufacturer code: 003-0-118
Compare (0)
Compare
Replacement electrode for MCScap PROFESSIONAL electrode cap.
In stock
Price:
16
quantity
Add to cart
Overview
Specifications
Standard set

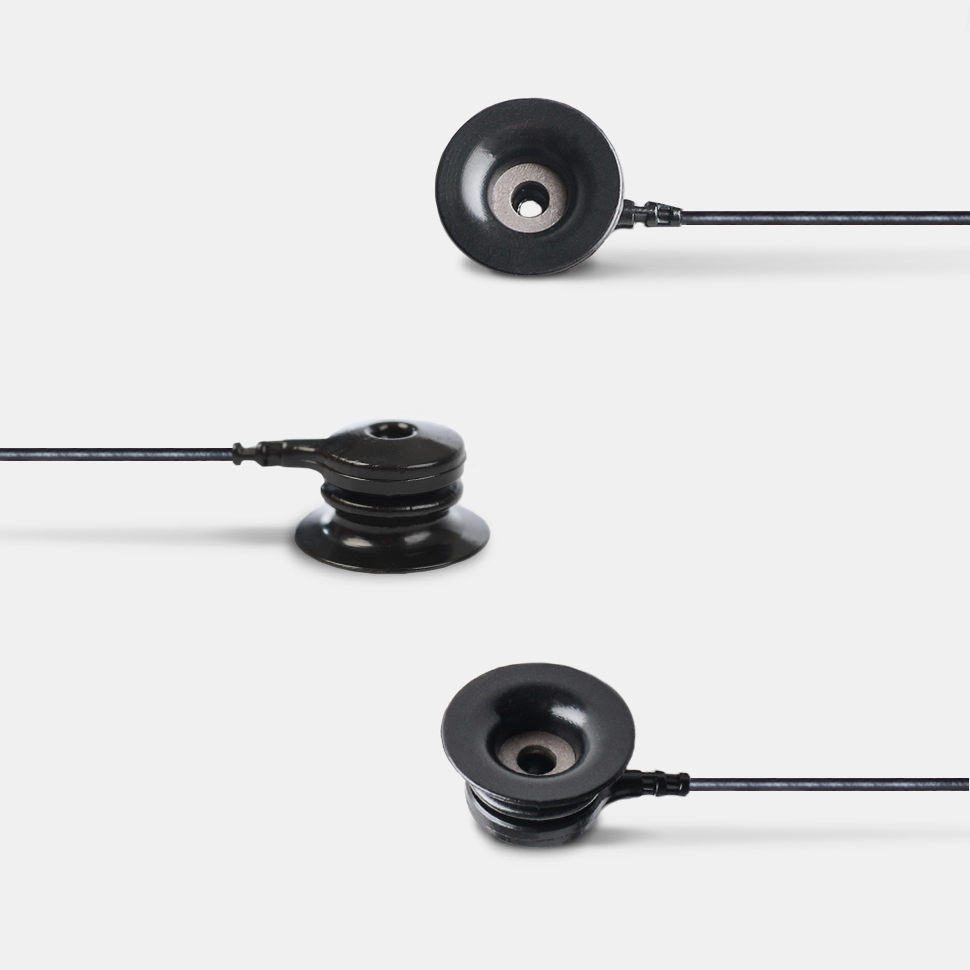

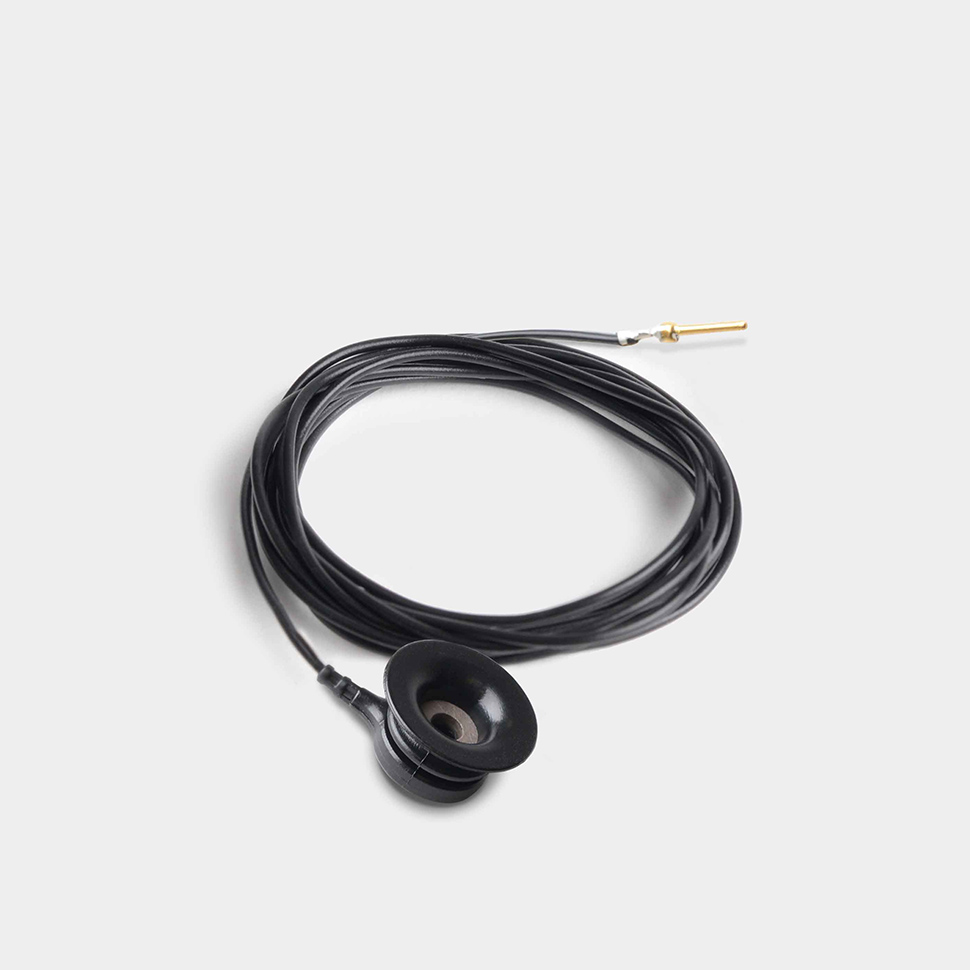

Repair electrode MCScap‑NTC designed for replacing electrode at MCScap PROFESSIONAL electrode cap. The crimped end of the wire is designed for installation in a common connector type D-SUB (DIN 41 652) Male. It is recommended to use an extractor during installation.

Material of electrode conductive surface Ag/AgCl sintered
Electrode body material polyurethane
Square of electrode conductive surface 26 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 10 mm
Surface area of contact of the electrode substance with the skin 78.5 mm2
Outer diameter of the electrode at the point of contact with the skin 15 mm
Distance from the skin to the electrode conductive surface 3.2 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Connector type crimped end
Electrode cable length 2.0 ±0.05 m
Net weight < 4 g

SET

  • Electrode MCScap‑C.

EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
Associated products
003-0-213
MCScap 10‑10 black
Printed textile cap, marked according to international system 10‑10 with chin belt
Size
In stock
€60
Add to cart

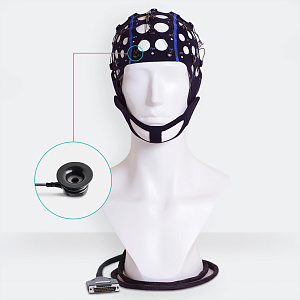

003-3-001
PROFESSIONAL
Textile cap with preinstalled Ag/AgCl sintered MCScap‑NTC electrodes with DB‑25M common connector.
Size
In stock
€580
Add to cart
003-0-234
MCScap 10‑10
Printed textile cap, marked according to international system 10‑10 with chin belt
Size
In stock
€60
Add to cart
003-3-175
PROFESSIONAL light
Printed textile cap with fixing rubber with preinstalled Ag/AgCl sintered MCScap‑NT electrodes with DB‑25M common connector.
Size
In stock
€650
Add to cart
003-0-347

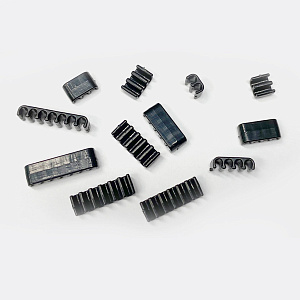

Removable cable fixators
A set of removable plastic fixators for EEG electrodes wires.
In stock
€1
Add to cart
003-0-321

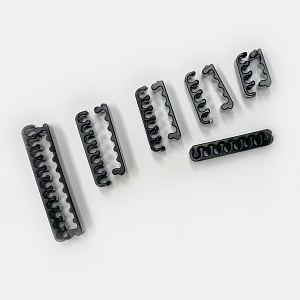

Removable cable fixators with lock
A set of removable plastic fixators for wires with a nominal diameter of up to 1.5 mm with a retaining part.
In stock
€1
Add to cart
003-0-326
Removable markers for EEG electrodes
A set of removable plastic fixators for wires with a nominal diameter of up to 1.5 mm with a retaining part.
In stock
€15
Add to cart
003-0-304

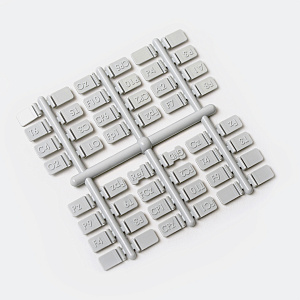

Labels for electrodes 10‑20
A set of labels for marking electrodes according to the 10‑20 system.
In stock
€5
Add to cart
003-0-305
Labels for electrodes 10-10
A set of labels for marking electrodes according to the 10‑10 system.
In stock
€12
Add to cart
003-0-319

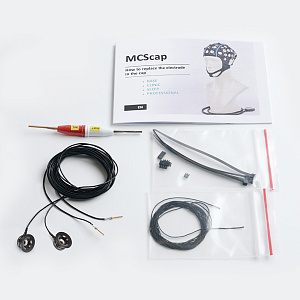

Repair kit for PROFESSIONAL
