Repair kit for PROFESSIONAL

Repair kit for PROFESSIONAL

Manufacturer code: 003-0-319
Compare (0)
Compare
Kit for electrode replacement in MCScap PROFESSIONAL electrode cap.
In stock
Price:
36
quantity
Add to cart
Overview
Specifications
Standard set

The Repair kit for PROFESSIONAL is intended for self-replacement of a faulty electrode in the MCScap PROFESSIONAL electrode cap with a DB‑25M common connector or other D-SUB (DIN 41 652) Male connectors.

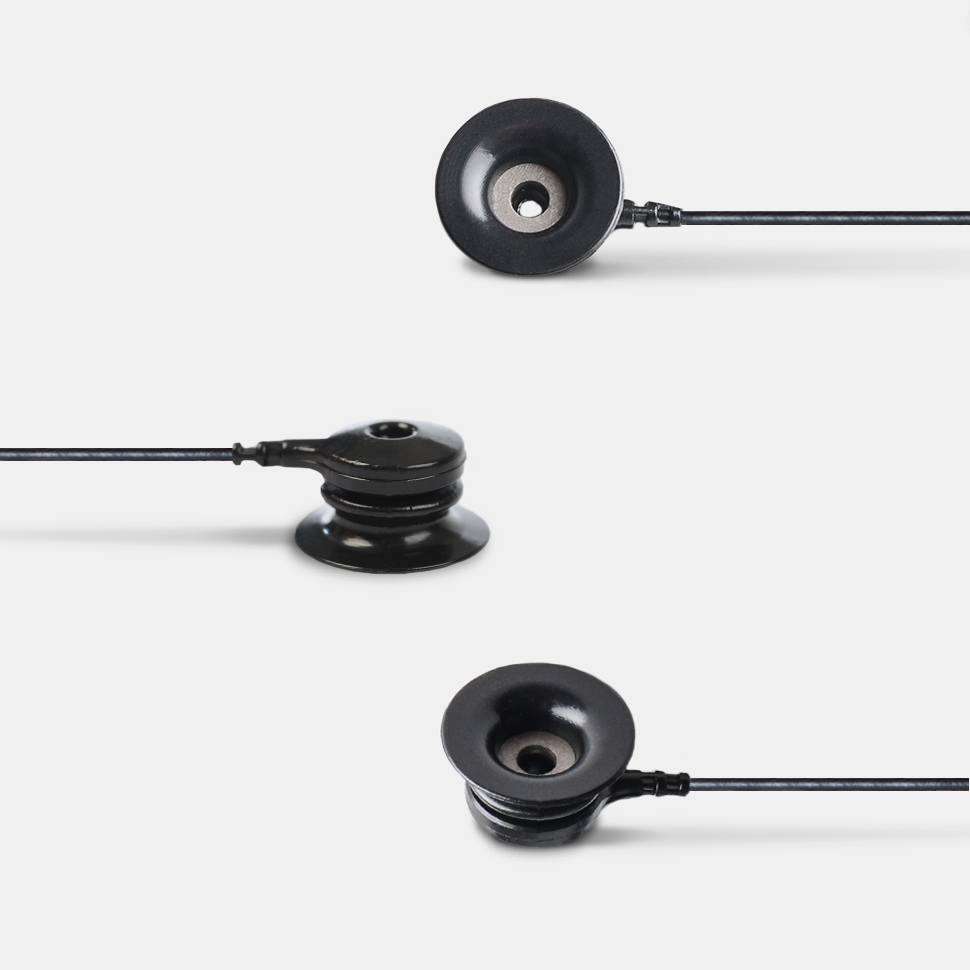

Electrode MCScap‑NTC
Material of electrode conductive surface Ag/AgCl sintered
Electrode body material polyurethane
Square of electrode conductive surface 26 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 10 mm
Surface area of contact of the electrode substance with the skin 78.5 mm2
Outer diameter of the electrode at the point of contact with the skin 15 mm
Distance from the skin to the electrode conductive surface 3.2 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Connector type crimped end
Electrode cable length 2.0 ±0.05 m
Net weight < 40 g

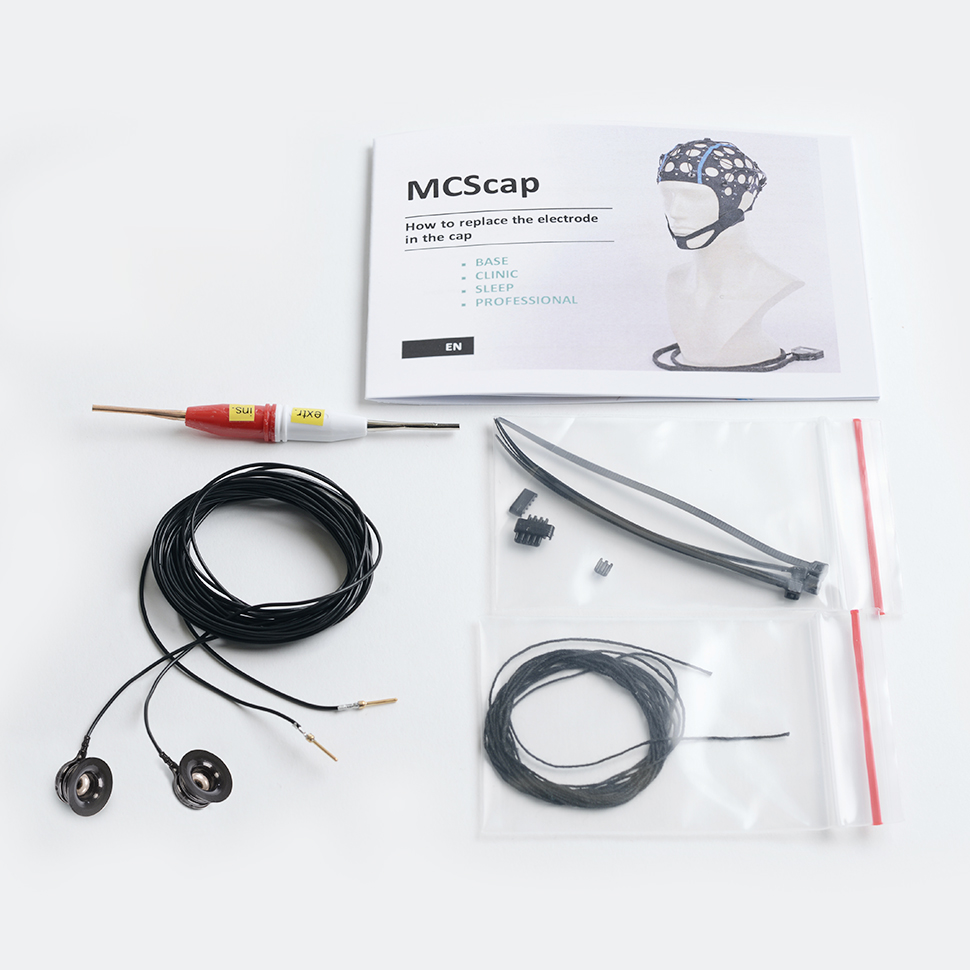

SET

  • Repair electrode MCScap‑NTC - 2 pcs.,
  • extractor,
  • cable ties for electrodes,
  • removable cable fixators,
  • thread 2 m,
  • operational documentation.
EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
Associated products
003-3-001

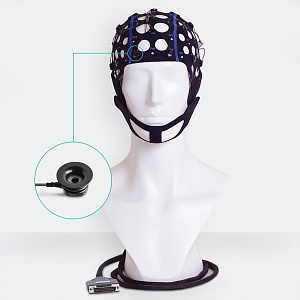

PROFESSIONAL
Textile cap with preinstalled Ag/AgCl sintered MCScap‑NTC electrodes with DB‑25M common connector.
Size
In stock
€580
Add to cart
003-0-347

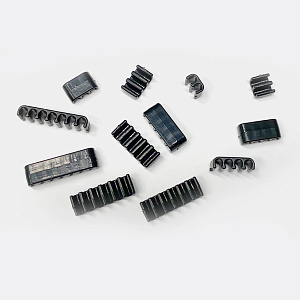

Removable cable fixators
A set of removable plastic fixators for EEG electrodes wires.
In stock
€1
Add to cart
003-0-321

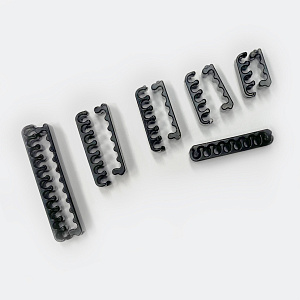

Removable cable fixators with lock
