PROFESSIONAL light
PROFESSIONAL light

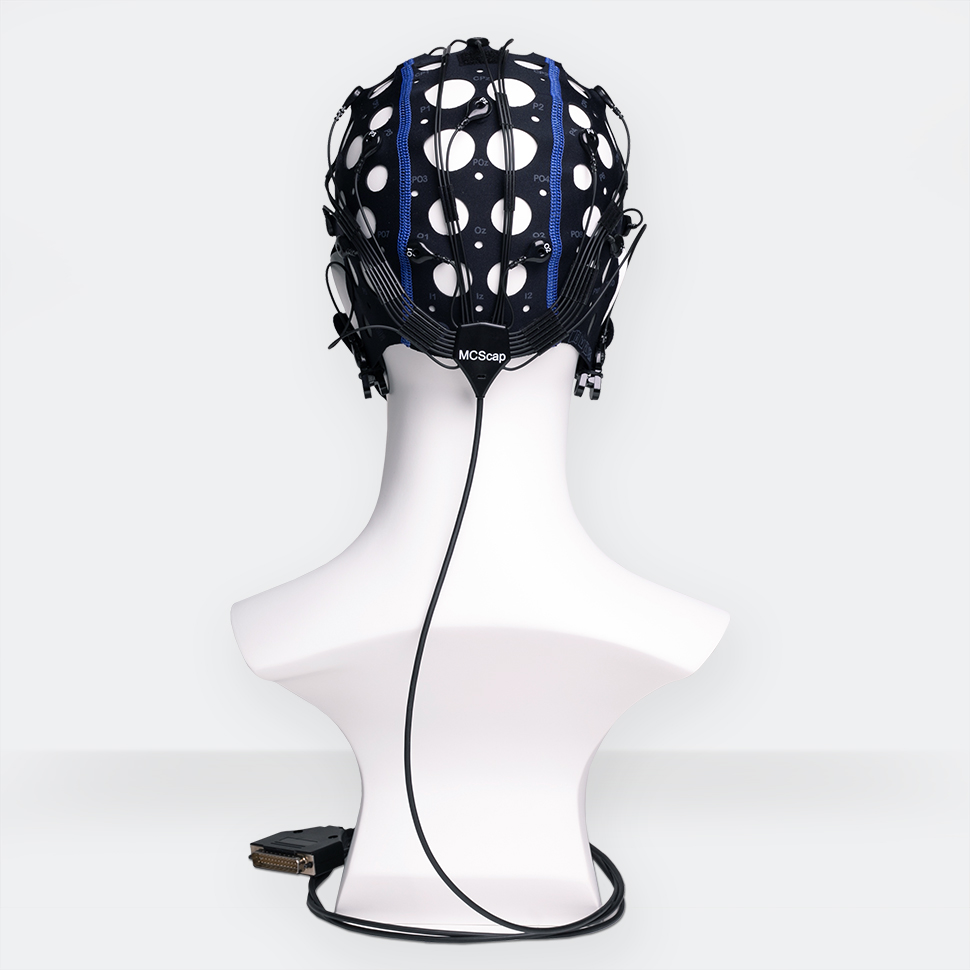

Electrode cap PROFESSIONAL light is made in the lightest version in the line of other electrode caps MCScap®. It uses a textile cap MCScap LIGHT without a chin belt and the thinnest Ag/AgCl sintered electrodes MCScap‑NT. The electrode lead wires are assembled into a thin patient cable using a splitter, which is attached to a textile cap. The cap has a DB‑25M common connector for connecting to an EEG amplifier. The electrode cap is designed for use with electroencephalographs and biological signal amplifiers.
Electrode cap PROFESSIONAL light can be used for general EEG practice, EEG monitoring, scientific EEG.
-
The electrode cap is not suitable for self-repair.

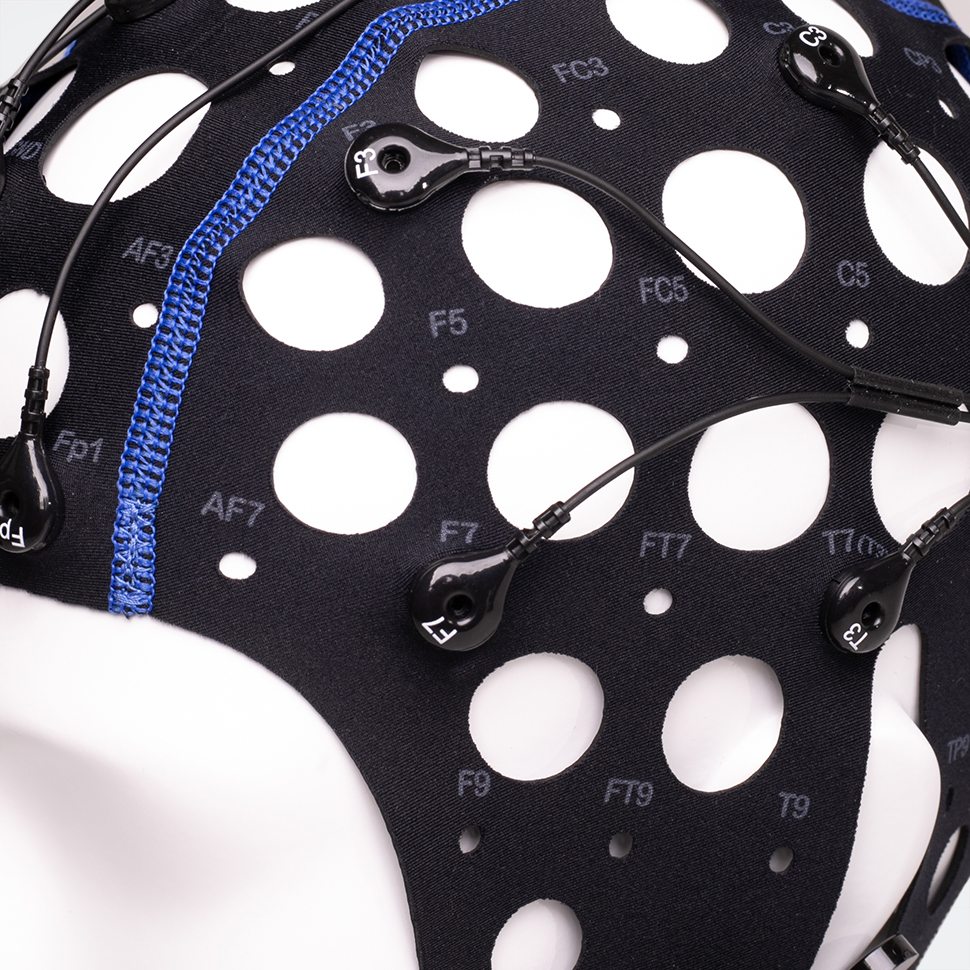

Textile cap is made of elastic material, preserving the shape and size. The cap provides the exact position of the electrodes on the head without additional measurements and adjustments. Large holes are provided for ventilation and access to the electrodes and patient’s skin. The cap is fixed on the head with an elastic band. The caps are marked according to the 10-10 system. Size identification is carried out by the color of the seam.

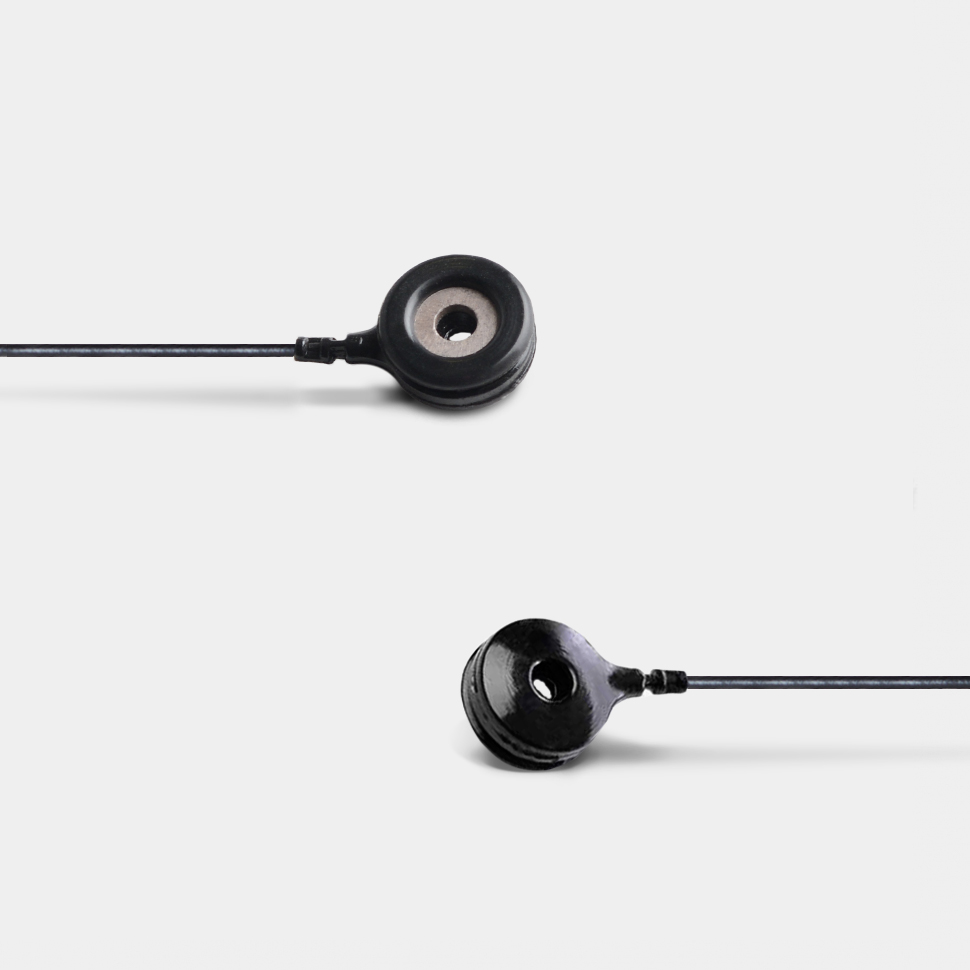

MCScap‑NT is a cup Ag / AgCl sintered electrode for EEG recording. MCScap‑NT is designed for research requiring increased patient comfort for a long time. The Ag / AgCl sintered electrode material guarantees minimum polarization and long-term signal stability, as well as an increased electrode life. The conductive surface of the MCScap electrodes is not in direct contact with the skin. Contact is provided by a conductive substance. A hole in the electrodes is provided to add a conductive gel. Electrode have additional labeling what makes easy to rearrange them to new textile base.
| Types of EEG examinations | general EEG practice, EEG monitoring, scientific EEG |
| Recommended body position during examination | sitting position, lying position |
| Electrode | MCScap‑NT |
| Material of electrode conductive surface | Ag/AgCl sintered |
| Electrode body material | plastic |
| The need to use an electrode contact substance | required |
| Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin | 8 ±0.3 mm |
| The diameter of the hole in the electrode to add gel | 2.8 ±0.3 mm |
| Electrode polarization | ≤ 50 mV |
| Resistance of electrodes insulation | ≥ 1000 MΩ |
| Dielectric strength of electrodes insulation | 1500 V |
| The impedance of the electrode | ≤ 5 kΩ |
| Number of electrodes / channels | 21 / 20 |
| Electrode positions | Fp1, Fp2, F3, F4, C3, C4, P3, P4, O1, O2, F7, F8, Т3, T4, T5, T6, Cz, Fz, Pz, GND Fp1, Fp2, F3, F4, C3, C4, P3, P4, O1, O2, F7, F8, T7(Т3), T8(T4), P7(T5), P8(T6), Cz, Fz, Pz, GND, Ref |
| Connector type | DB‑25M |
| Cable length | 1.5 m |
| Location of the output of the electrode cable from the cap | back of the head |
| Ear electrodes | no |
| Marking of the textile cap | yes |
| Marking of the electrodes | yes |
| Weight of EEG cap | < 250 g |
| Net weight | < 750 g |
| Gross weight | < 800 g |
-
Electrode cap PROFESSIONAL light,
-
User Manual.
| Size | Application | Head circumference | Textile or seam color |
|---|---|---|---|
| XL | Adult | 60-66 cm | Green |
| XL/L | Adult | 57-63 cm | Green + blue |
| L | Adults (most) | 54-60 cm | Blue |
| L/M | Teens, adults | 51-57 cm | Blue + red |
| M | Children, teens | 48-54 cm | Red |
| M/S | Children under 5 years old | 45-51 cm | Red + yellow |
| S | Children under 2 years old | 42-48 cm | Yellow |
