Ear electrodes BASE

Ear electrodes BASE

Manufacturer code: 003-0-108
Compare (0)
Compare
Set of MCScap‑E electrodes and ear fixators for placing electrodes on the earlobes.
In stock
Price:
50
quantity
Add to cart
Overview
Specifications
Standard set

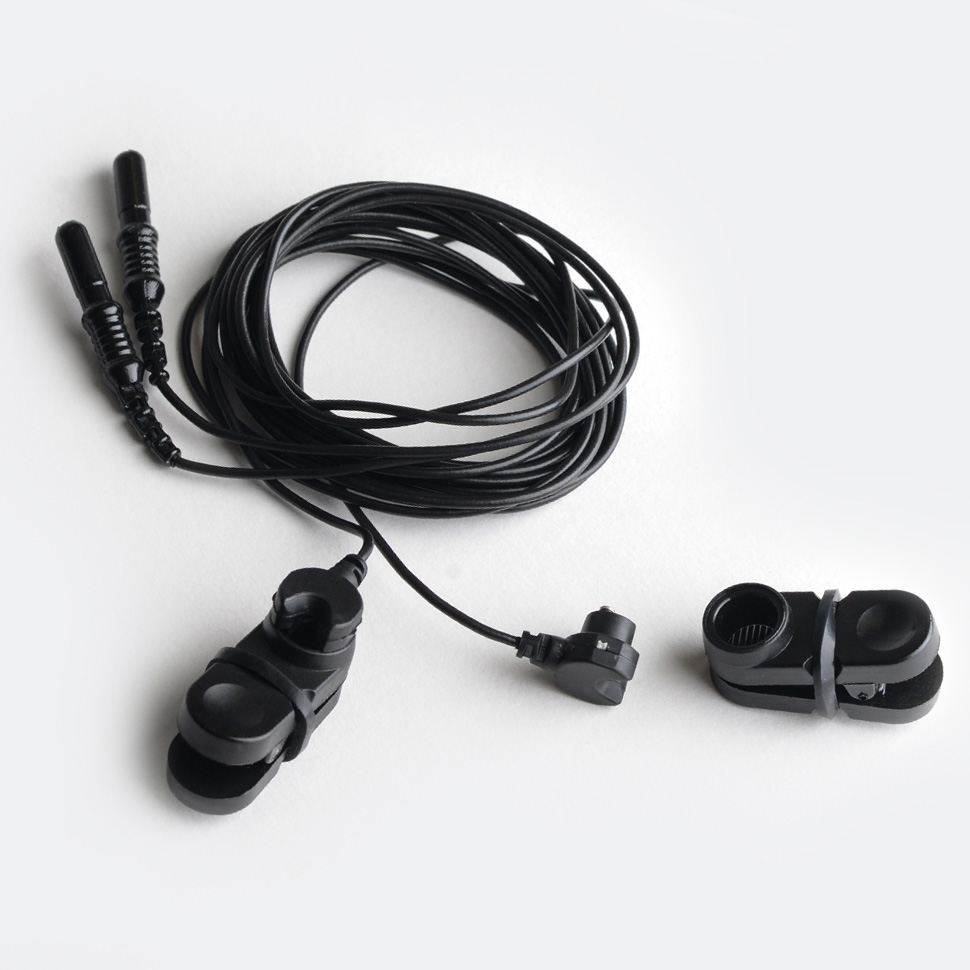

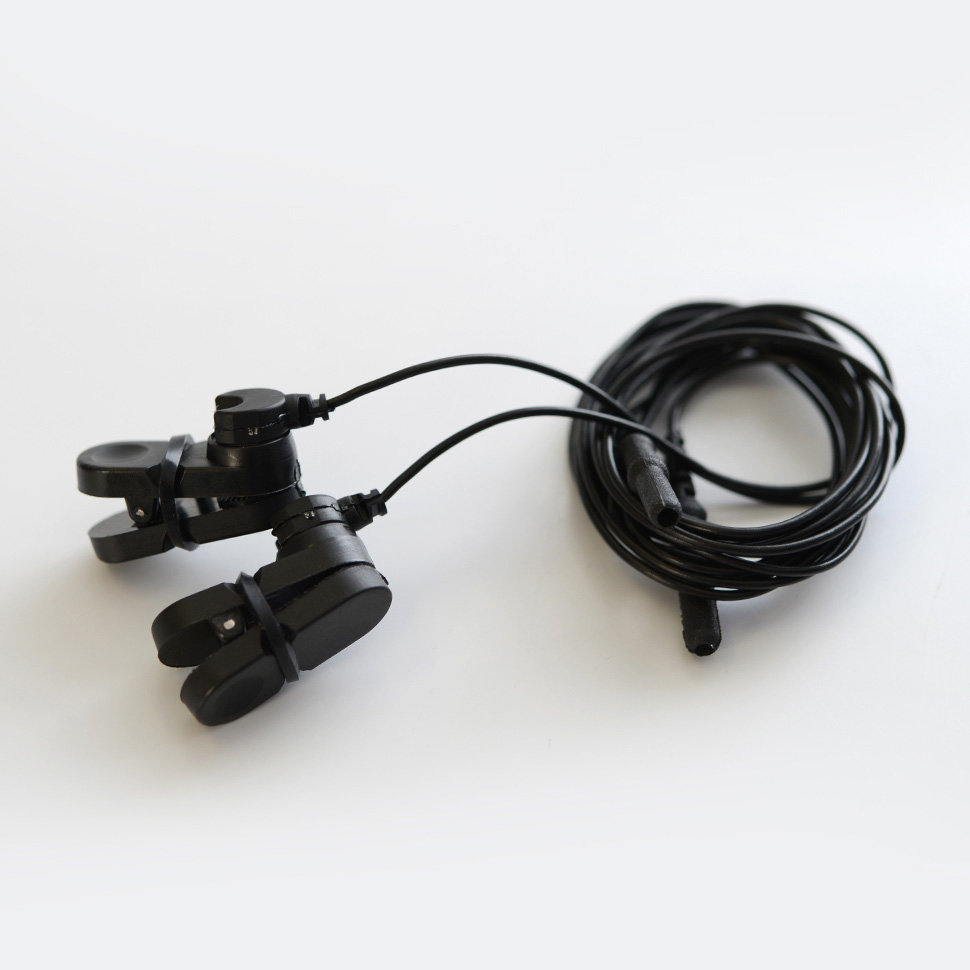

Ear electrodes BASE is a set of MCScap‑E electrodes and MCScap‑A ear fixators.

MCScap‑E is a point Ag/AgCl sintered electrode for EEG recording. MCScap‑E is designed for research that requires frequent installation and quick removal of electrodes for cleaning and disinfection. Used with MCScap textile caps with retaining rings. The Ag / AgCl sintered electrode material guarantees minimum polarization and long-term signal stability, as well as an increased electrode life. The electrode has a universal connector TouchProof 1.5 mm, which fits most EEG amplifiers.

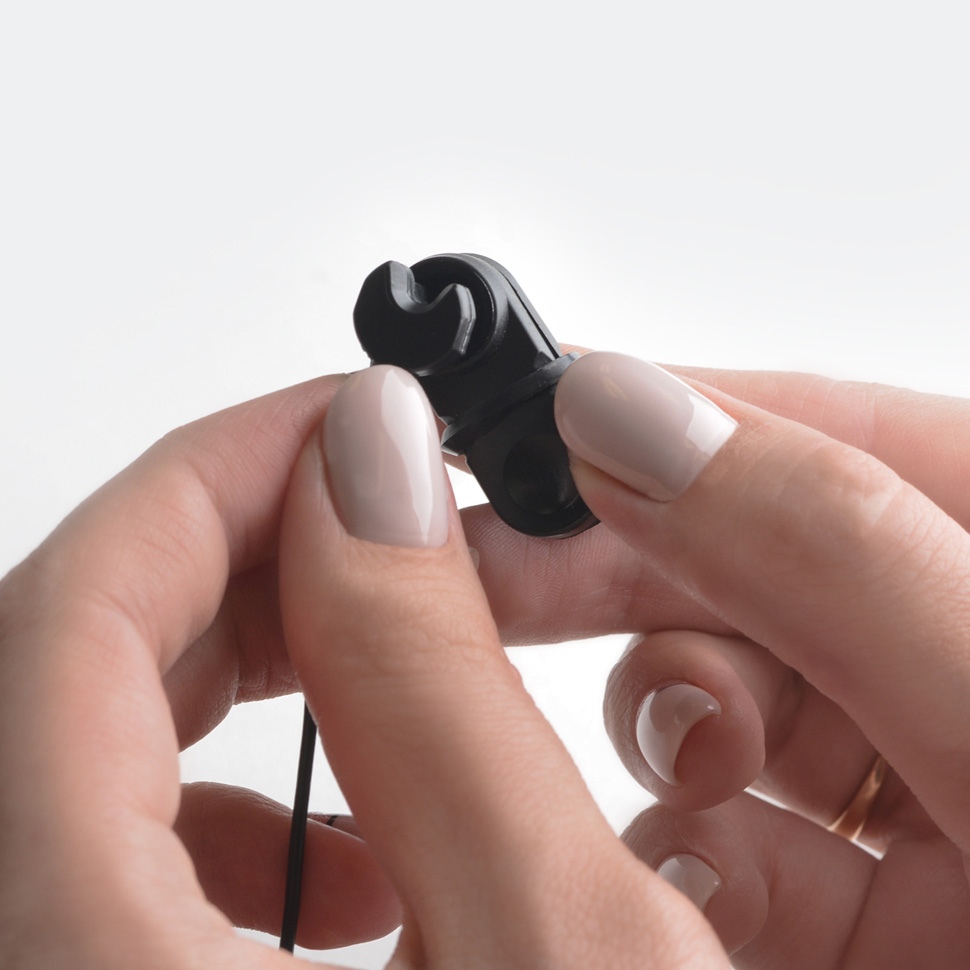

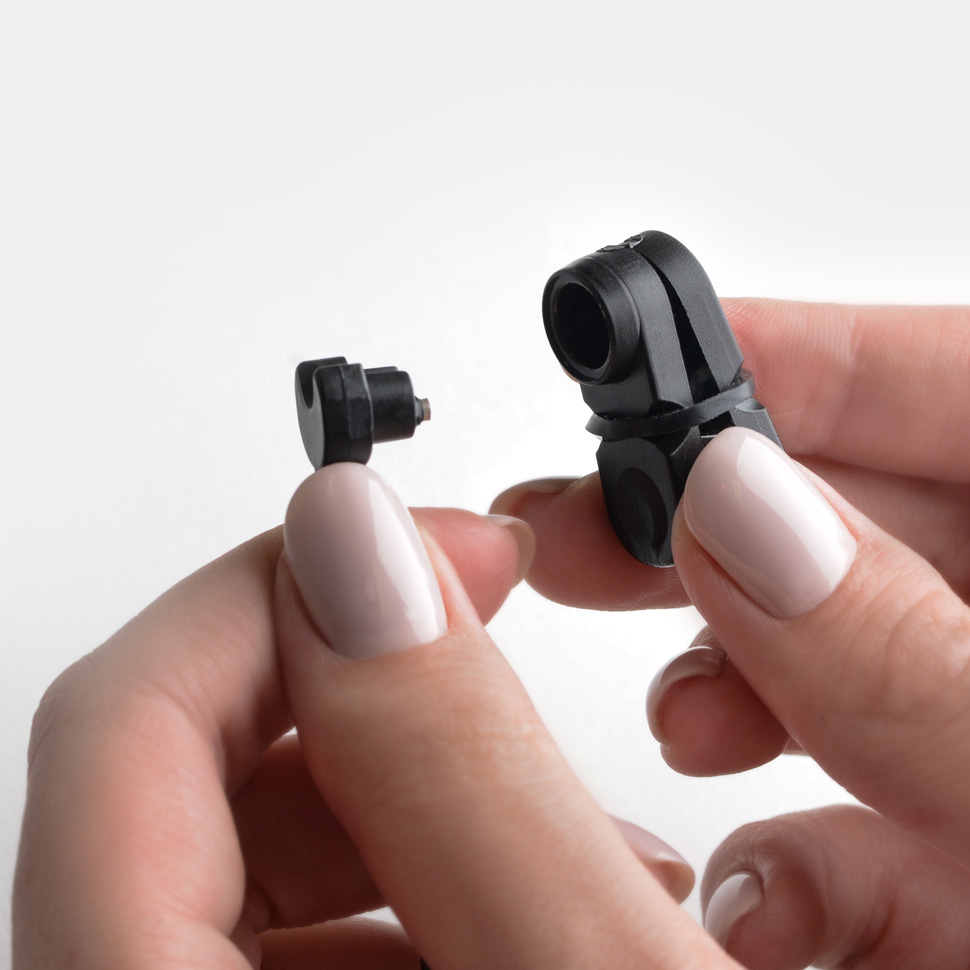

The MCScap‑A is an ear fixator specially designed for attaching MCScap‑E point electrodes to earlobes. The fixator tightly presses the electrode to the earlobe and does not cause discomfort to the patient.

Electrode MCScap‑E
Material of electrode conductive surface Ag/AgCl sintered
Electrode body material polyurethane
Square of electrode conductive surface 4 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 8 mm
Surface area of contact of the electrode substance with the skin 50.2 mm2
Outer diameter of the electrode at the point of contact with the skin 15.8 mm
Distance from the skin to the electrode conductive surface 0.7 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Connector type TouchProof 1.5 mm (DIN 42 802‑ST)
Electrode cable length 1.5 ±0.05 m
Net weight < 20 g
  • MCScap‑E electrode - 2 pcs.,
  • MCScap‑A ear fixators - 2 pcs.
EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
Associated products
003-0-101

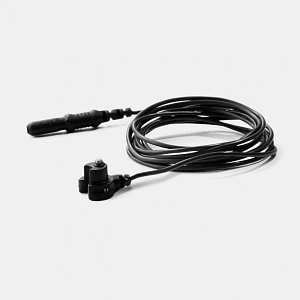

MCScap‑E electrode
Point Ag/AgCl sintered electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.
Quantity per package
In stock
€15
Add to cart
003-7-003

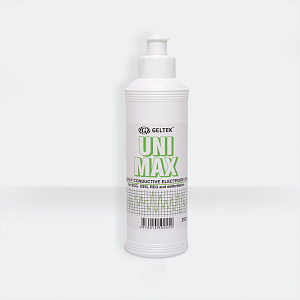

EEG gel Unimax
Electrode contact gel with high electrical conductivity.
In stock
€5
Add to cart
003-0-225

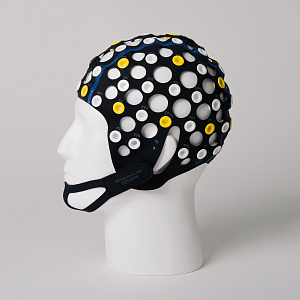

MCScap 10‑20 with fixing rings
Printed textile cap with pre-installed fixing rings according international system 10-20.
Size
In stock
€75
Add to cart
003-4-001
ELECTRODE SET classic
Universal kit of removable Ag/AgCl sintered MCScap‑E electrodes with TouchProof 1.5 mm connectors and textile caps with rings labeled by system 10-20.
Size
In stock
€600
Add to cart
003-0-255

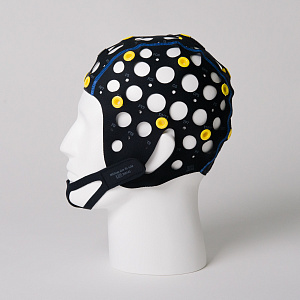

MCScap 10‑10 with fixing rings
Printed textile cap with pre-installed fixing rings according international system 10‑10.
Size
In stock
€100
Add to cart
003-6-003

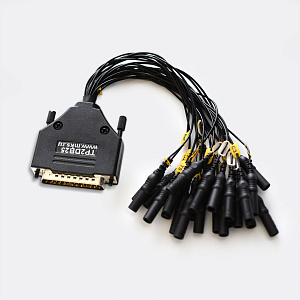

Adapter TP2DB25
Adapter for connecting up to 25 electrodes, including GND with a TouchProof 1.5 mm connector to an amplifier with a DB‑25F connector.
In stock
€100
Add to cart
003-0-112

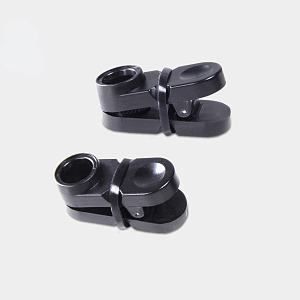

MCScap‑A ear fixator
