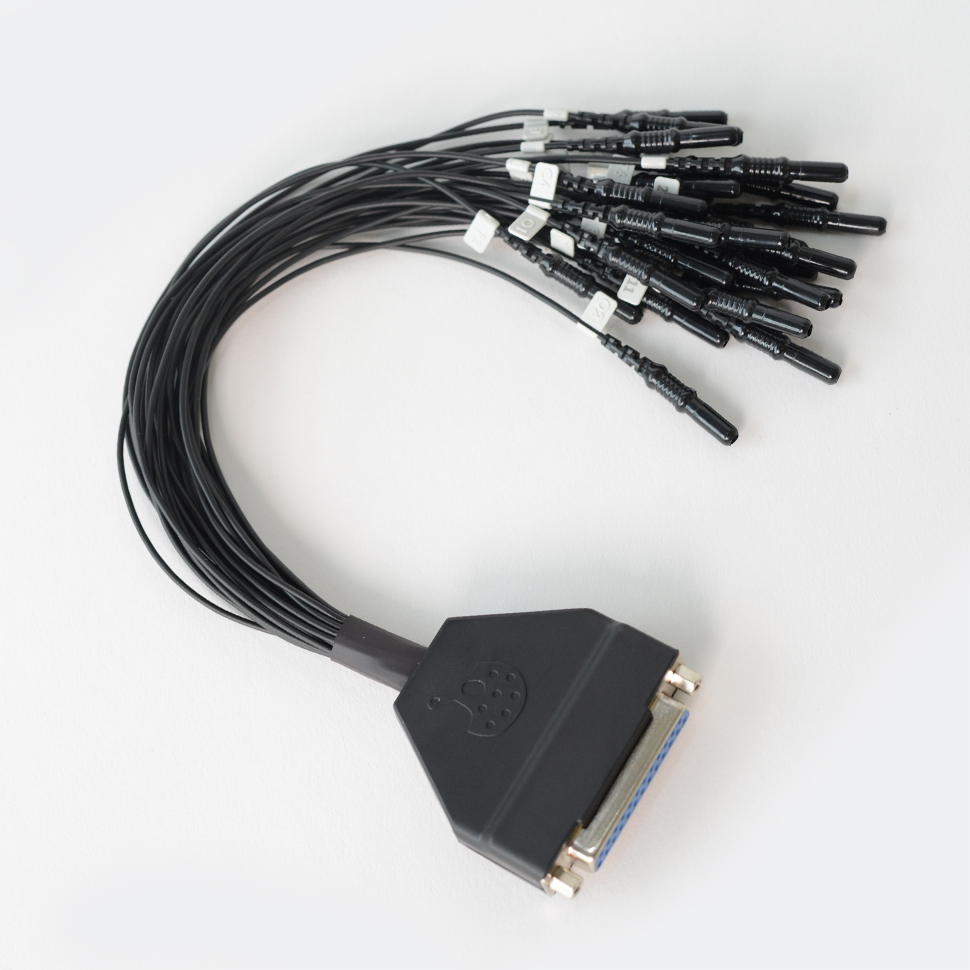

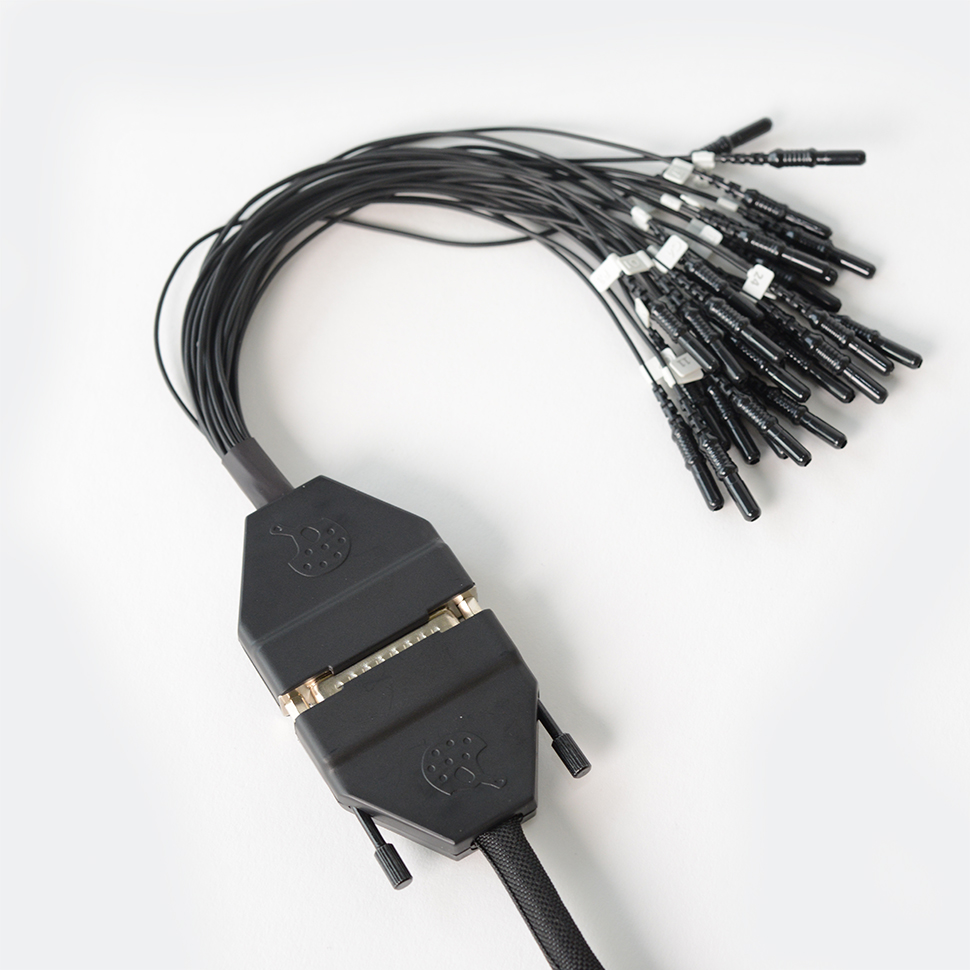

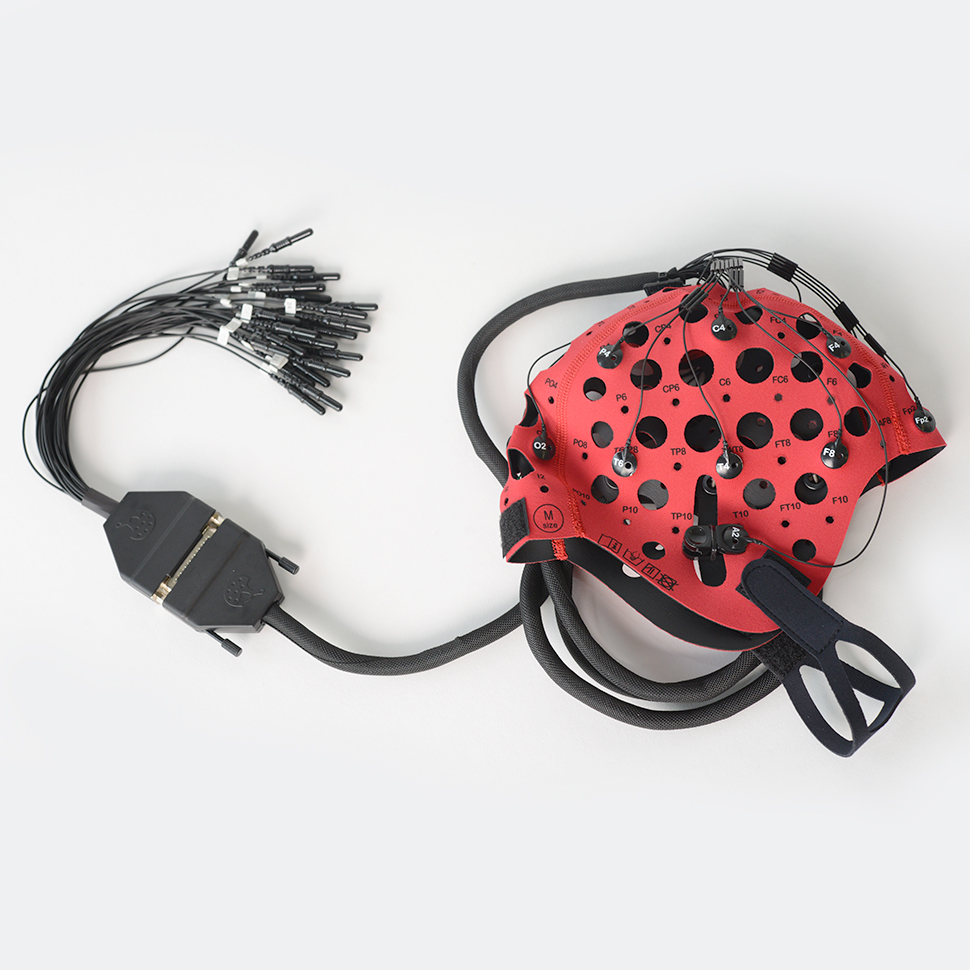

TP2DB25F adapter is a passive adapter (switch) for connecting an EEG cap with a common DB‑25M connector to the connectors of TouchProof 1.5 mm (DIN 42 802‑BU) of EEG amplifier.

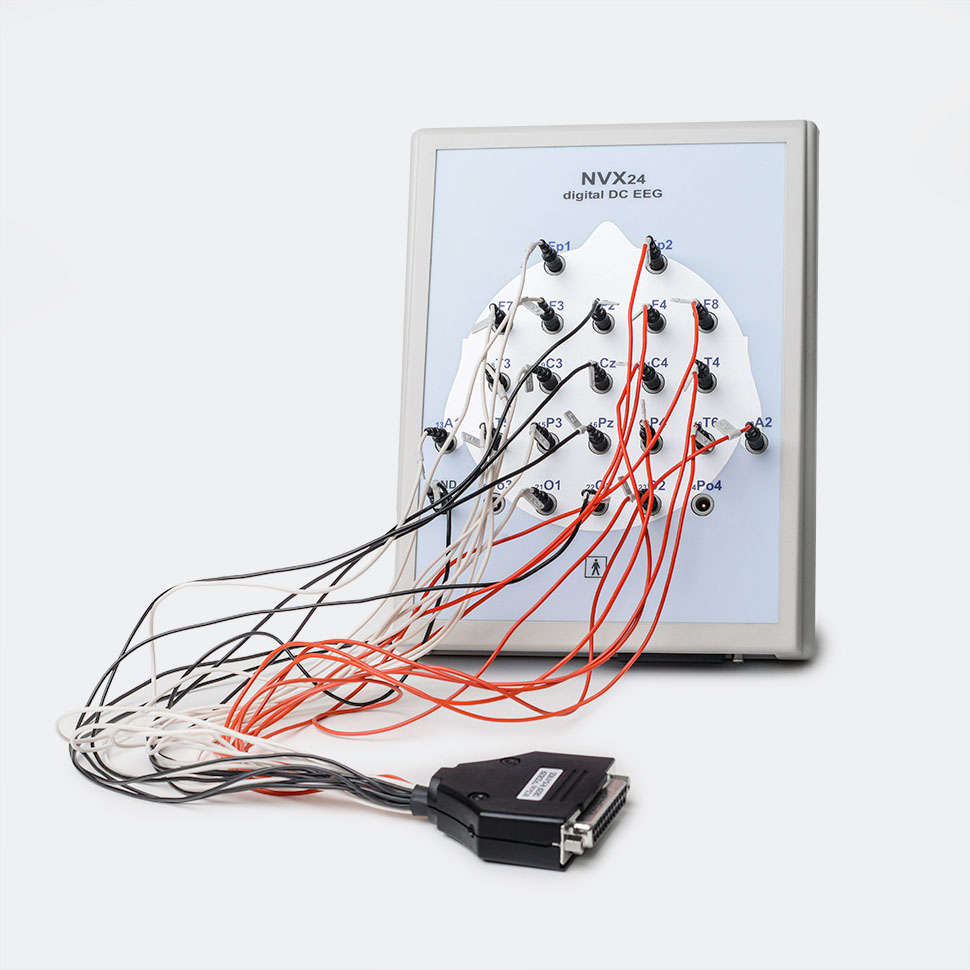

Connectors are marked with plastic labels. 20 adapter connectors are labeled in accordance with the international system 10‑20 and are designed to connect standard lead electrodes. Connectors 11, 12, 13, 24, 25 can be used for arbitrary connection of additional electrodes depending on the EEG amplifier model. For their self-marking, the set includes labels with the most common symbols "A1", "A2", "Ref", "Fpz", "Oz".
|Connector 1 type (to cap)||DB‑25F|
|Connector 2 type (to ampifier)||up to 25 TouchProof 1.5 mm (DIN 42 802‑ST)|
|Maximum number of electrodes to connect||25|
|Adapter / Extension lenght||0.3 ±0.02 m|
|Net weight||< 85 g|
additional plastic labels for marking TouchProof connectors - 5 pcs.
