MCScap‑C electrode

MCScap‑C electrode

Manufacturer code: 003-0-106
Compare (0)
Compare

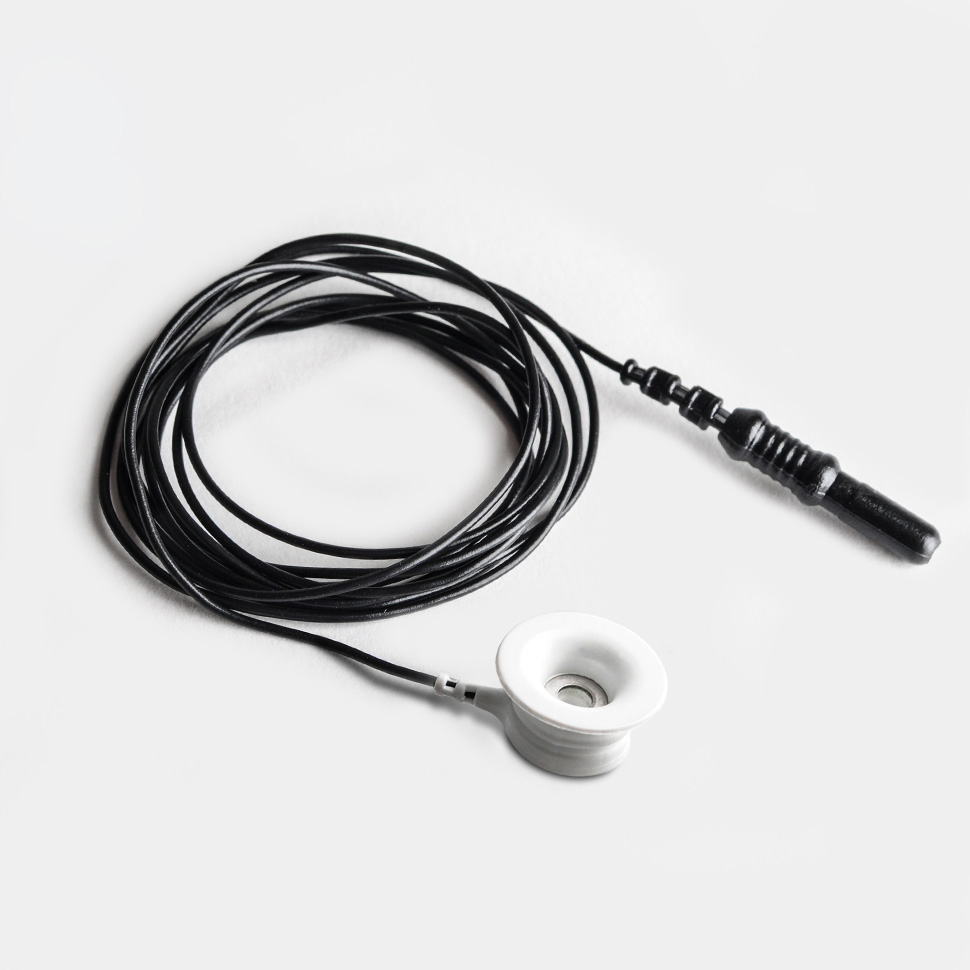

Cup with skirt Ag/AgCl electrode for EEG recording with TouchProof 1.5 mm connector, cable length 1.2 m.
Quantity per package
In stock
Price:
10
quantity
Add to cart
Overview
Specifications
Standard set

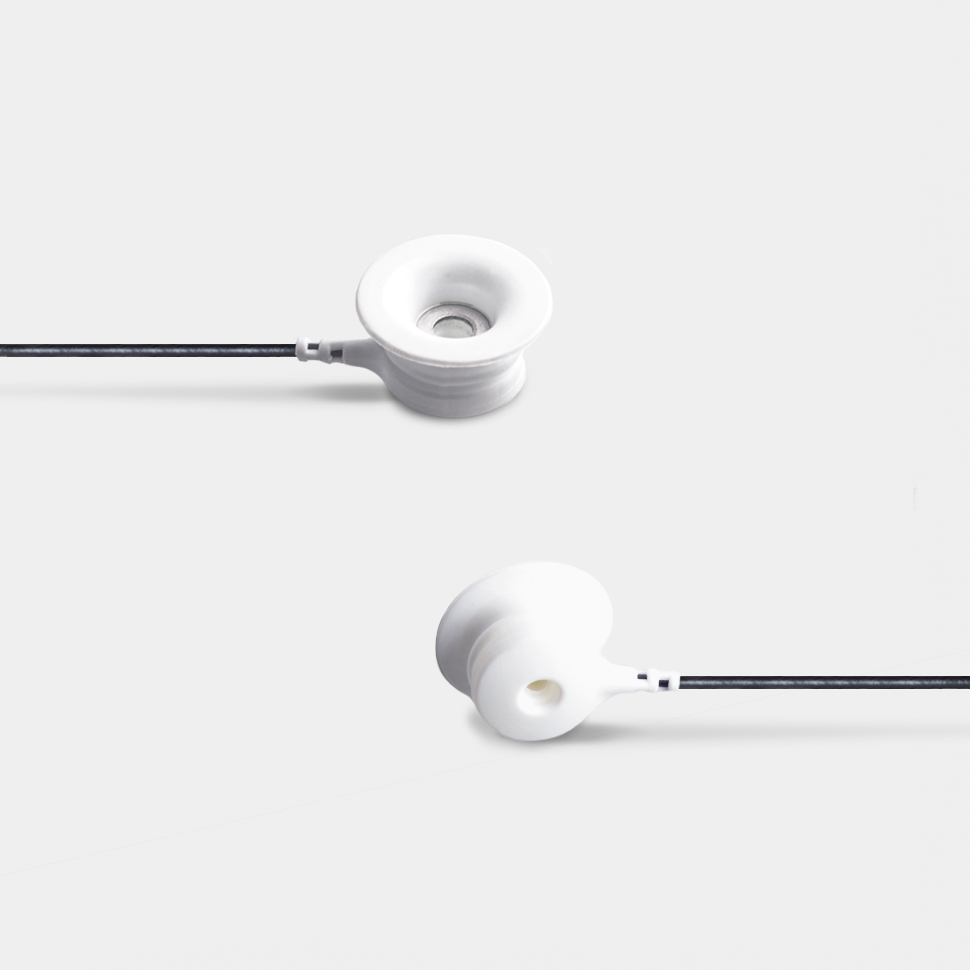

MCScap‑C is a skirt Ag/AgCl electrode for EEG recording. The shape of the electrode in the form of a bowl with a wide skirt allows you to achieve a snug fit to the patient's head and provides comfort throughout the study, and also does not allow the electrode gel to flow out of the electrode body. The Ag/AgCl electrode material guarantees minimum polarization and long-term signal stability. The conductive surface of the MCScap electrodes is not in direct contact with the skin. Contact is provided by a conductive substance. A hole in the electrodes is provided to add a conductive gel. The electrode has a universal connector TouchProof 1.5 mm, which fits most EEG amplifiers.

MCScap‑C electrode can be used for general EEG practice.

Material of electrode conductive surface Ag/AgCl
Electrode body material polyurethane
Square of electrode conductive surface 26 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 10 mm
Surface area of contact of the electrode substance with the skin 78.5 mm2
Outer diameter of the electrode at the point of contact with the skin 15 mm
Distance from the skin to the electrode conductive surface 3.5 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Electrode cable length 1.2 ±0.05 m
Connector type TouchProof 1.5 mm (DIN 42 802‑ST)

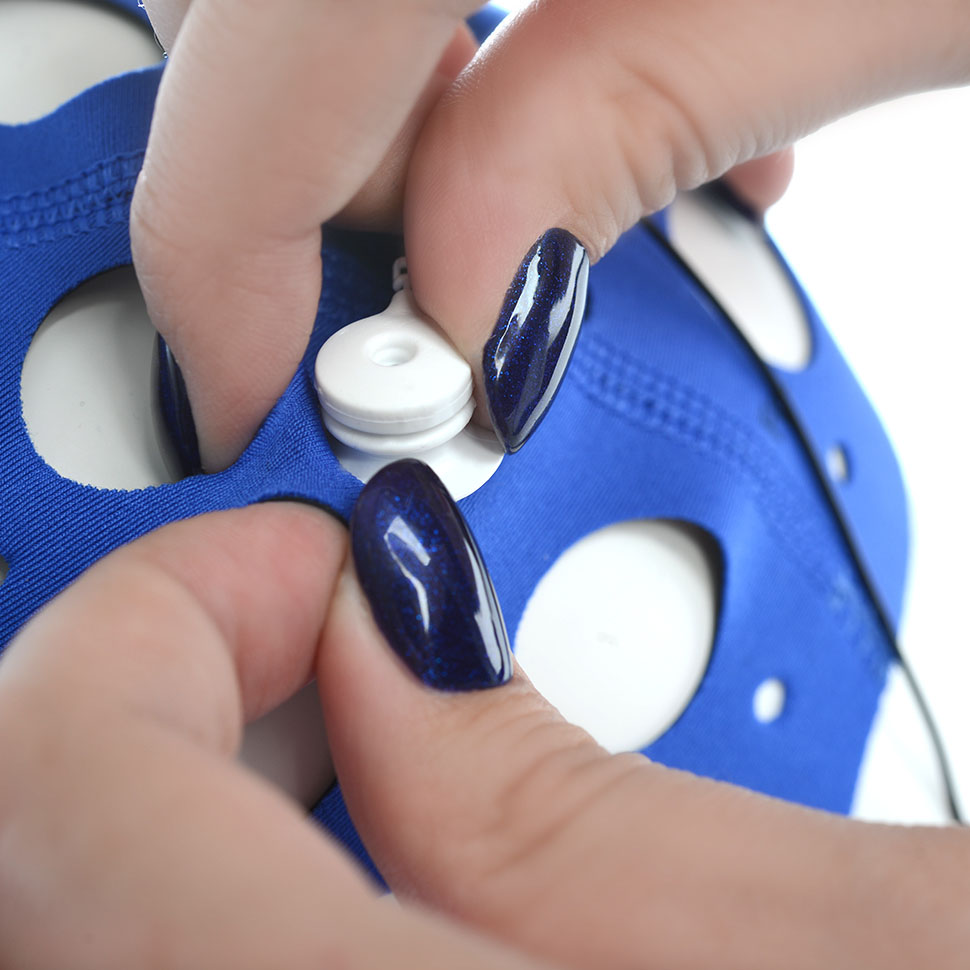

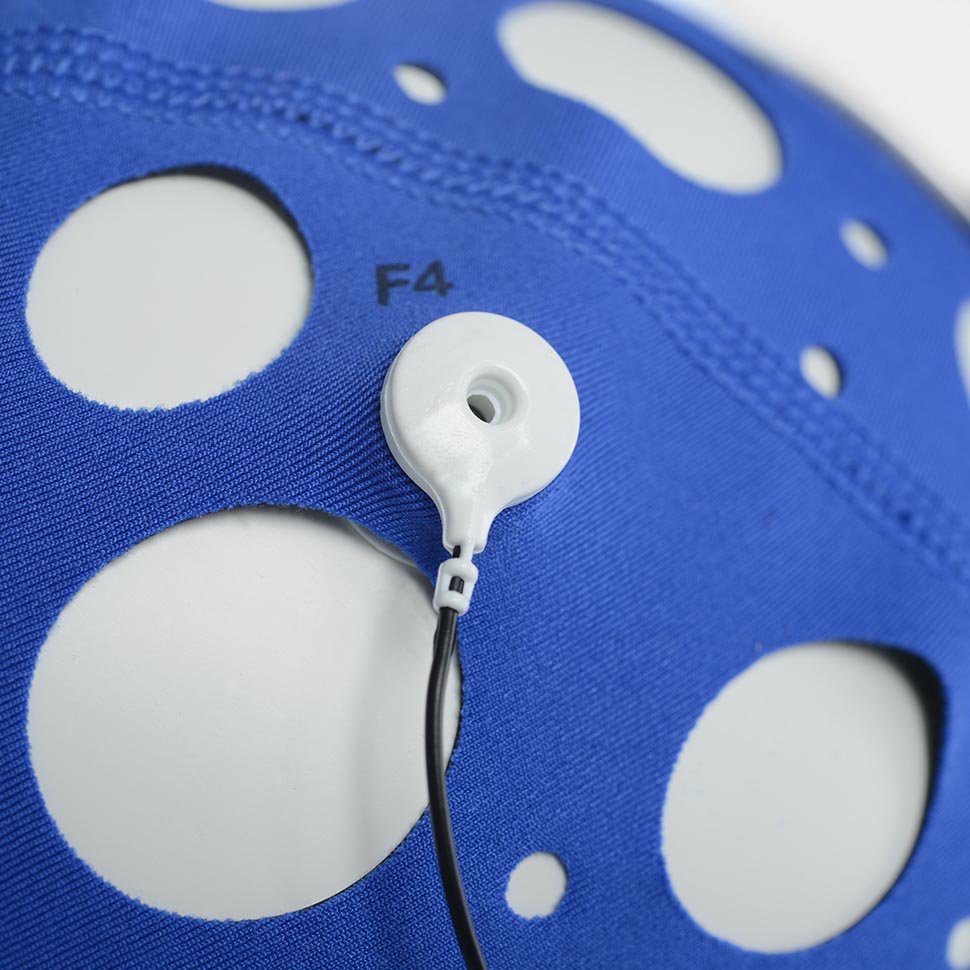

Use with MCScap® textile caps yes, fixing directly in the holes of the cap
Net weight < 4 g
  • MCScap‑C electrode.

EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
Associated products
003-0-213
MCScap 10‑10 black
Printed textile cap, marked according to international system 10‑10 with size identification by the color of the seam.
Size
In stock
€65
Add to cart
003-7-003

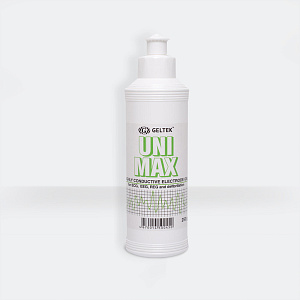

EEG gel Unimax
Electrode contact gel with high electrical conductivity.
In stock
€5
Add to cart
003-0-234
MCScap 10‑10
Printed textile cap, marked according to international system 10‑10 with size identification by the color of the cap.
Size
In stock
€65
Add to cart
003-6-003
Adapter TP2DB25
Adapter for connecting up to 25 electrodes, including GND with a TouchProof 1.5 mm connector to an amplifier with a DB‑25F connector.
In stock
€100
Add to cart
003-0-113

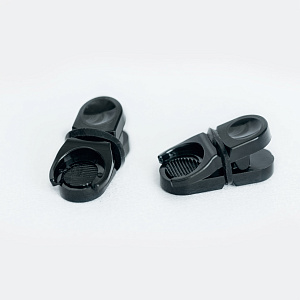

MCScap‑AT ear fixator
