System NeoRec cap 21 PROFESSIONAL is the 21-channel model of the NeoRec cap DC mobile EEG (hereinafter NeoRec cap), including an EEG amplifier NeoRec 21 and the MCScap PROFESSIONAL for NeoRec 21 electrode cap.
NeoRec cap DC mobile EEG – is a mobile electroencephalograph for non-invasive recording of electrical activity of the brain.
Not a medical device.
NeoRec cap intended for use both in a specially equipped room and outside, including on the street. But it is necessary to exclude the influence of strong electromagnetic interference on the device during operation.
NeoRec cap can be used for education, research and development in EEG, neuro-computer interfaces (brain-computer interface, direct neural interface, brain interface), bio-feedback (BCI), neuromarketing, neurogaming, brain fitness.
NeoRec cap intended to record EEG and 3D acceleration events to files of different formats (EDF+ 16 bit, BDF+ 24 bit, GDF 32 bit) or transmit it online via stream LSL (Lab Streaming Layer) for analyze by third-party software as MATLAB / EEGLAB, OpenViBE etc.
For developers of their own software, interaction via API is provided (https://github.com/mcsltd/NB2CppDemo).

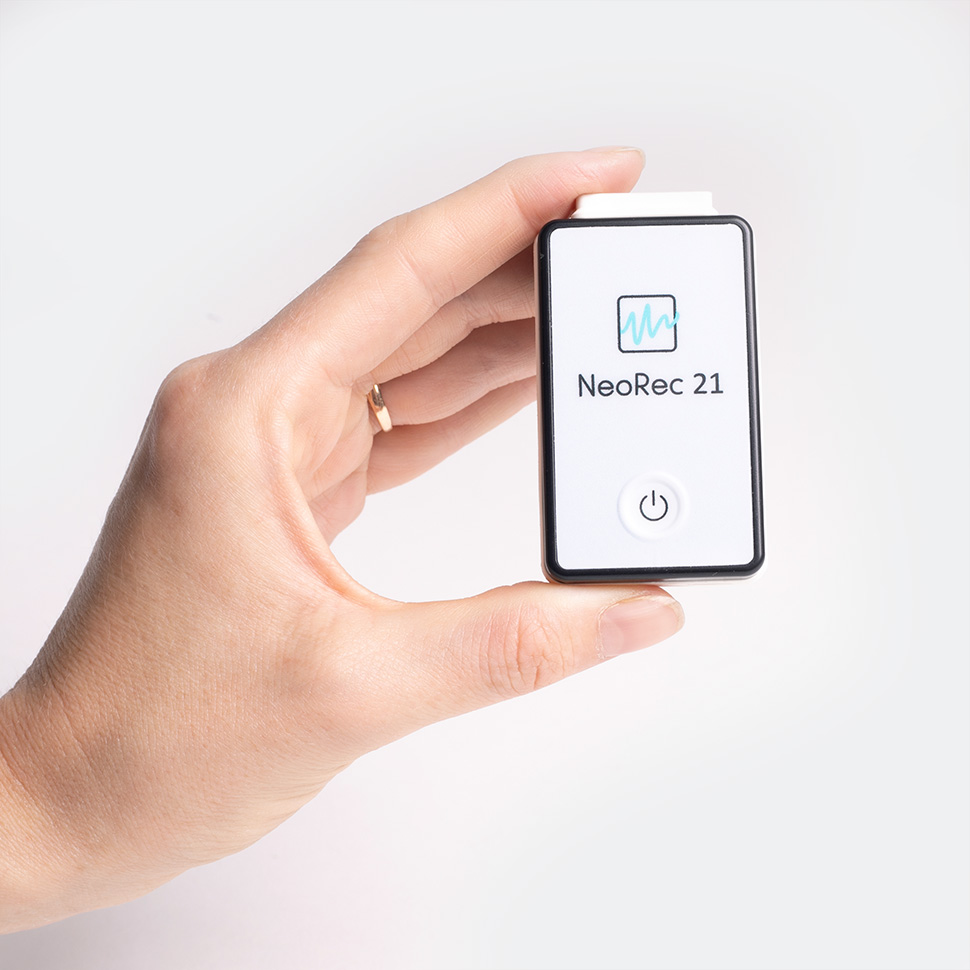

NeoRec 21 mini is a 21‑channel wireless EEG amplifier with a built-in accelerometer

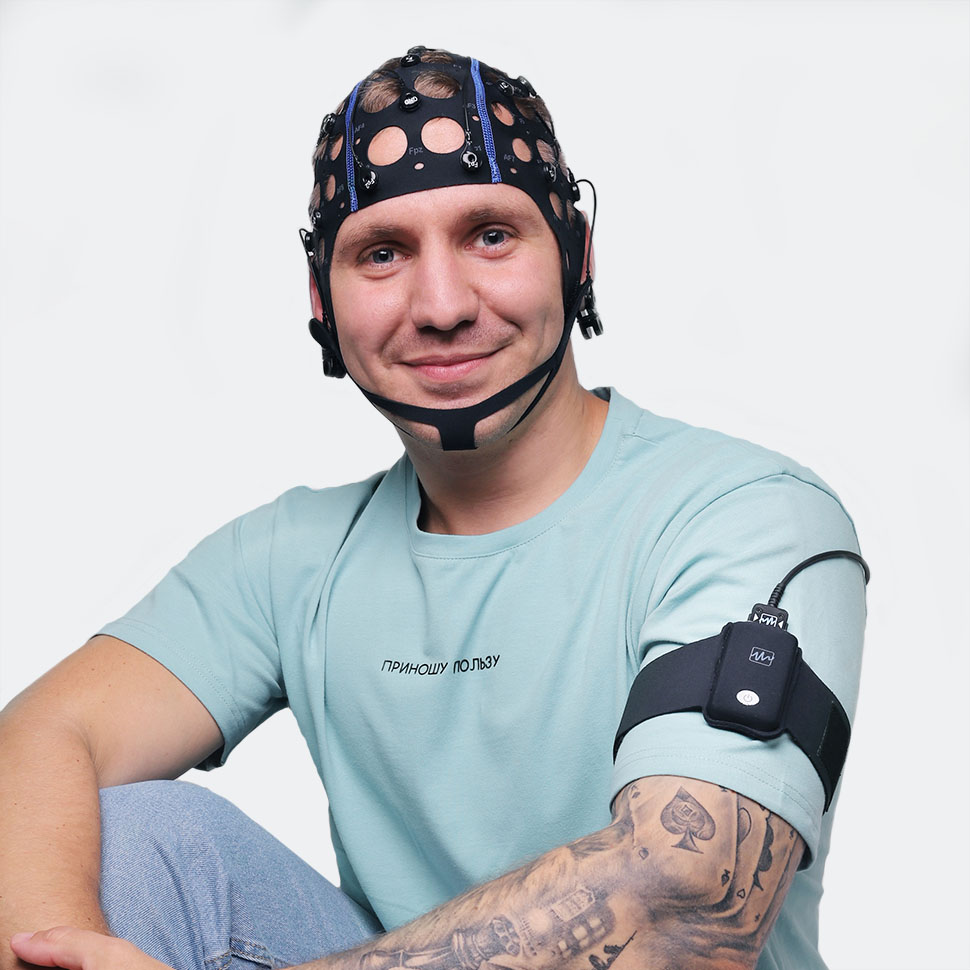

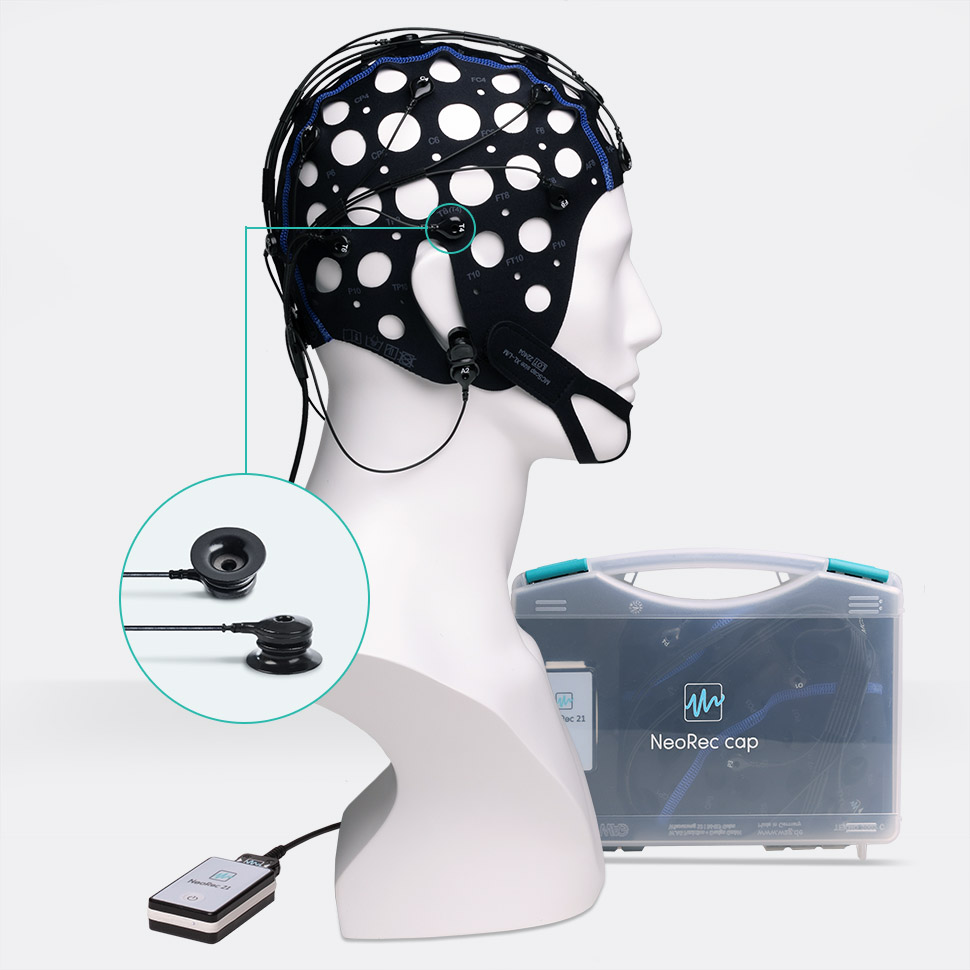

Electrode cap MCScap PROFESSIONAL for NeoRec 21 is the textile cap with pre-installed Ag/AgCl sintered MCScap‑NTC electrodes (ear electrode MCScap‑NT) with common connector for NeoRec 21 amplifier. The electrode cap is designed for non-invasive registration EEG when used with the EEG amplifier. The electrode cap is a reusable device.
-
Answers to frequently asked questions about installing and using NeoRec cap, connecting via API are published on the website in the section
Questions and Answers - NeoRec cap .
| EEG channels monopolar according to GND | 21 |
| Electrode impedance measurement range | from 1 to 3.1 MOhm (dry electrode check) |
| Offline data recording | yes, microSD |
| Wireless data interface | BLE 5.2 |
| Recomended software | NeoRec, NEUROvisor |
| Work from full battery | ≥ 12 hours |
| Power | Internal Li-ion battery (rechargeable) |
| Nominal battery voltage | 3.7 V |
| Nominal battery capacity | 0.9 Ah |
| Number of batteries in one unit of product packaging | 1 pc. |
| Charging of internal battery | from +5V USB adapter, 500 mA |
| Full battery charge time | ≤ 2.5 hours |
| Input dinamic range | ±150 mV, ±300 mV |
| Accuracy of signal reproduction | 1 % |
| Frequency range at -3 dB | 0 to 430 Hz (at 1000 Hz sampling rate) |
| Sampling rate | 125 Hz, 250 Hz, 500 Hz, 1000 Hz (set by applied software) |
| Analog-to-digital conversion bit size | 24 bit |
| Nonlinearity of frequency response | from -10 % to +5 % |
| Noise (in operating range from 0.5 to 70 Hz) | < 2 µV p‑p |
| Input impedance | more 1 GOhm |
| Electrode impedance measurement range | from 1 to 140 kOhm (independently for each electrode relative to GND) |
| Electrode impedance control | during aquisition |
| Events from internal smart accelerometer | activity (4 steps of sensitivity); change orientation (turn by 60°); |
| Events from button | press |
| Operating conditions | from +10°С to +35°С |
| Ingress Protection | IP54 (depending on spatial position and accessories) |
| Useful life | 2 year |
| Safety | IEC 60950-1 |
| data format | proprietary, with the ability to save in EDF+, BDF+, GDF, EEG formats by software |
| Model of electrode cap | MCScap PROFESSIONAL for NeoRec 21 |
| Electrode | MCScap‑NTC |
| Model of textile cap | Textile cap MCScap |
| Cable length | 0.6 m |
| Location of the output of the electrode cable from the cap | back of the head |
| Marking of the textile cap | yes |
| Marking of the electrodes | yes |
| Weight of EEG cap | < 250 g |
| Connector type | ST40X‑24S |
| Number of EEG electrodes | 22 |
| Electrode positions | FP1, FP2, O1, O2, F3, F4, C3, C4, P3, P4, F7, F8, T7, T8, P7, P8, FZ, CZ, PZ, A1, A2, GND |
| Scheme of electrode arrangement Manufacturer's code | #10EM22 |
| Pin layouts of common connector Manufacturer's code | #10E-08M22 |
-
EEG amplifier NeoRec 21,
-
Electrode cap
MCScap PROFESSIONAL for NeoRec 21 , -
Memory card,
-
Memory card ejector
-
USB charging cableNeoRec 21,
-

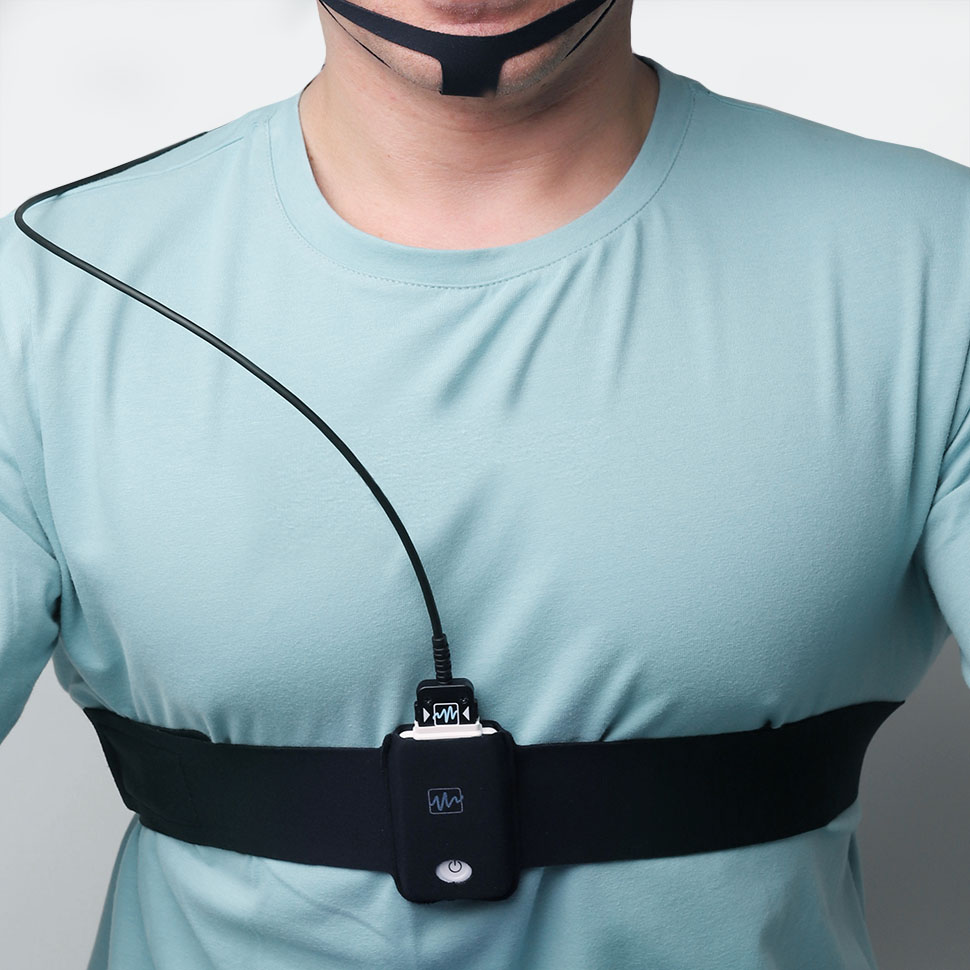

Chest belt NeoRec 21,
-
User Manual
-
Plastic box.
Download and install the latest version of the NeoRec software from the manufacturer's website
| Size | Application | Head circumference | Textile or seam color |
|---|---|---|---|
| XL | Adult | 60-66 cm | Green |
| XL/L | Adult | 57-63 cm | Green + blue |
| L | Adults (most) | 54-60 cm | Blue |
| L/M | Teens, adults | 51-57 cm | Blue + red |
| M | Children, teens | 48-54 cm | Red |
| M/S | Children under 5 years old | 45-51 cm | Red + yellow |
| S | Children under 2 years old | 42-48 cm | Yellow |
| S/XS | Children under 1 year old | 39-45 cm | Yellow + green |
| XS | Children up to 4 months | 36-42 cm | Green |
