DEC pre-gelled 23
DEC pre-gelled 23
Manufacturer code:
006-2-009
Compare

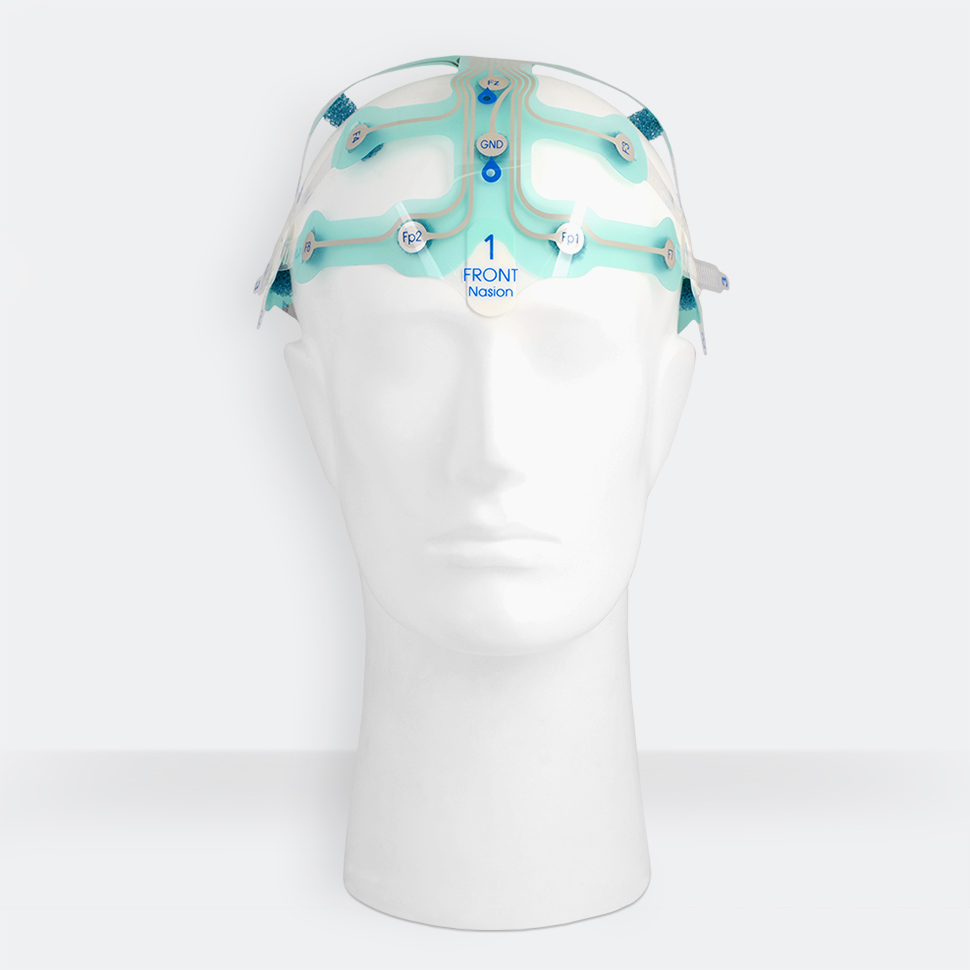

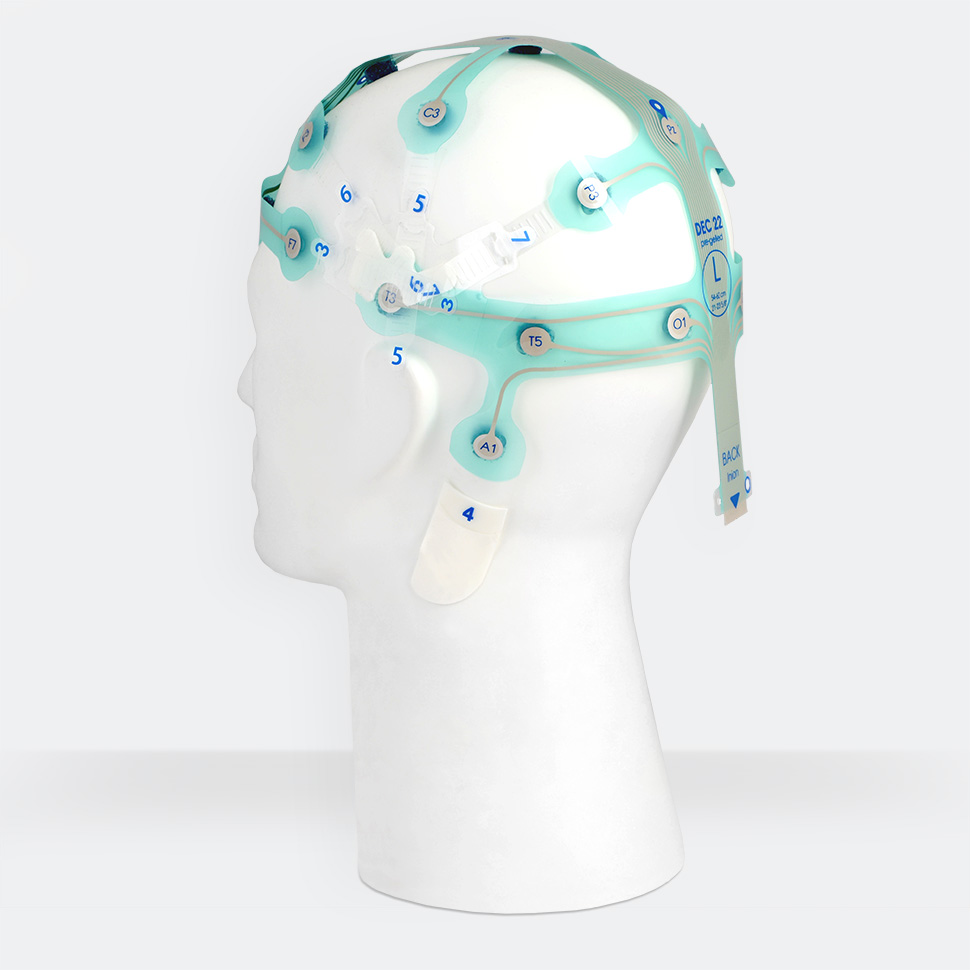

Disposable EEG cap with 23 pre-gelled passive Ag/AgCl scalp electrodes
according to the international 10‑20 system.
Size
In stock
Overview
Specifications
Standard set
Sizes of cap

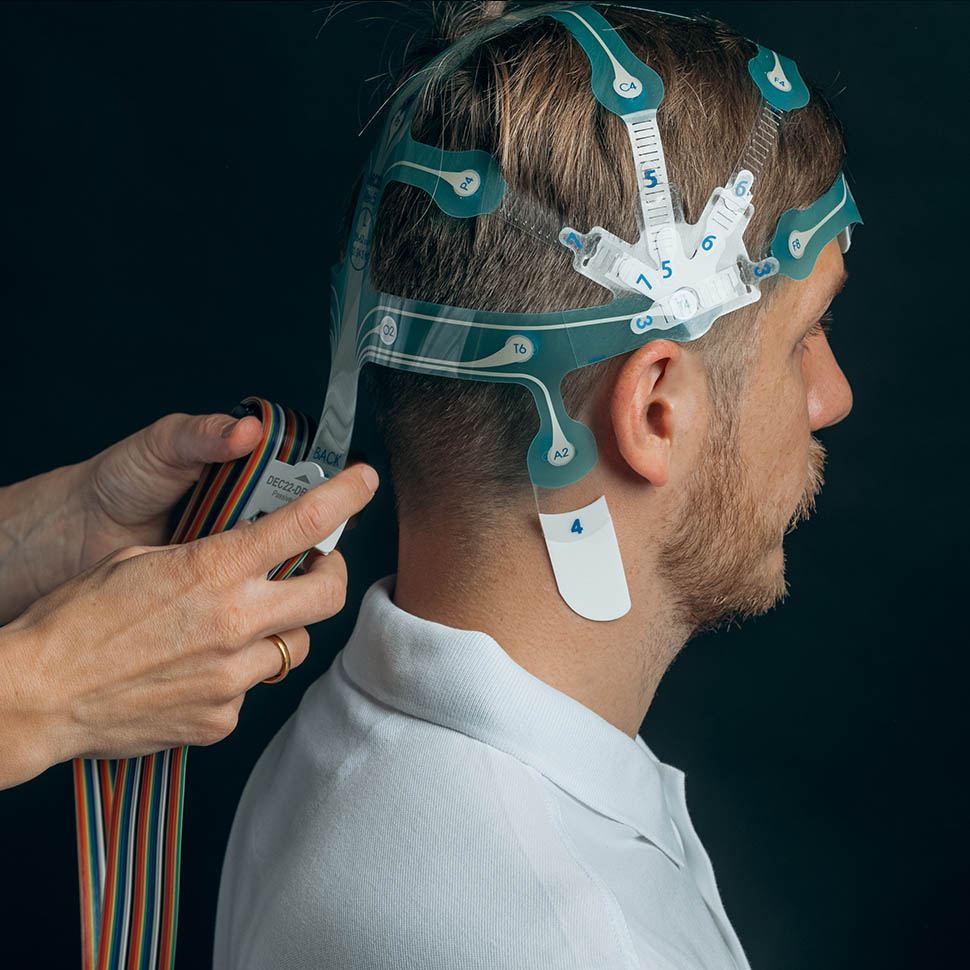

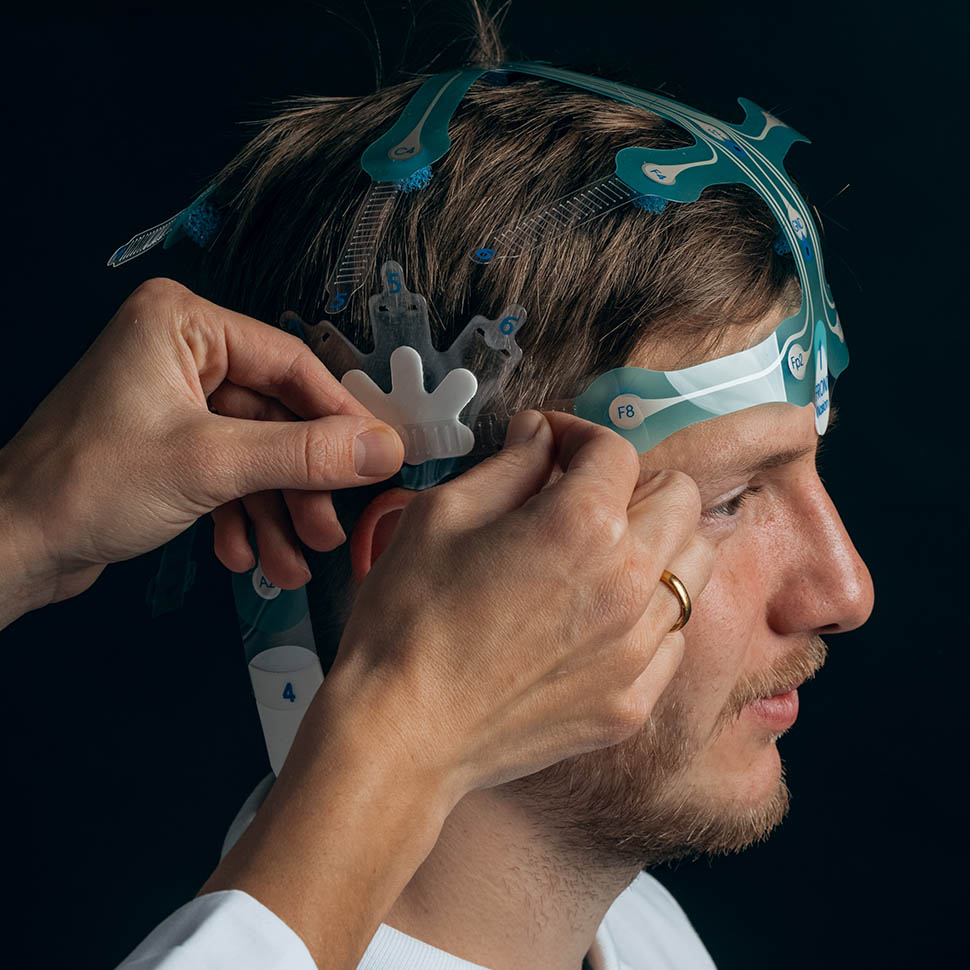

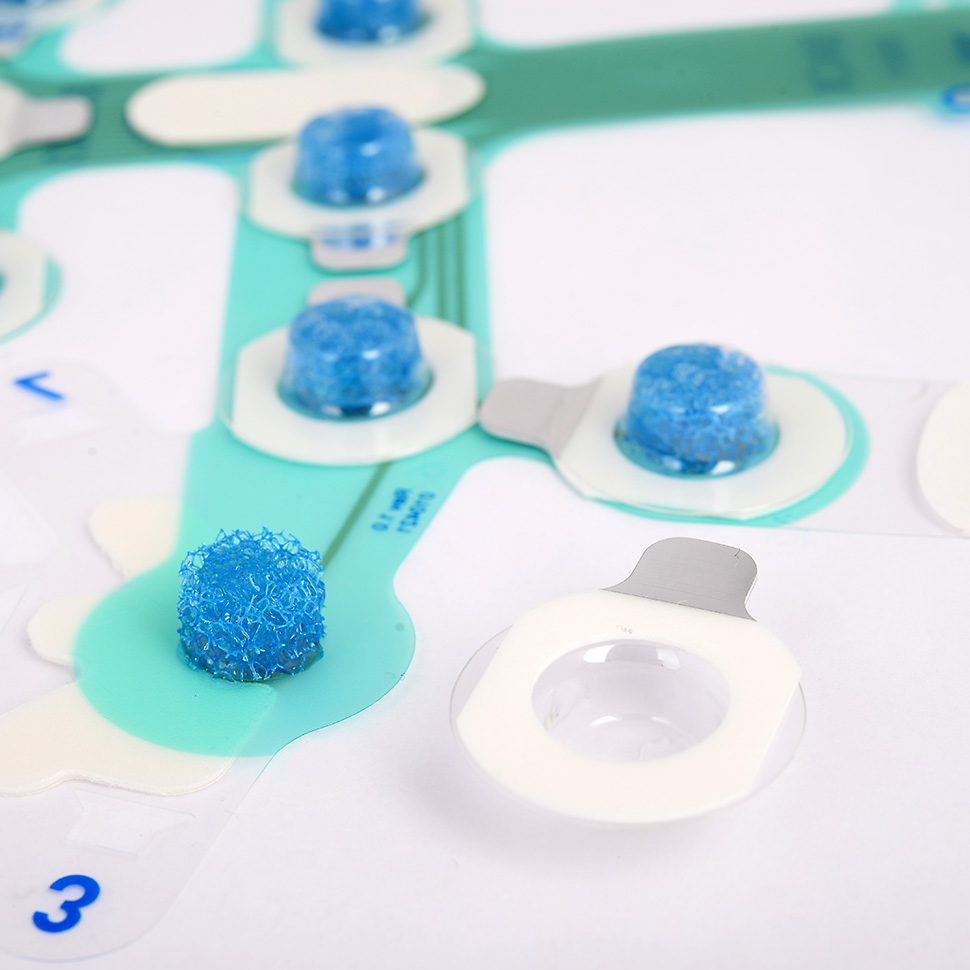

DEC 22 pre-gelled is disposable electrodes system made of polycarbonate based film with applied conductive paths and sensors electrodes. In the DEC 22 pre-gelled version, each electrode is equipped with a sponge with conductive gel to provide electrode contact with the skin. In this version, an individual blister is preinstalled for each electrode to protect it from drying out. Common connector is placed on the back of a head for the registration in sitting position. DEC could be connected to amplifier directly or via a special adapter.
Necessary reusable accessories:
-
Adapter DEC23‑DB25 for connection DEC with 23 electrodes to EEG amplifier with common connector DB‑25F
-
Adapter TP2DB25F‑DEC23 for connection EEG cap with common connector DB‑25M to any EEG amplifier via TouchProof 1.5 mm connectors
| Number of EEG electrodes | 23 |
| Electrode positions | Fp1, Fp2, F3, F4, F7, F8, Fz, Cz, C3, C4, Pz, T3, T4, P3, P4, A1, A2, T5, T6, O1, O2, GND(@AFz), REF(@CPz) |
| Electrode polarization | < 15 mV |
| Electrode noise | < 2 uV p-p in the passband of 1 Hz to 75 Hz |
| Electrode impedance | less 1 kOhm in the passband of 0.15 Hz to 75 Hz |
| Material of electrode conductive surface | Ag/AgCl |
| Diameter of the sensor surface | 10 mm |
| Sterility | non sterile |
| Electrode condition | pre-gelled, electrodes are already with EEG conductive gel |
| Avaliable sizes | L (54 – 60 cm), M (48 - 54 cm), S (42 - 48 cm) |
| Set up time | 3-5 minutes |
| Work duration after the package opening without add of gel | 4 hours, without add of gel |
| Work duration after the package opening | 24 hours, with add of gel every 4 hours |
| Storage of the opened package | 24 hours |
| Amount in a package | 1 pc. |
| Net weight | 30 ± 1 g |
- DEC 23 pre-gelled
| Size | Application | Head circumference | Textile or seam color |
|---|---|---|---|
| L | Adults (most) | 54-60 cm | Blue |
| M | Children, teens | 48-54 cm | Red |
| S | Children under 2 years old | 42-48 cm | Yellow |
EEG amplifier
Electrode cap compatibility
Compact-neuro
Neurotech
Custom
EEGA-21/26 "Encephalan-131-03"
Medicom-mtd
Custom
MBN24
MBN
Custom
Medelec
Oxford Inc.
Custom
Mitsar-EEG-03/35-201
MITSAR
Custom
Mitsar-EEG-05/70-201
MITSAR
Custom
Mitsar-EEG-10/70-201
MITSAR
Custom
Mitsar-EEG-202 (24+8)
MITSAR
Custom
Mitsar-EEG-202 (31+1)
MITSAR
Custom
Mitsar-EEG-202 (31+8)
MITSAR
Custom
Neuro KM
Statokyn
Custom
Neurocartograph-01-MBN
MBN
Custom
Neurocartograph-02-MBN
MBN
Custom
Neurocartograph-03-MBN
MBN
Custom
Neurofax EEG 1200
Nikon Kohden
Custom
Neurofax EEG 1212
Nikon Kohden
Custom
Neurofax EEG 1221
Nikon Kohden
Custom
Neurofax EEG 9110
Nikon Kohden
Custom
Neurofax EEG 9210
Nikon Kohden
Custom
Neuron-Spectrum-1
Neurosoft
Custom
Neuron-Spectrum-2
Neurosoft
Custom
Neuron-Spectrum-3
Neurosoft
Custom
Neuron-Spectrum-4/EPM
Neurosoft
Custom
Neuron-Spectrum-4/P
Neurosoft
Custom
Neuron-Spectrum-5
Neurosoft
Custom
Neuron-Spectrum-61
Neurosoft
Custom
Neuron-Spectrum-62
Neurosoft
Custom
Neuron-Spectrum-63
Neurosoft
Custom
Neuron-Spectrum-64
Neurosoft
Custom
Neuron-Spectrum-65
Neurosoft
Custom
Neuron-Spectrum-AM
Neurosoft
Custom
Neuropolygraph
Neurocor
Custom
NeuroScope NS400
Biola
Custom
NeuroScope NS400A
Biola
Custom
Nicolet EEG v32 (CareFusion)
Natus
Custom
Nicolet One
Viasys
Custom
NVX136
Medical Computer Systems
Custom
NVX24
Medical Computer Systems
Custom
NVX36
Medical Computer Systems
Custom
NVX52
Medical Computer Systems
Custom
