DEC NET 23
DEC NET 23
Manufacturer code:
006-3-005
Compare
Disposable EEG cap for long-term monitoring.
Size
In stock
Overview
Specifications
Standard set
Sizes of cap

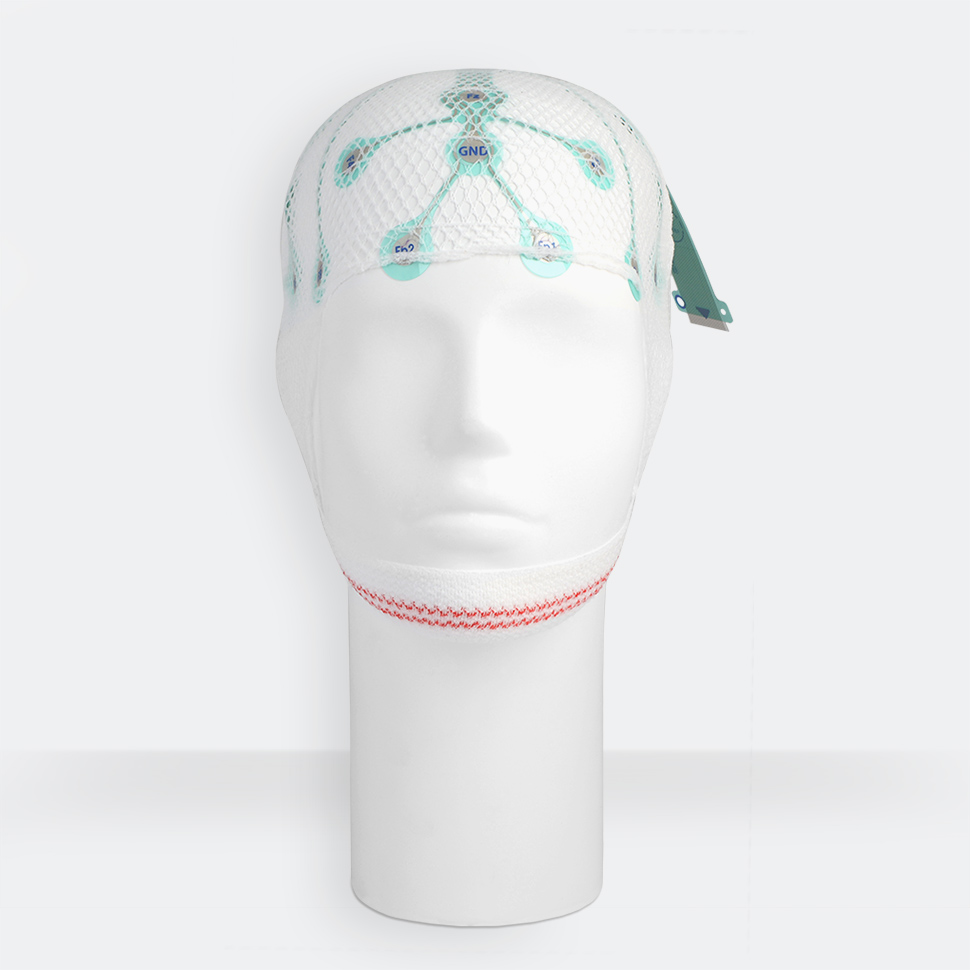

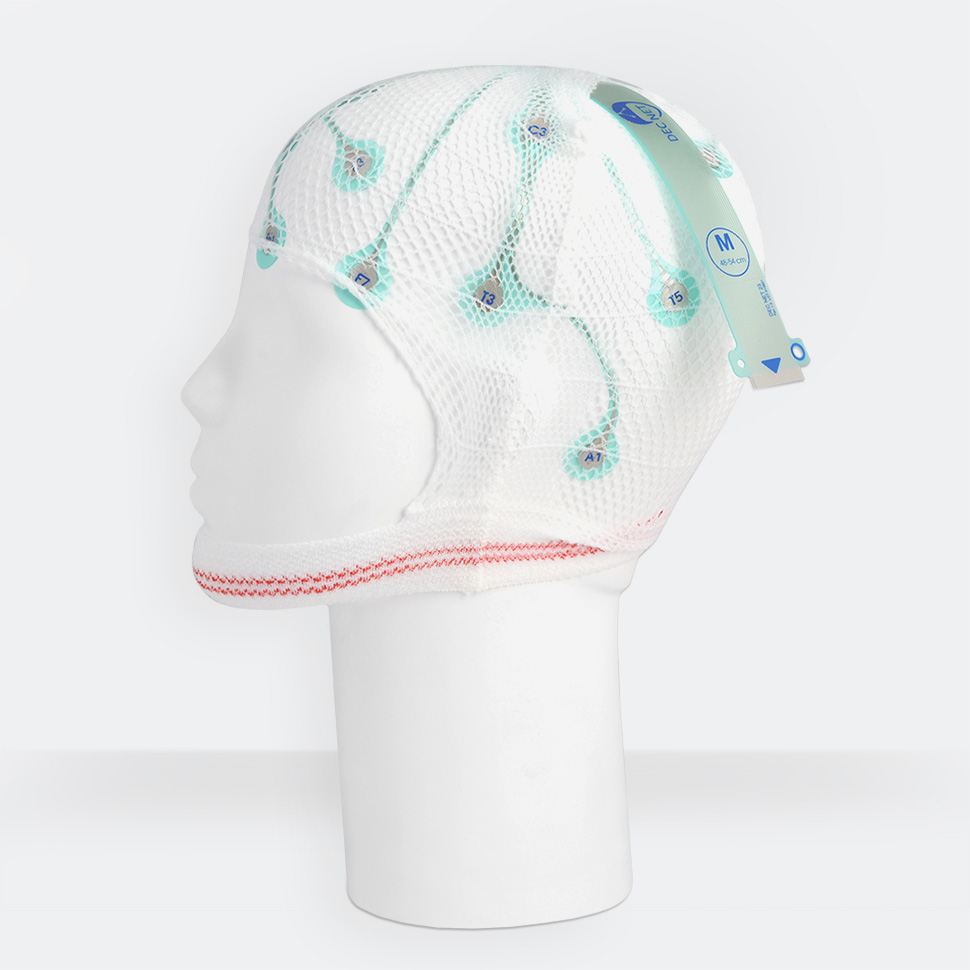

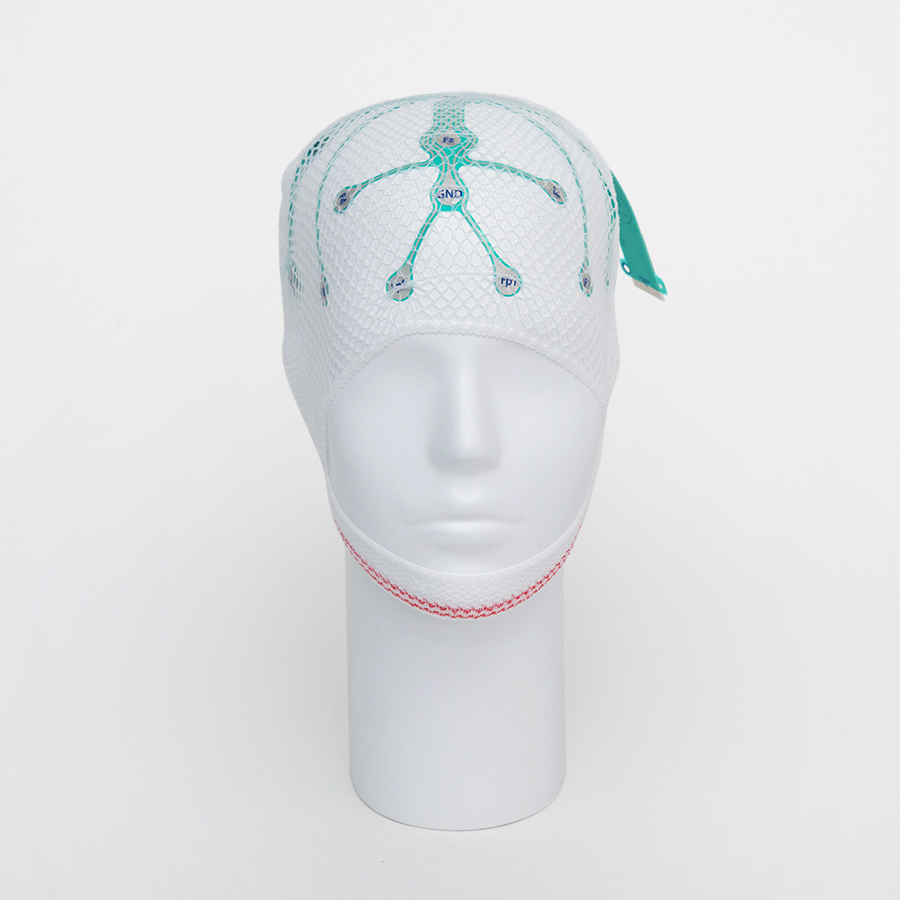

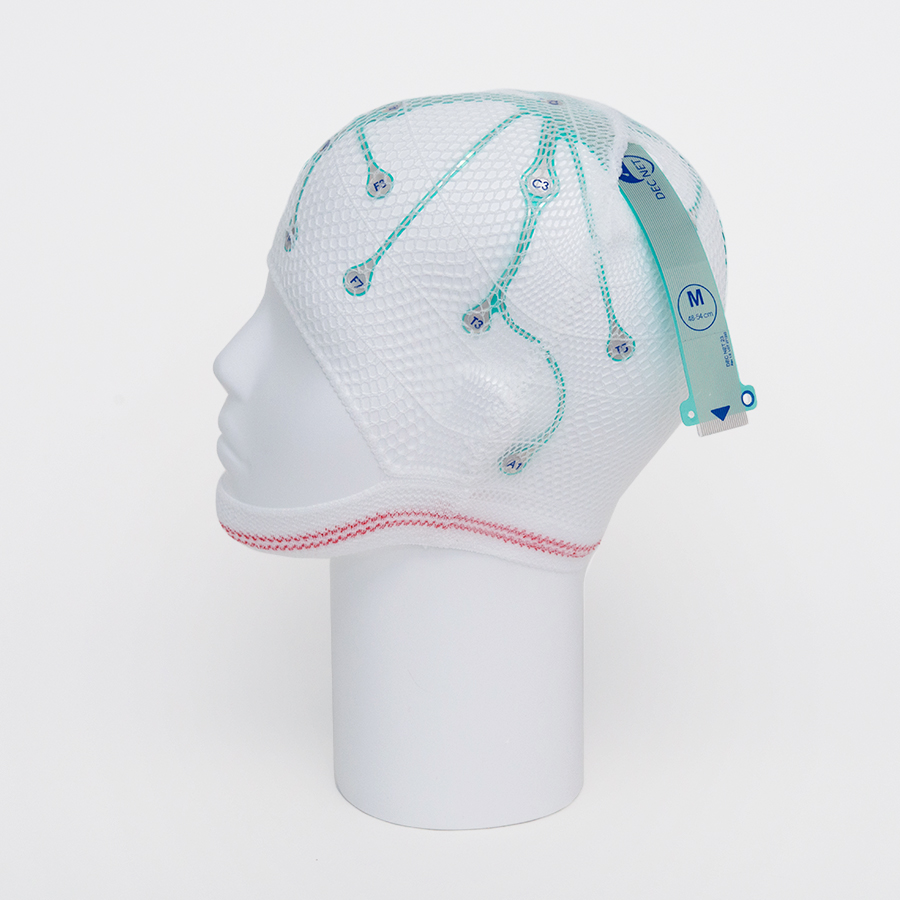

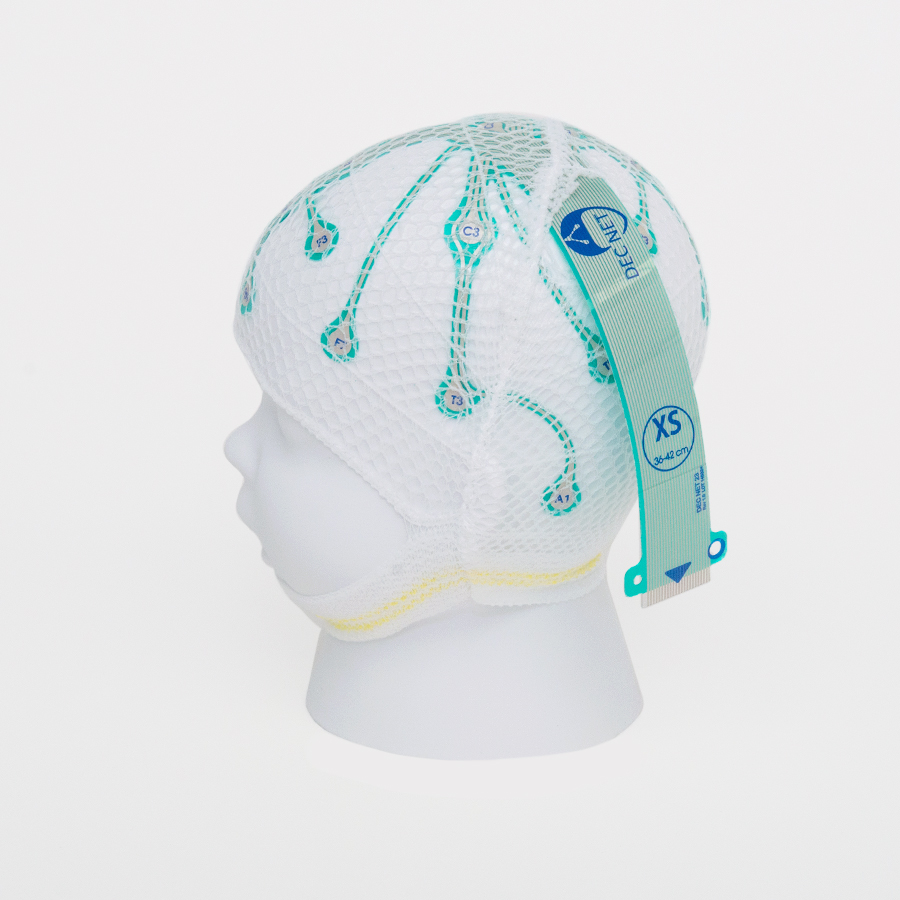

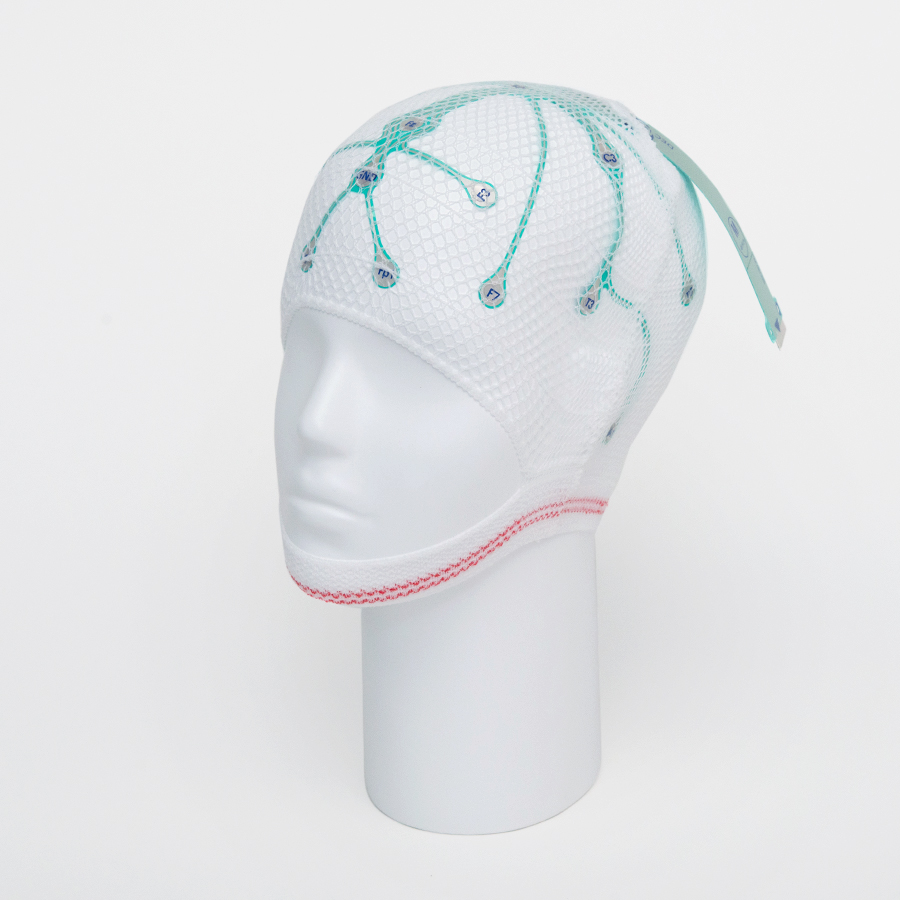

DEC NET 23 is disposable electrodes system made of polycarbonate based film with applied conductive paths and sensors electrodes. The DEC NET version, the fix net cap is designed for long-term monitoring, and the disposable electrode systems are attached to the net cap. Common connector is placed on the top of a head for patients in the supine position. DEC NET 23 could be connected to amplifier via a special adapter.
Necessary reusable accessories:
-

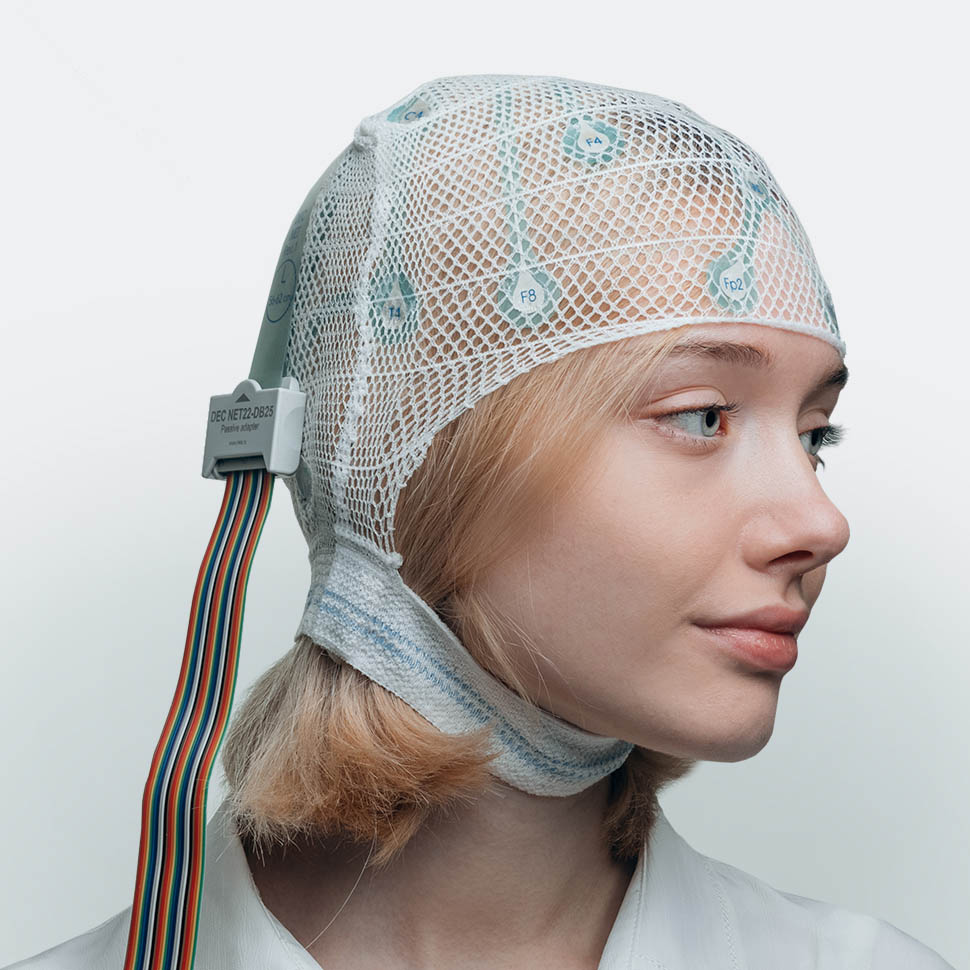

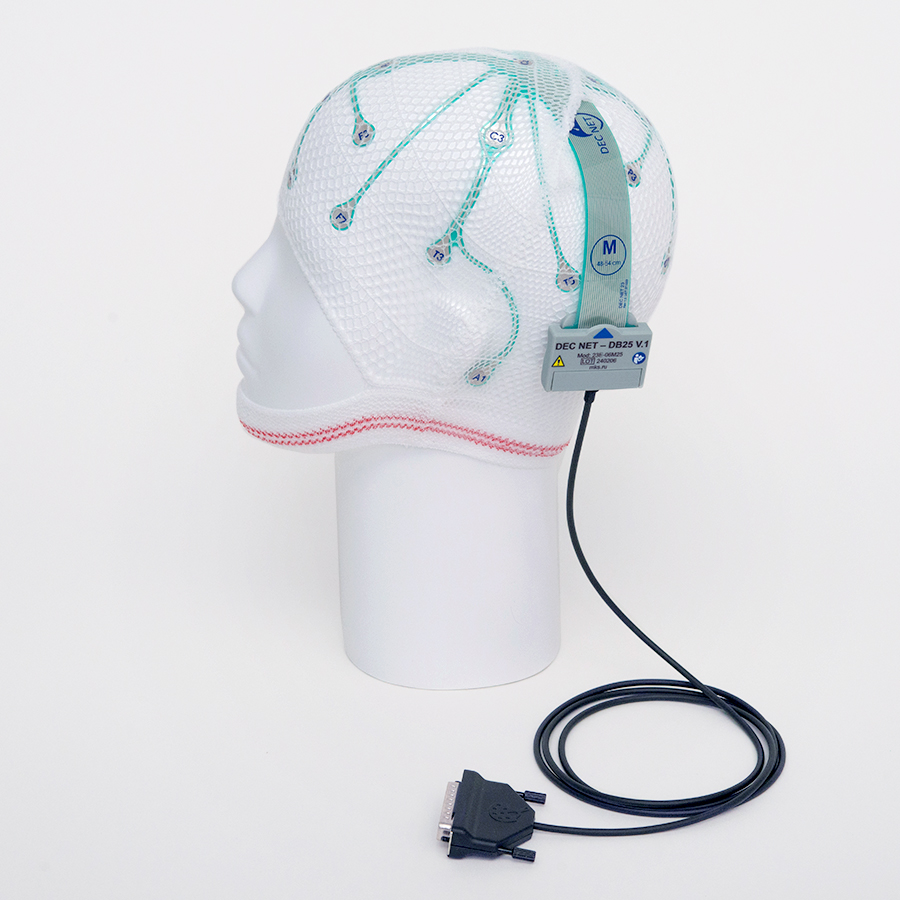

Adapter DEC NET 23‑DB25 for connection DEC with 23 electrodes to EEG amplifier with common connector DB‑25F
-

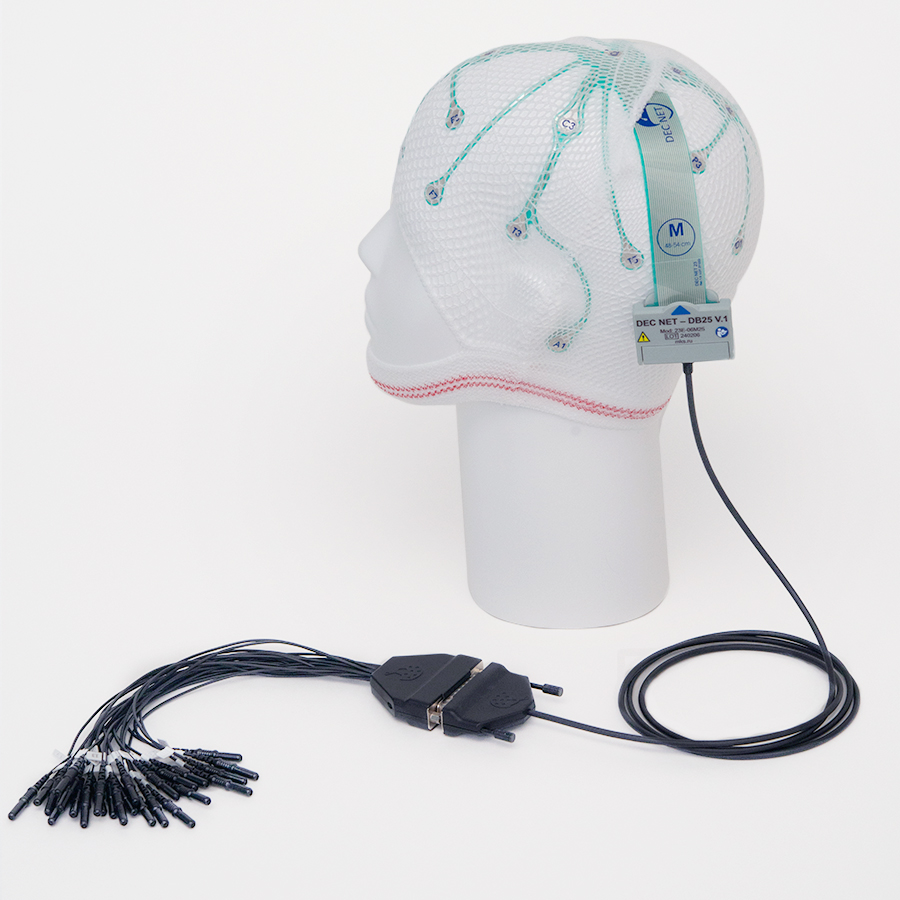

Adapter TP2DB25F‑DEC23 for connection EEG cap with common connector DB‑25M to any EEG amplifier via TouchProof 1.5 mm connectors
| Number of EEG electrodes | 23 |
| Electrode positions | Fp1, Fp2, F3, F4, F7, F8, Fz, Cz, C3, C4, Pz, T3, T4, P3, P4, A1, A2, T5, T6, O1, O2, GND(@AFz), REF(@CPz) |
| Electrode polarization | < 15 mV |
| Electrode noise | < 2 uV p-p in the passband of 1 Hz to 75 Hz |
| Electrode impedance | less 1 kOhm in the passband of 0.15 Hz to 75 Hz |
| Material of electrode conductive surface | Ag/AgCl |
| Diameter of the sensor surface | 10 mm |
| Sterility | non sterile |
| Electrode condition | without gel, need to add EEG conductive gel or paste by self |
| Avaliable sizes | L (54 – 60 cm), M (48 - 54 cm), S (42 - 48 cm) |
| Set up time | 3-5 minutes |
| Work duration after the package opening | up to 72 hours |
| Storage of the opened package | 1 mounth |
| Amount in a package | 1 pc. |
| Net weight | 10 ± 1 g |
- DEC NET 23

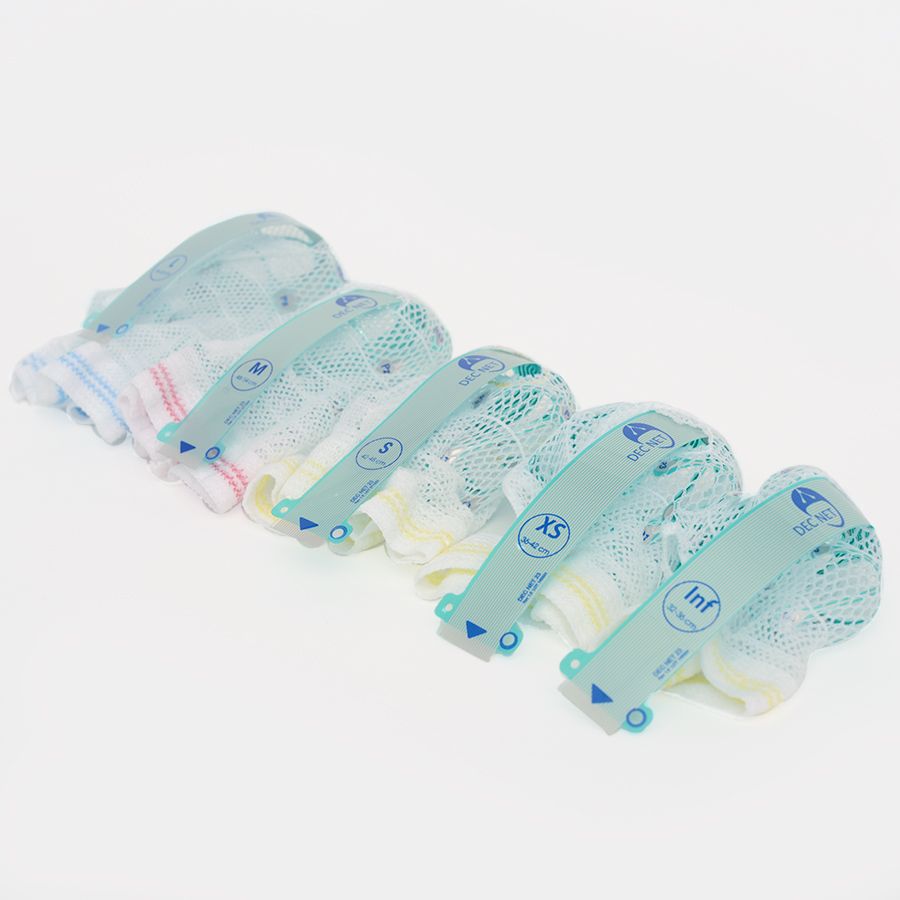

| Size | Application | Head circumference | Textile or seam color |
|---|---|---|---|
| L | Adults (most) | 54-60 cm | Blue |
| M | Children, teens | 48-54 cm | Red |
| S | Children under 2 years old | 42-48 cm | Yellow |
EEG amplifier
Electrode cap compatibility
Compact-neuro
Neurotech
Custom
EEGA-21/26 "Encephalan-131-03"
Medicom-mtd
Custom
MBN24
MBN
Custom
Medelec
Oxford Inc.
Custom
Mitsar-EEG-03/35-201
MITSAR
Custom
Mitsar-EEG-05/70-201
MITSAR
Custom
Mitsar-EEG-10/70-201
MITSAR
Custom
Mitsar-EEG-202 (24+8)
MITSAR
Custom
Mitsar-EEG-202 (31+1)
MITSAR
Custom
Mitsar-EEG-202 (31+8)
MITSAR
Custom
Neuro KM
Statokyn
Custom
Neurocartograph-01-MBN
MBN
Custom
Neurocartograph-02-MBN
MBN
Custom
Neurocartograph-03-MBN
MBN
Custom
Neurofax EEG 1200
Nikon Kohden
Custom
Neurofax EEG 1212
Nikon Kohden
Custom
Neurofax EEG 1221
Nikon Kohden
Custom
Neurofax EEG 9110
Nikon Kohden
Custom
Neurofax EEG 9210
Nikon Kohden
Custom
Neuron-Spectrum-1
Neurosoft
Custom
Neuron-Spectrum-2
Neurosoft
Custom
Neuron-Spectrum-3
Neurosoft
Custom
Neuron-Spectrum-4/EPM
Neurosoft
Custom
Neuron-Spectrum-4/P
Neurosoft
Custom
Neuron-Spectrum-5
Neurosoft
Custom
Neuron-Spectrum-61
Neurosoft
Custom
Neuron-Spectrum-62
Neurosoft
Custom
Neuron-Spectrum-63
Neurosoft
Custom
Neuron-Spectrum-64
Neurosoft
Custom
Neuron-Spectrum-65
Neurosoft
Custom
Neuron-Spectrum-AM
Neurosoft
Custom
Neuropolygraph
Neurocor
Custom
NeuroScope NS400
Biola
Custom
NeuroScope NS400A
Biola
Custom
Nicolet EEG v32 (CareFusion)
Natus
Custom
Nicolet One
Viasys
Custom
NVX136
Medical Computer Systems
Custom
NVX24
Medical Computer Systems
Custom
NVX36
Medical Computer Systems
Custom
NVX52
Medical Computer Systems
Custom
