DEC NET 23

DEC NET 23

Manufacturer code: 006-3-005
Compare (0)
Compare
Disposable EEG cap for long-term monitoring.
Size
In stock
Price:
50
quantity
Add to cart
Overview
Specifications
Standard set
Sizes of cap

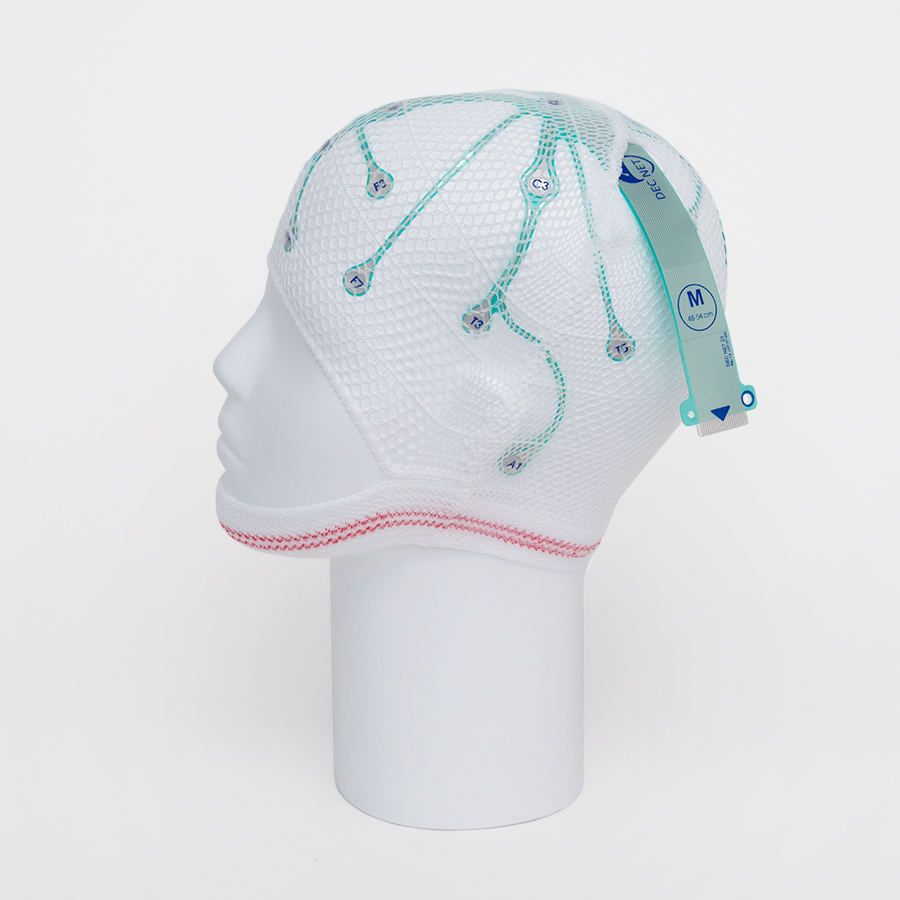

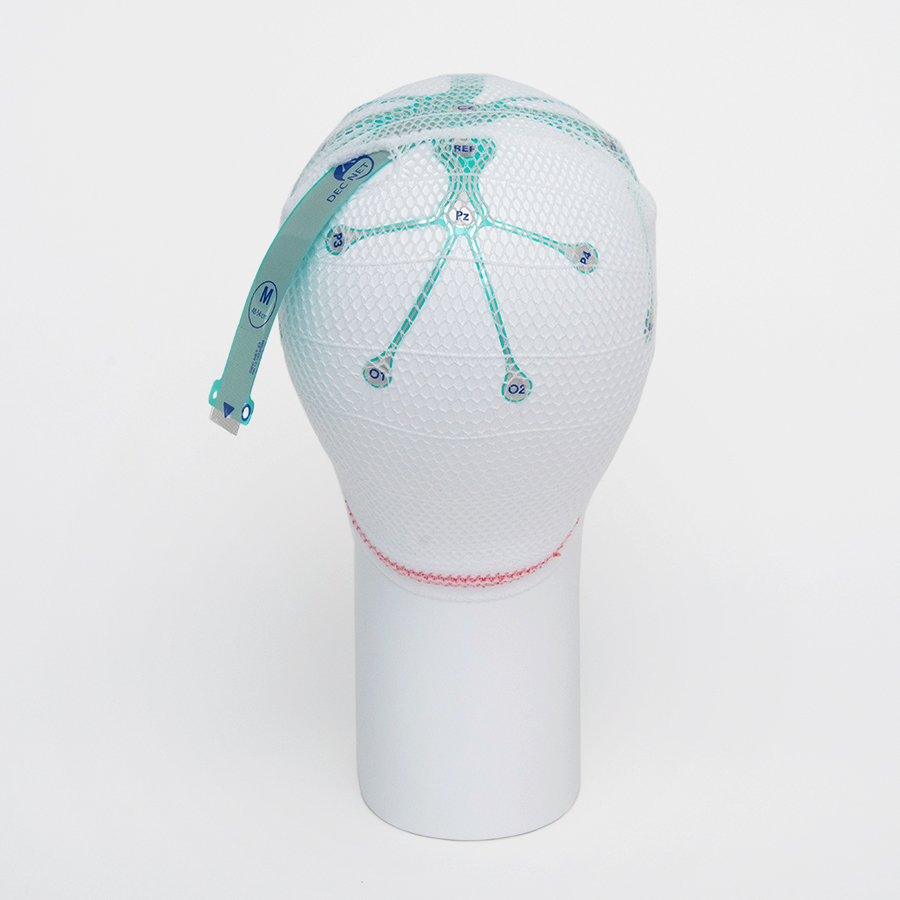

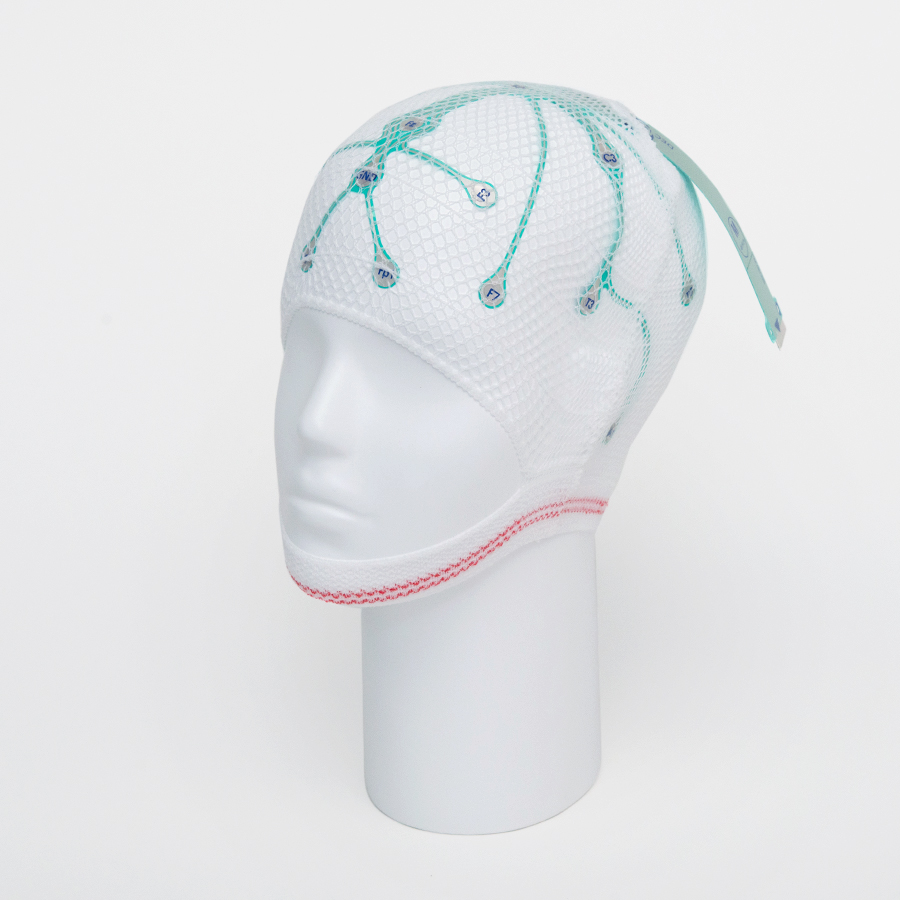

DEC NET 23 is disposable electrodes system made of polycarbonate based film with applied conductive paths and sensors electrodes. The DEC NET version, the fix net cap is designed for long-term monitoring, and the disposable electrode systems are attached to the net cap. Common connector is placed on the top of a head for patients in the supine position. DEC could be connected to amplifier via a special adapter.

Necessary reusable accessories:

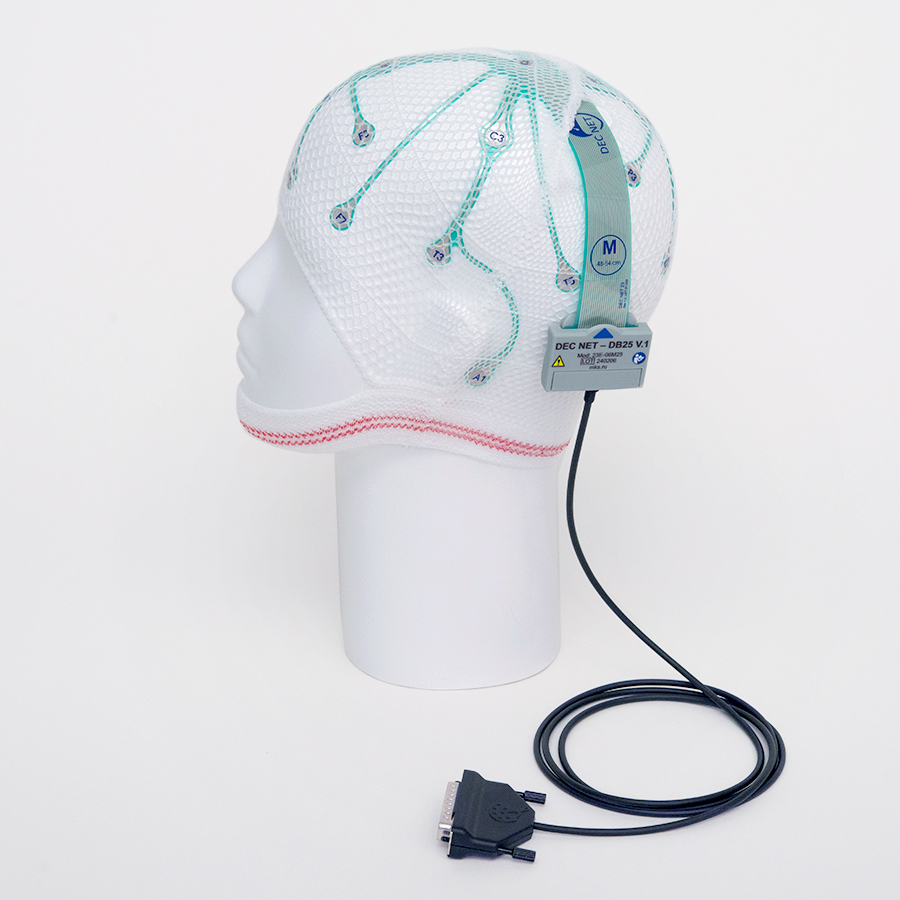

  • Adapter DEC NET 23‑DB25 for connection DEC with 23 electrodes to EEG amplifier with common connector DB‑25F

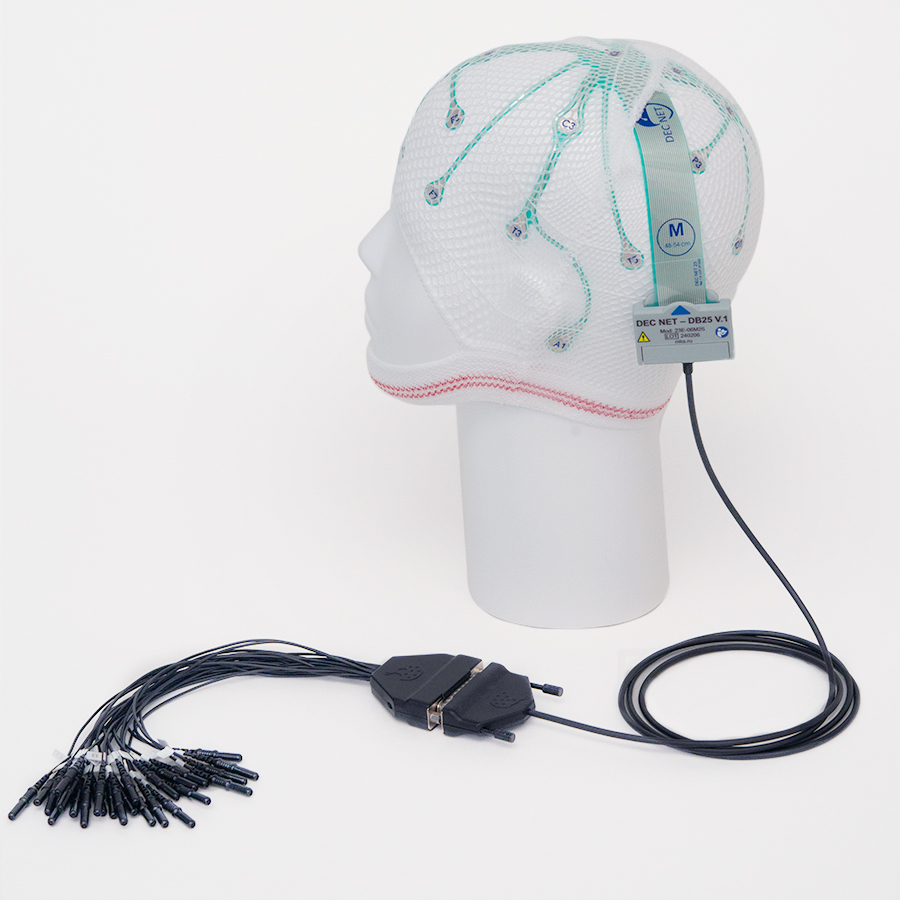

  • Adapter TP2DB25F‑DEC23 for connection EEG cap with common connector DB‑25M to any EEG amplifier via TouchProof 1.5 mm connectors

Number of EEG electrodes 23

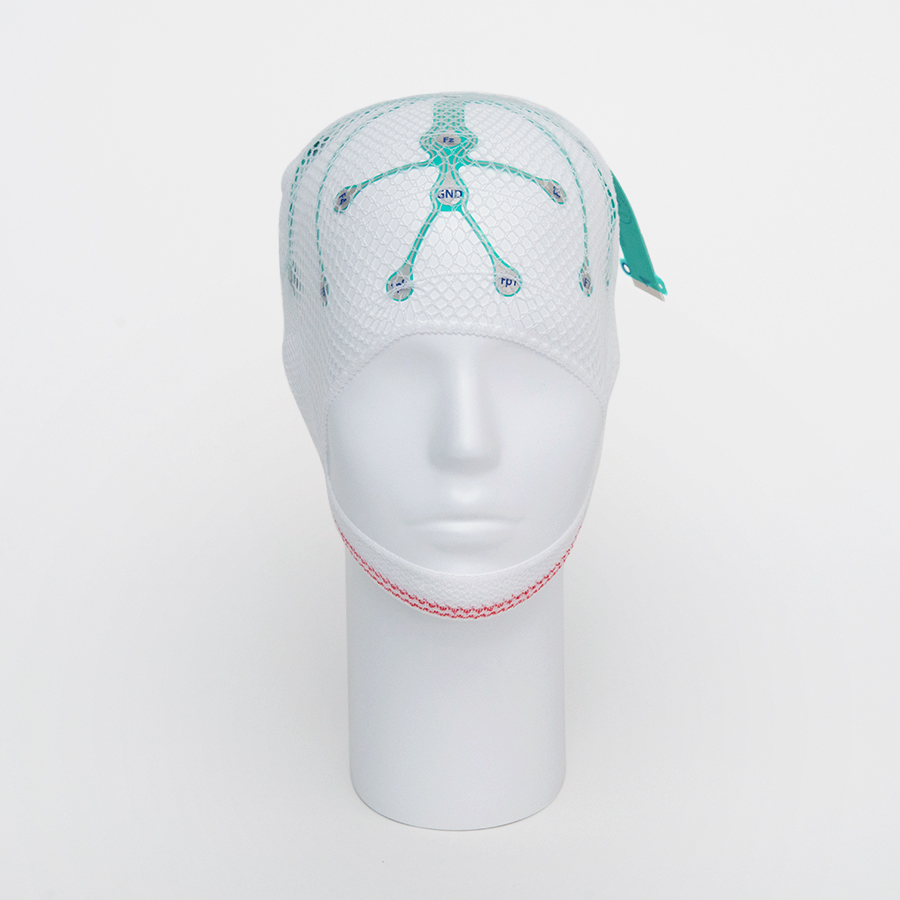

Electrode positions Fp1, Fp2, F3, F4, F7, F8, Fz, Cz, C3, C4, Pz, T3, T4, P3, P4, A1, A2, T5, T6, O1, O2, GND(@AFz), REF(@CPz)
Electrode polarization < 15 mV
Electrode noise < 2 uV p-p in the passband of 1 Hz to 75 Hz
Electrode impedance less 1 kOhm in the passband of 0.15 Hz to 75 Hz
Material of electrode conductive surface Ag/AgCl
Diameter of the sensor surface 10 mm
Sterility non sterile
Electrode condition without gel, need to add EEG conductive gel or paste by self
Avaliable sizes L (54 – 60 cm), M (48 - 54 cm), S (42 - 48 cm)
Set up time 3-5 minutes
Work duration after the package opening up to 72 hours
Storage of the opened package 1 mounth
Amount in a package 1 pc.
Net weight 10 ± 1 g
Gross weight 20 ± 1 g
Dimensions of package (LxWxH) 65x65x65 ± 10 mm
  • DEC NET 23

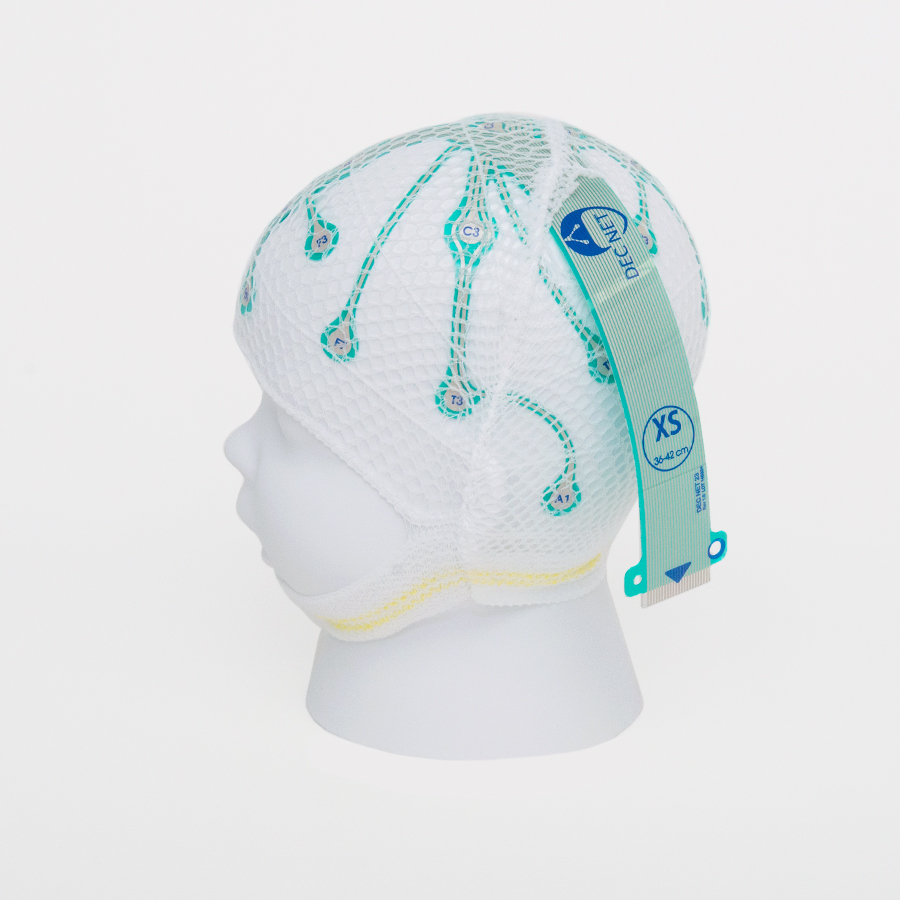

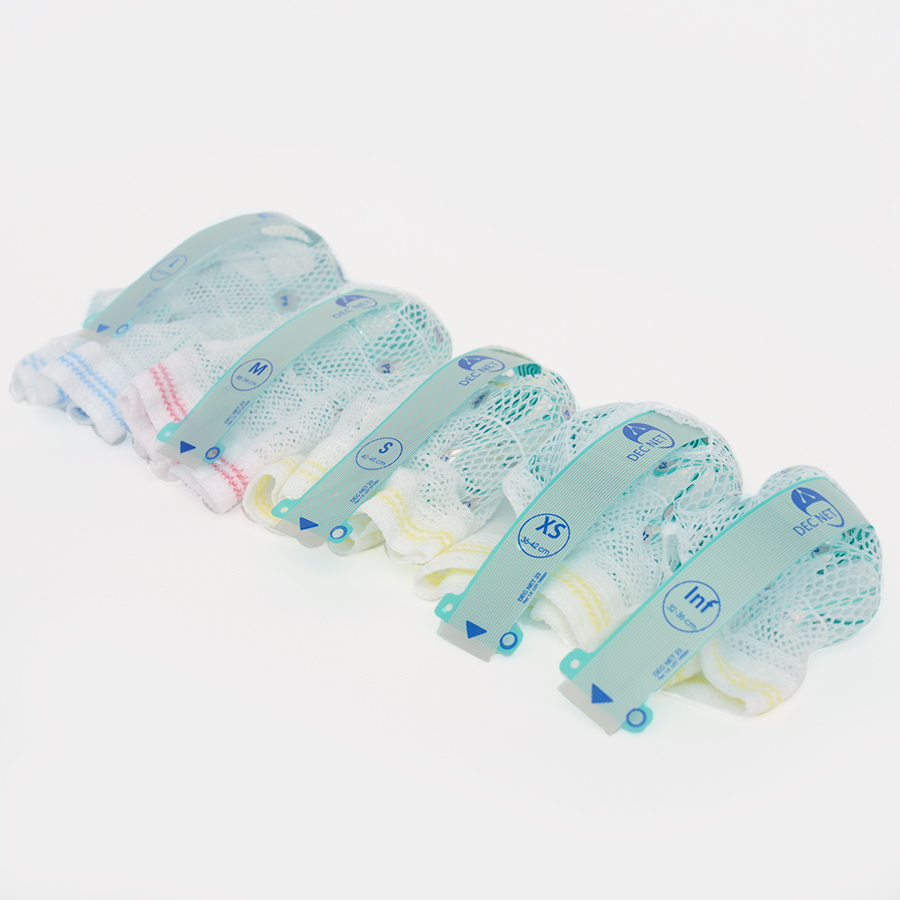

Size Application Head circumference
L Adults (most) 54-60 cm
M Children, teens 48-54 cm
S Children under 2 years old 42-48 cm
EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
