MCScap‑TC electrode
MCScap‑TC electrode
Manufacturer code: 003-0-115
Compare (0)
Compare
Cup Ag/AgCl electrode for EEG recording with TouchProof 1.5 mm (DIN 42 802‑ST) connector, wire length 120 cm
Quantity in a package
In stock
Price:
8
quantity
Add to cart
Overview
Specifications
Standard set

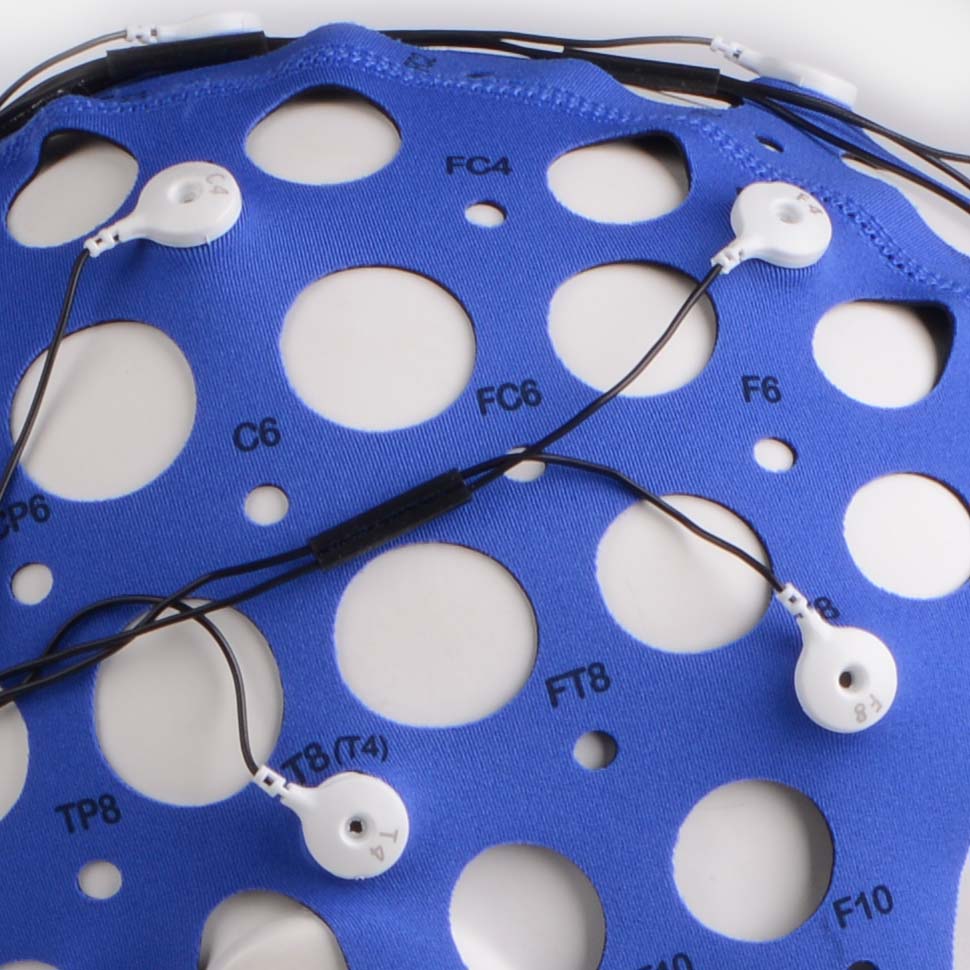

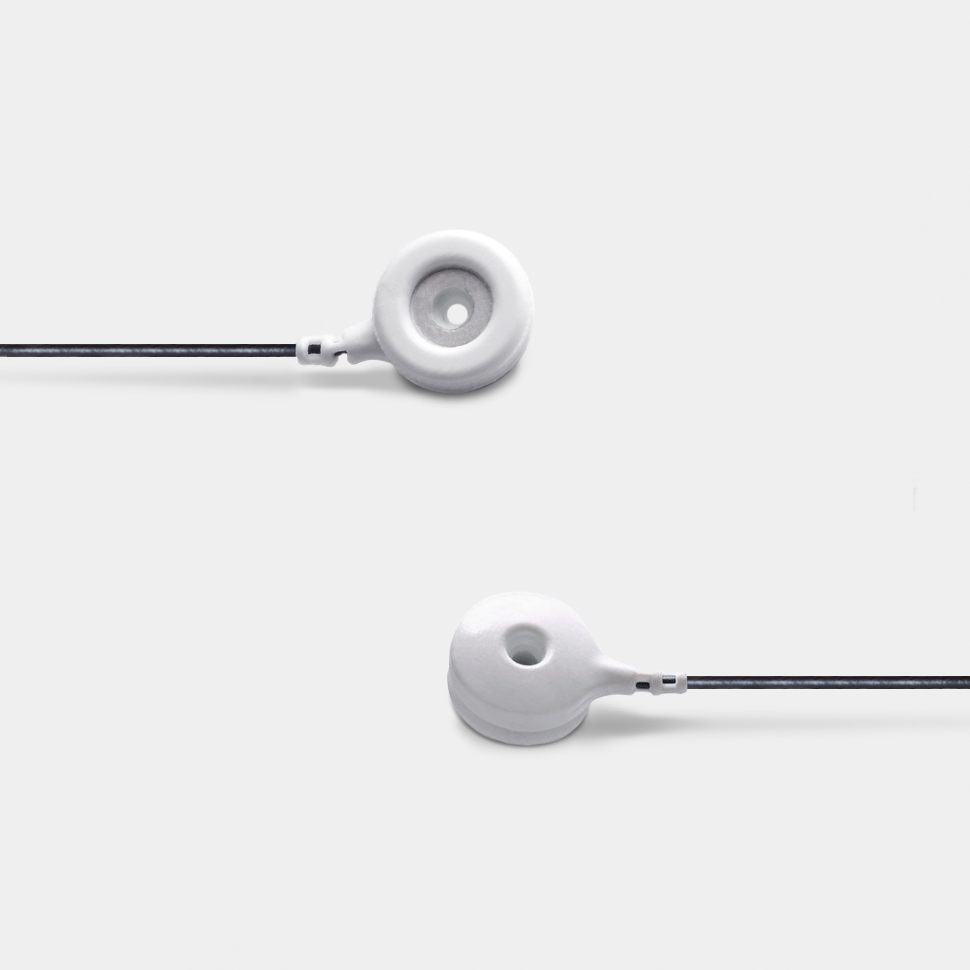

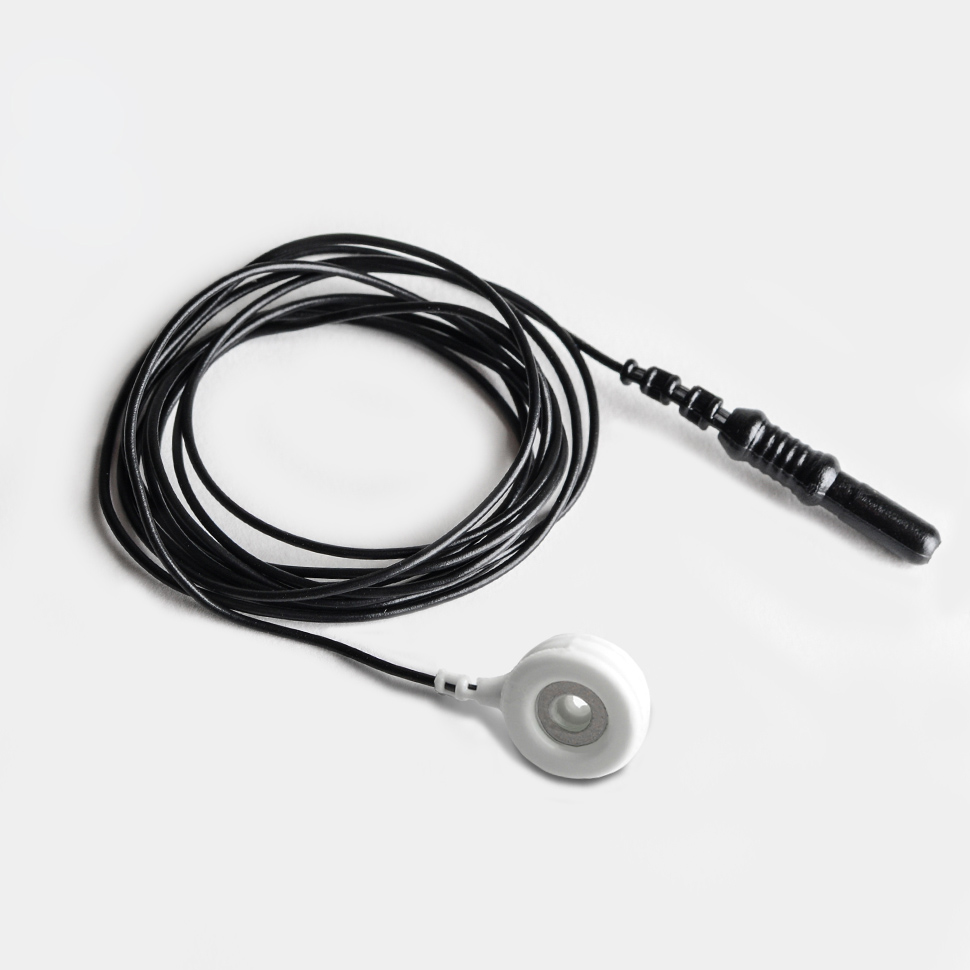

MCScap‑TC electrode is a cup Ag/AgCl electrode for EEG recording with TouchProof 1.5 mm (DIN 42 802‑ST) connector, wire length 120 cm.The shape of the MCScap‑TC electrode provides increased patient comfort during the study for a long time. The Ag/AgCl electrode material guarantees minimum polarization and long-term signal stability. MCScap electrodes are made in a plastic case to reduce artifacts during movement. The conductive surface of the MCScap electrodes is not in direct contact with the skin. Contact is provided by a conductive substance. A hole in the electrodes is provided to add a conductive gel. Electrode have additional labeling what makes easy to rearrange them to new textile base. The electrode has TouchProof 1.5 mm (DIN 42 802‑ST) connector.

Material of electrode conductive surface Ag/AgCl
Electrode body material polyurethane
Square of electrode conductive surface 26 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 8 mm
Surface area of contact of the electrode substance with the skin 50.2 mm2
Outer diameter of the electrode at the point of contact with the skin 11.9 mm
Distance from the skin to the electrode conductive surface 1.1 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Electrode cable length 120 cm
Connector type TouchProof 1.5 mm (DIN 42 802-ST)
Weight 4 g
  • MCScap-TC electrode
EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
Associated products

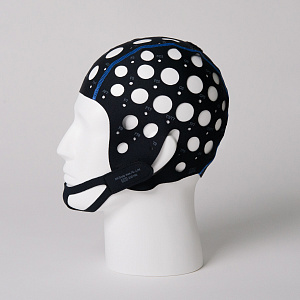

MCScap 10‑10 black
Printed textile cap, marked according to international system 10‑10 with chin belt
In stock
In stock
€60
Add to cart
EEG gel Unimax
Electrode contact gel with high electrical conductivity, 250 gr
In stock
€5
Add to cart

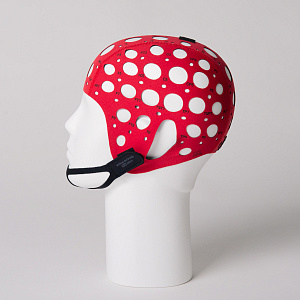

MCScap 10‑10
Printed textile cap, marked according to international system 10‑10 with chin belt
In stock
In stock
€60
Add to cart
MCScap‑C electrode
Cup with skirt Ag/AgCl electrode for EEG recording with TouchProof 1.5 mm (DIN 42 802‑ST) connector, wire length 120 cm
Quantity in a package
In stock
€8
Add to cart

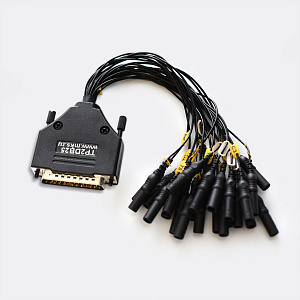

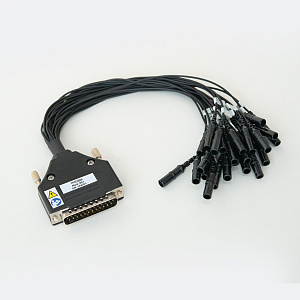

Adapter TP2DB25
Passive adapter with 25 TouchProof 1.5 mm (DIN 42 802‑BU) connectors at the one side and DB‑25M connector at the other side for connecting up to 25 electrodes to EEG amplifiers
In stock
€188
Add to cart
Labels for electrodes 10‑20
Set of labels for marking electrodes according to system 10‑20.
In stock
€5
Add to cart

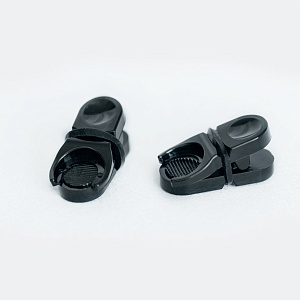

MCScap‑AT ear fixator
