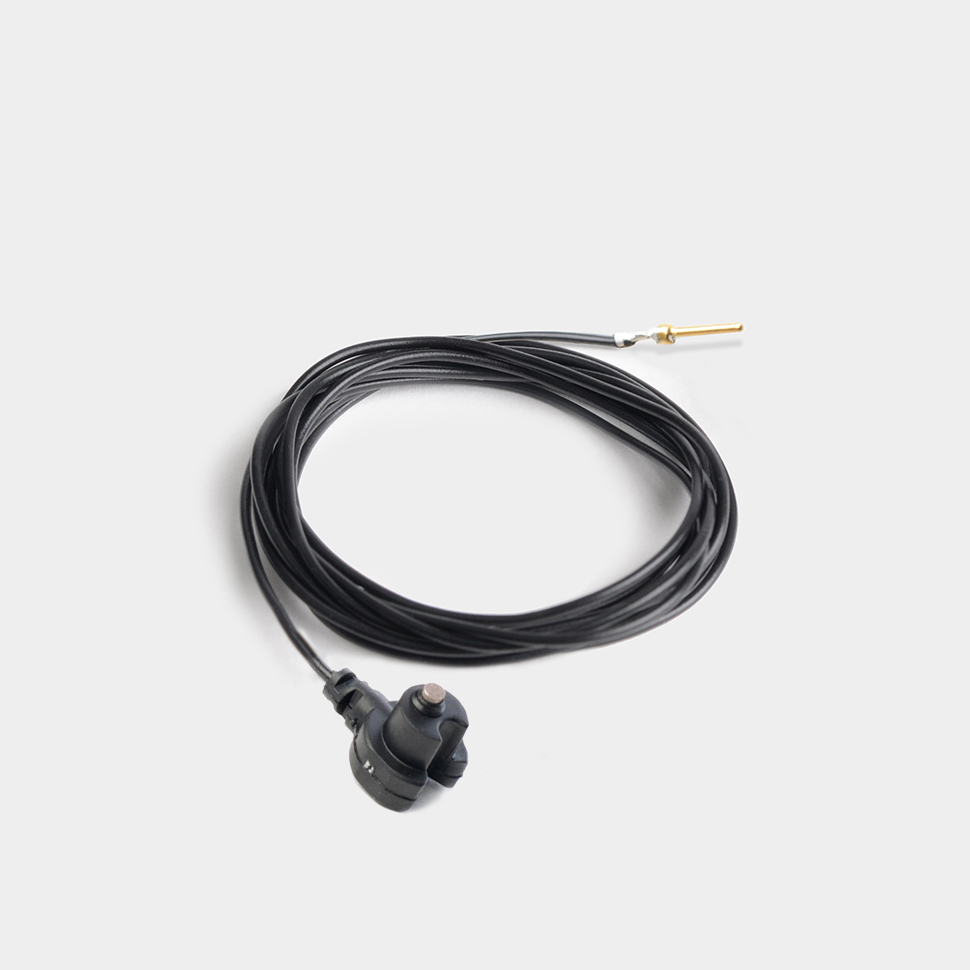

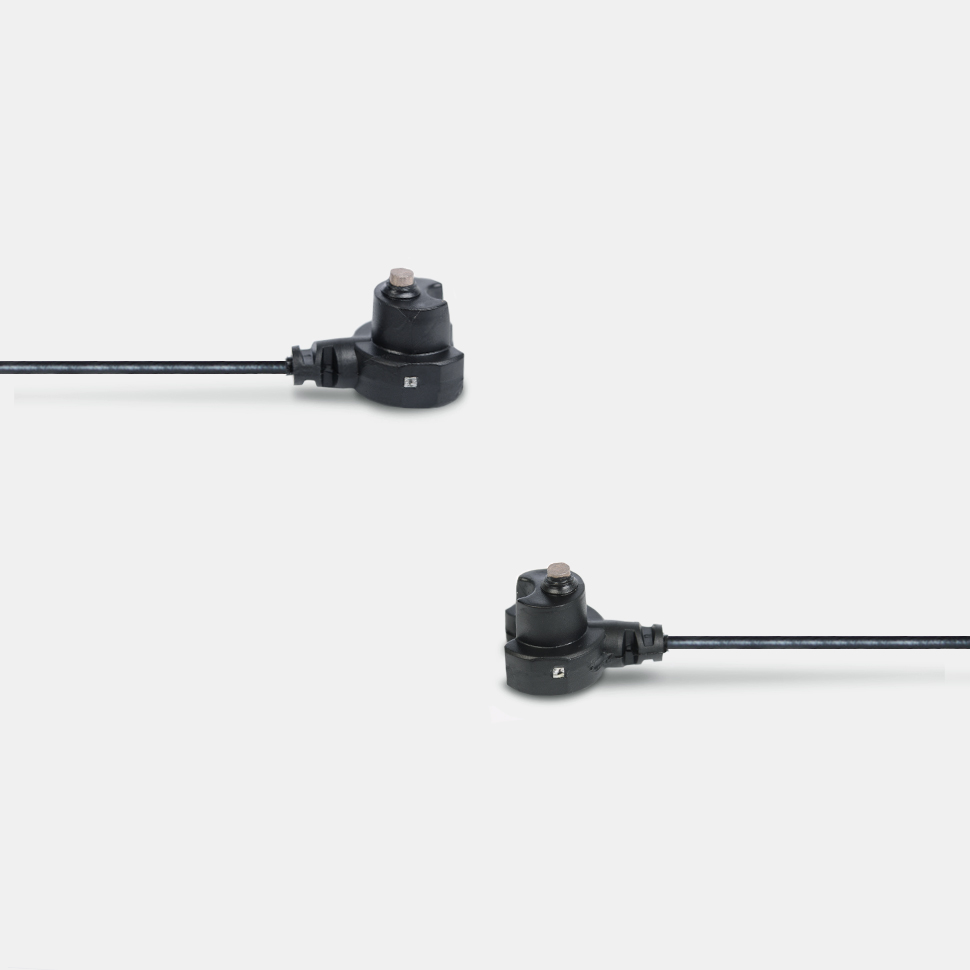

MCScap‑E repair electrode
MCScap‑E repair electrode
Manufacturer code:
003-0-125
Compare
Replacement electrode for MCScap BASE electrode cap.
In stock
Overview
Specifications
Standard set
MCScap‑E repair electrode designed for replacing electrode at MCScap BASE electrode cap. The crimped end of the wire is designed for installation in a common connector type D‑SUB (DIN 41 652) Male. It is recommended to use an extractor during installation.
| Material of electrode conductive surface | Ag/AgCl sintered |
| Electrode body material | polyurethane |
| Square of electrode conductive surface | 4 mm2 |
| Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin | 8 mm |
| Surface area of contact of the electrode substance with the skin | 50.2 mm2 |
| Outer diameter of the electrode at the point of contact with the skin | 15.8 mm |
| Distance from the skin to the electrode conductive surface | 0.7 mm |
| The diameter of the hole in the electrode to add gel | 2.8 mm |
| Electrode polarization | ≤ 50 mV |
| Resistance of electrodes insulation | ≥ 1000 MΩ |
| Dielectric strength of electrodes insulation | 1500 V |
| The impedance of the electrode | ≤ 5 kΩ |
| Connector type | crimped end |
| Electrode cable length | 2.0 ±0.05 m |
| Net weight | < 4 g |
-
MCScap‑E repair electrode.
EEG amplifier
Electrode cap compatibility
Compact-neuro
Neurotech
Custom
EEGA-21/26 "Encephalan-131-03"
Medicom-mtd
Custom
MBN24
MBN
Custom
Medelec
Oxford Inc.
Custom
Mitsar-EEG-03/35-201
MITSAR
Custom
Mitsar-EEG-05/70-201
MITSAR
Custom
Mitsar-EEG-10/70-201
MITSAR
Custom
Mitsar-EEG-202 (24+8)
MITSAR
Custom
Mitsar-EEG-202 (31+1)
MITSAR
Custom
Mitsar-EEG-202 (31+8)
MITSAR
Custom
Neuro KM
Statokyn
Custom
Neurocartograph-01-MBN
MBN
Custom
Neurocartograph-02-MBN
MBN
Custom
Neurocartograph-03-MBN
MBN
Custom
Neurofax EEG 1200
Nikon Kohden
Custom
Neurofax EEG 1212
Nikon Kohden
Custom
Neurofax EEG 1221
Nikon Kohden
Custom
Neurofax EEG 9110
Nikon Kohden
Custom
Neurofax EEG 9210
Nikon Kohden
Custom
Neuron-Spectrum-1
Neurosoft
Custom
Neuron-Spectrum-2
Neurosoft
Custom
Neuron-Spectrum-3
Neurosoft
Custom
Neuron-Spectrum-4/EPM
Neurosoft
Custom
Neuron-Spectrum-4/P
Neurosoft
Custom
Neuron-Spectrum-5
Neurosoft
Custom
Neuron-Spectrum-61
Neurosoft
Custom
Neuron-Spectrum-62
Neurosoft
Custom
Neuron-Spectrum-63
Neurosoft
Custom
Neuron-Spectrum-64
Neurosoft
Custom
Neuron-Spectrum-65
Neurosoft
Custom
Neuron-Spectrum-AM
Neurosoft
Custom
Neuropolygraph
Neurocor
Custom
NeuroScope NS400
Biola
Custom
NeuroScope NS400A
Biola
Custom
Nicolet EEG v32 (CareFusion)
Natus
Custom
Nicolet One
Viasys
Custom
NVX136
Medical Computer Systems
Custom
NVX24
Medical Computer Systems
Custom
NVX36
Medical Computer Systems
Custom
NVX52
Medical Computer Systems
Custom
Associated products
003-8-001

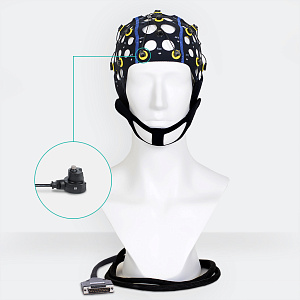

BASE
Textile cap with preinstalled Ag/AgCl sintered removable MCScap‑E electrodes with DB‑25M common connector.
Size
003-0-255

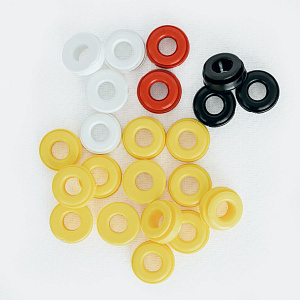

MCScap 10‑10 with fixing rings
Printed textile cap with pre-installed fixing rings according international system 10‑10.
Size

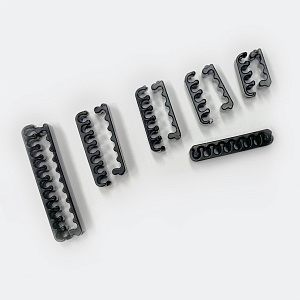

003-0-321
Removable cable fixators with lock
A set of removable plastic fixators for wires with a nominal diameter of up to 1.5 mm with a retaining part.
003-0-326

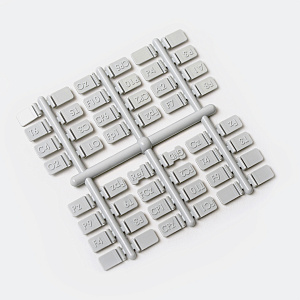

Removable markers for EEG electrodes
