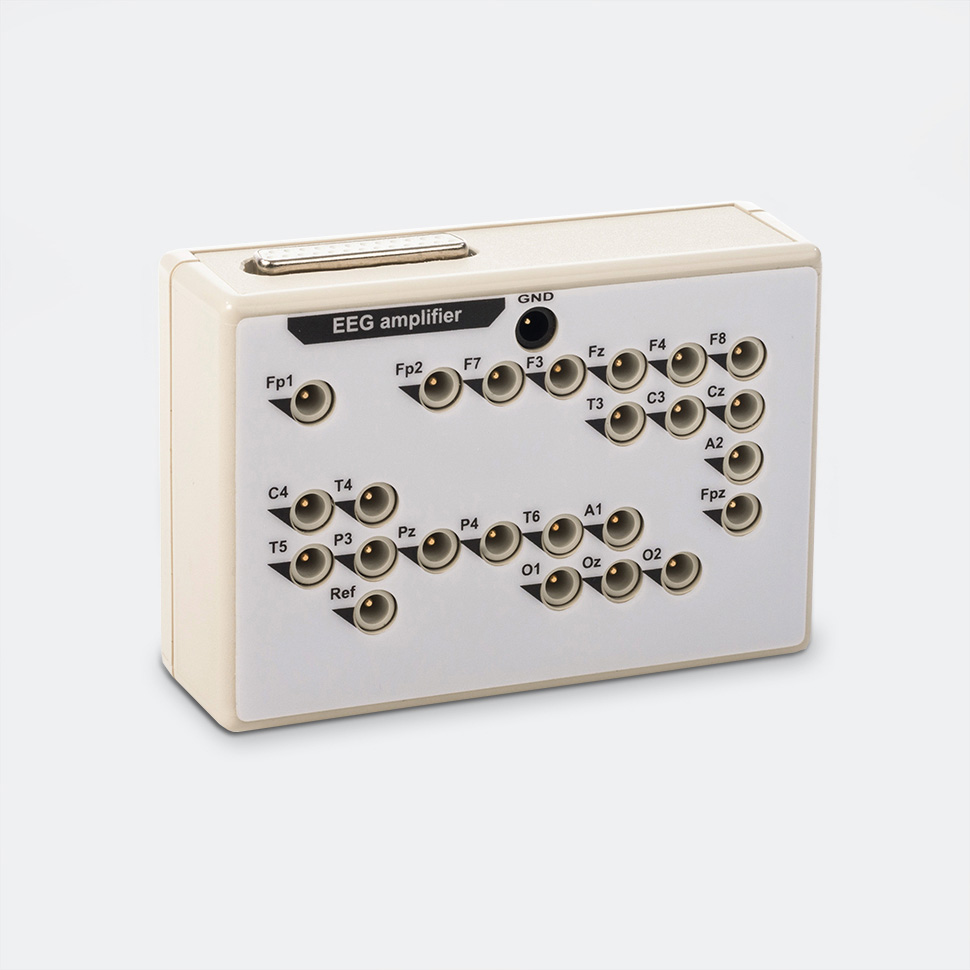

NVX2CAP‑24 adapter is a passive adapter (switch) for connecting EEG electrodes with a TouchProof 1.5 mm (DIN 42 802‑ST) connector to EEG amplifiers.
NVX2CAP‑24 adapter can be used in cases when it is necessary to quickly disconnect or connect patient-mounted electrodes to an EEG amplifier, for example, when registering a somnogram, or when it is necessary to increase the distance from the patient to the amplifier.
Marking of leads on the adapter corresponds to the system 10‑10.
Attention!
-
Increasing the distance from the electrodes to the amplifier generally increases the level of interference from external sources (pickup) on the signal.
-
1.8 m connecting cables used in NVX2CAP have their own inter-wire capacitance up to 200 pF. For example, with an interelectrode resistance of 10 kΩ, the signal will additionally be attenuated by no more than 0.2% at a frequency of 150 Hz, but at a frequency of 80 kHz the attenuation will be already 30%.
| Connector 1 type (to cap) | 25 TouchProof 1.5 mm (DIN 42 802‑BU) |
| Connector 2 type (to ampifier) | DB‑25M |
| Maximum number of electrodes to connect | 25 |
| Adapter / Extension lenght | 1.8 ±0.05 m |
| Net weight | < 500 g |
-
NVX2CAP‑24 adapter,
-

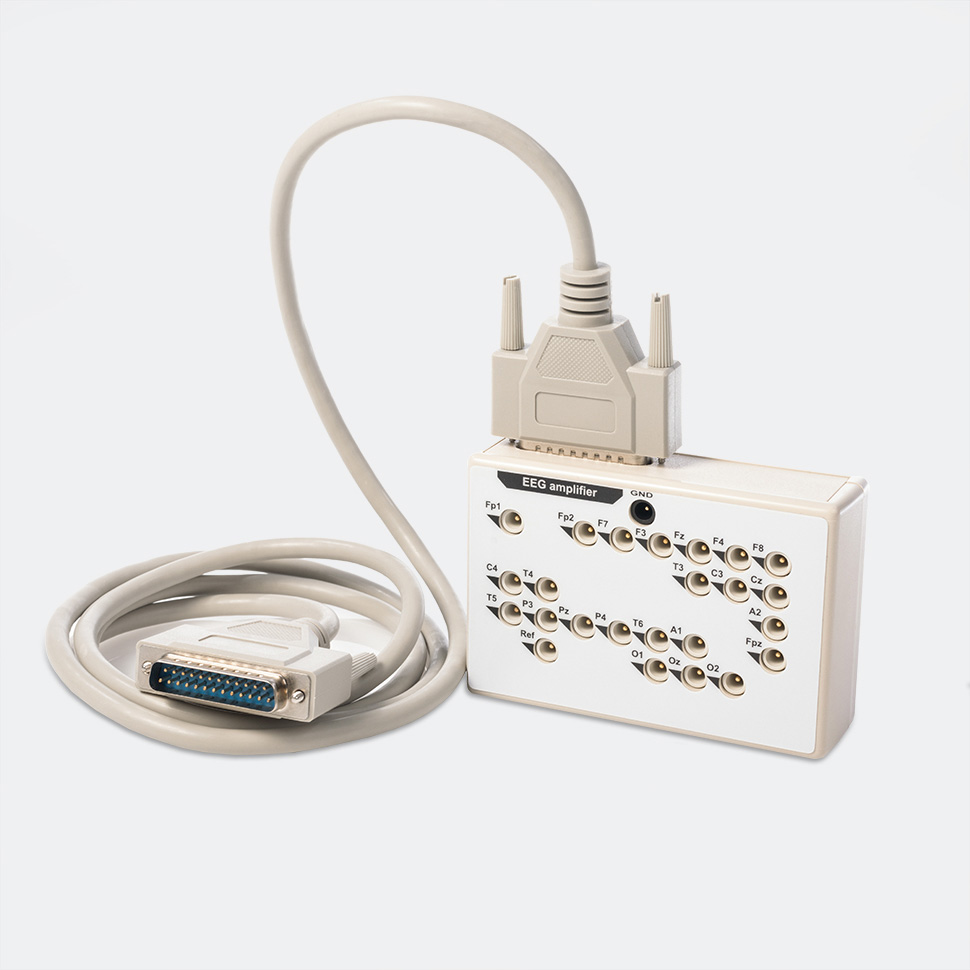

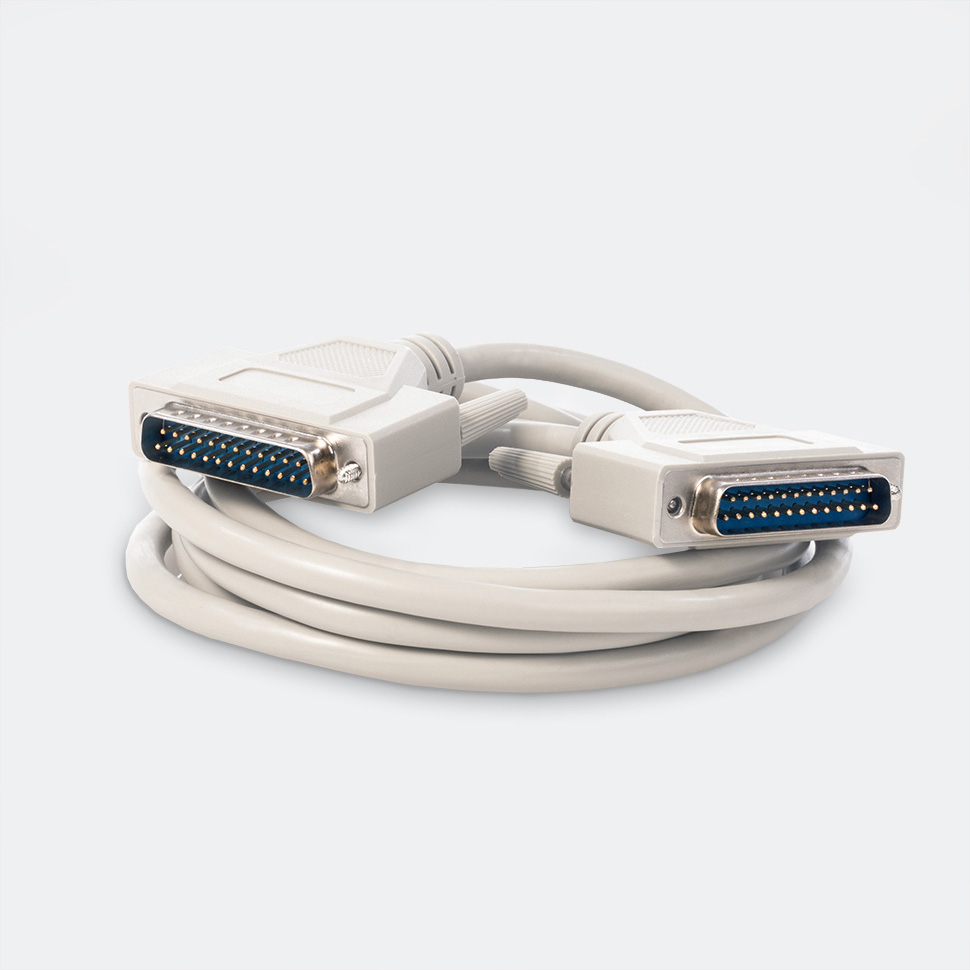

1.8 m cable for connecting to amplifiers with a DB‑25F connector,
-
operational documentation.
