Galvanic skin response sensor GSRsens
Galvanic skin response sensor GSRsens
Manufacturer code:
007-0-231
Compare
Galvanic skin response sensor, NeoSens‑compatible.
In stock
Overview
Specifications
Standard set

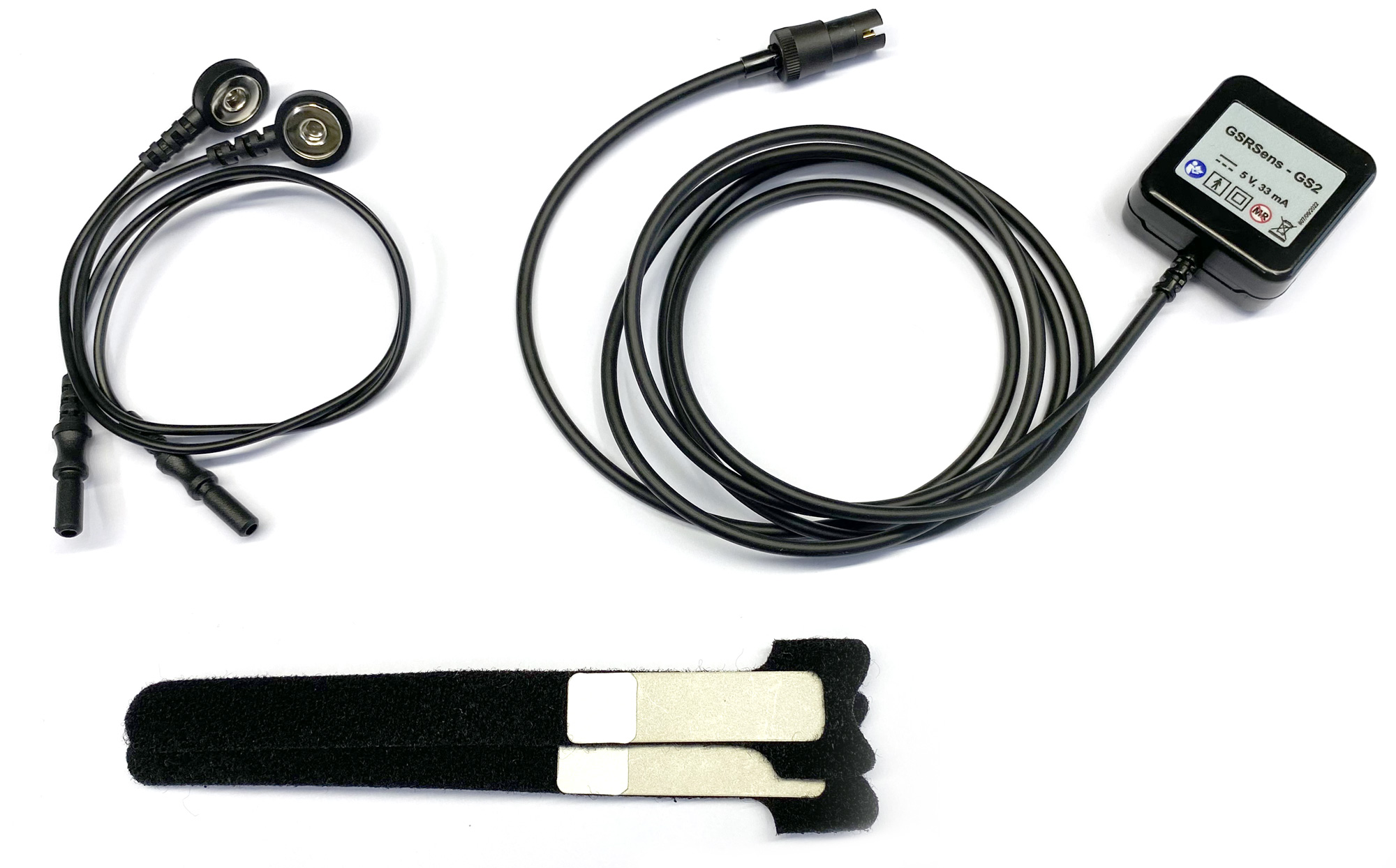

Galvanic skin response sensor GSRsens consists of an amplifier block and two electrodes connected to the amplifier block. The amplifier block is designed for connection to NeoSens-compatible connectors of bioelectric signal amplifiers such as NVX136 or similar.
Getting started
The electrodes are attached with a fixing strap to the palmar surface of the fingers of one hand on the middle phalanges of the index and middle or ring fingers to avoid contact between the electrodes.
| Registered parameter | galvanic skin response |
| Channels | 1 |
| Number of lead cables | 2 |
| Square of sensor conductive surface | > 4 cm2 |
| Material of sensor conductive surface | Ag/AgCl |
| Transfer characteristic form | linear dependence of output voltage on conductivity |
| Transmission coefficient | 25 mV/µS |
| Operating range | 0.5 to 80 µS |
| Measurement accuracy | 10% |
| Frequency range | 0 to 10 Hz (-3dB) |
| Noise | < 3.5 µV p‑p |
| Offset voltage | < ±2.5 mV |
| Reference voltage | 0.5V |
| Supply voltage | 5V (±5%) |
| Consumption current | < 30 mA |
| Connector for connecting the lead cable | TouchProof 1.5 mm (DIN 42 802‑BU) x 2 |
| Сable length | 1.2 m |
| Connector for connecting to an amplifier | NeoSens‑compatible |
-
GSRsens amplifier block,
-
GSR electrodes for GSRsens - 2 pcs.,
-
cables with button connection for electrodes,
-
User Manual.
