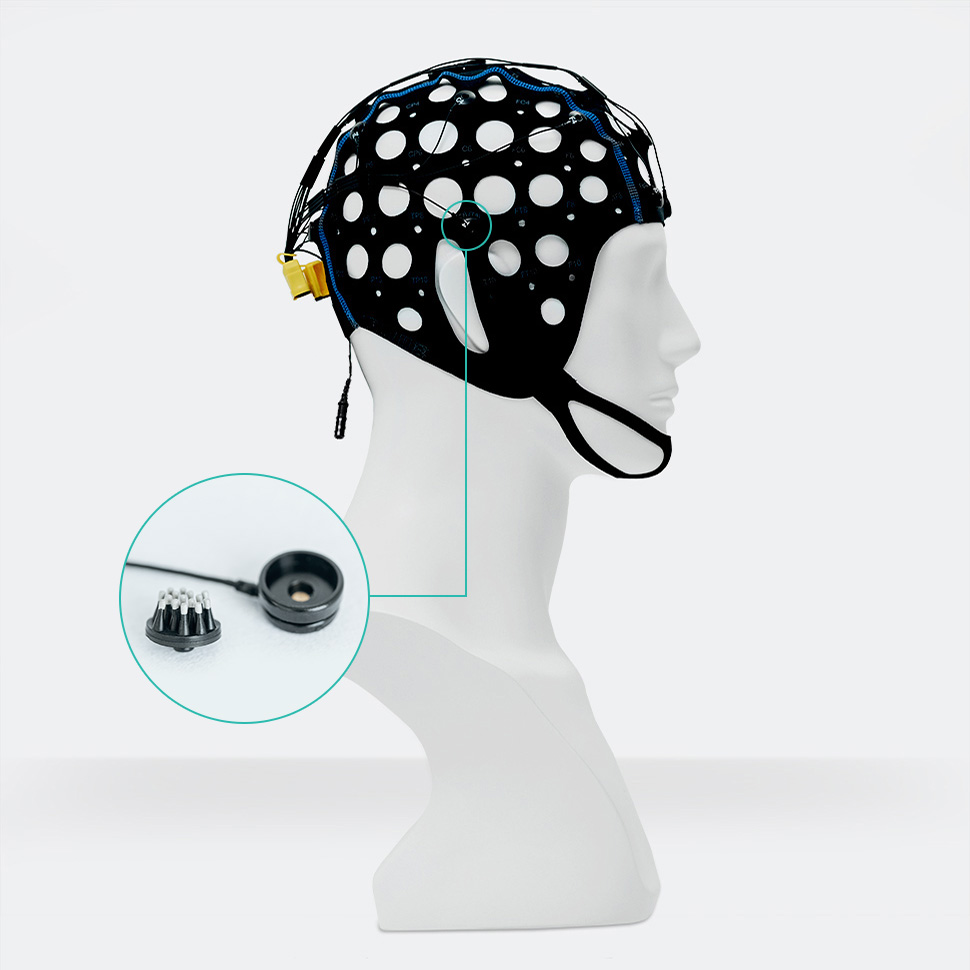

Electrode cap DRY cap for NeoRec 16 is the textile cap with pre-installed dry passive Ag/AgCl MCScap‑DrP1  electrodes with common connector for NeoRec 16 amplifier. The ear electrode is connected to the common connector through the TouchProof 1.5 mm (DIN 42 802‑BU) connector for the possibility of replacing it with another electrode or signal source. The electrode cap is designed for non-invasive registration EEG when used with the EEG amplifier. The electrode cap is a reusable device.

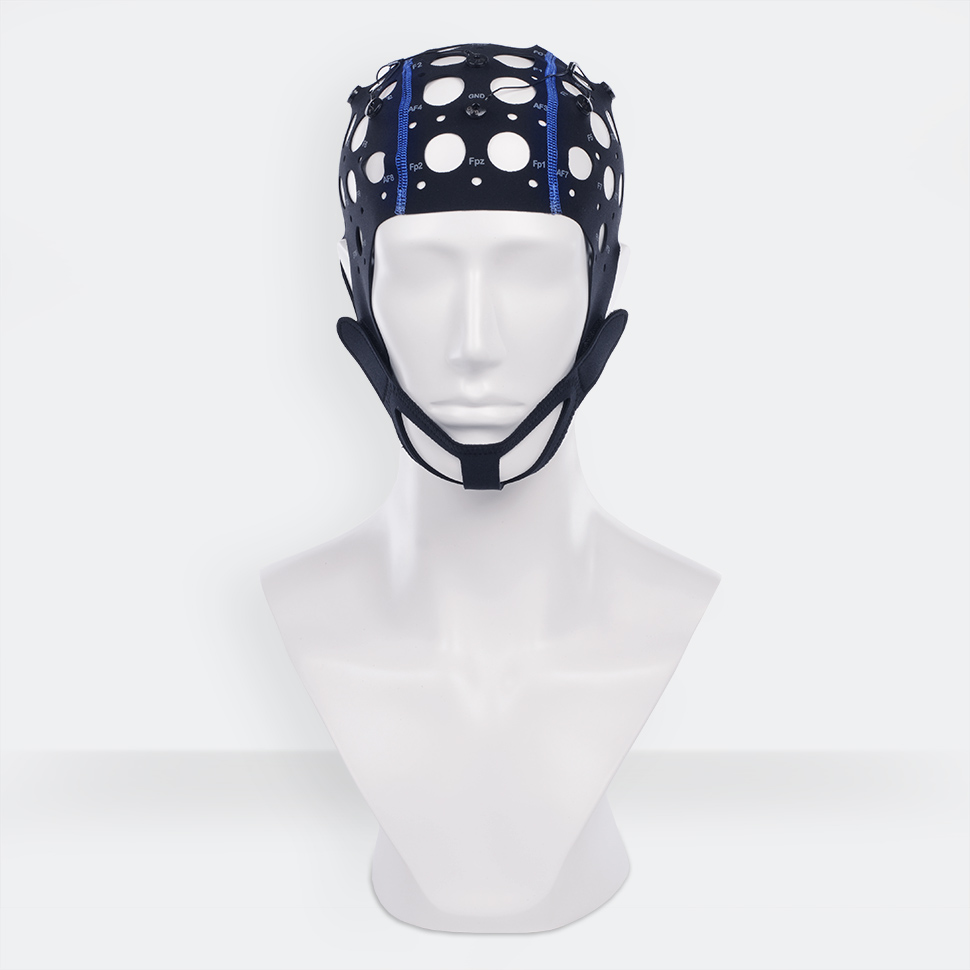

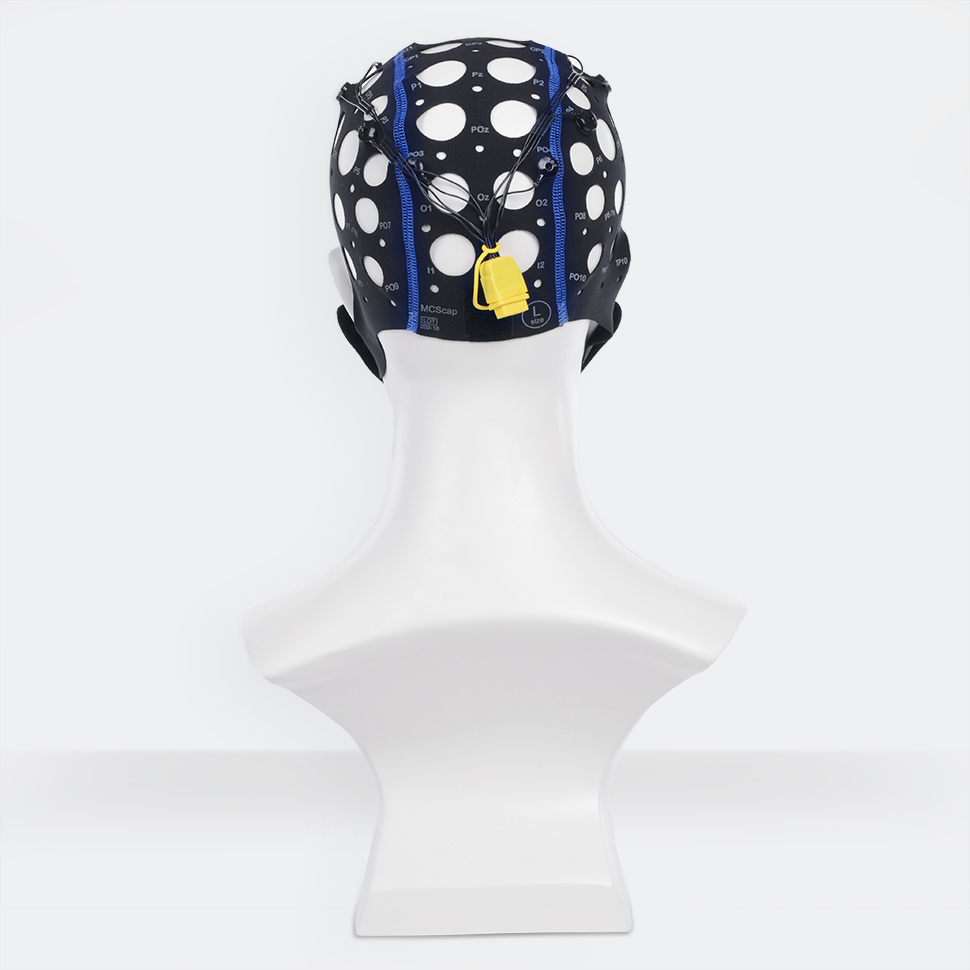

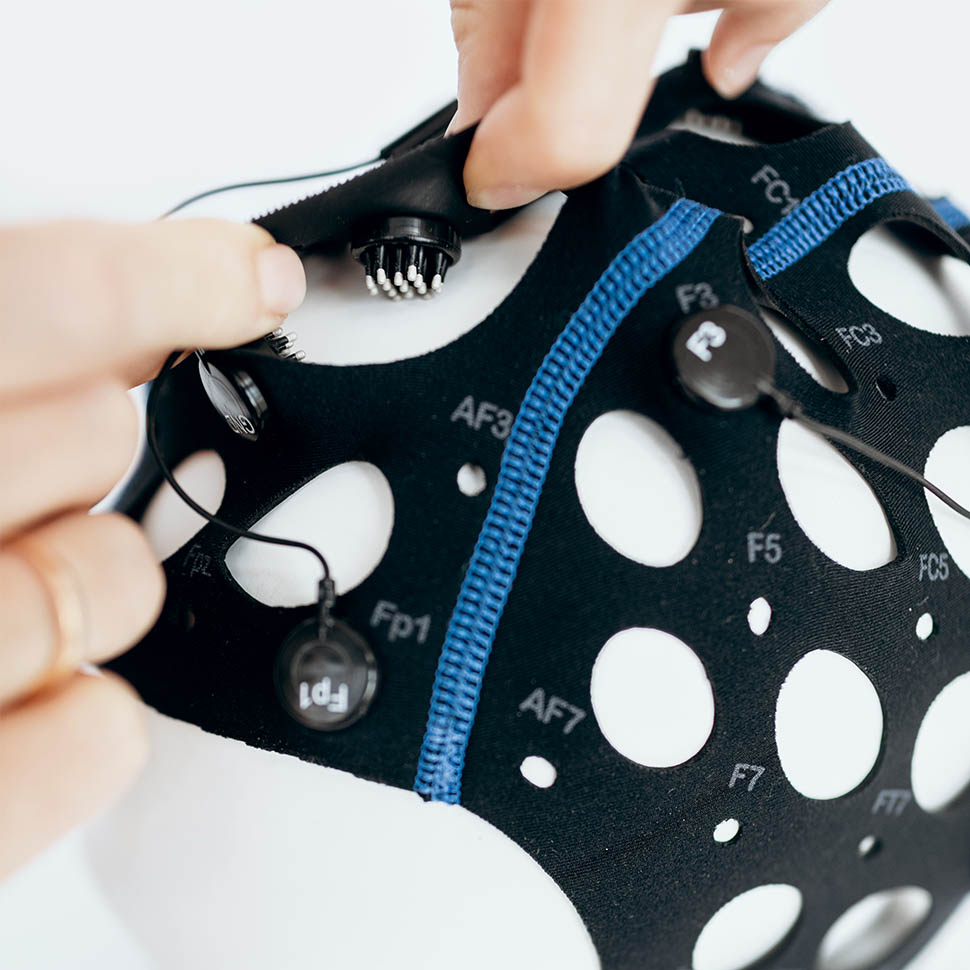

Textile cap is made of elastic material, preserving the shape and size. The cap provides the exact position of the electrodes on the head without additional measurements and adjustments. Large holes are provided for ventilation and access to the electrodes and patient’s skin.The cap is fixed on the head with the chin or chest belt. The caps are marked according to the 10-10 system. Size identification is carried out by the color of the seam.

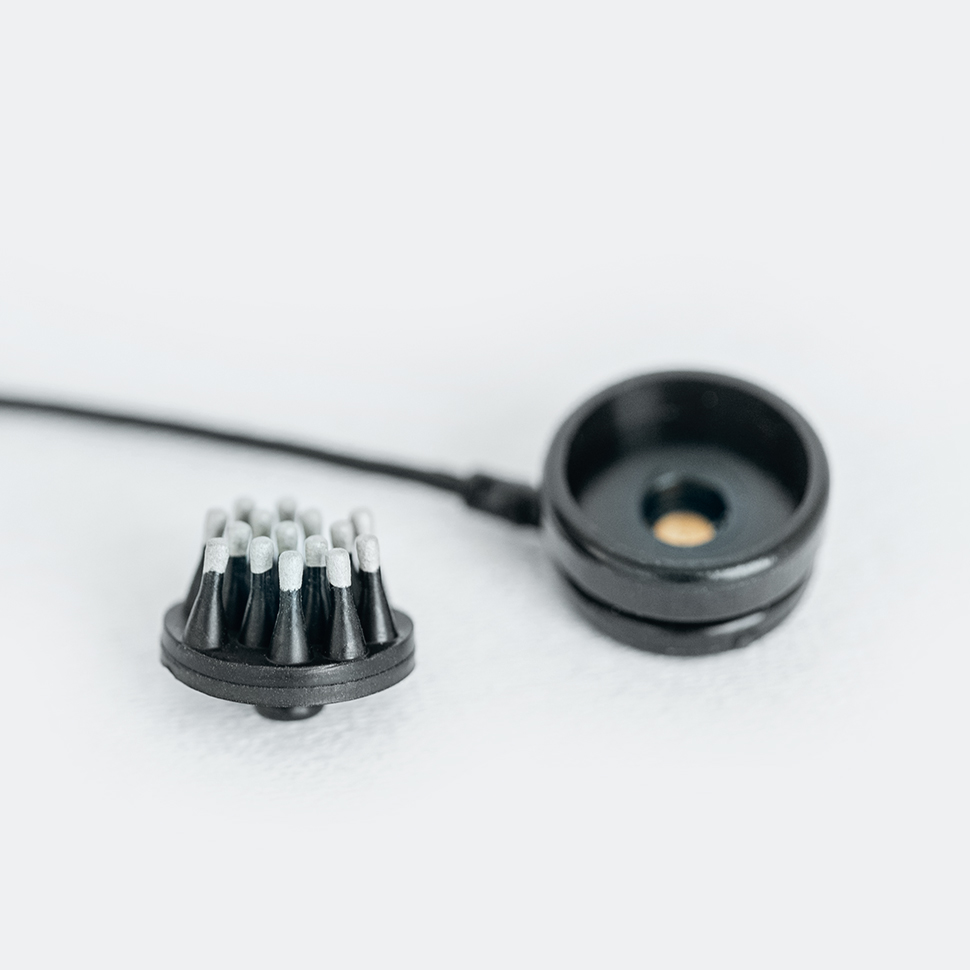

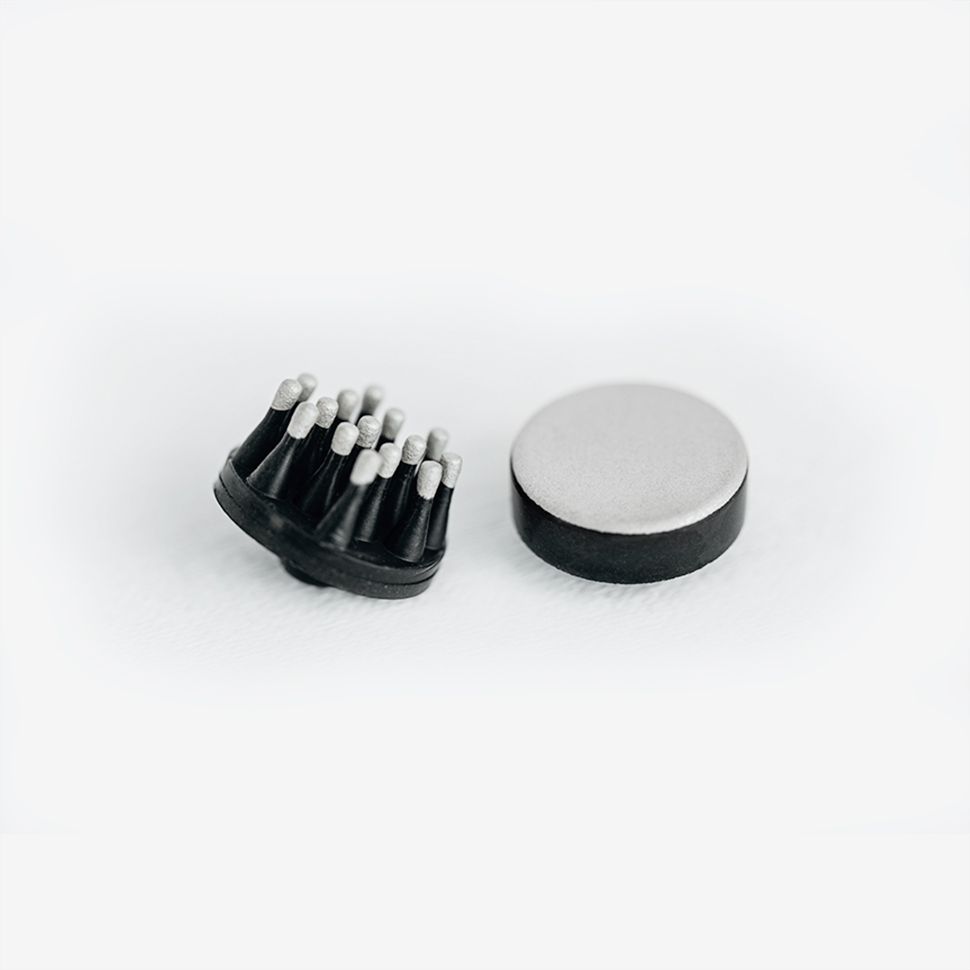

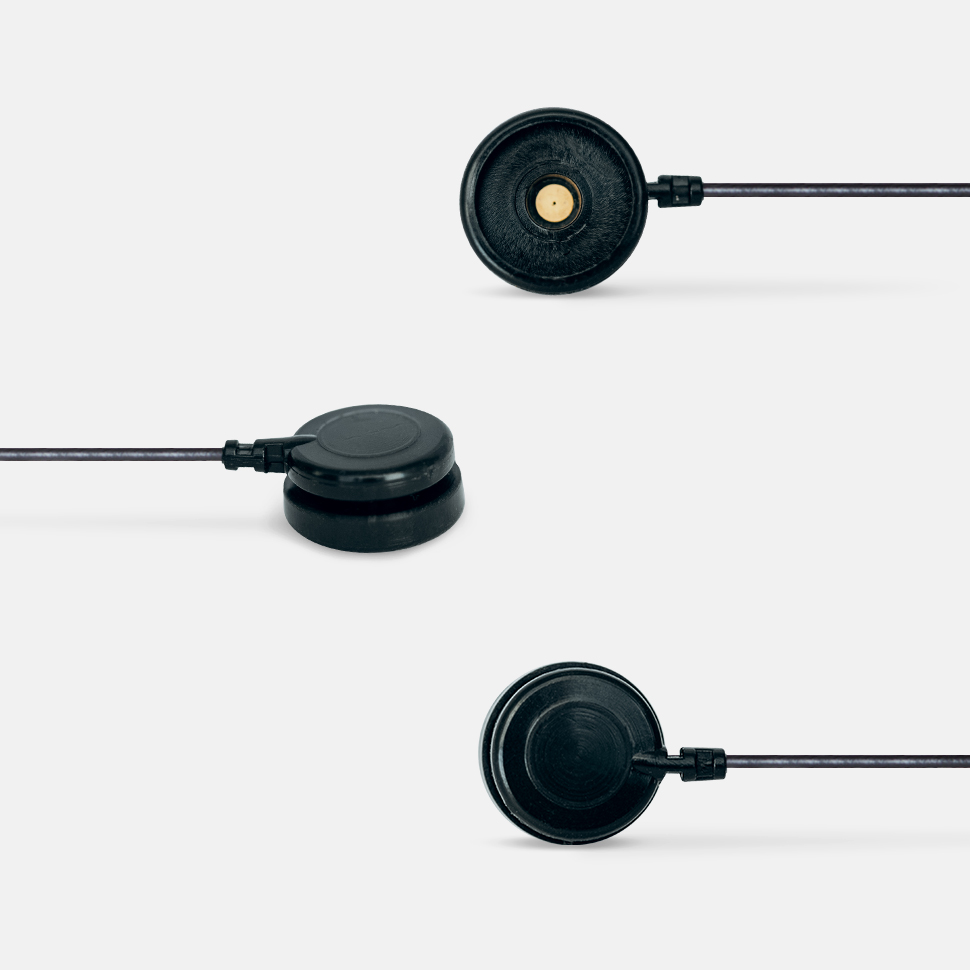

MCScap‑DrP1 is a dry passive electrode for EEG acquisition. The electrode is used with Datawyler's SoftPulse™ sensors in a brush style with three different protrusion lengths. This design allows contact with the skin without adding gel. The Ag/AgCl electrode material guarantees minimum polarization and long-term signal stability. Electrode have additional labeling what makes easy to rearrange them to new textile base.
