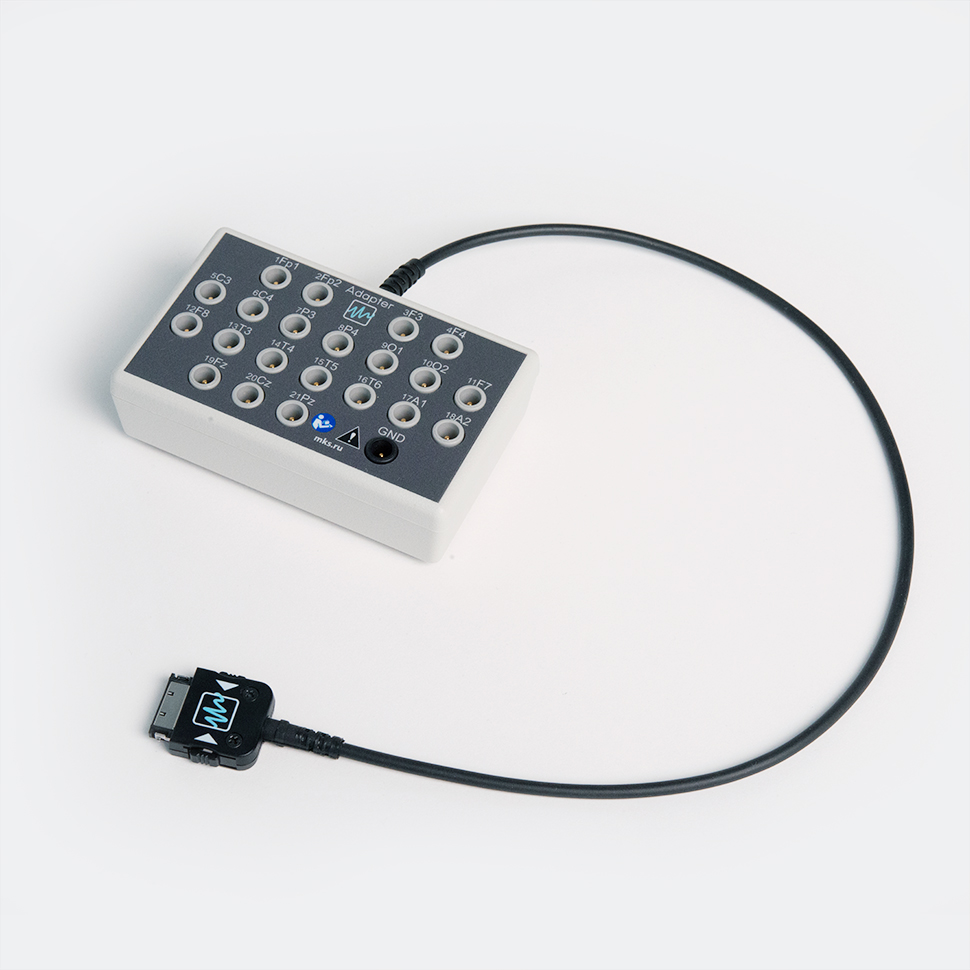

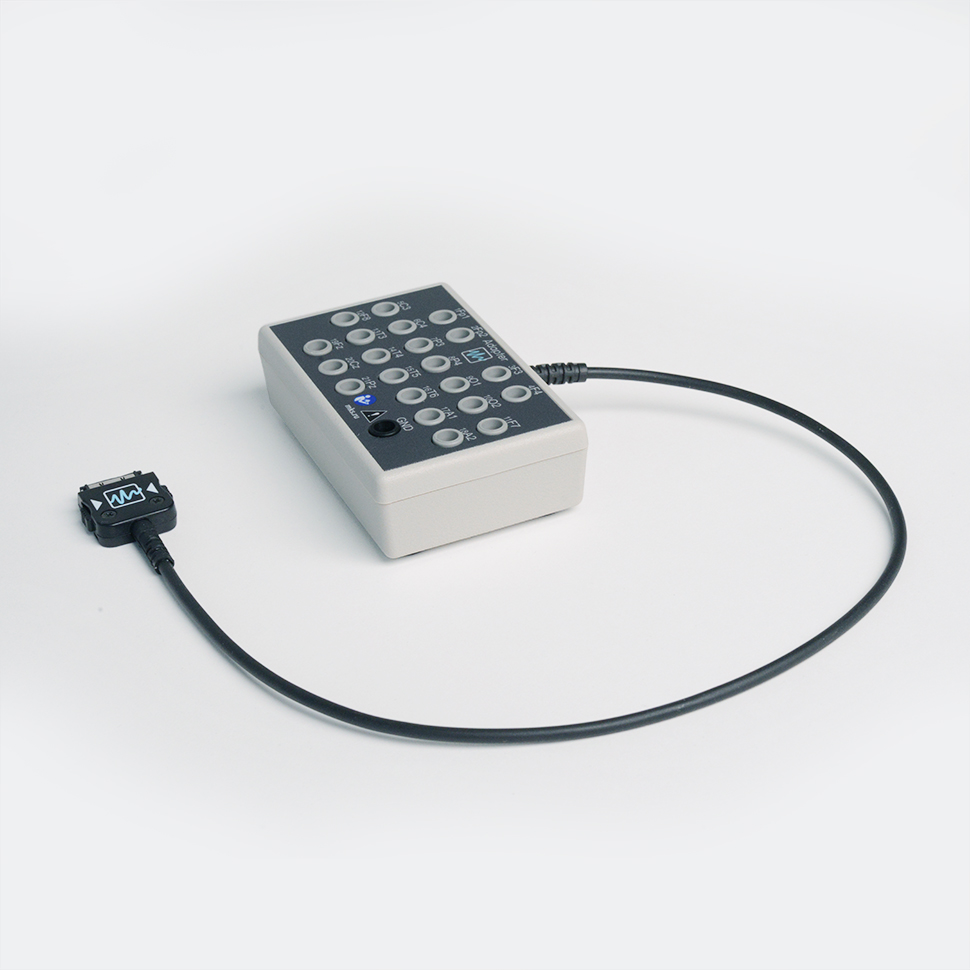

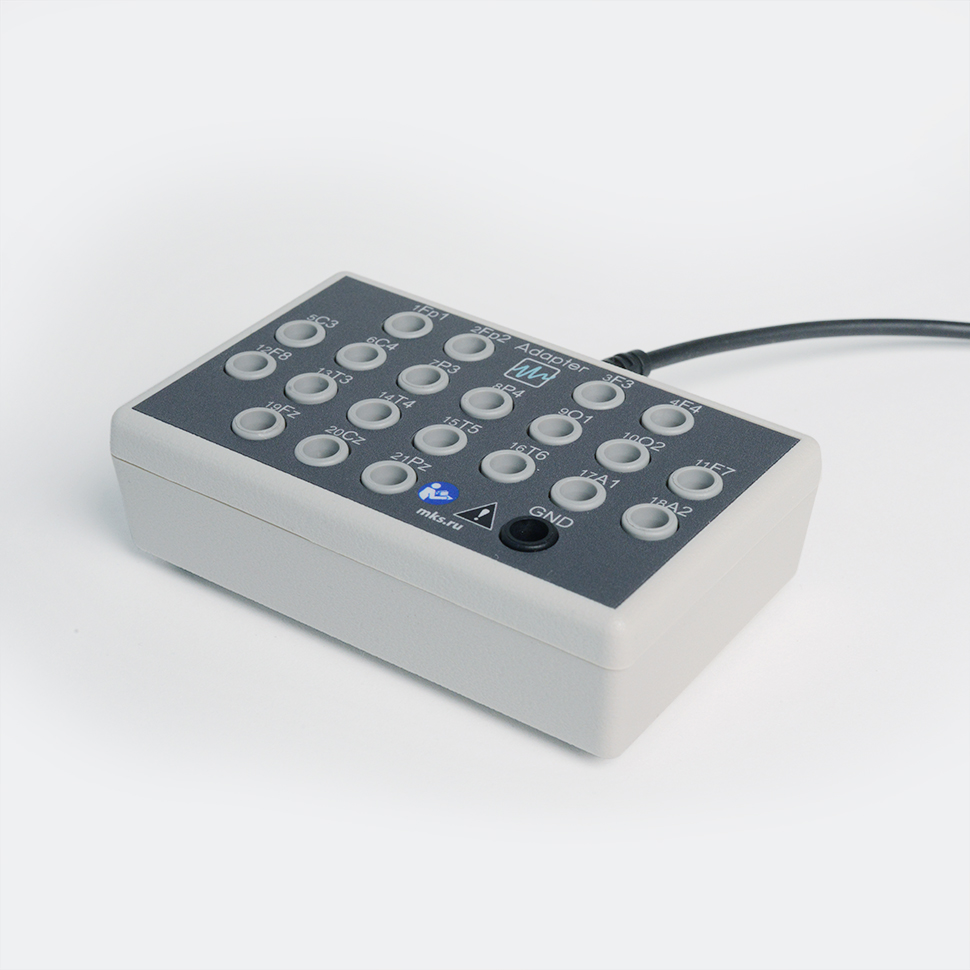

Adapter TP-NeoRec21 is a passive adapter for connecting EEG electrodes with individual connectors TouchProof 1.5 mm (DIN 42 802‑ST) to EEG amplifier NeoRec 21. The adapter consists of a panel for connecting electrodes and a cable with ST40X‑24S connector for connecting to an amplifier.
Adapter TP-NeoRec21 can be used in cases when it is necessary to quickly disconnect or connect patient-mounted electrodes to an EEG amplifier or when it is necessary to increase the distance from the patient to the amplifier.
|Connector 1 type (to cap)||22 TouchProof 1.5 mm (DIN 42 802‑BU)|

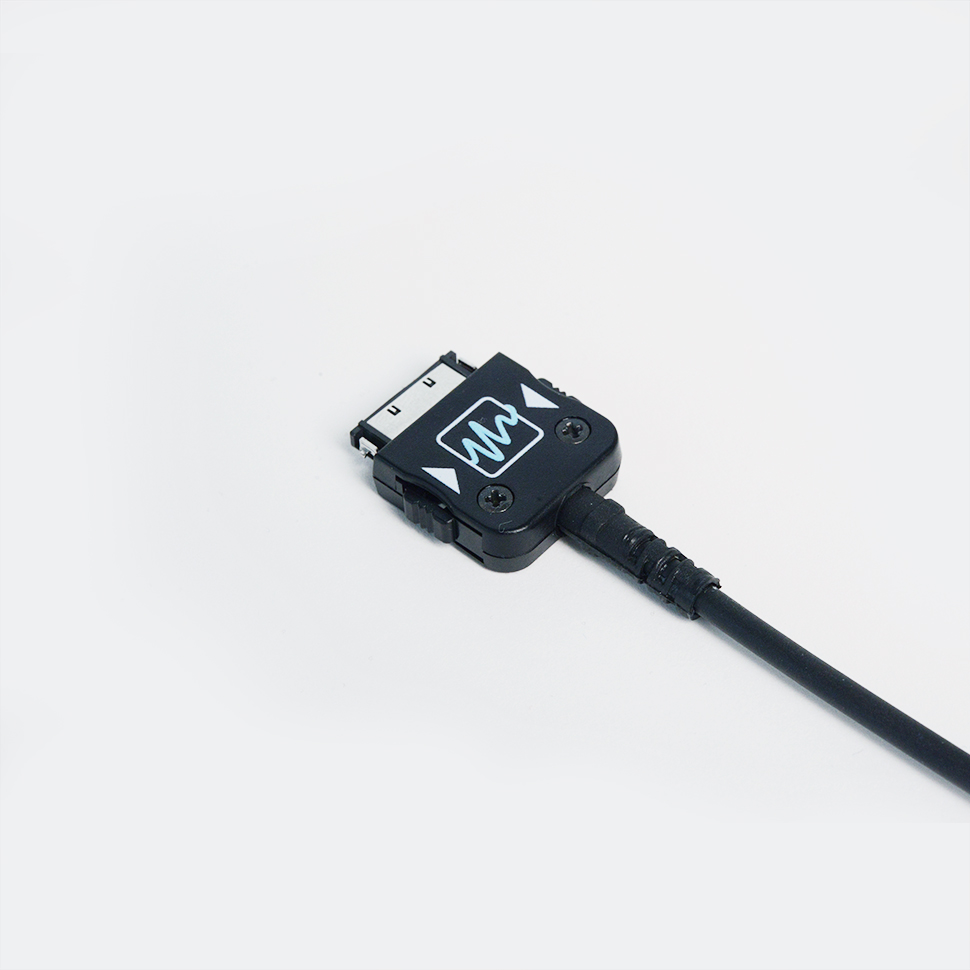

|Connector 2 type (to ampifier)||ST40X‑24S|
|Maximum number of electrodes to connect||22|
|Electrode positions||FP1, FP2, O1, O2, F3, F4, C3, C4, P3, P4, F7, F8, T7, T8, P7, P8, FZ, CZ, PZ, A1, A2, GND|
|Adapter / Extension lenght||0.3 m|
|Net weight||95 ±5 g|
