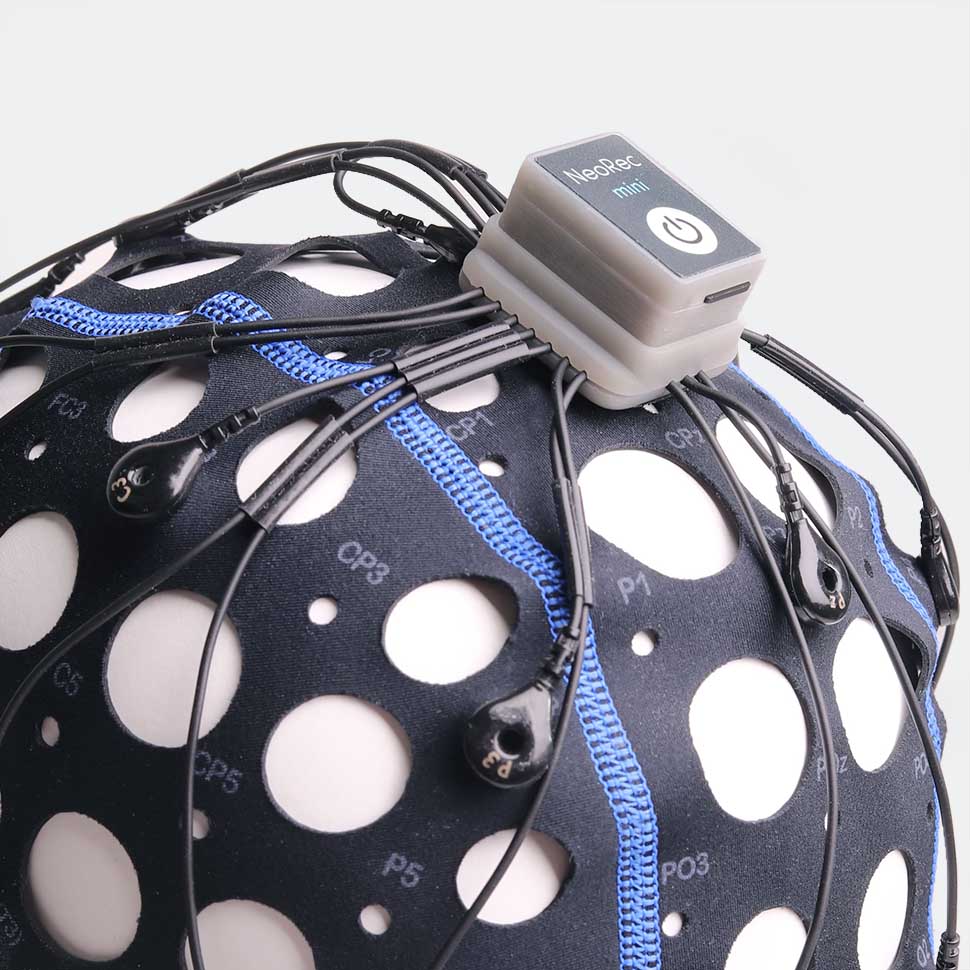

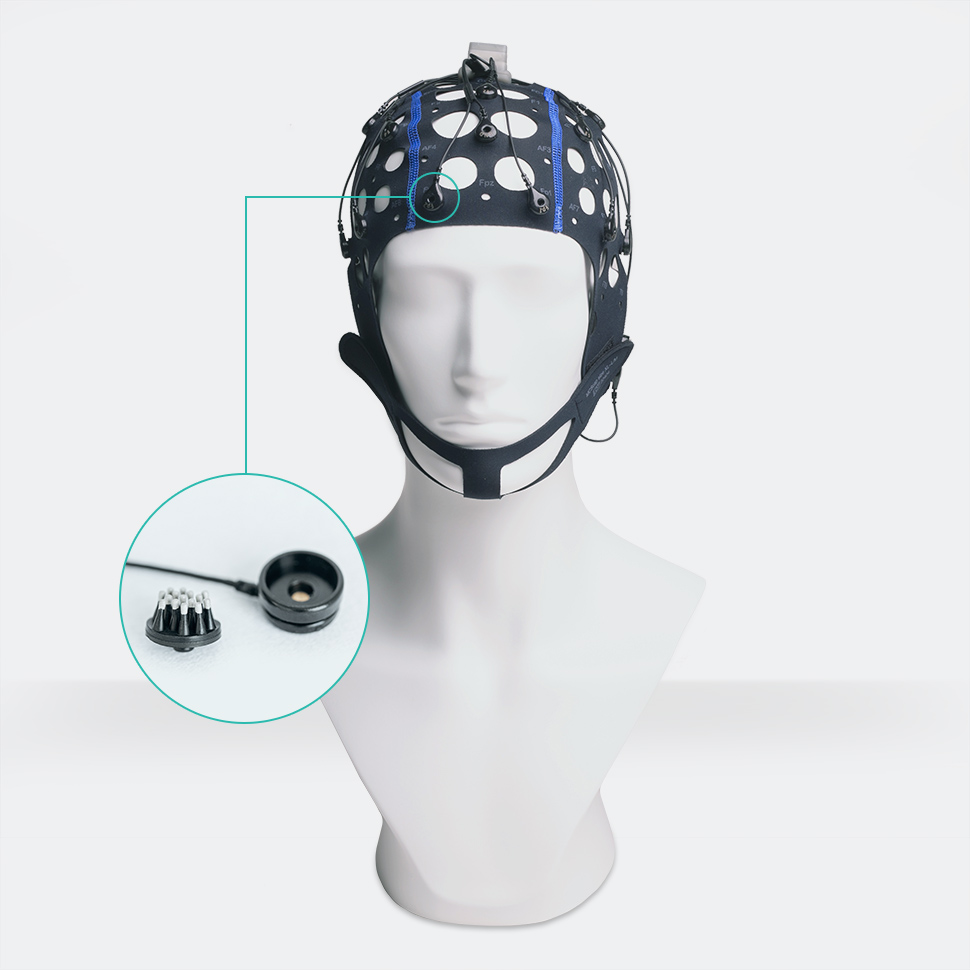

Electrode cap DRY cap for NeoRec 21 mini is the textile cap with pre-installed dry passive Ag/AgCl

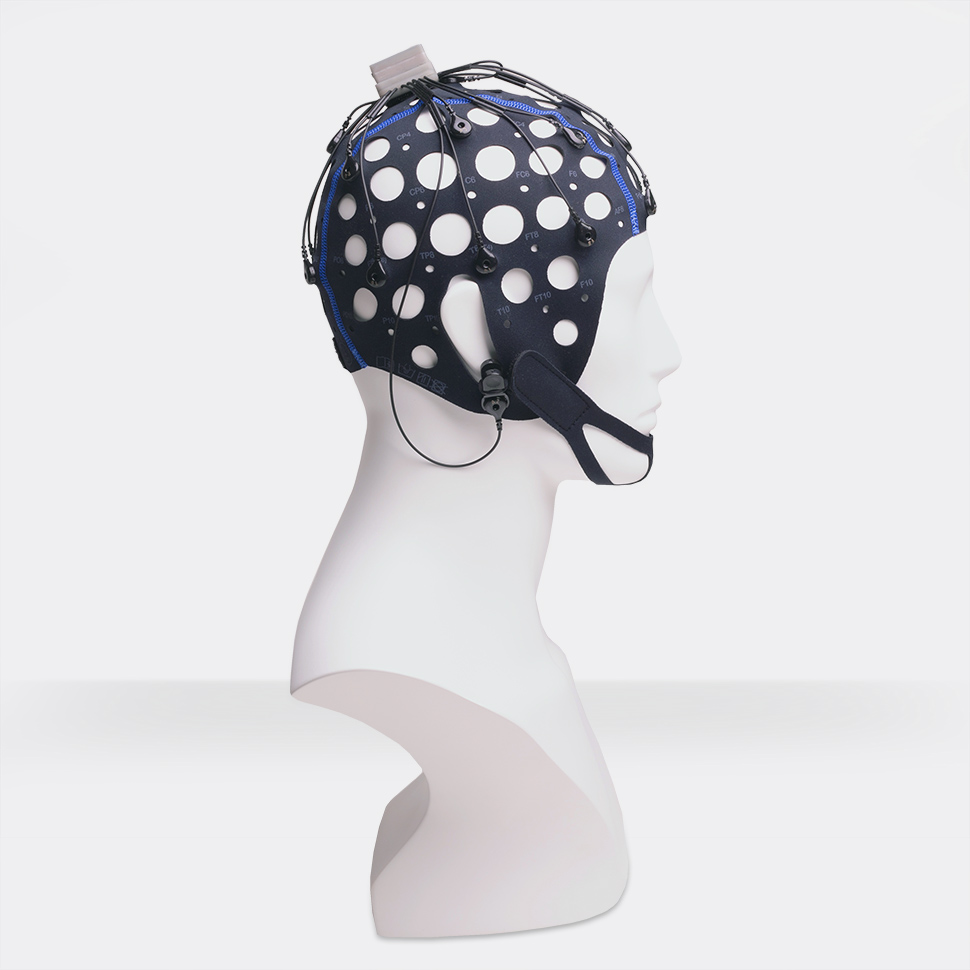

Textile cap is made of elastic material, preserving the shape and size. The cap provides the exact position of the electrodes on the head without additional measurements and adjustments. Large holes are provided for ventilation and access to the electrodes and patient’s skin.The cap is fixed on the head with the chin or chest belt. The caps are marked according to the 10-10 system. Size identification is carried out by the color of the seam.

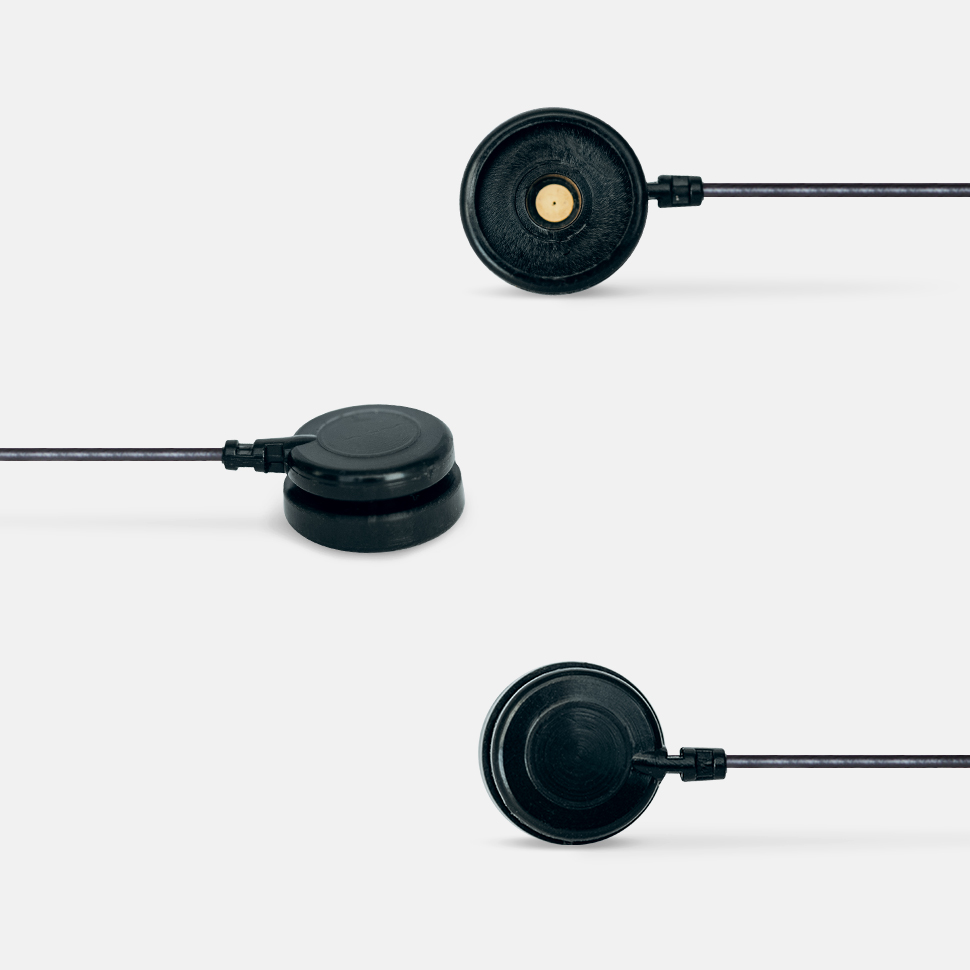

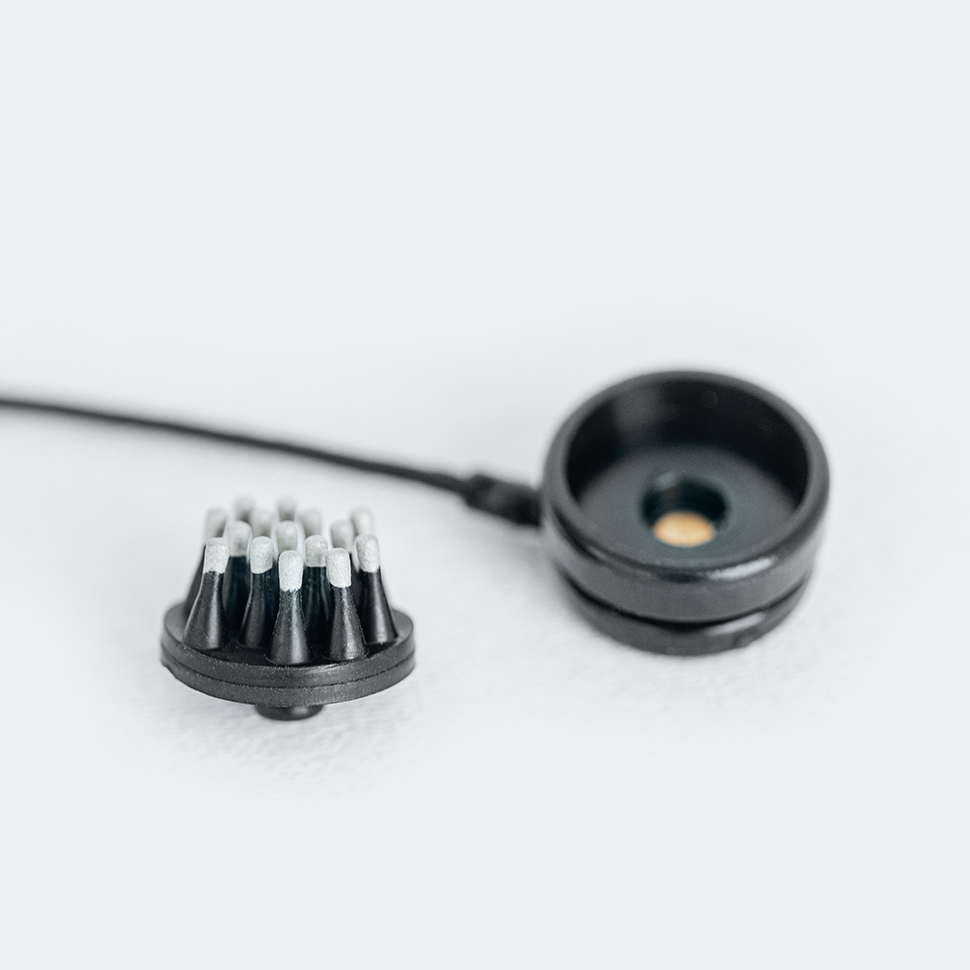

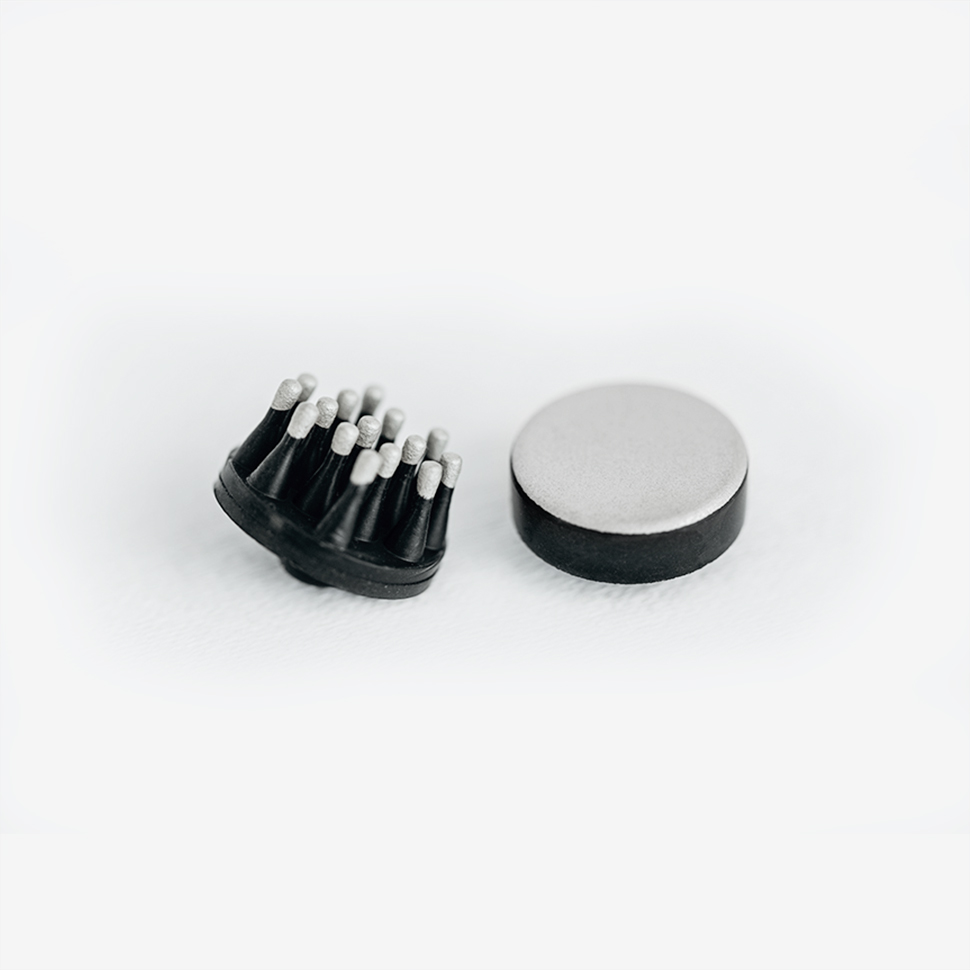

MCScap‑DrP1 is a dry passive electrode for EEG acquisition. The electrode is used with Datawyler's SoftPulse™ sensors in a brush style with three different protrusion lengths. This design allows contact with the skin without adding gel. The Ag/AgCl electrode material guarantees minimum polarization and long-term signal stability. Electrode have additional labeling what makes easy to rearrange them to new textile base.
| Model of electrode cap | DRY cap for NeoRec 21 mini |
| Compatibility with amplifiers | NeoRec 21 mini |
| Electrode | MCScap‑DrP1 |
| Model of textile cap | MCScap textile cap |
| Cable length | Without a cable, installing the amplifier on a pad on a cap |
| Location of the output of the electrode cable from the cap | top of the head |
| Marking of the textile cap | yes |
| Marking of the electrodes | yes |
| Weight of EEG cap | < 350 g |
| Electrode type | passive |
| Material of electrode conductive surface | Ag/AgCl |
| The need to use an electrode contact substance | not required |
| Compatible sensors | SoftPulse™ (Datawyler): Flat, Medium, Long |
| Ingress Protection | IP67 (with sensor installed) |
| Electrode polarization | ≤ 50 mV |
| Resistance of electrodes insulation | ≥ 1000 MΩ |
| Dielectric strength of electrodes insulation | 1500 V |
| The impedance of the electrode | ≤ 5 kΩ |
| Connector type | Molex 52885‑0374 |
| Number of EEG electrodes | 22 |
| Electrode positions | FP1, FP2, O1, O2, F3, F4, C3, C4, P3, P4, F7, F8, T7, T8, P7, P8, FZ, CZ, PZ, A1, A2, GND |
| Scheme of electrode arrangement Manufacturer's code | #10EM22 |
| Pin layouts of common connector Manufacturer's code | #10E-09M22 |
-
Electrode cap DRY cap for NeoRec 21 mini,
-
MCScap‑AT ear fixator - 2 pcs.
| Size | Application | Head circumference | Textile or seam color |
|---|---|---|---|
| XL | Adult | 60-66 cm | Green |
| XL/L | Adult | 57-63 cm | Green + blue |
| L | Adults (most) | 54-60 cm | Blue |
| L/M | Teens, adults | 51-57 cm | Blue + red |
| M | Children, teens | 48-54 cm | Red |
| M/S | Children under 5 years old | 45-51 cm | Red + yellow |
| S | Children under 2 years old | 42-48 cm | Yellow |
| S/XS | Children under 1 year old | 39-45 cm | Yellow + green |
| XS | Children up to 4 months | 36-42 cm | Green |
