CLINIC
CLINIC
Manufacturer code: 003-1-001
Compare (0)
Compare
Printed textile cap with 21 preinstalled Ag/AgCl electrodes MCScap‑C with DB‑25M common connector
In stock
In stock
Price:
250
quantity
Add to cart
Overview
Specifications
Standard set
Sizes of cap
Compatibility with EEG amplifiers

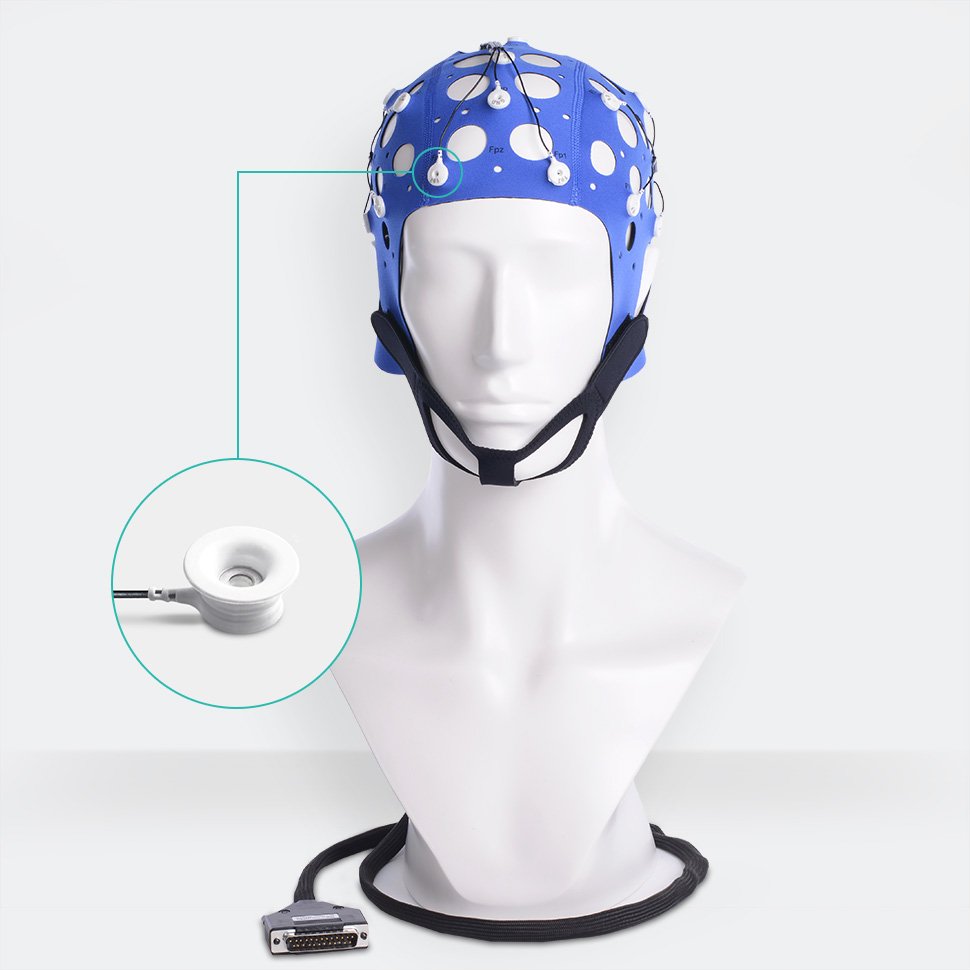

Electrode cap CLINIC is a printed textile cap with 21 preinstalled Ag/AgCl electrodes MCScap‑C with DB‑25M common connector, cable length 150 cm. The electrode cap is designed for non-invasive registration EEG and use with electroencephalographs and other amplifiers of biological signals.

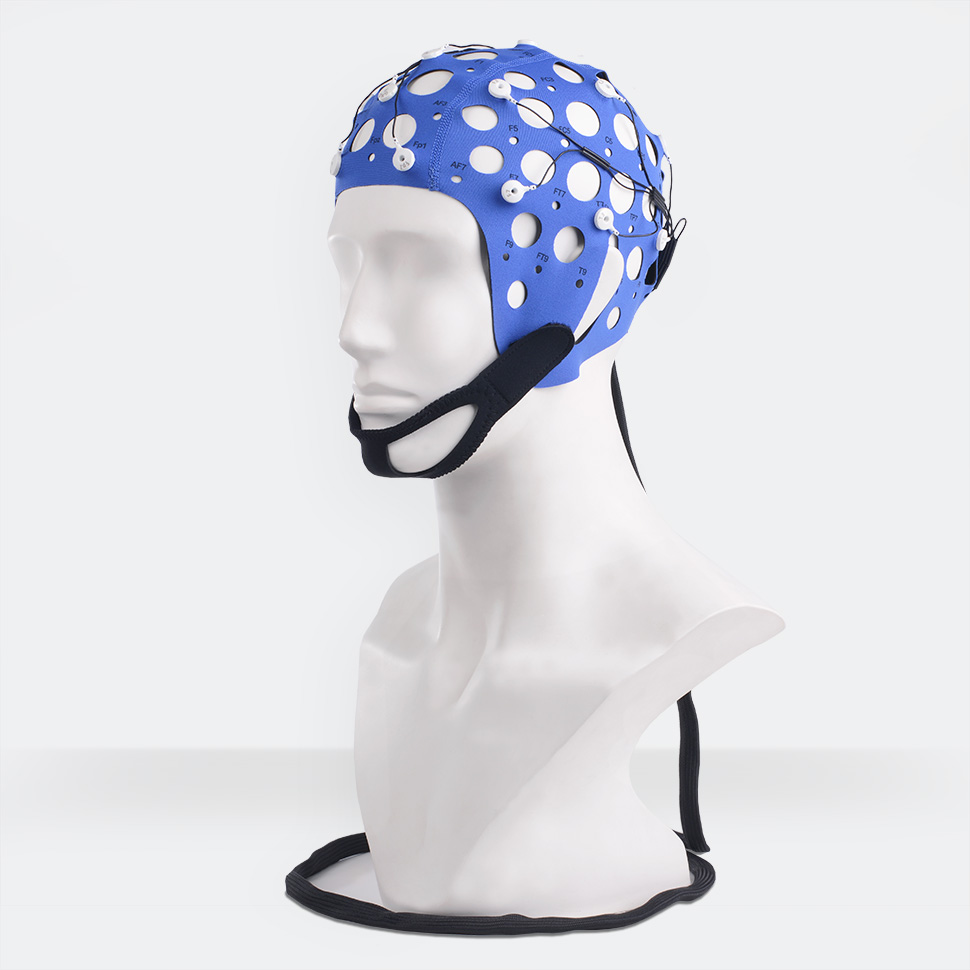

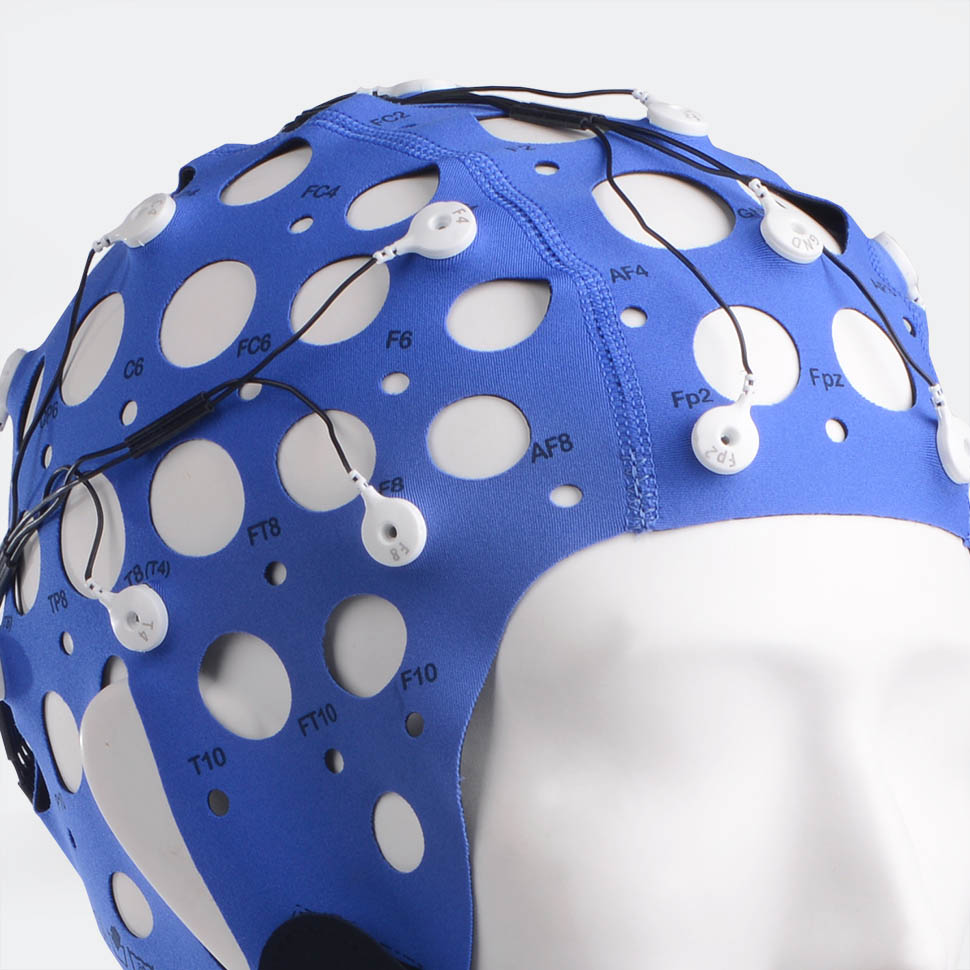

Textile cap is made of elastic material, preserving the shape and size. The cap provides the exact position of the electrodes on the head without additional measurements and adjustments. Large holes are provided for ventilation and access to the electrodes and patient’s skin. The cap is fixed on the head with the chin or chest belt. Textile cap are made of colored material for simplified identification size and are marked according to system 10‑10.

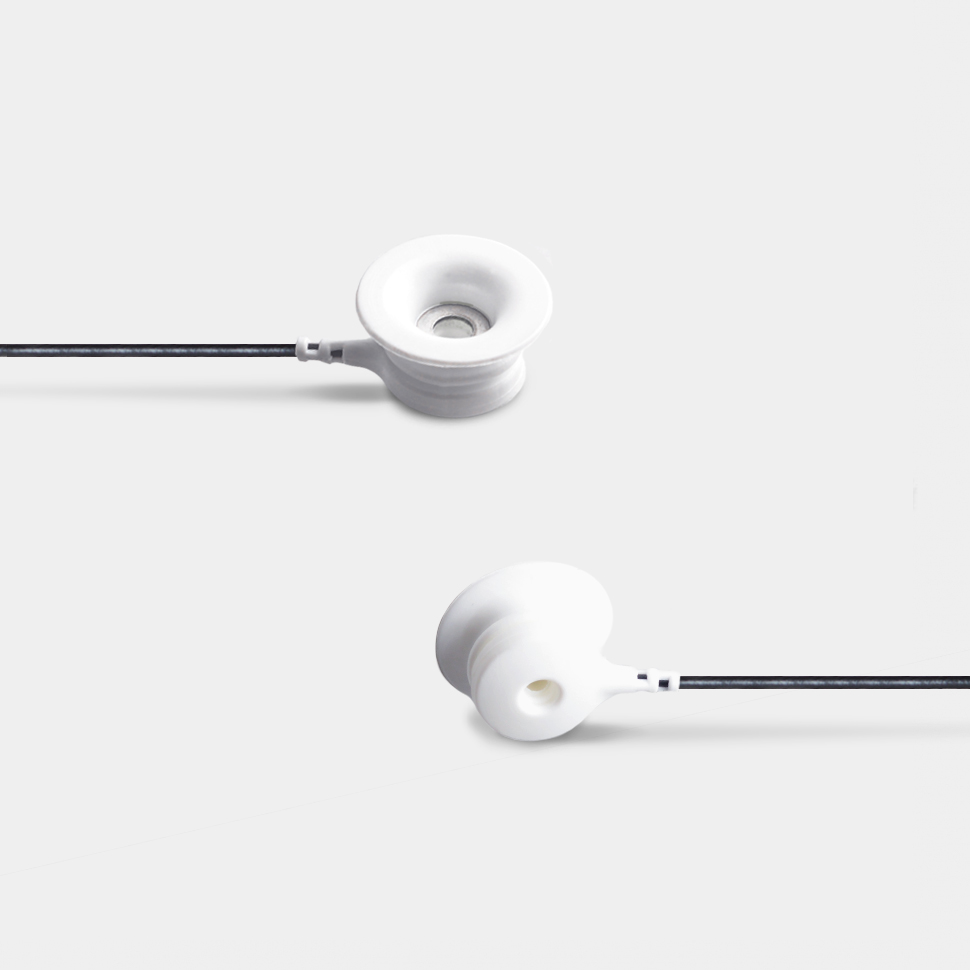

MCScap‑C electrode is shaped like a bowl with a wide skirt. This shape of the electrode allows you to achieve a tighter fit to the patient's head and provides comfort during the research, and also does not allow the electrode gel to flow out of the electrode. The Ag/AgCl electrode material guarantees minimum polarization and long-term signal stability. MCScap electrodes are made in a plastic case to reduce artifacts during movement. The conductive surface of the MCScap electrodes is not in direct contact with the skin. Contact is provided by a conductive substance. A hole in the electrodes is provided to add a conductive gel. Electrode have additional labeling what makes easy to rearrange them to new textile base.

Electrode MCScap-C
Material of electrode conductive surface Ag/AgCl
Electrode body material polyurethane
Square of electrode conductive surface 26 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 10 mm
Surface area of contact of the electrode substance with the skin 78.5 mm2
Outer diameter of the electrode at the point of contact with the skin 15 mm
Distance from the skin to the electrode conductive surface 3.5 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Electrode positioning system 10-10
Connector type DB25M
Cable length 150 cm

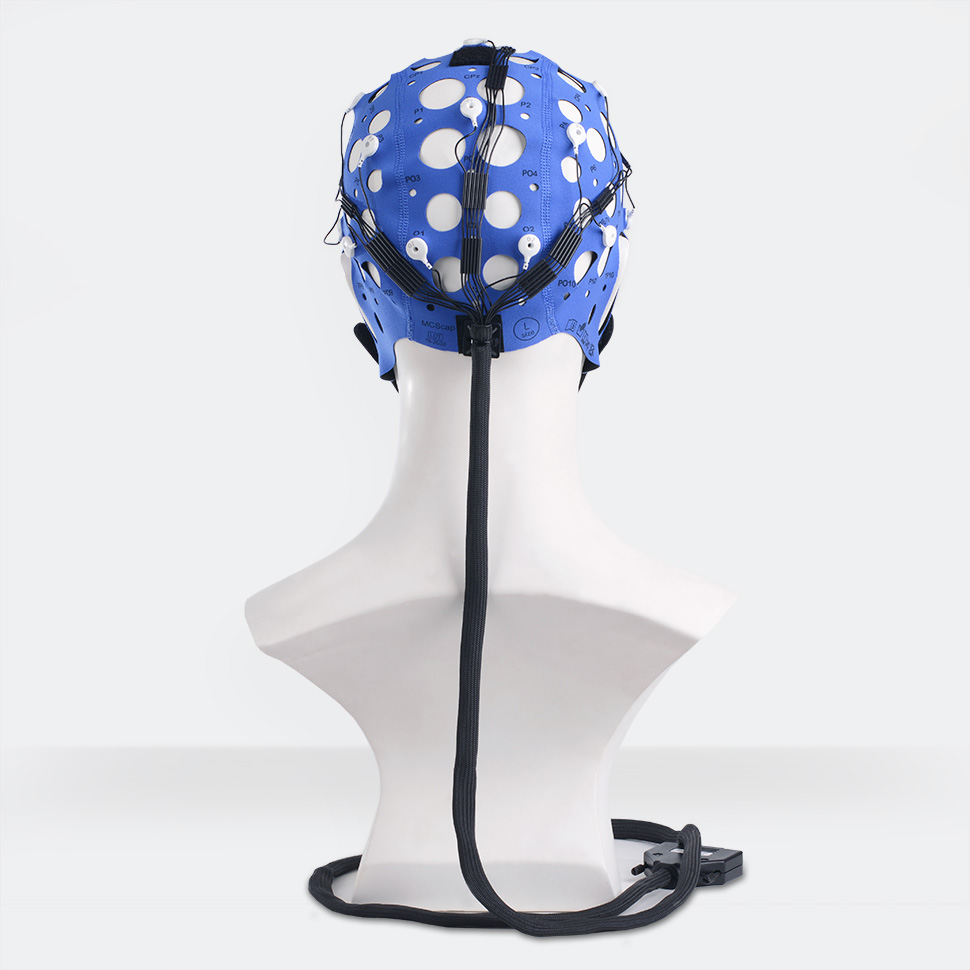

Location of the output of the electrode cable from cap Back of the head
Number of electrodes 21
Electrode positions Fp1, Fp2, F3, F4, C3, C4, P3, P4, O1, O2, F7, F8, T7(Т3), T8(T4), P7(T5), P8(T6), Cz, Fz, Pz, GND, Ref
Marking of textile cap yes
Marking of electrodes yes
Weight 700 g
  • Electrode cap CLINIC
  • EEG starter kit
  • User manual

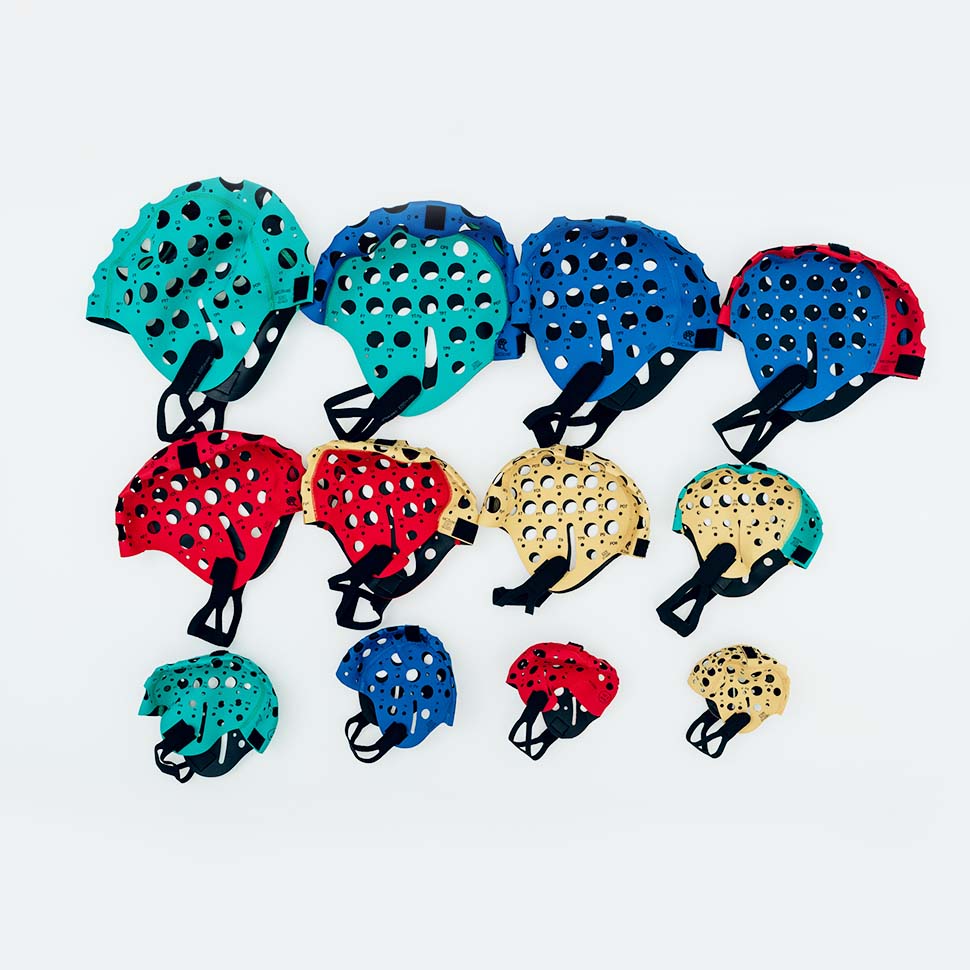

Size Application Head circumference
XL Adult 60-66 cm
XL/L Adult 57-63 cm
L Adults (most) 54-60 cm
L/M Teens, adults 51-57 cm
M Children, teens 48-54 cm
M/S Children under 5 years old 45-51 cm
S Children under 2 years old 42-48 cm
EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Yes
Medelec Oxford Inc.
Yes, adapter and additional electrode are required
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Yes
Neurocartograph-01-MBN MBN
Yes
Neurocartograph-02-MBN MBN
Yes
Neurocartograph-03-MBN MBN
Yes
Neurofax EEG 1200 Nikon Kohden
Yes, adapter is required
Neurofax EEG 1212 Nikon Kohden
Yes, adapter is required
Neurofax EEG 1221 Nikon Kohden
Yes, adapter is required
Neurofax EEG 9110 Nikon Kohden
Yes, adapter is required
Neurofax EEG 9210 Nikon Kohden
Yes, adapter is required
Neuron-Spectrum-1 Neurosoft
Yes, ear electrodes are required
Neuron-Spectrum-2 Neurosoft
Yes, ear electrodes are required
Neuron-Spectrum-3 Neurosoft
Yes
Neuron-Spectrum-4/EPM Neurosoft
Yes
Neuron-Spectrum-4/P Neurosoft
Yes
Neuron-Spectrum-5 Neurosoft
Yes
Neuron-Spectrum-61 Neurosoft
Yes
Neuron-Spectrum-62 Neurosoft
Yes
Neuron-Spectrum-63 Neurosoft
Yes
Neuron-Spectrum-64 Neurosoft
Yes
Neuron-Spectrum-65 Neurosoft
Yes
Neuron-Spectrum-AM Neurosoft
Yes
Neuropolygraph Neurocor
Yes
NeuroScope NS400 Biola
Yes, adapter is required
NeuroScope NS400A Biola
Yes, adapter is required
Nicolet EEG v32 (CareFusion) Natus
Yes, adapter and additional electrode are required
Nicolet One Viasys
Yes, adapter and additional electrode are required
NVX136 Medical Computer Systems
No
NVX24 Medical Computer Systems
Yes
NVX36 Medical Computer Systems
Yes
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
Associated products

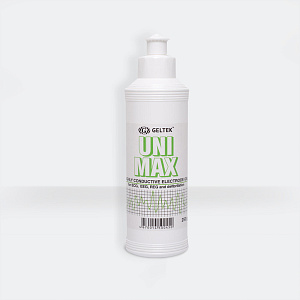

EEG gel Unimax
Electrode contact gel with high electrical conductivity, 250 gr
In stock
€5
Add to cart

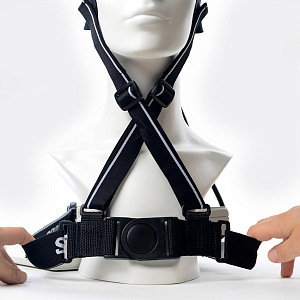

Chest belt
Chest belt for fixing textile cap
In stock
In stock
€20
Add to cart

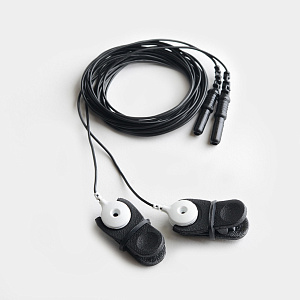

Ear electrodes CLINIC
