MCScap-T-HD electrode
MCScap‑T‑HD is a thin Ag/\AgCl sintered EEG electrode based on a MCScap‑T electrode. The MCScap‑T‑HD has a reduced body diameter for high-resolution EEG recording. The thin body provides patient comfort when examining in a supine position. The Ag / AgCl sintered electrode material guarantees minimum polarization and long-term signal stability, as well as an increased electrode life. The conductive surface of the MCScap electrodes is not in direct contact with the skin. Contact is provided by a conductive substance. A hole in the electrodes is designed to prepare the skin with a scrub and add an electrically conductive gel. Use with conductive paste is possible. The electrode has a universal connector TouchProof 1.5 mm, which fits most EEG amplifiers.
Material of electrode conductive surface | Ag/AgCl sintered |
Electrode body material | polyurethane |
Square of electrode conductive surface | 7 mm2 |
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin | 6.4 mm |
Surface area of contact of the electrode substance with the skin | 28.3 mm2 |
Outer diameter of the electrode at the point of contact with the skin | 10 mm |
Distance from the skin to the electrode conductive surface | 1.6 mm |
The diameter of the hole in the electrode to add gel | 3.2 mm |
Electrode polarization | ≤ 50 mV |
Resistance of electrodes insulation | ≥ 1000 MΩ |
Dielectric strength of electrodes insulation | 1500 V |
The impedance of the electrode | ≤ 5 kΩ |
Electrode cable length | 1.2 ±0.05 m |
Connector type | TouchProof 1.5 mm (DIN 42 802‑ST) |
Use with MCScap® textile caps | yes, fixing directly in the holes of the cap |
Net weight | < 4 g |
-

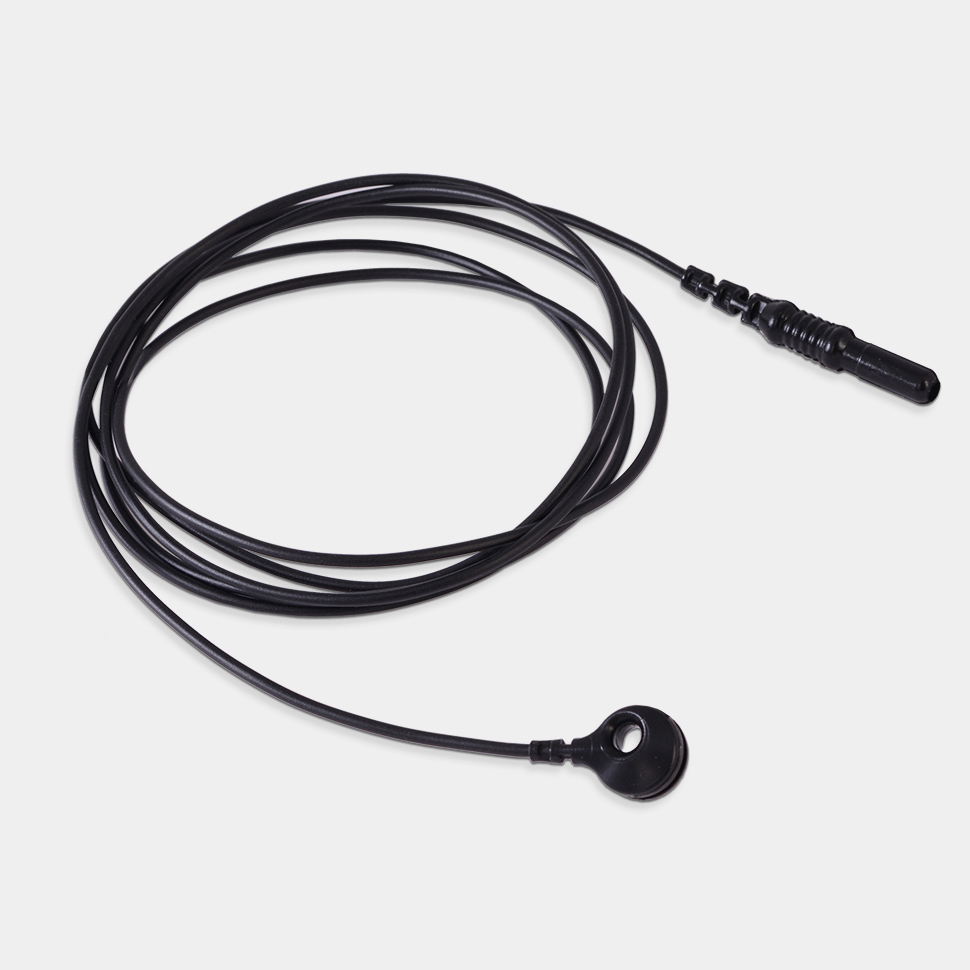

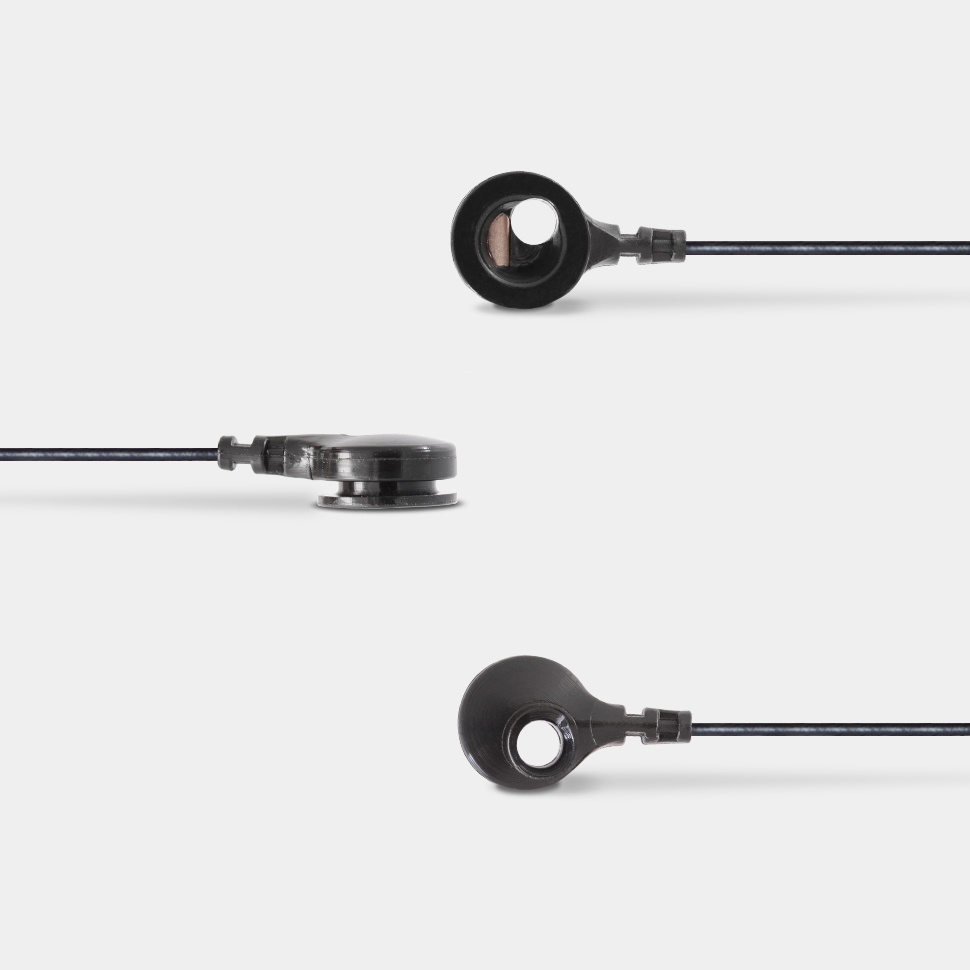

MCScap‑T‑HD electrode.
