MCScap-StNT electrode
MCScap-StNT electrode
Manufacturer code: 003-0-176
Compare (0)
Compare

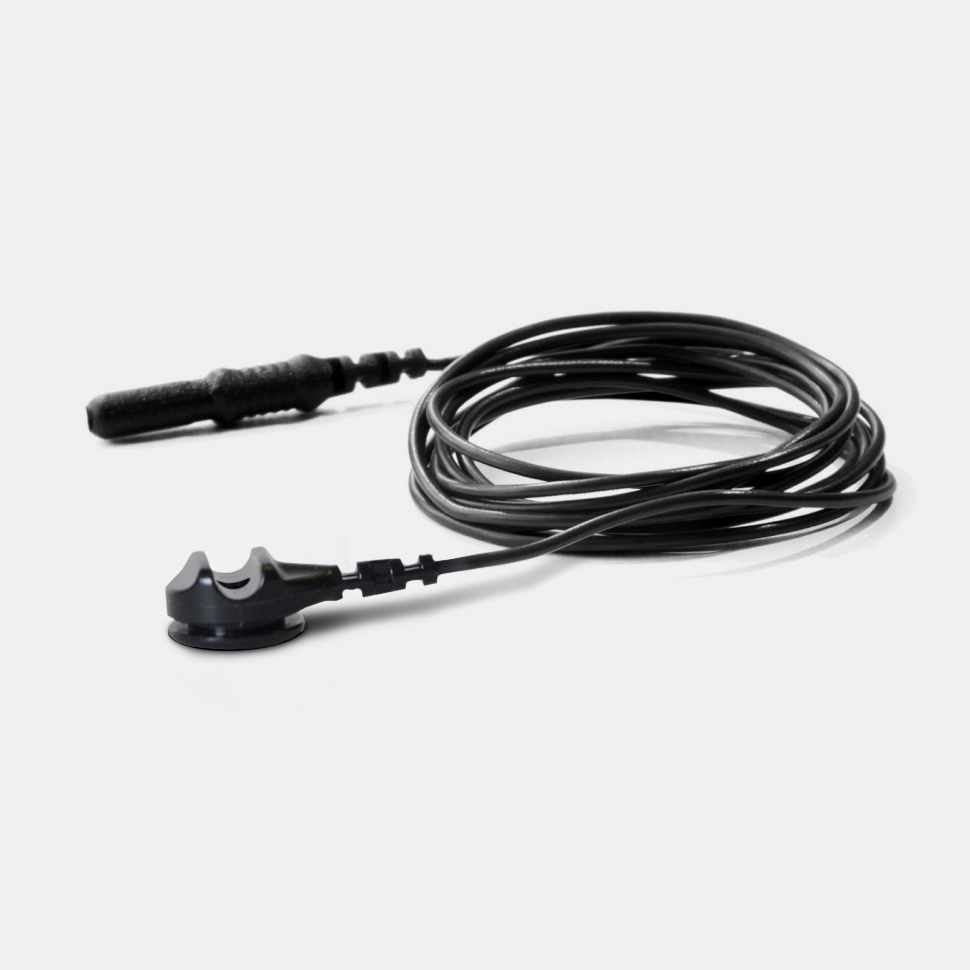

Cup Ag/AgCl sintered electrode with TouchProof 1.5 mm (DIN 42 802‑ST) connector, wire length 120 cm, compatible with silicone tubular cap
Quantity in a package
In stock
Price:
16
quantity
Add to cart
Overview
Specifications
Standard set

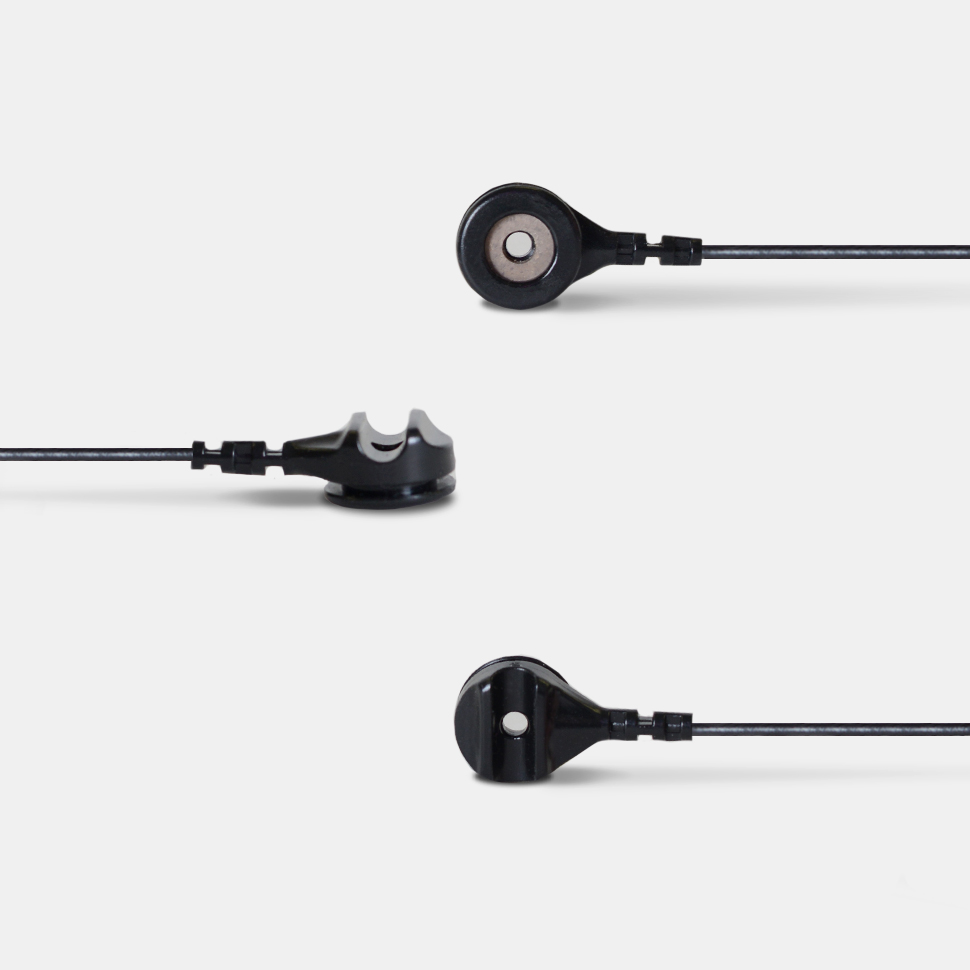

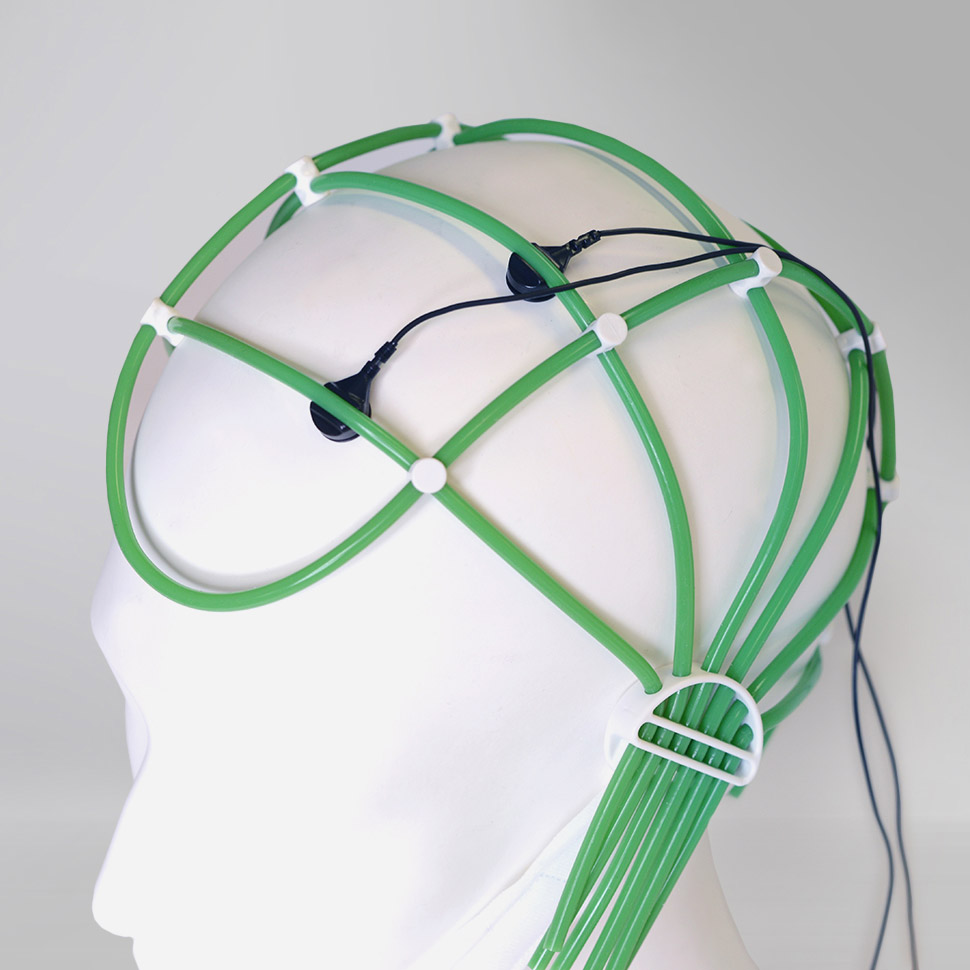

MCScap‑StNT electrode is a cup Ag/AgCl sintered electrode with TouchProof 1.5 mm (DIN 42 802‑ST) connector, wire length 120 cm, compatible with silicone tubular cap. MCScap‑StNT electrode is designed for research requiring increased patient comfort for a long time. MCScap‑StNT electrode has a fixator to mount to silicone tubular cap. The Ag/AgCl electrode material guarantees minimum polarization and long-term signal stability. MCScap electrodes are made in a plastic case to reduce artifacts during movement. The conductive surface of the MCScap electrodes is not in direct contact with the skin. Contact is provided by a conductive substance. A hole in the electrodes is provided to add a conductive gel. Use with conductive paste is possible. Electrode have additional labeling what makes easy to rearrange them to new textile base. The electrode has TouchProof 1.5 mm (DIN 42 802‑ST) connector.

Material of electrode conductive surface Ag/AgCl sintered
Electrode body material polyurethane
Square of electrode conductive surface 26 mm2
Internal diameter of the electrode at the point of contact of the electrode contact substance with the skin 8 mm
Surface area of contact of the electrode substance with the skin 50.2 mm2
Outer diameter of the electrode at the point of contact with the skin 11.9 mm
Distance from the skin to the electrode conductive surface 1.1 mm
The diameter of the hole in the electrode to add gel 2.8 mm
Electrode polarization ≤ 50 mV
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
The impedance of the electrode ≤ 5 kΩ
Electrode cable length 120
Connector type Touch Proof 1.5 mm DIN 42 802-ST
Weight
  • MCScap-StNT electrode
EEG amplifier
Electrode cap compatibility
Compact-neuro Neurotech
Custom
EEGA-21/26 "Encephalan-131-03" Medicom-mtd
Custom
MBN24 MBN
Custom
Medelec Oxford Inc.
Custom
Mitsar-EEG-03/35-201 MITSAR
Custom
Mitsar-EEG-05/70-201 MITSAR
Custom
Mitsar-EEG-10/70-201 MITSAR
Custom
Mitsar-EEG-202 (24+8) MITSAR
Custom
Mitsar-EEG-202 (31+1) MITSAR
Custom
Mitsar-EEG-202 (31+8) MITSAR
Custom
Neuro KM Statokyn
Custom
Neurocartograph-01-MBN MBN
Custom
Neurocartograph-02-MBN MBN
Custom
Neurocartograph-03-MBN MBN
Custom
Neurofax EEG 1200 Nikon Kohden
Custom
Neurofax EEG 1212 Nikon Kohden
Custom
Neurofax EEG 1221 Nikon Kohden
Custom
Neurofax EEG 9110 Nikon Kohden
Custom
Neurofax EEG 9210 Nikon Kohden
Custom
Neuron-Spectrum-1 Neurosoft
Custom
Neuron-Spectrum-2 Neurosoft
Custom
Neuron-Spectrum-3 Neurosoft
Custom
Neuron-Spectrum-4/EPM Neurosoft
Custom
Neuron-Spectrum-4/P Neurosoft
Custom
Neuron-Spectrum-5 Neurosoft
Custom
Neuron-Spectrum-61 Neurosoft
Custom
Neuron-Spectrum-62 Neurosoft
Custom
Neuron-Spectrum-63 Neurosoft
Custom
Neuron-Spectrum-64 Neurosoft
Custom
Neuron-Spectrum-65 Neurosoft
Custom
Neuron-Spectrum-AM Neurosoft
Custom
Neuropolygraph Neurocor
Custom
NeuroScope NS400 Biola
Custom
NeuroScope NS400A Biola
Custom
Nicolet EEG v32 (CareFusion) Natus
Custom
Nicolet One Viasys
Custom
NVX136 Medical Computer Systems
Custom
NVX24 Medical Computer Systems
Custom
NVX36 Medical Computer Systems
Custom
NVX52 Medical Computer Systems
Custom

Did not find your amplifier? Contact us: +7 499 404-31-41, shop@mcscap.ru or use feedback form
