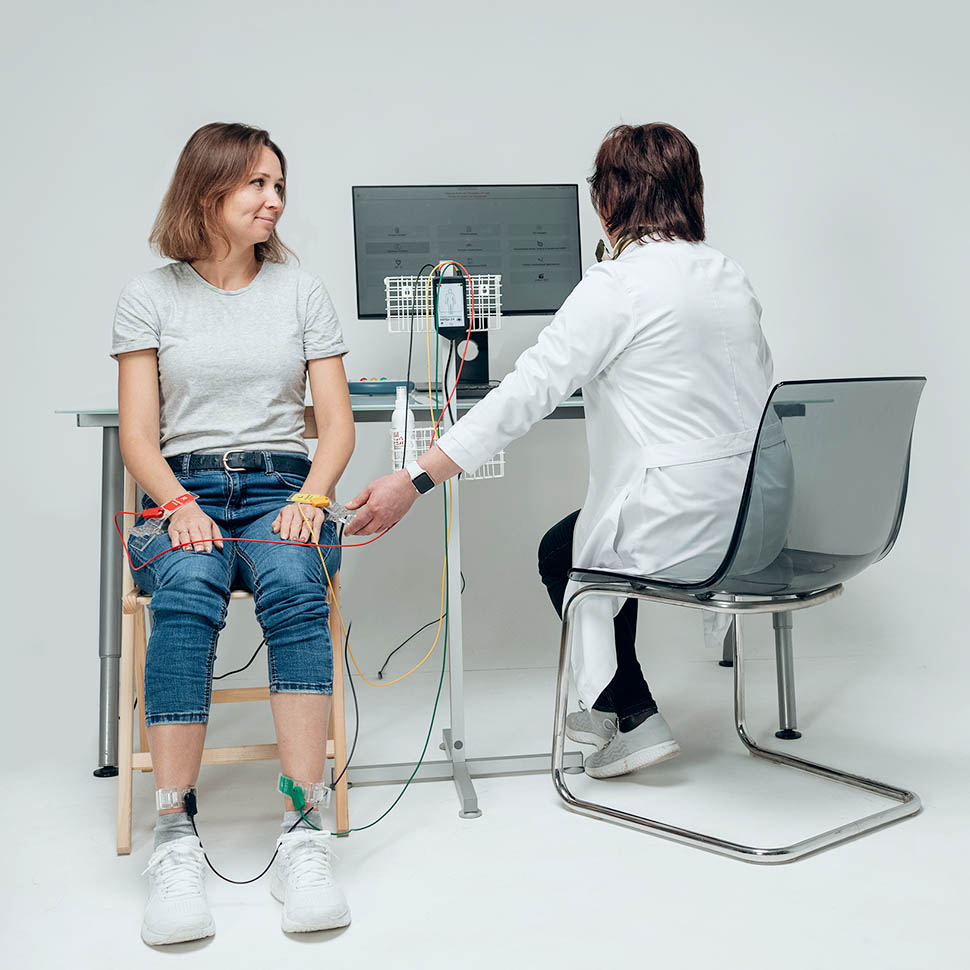

ECG clips electrodes MCS are used when recording an electrocardiogram (at rest and stress tests) to form ECG leads from the arms and legs when connected to an electrocardiograph.

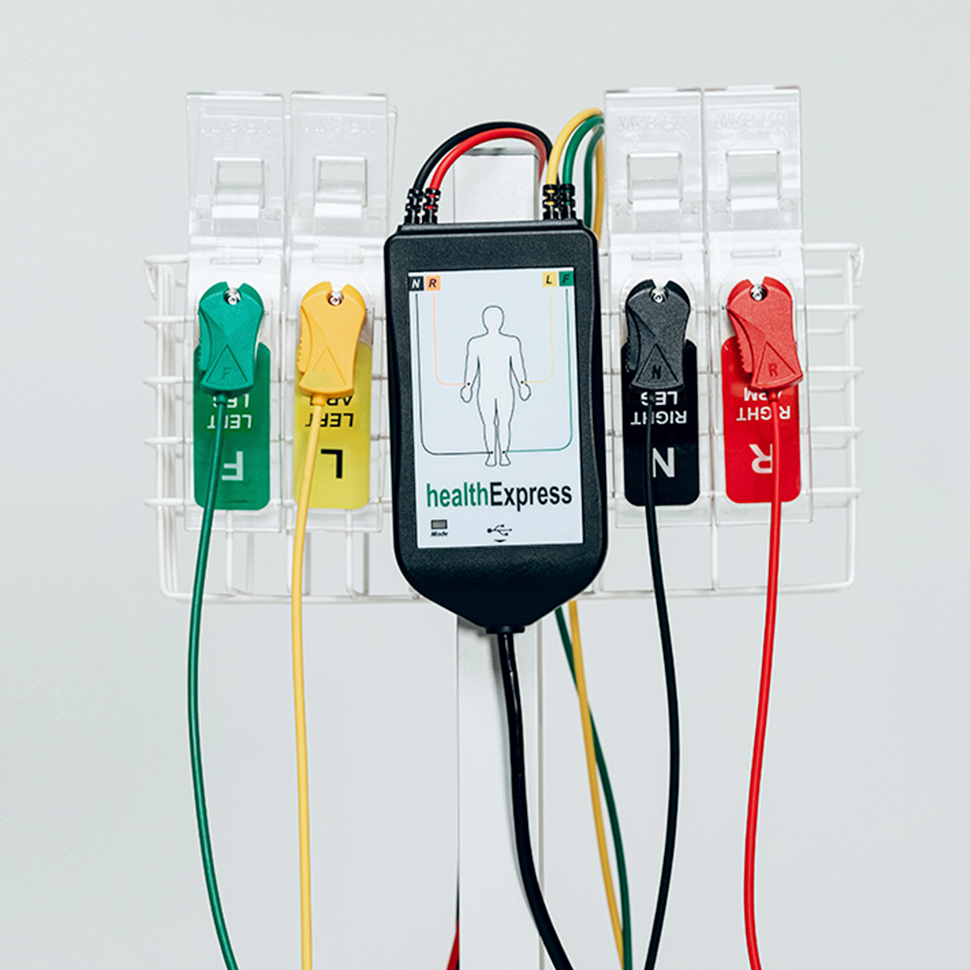

ECG electrodes are equipped with a connector for connection to an electrocardiograph type snap. The conductive surfaces of the electrodes have a silver chloride coating (Ag/AgCl).

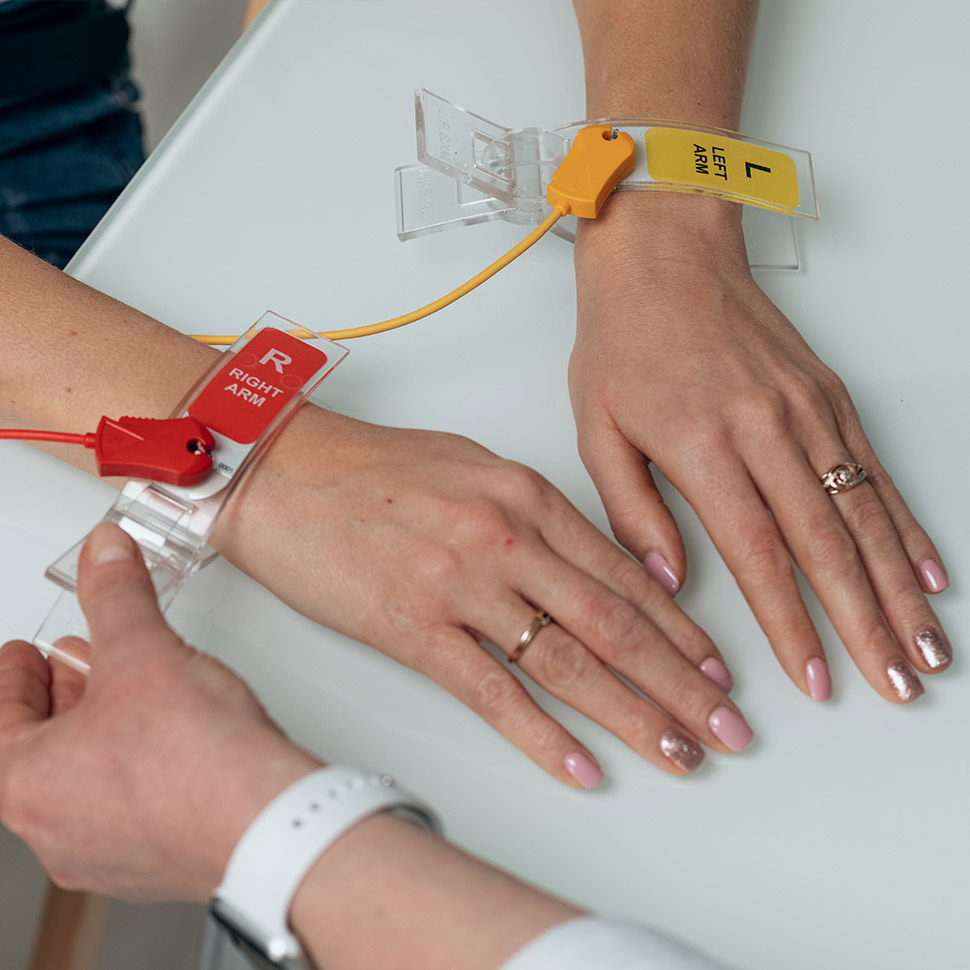

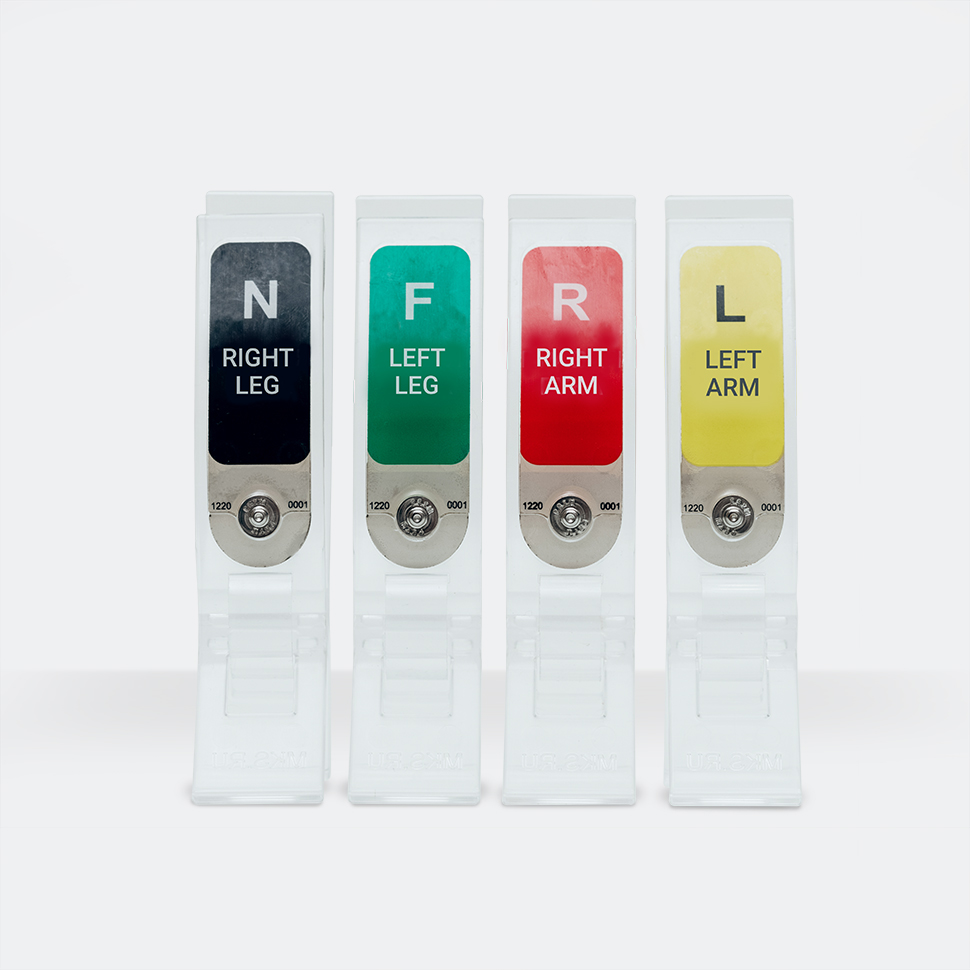

ECG electrodes-clips on the limb are made in the form of a clothespin. The contact of the current-collecting surface to the skin surface and fixation of the electrode in the desired position is ensured by the clamping force. The kit includes four electrodes with body color coding for easy identification of leads - red, yellow, green, black in accordance with standard scheme IEC 60601-2-25:2011.
|Dimentions of electrode conductive surface||30 x 60 mm|
|Electrode color coding (to identify patient cables)||red, yellow, green, black|
|Material of conductive surface||Ag/AgCl|
|Dielectric strength of electrodes insulation||> 30 V|
|Resistance of electrodes insulation||> 109 Ohm|
|Offset voltage (polarization)||100 mV (max)|
|Offset instability||< 250 µV|
|Noise||< 30 µV|
|The impedance of the electrode at 0.05 and 75 Hz||≤ 5 kΩ|
|Time electrode readiness||≤ 10 minutes|
|Electrode continuous contact time||at least 30 minutes|
|Mean useful life||not less 1,5 years|
|Time to restore product serviceability under operational transportation conditions||< 1 minute|
|Net weight||< 100 g|
ECG clips electrodes MCS - 1 pack/4 pcs.
