MCScap PROFESSIONAL combines the advantages of high stable big contact area of Ag/AgCl sintered sensor with the electrode form of a wide bowl with skirt. This cap is best decision for studies that requires high-quality EEG registration.
In stock
Product with the selected option combination is not available for purchase

MCScap PROFESSIONAL - textile cap with preinstalled Ag/AgCl sintered electrodes MCScap-NTC with DB25 common connector. EEG starter kit and bag are included.

Application: scientific research, high resolution EEG, MR-compatible EEG*

*MCScap PROFESSIONAL MR-compatible available by order.

Total weight 1100 g
Weight 750 g
Electrode polarization ≤ 50 mV
Number of electrodes (channels) 21 (20) (from 11 up to 129 available by order)
Material of electrode sensor Ag/AgCl sintered
Electrode type MCScap-NTC (MCScap-NT available by order)
Resistance of electrodes insulation ≥ 1000 MΩ
Dielectric strength of electrodes insulation 1500 V
Diameter of a conductive surface 6(+1/-1) mm
Square of a conductive surface ≥ 30 mm2
The impedance of the electrode ≤ 5 kΩ
Spare electrode 1
Channels in Standard caps Fp1, Fp2, F3, F4, C3, C4, P3, P4, O1, O2, F7, F8, Т3, T4, T5, T6, Cz, Fz, Pz, Fcz, GND
Ear electrodes no (can be included by order)
Marking of the electrodes yes
Additional wire protection yes
Exit of electrode cable from the cap back of the head
Connector type D-sub DB25 Male
Length of the electrode cable 1.5 m
Size by color by color of the seam
Mean time to failure (MTTF) 300 cycles
Warranty 12 months
1 spare electrode with TP connector
Ear electrode fixators
EEG starter kit (gel, syringe, needle, brush)
User manual
Size Fit for Head circumference
XL Adults 60-66 cm
XL/L Adults 57-63 cm
L Adults (most) 54-60 cm
L/M Teenagers, adults 51-57 cm
M Children, teenagers 48-54 cm
M/S Children up to 5 years 45-51 cm
S Children up to 2 years 42-48 cm
S/XS Children up to 1 year 39-45 cm

With this product also bought

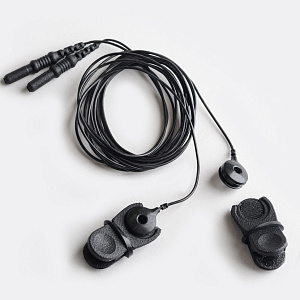

Ear electrodes PROFESSIONAL
In stock

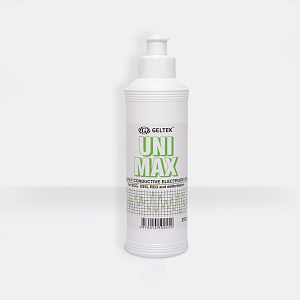

EEG gel

In stock
Reusable blunted needle, 2,0х17 mm

Used with a syringe for introduction of the gel

In stock

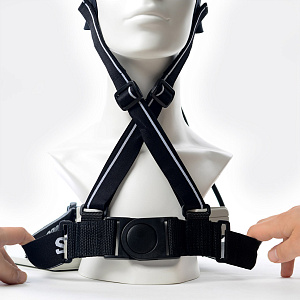

Chest belt MCScap-B
